Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the power seat adjuster switch (5) to the seat cushion (1).
  2. Remove the power seat adjuster switch from the seat cushion.
  3. Disconnect the electrical connector from the power seat adjuster switch.
  4. Remove the power seat adjuster switch from the vehicle.

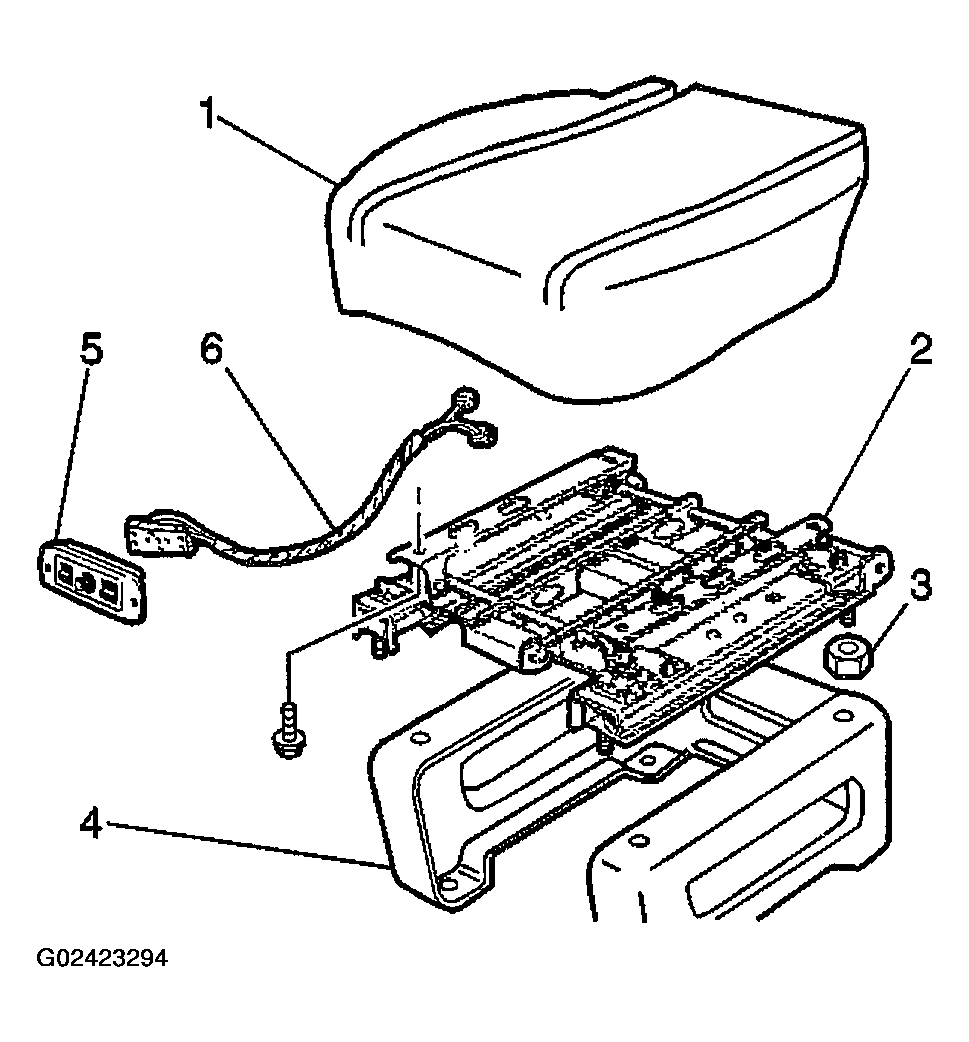

    Fig 1: Removing Power Seat Adjuster Switch
    G02423294Courtesy of GENERAL MOTORS CORP.
