Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly from the vehicle. Refer to Seat Replacement .
  2. Remove the nuts (2) that retain the seat riser (3) to the seat adjuster (1).
  3. Remove the front seat assembly from the seat riser.

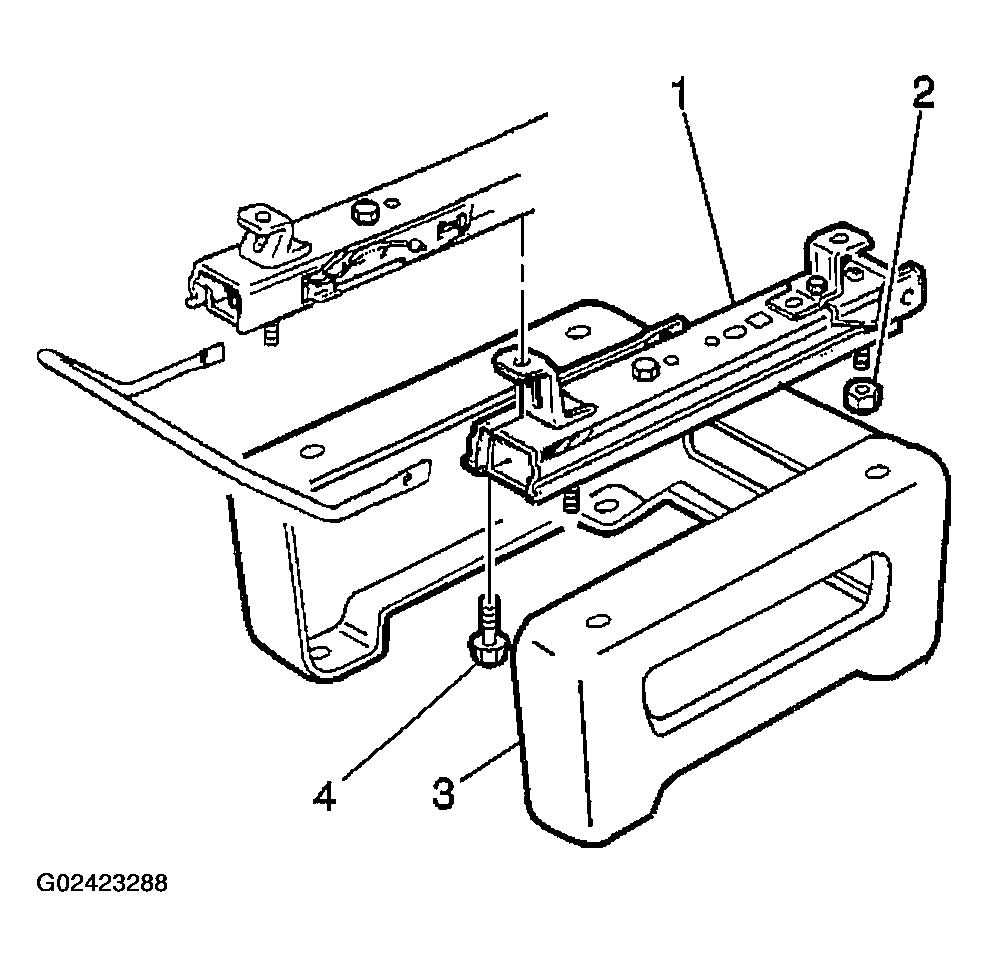

    Fig 1: Removing Seat Riser
    G02423288Courtesy of GENERAL MOTORS CORP.
