Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to SIR CAUTION .
  1. Disable the SIR. Refer to ZONE 3 or ZONE 5 .
  2. If seat is equipped with power seat motors, disconnect the electrical connector from the seat assembly.
  3. Remove the nuts (3) that retain the seat assembly to the vehicle.
  4. Remove the front seat assembly from the vehicle.

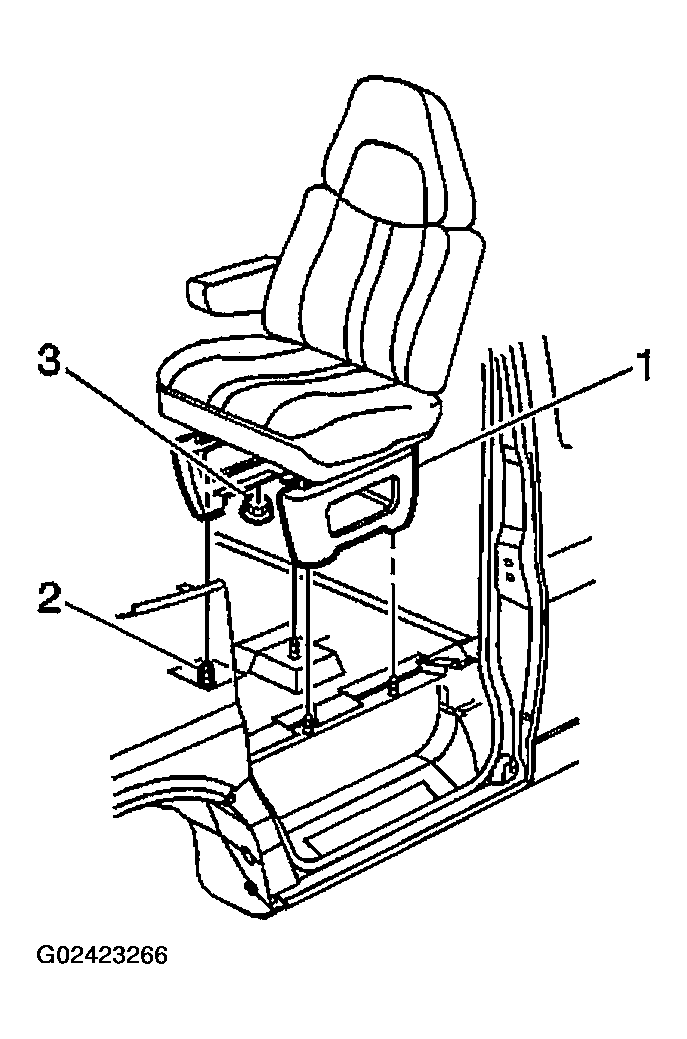

    Fig 1: Removing Seat Assembly
    G02423266Courtesy of GENERAL MOTORS CORP.
