Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Rotate the locking pin (3) at the rear of the seat riser out of the retainer.
Pull the locking pin (3) out from the rear of the seat riser.

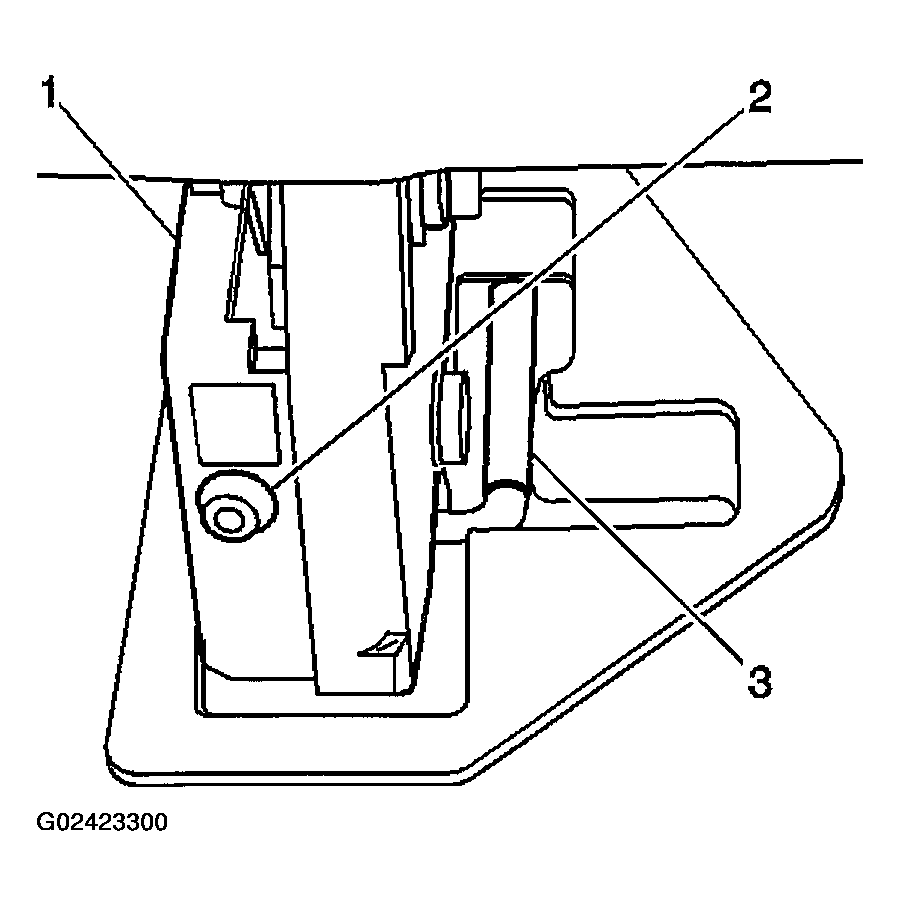

Fig 1: Removing Locking Pin From Rear Of Seat Riser
Courtesy of GENERAL MOTORS CORP.
Stow the locking pin in the hole provided at the rear of the seat riser (2).

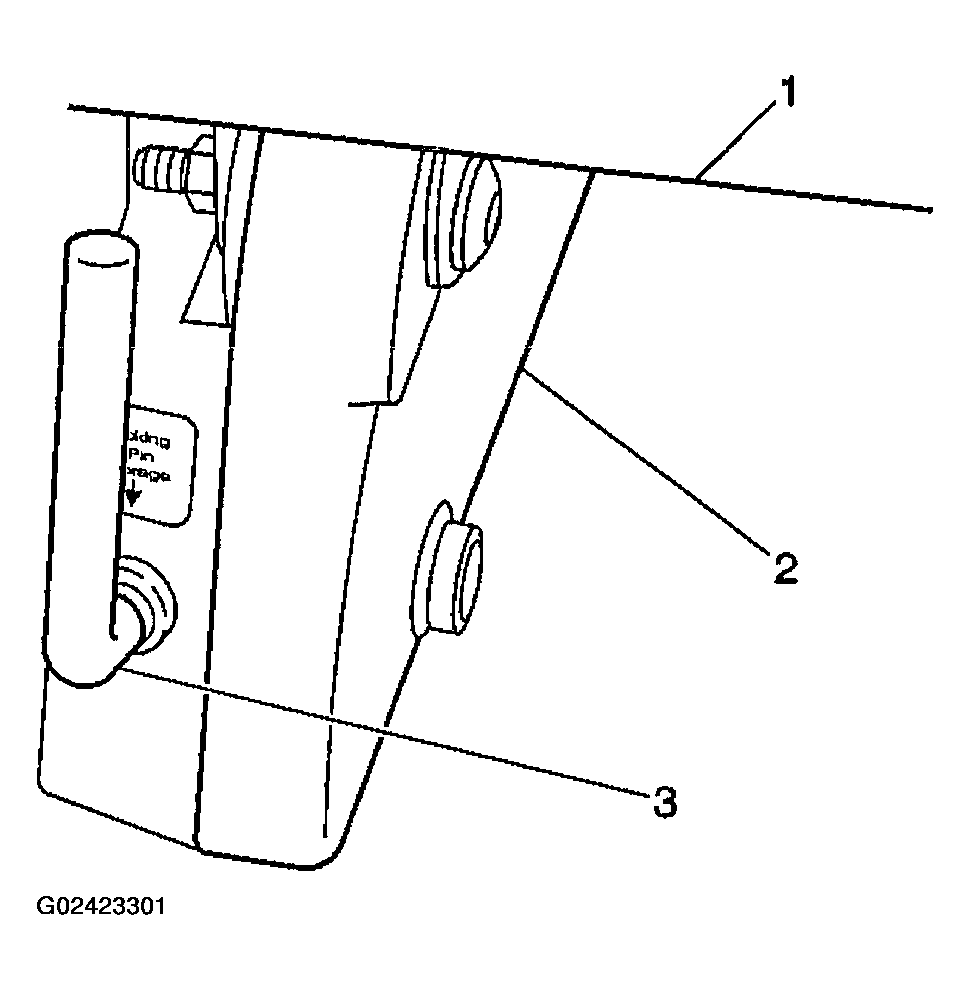

Fig 2: Stowing Locking Pin In Hole
Courtesy of GENERAL MOTORS CORP.
Lift the seat up and out of the floor rails.

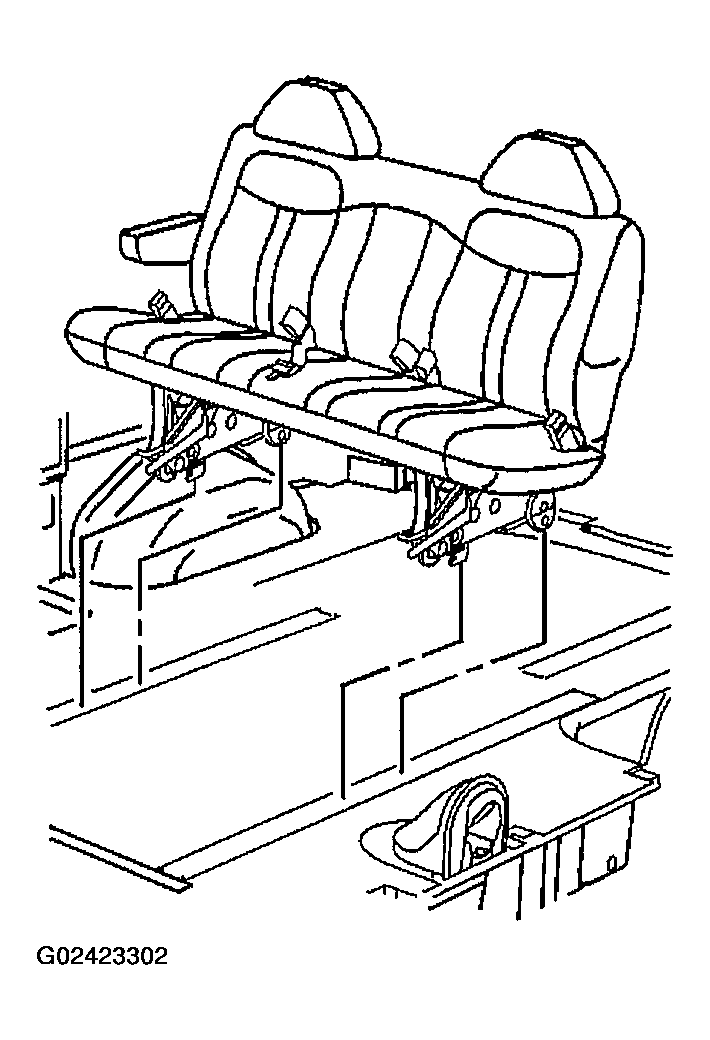

Fig 3: Lifting Seat Up From Floor Rails
Courtesy of GENERAL MOTORS CORP.
Remove the seat from the vehicle.

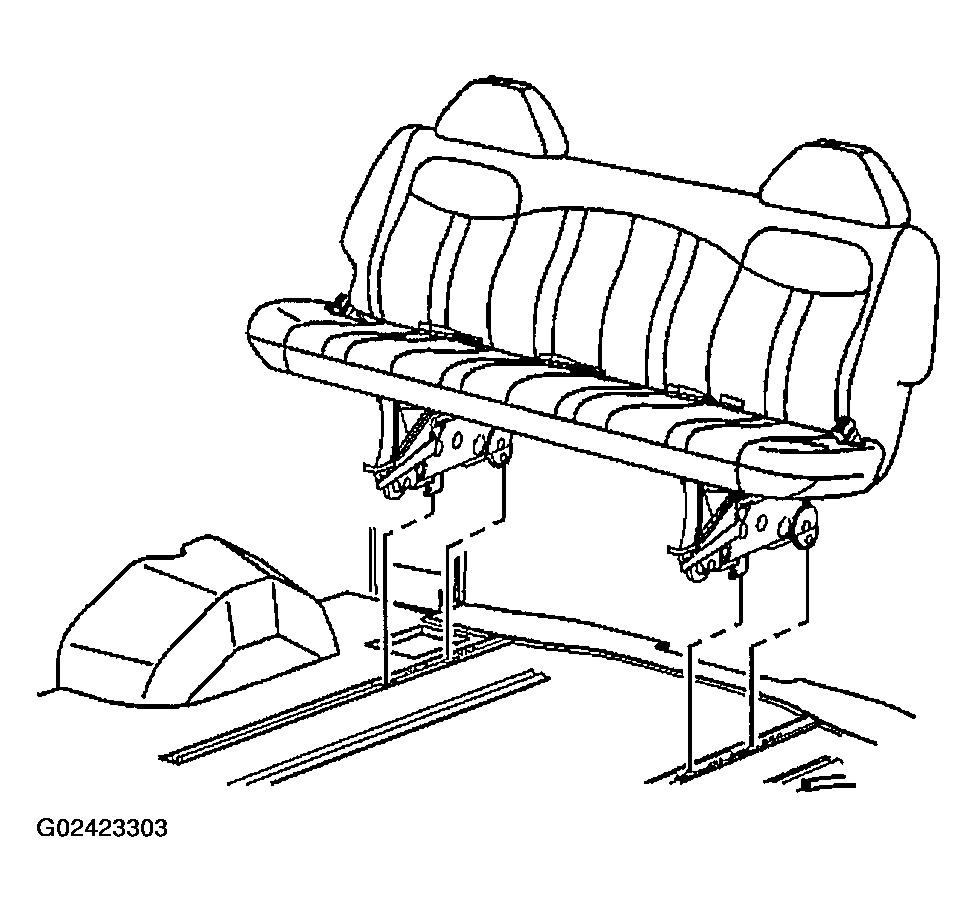

Fig 4: Removing Rear Bench Seat
Courtesy of GENERAL MOTORS CORP.
