Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement .
  2. Remove the seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Front .
  3. Remove the bolts (7) retaining the seat back hinge / recliner mechanisms (6) to the seat cushion frame. Refer to Seat Back Hinge/Recliner Mechanism Replace - Front .

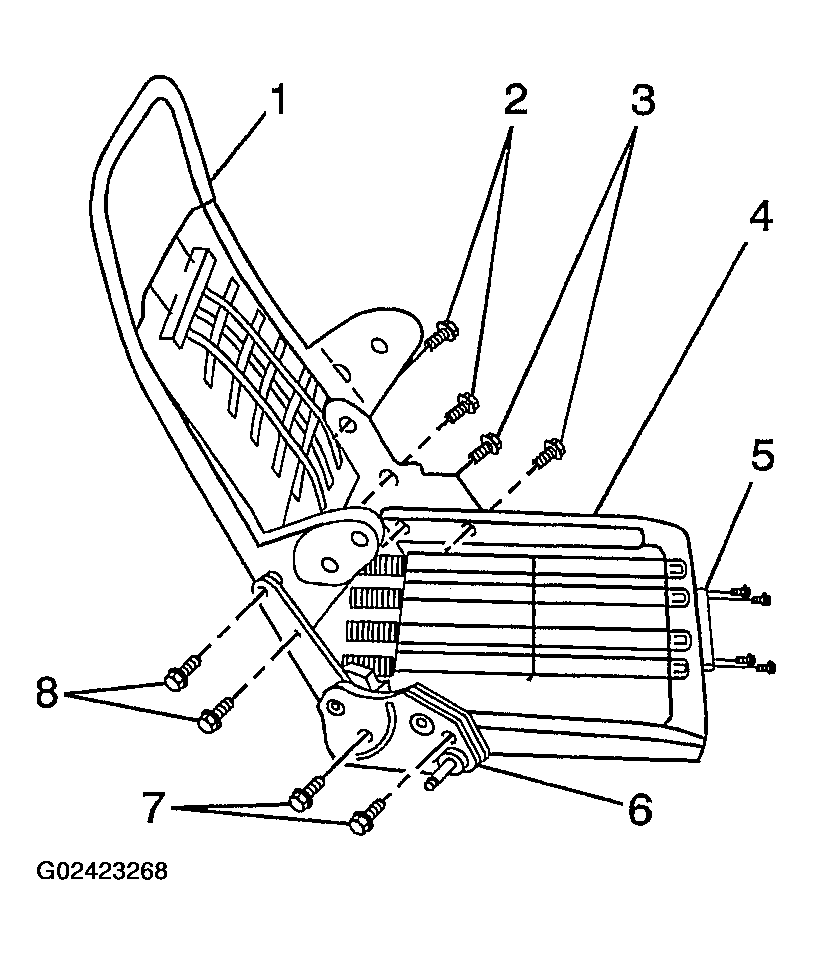

    Fig 1: Removing Seat Back Hinge/Recliner Mechanisms To Seat Cushion Frame Bolts
    G02423268Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (4) retaining the seat cushion frame to the adjuster.

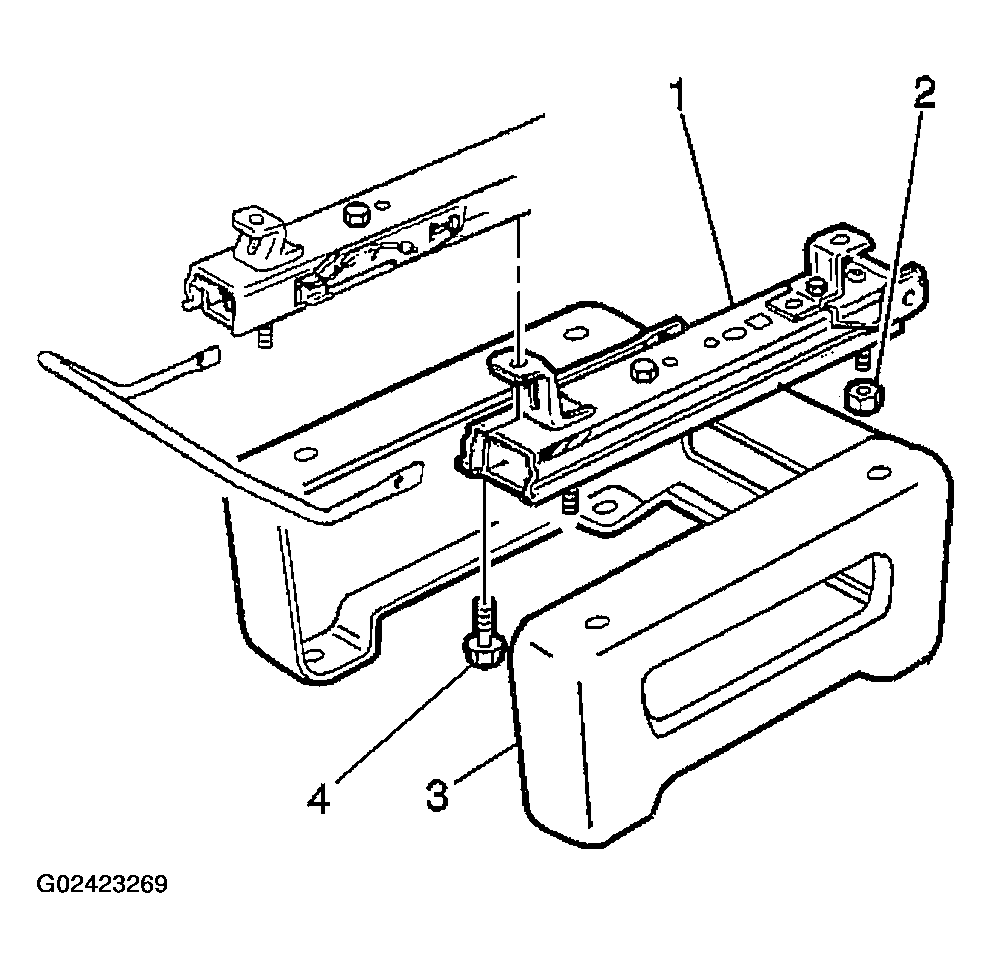

    Fig 2: Removing Seat Cushion Frame To Adjuster Bolts
    G02423269Courtesy of GENERAL MOTORS CORP.
  5. Remove the power seat switch bracket (2), if equipped.

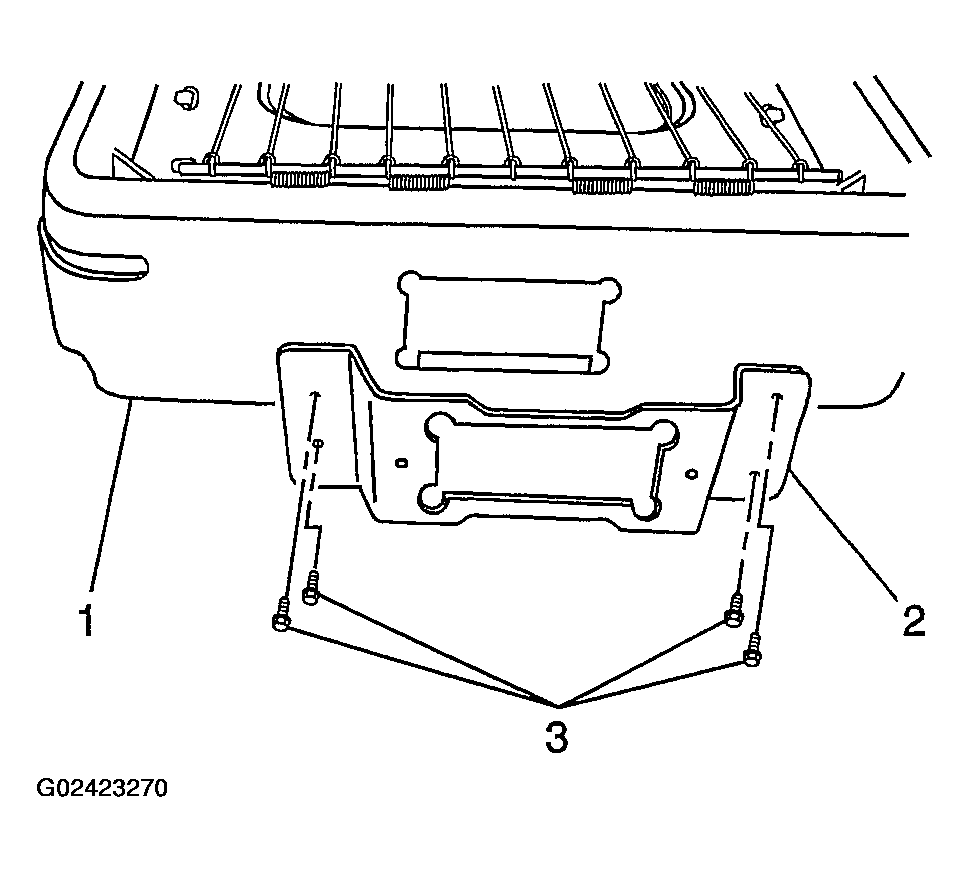

    Fig 3: Removing Power Seat Switch Bracket
    G02423270Courtesy of GENERAL MOTORS CORP.
