Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear Bench .
  2. Remove the seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Rear .
  3. Remove the seat belt buckles. Refer to SEAT BELT BUCKLE REPLACEMENT - FRONT .
  4. Remove the lower anchor bolt for the center seat belt retractor, if equipped. Refer to SEAT BELT REPLACEMENT - CENTER REAR .

    Important:  Note the position and length of the bolts removed. This will assist with reassembly.

  5. Remove the bolts retaining the seat back hinges to the seat cushion frame.

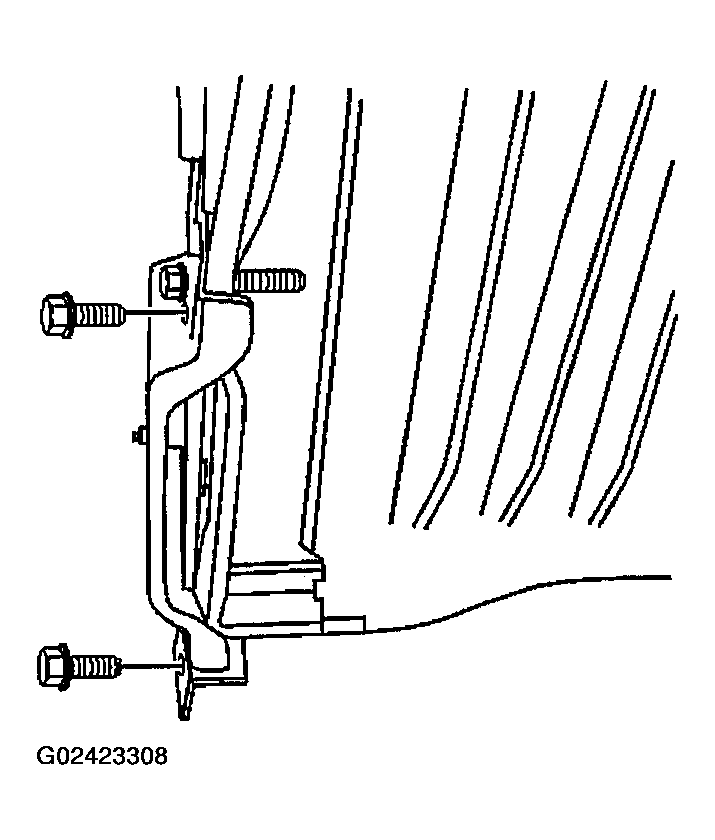

    6. Fig 1: Removing Seat Back Hinges To Seat Cushion Frame Bolts
    G02423308Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat cushion frame.

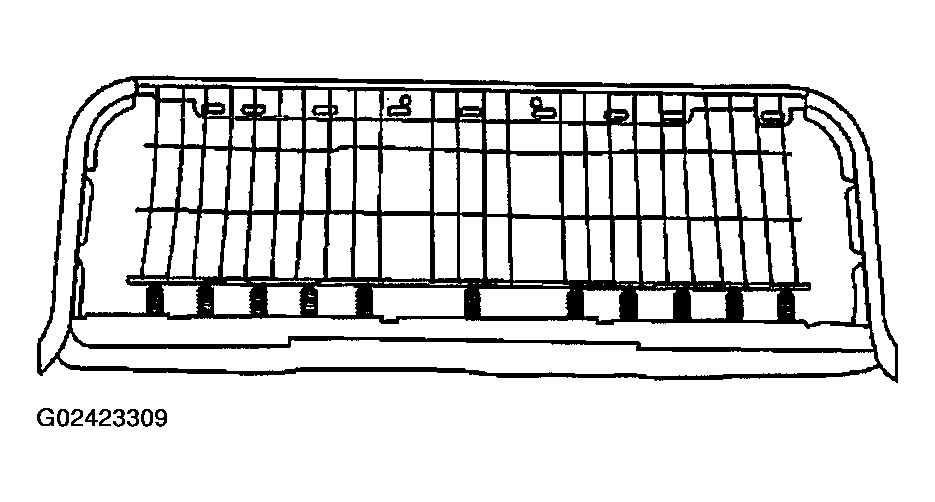

    Fig 2: Removing Rear Seat Cushion Frame
    G02423309Courtesy of GENERAL MOTORS CORP.
