Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat cushion pad to the seat cushion frame.
  2. Position the seat cushion cover to the seat cushion pad.
  3. Engage the hook and loop fasteners.
  4. Engage the J channel fasteners.
  5. Install the seat riser. Refer to Seat Riser Replacement - Rear .
  6. Install the rear seat into the vehicle. Refer to Seat Replacement - Rear Bench .

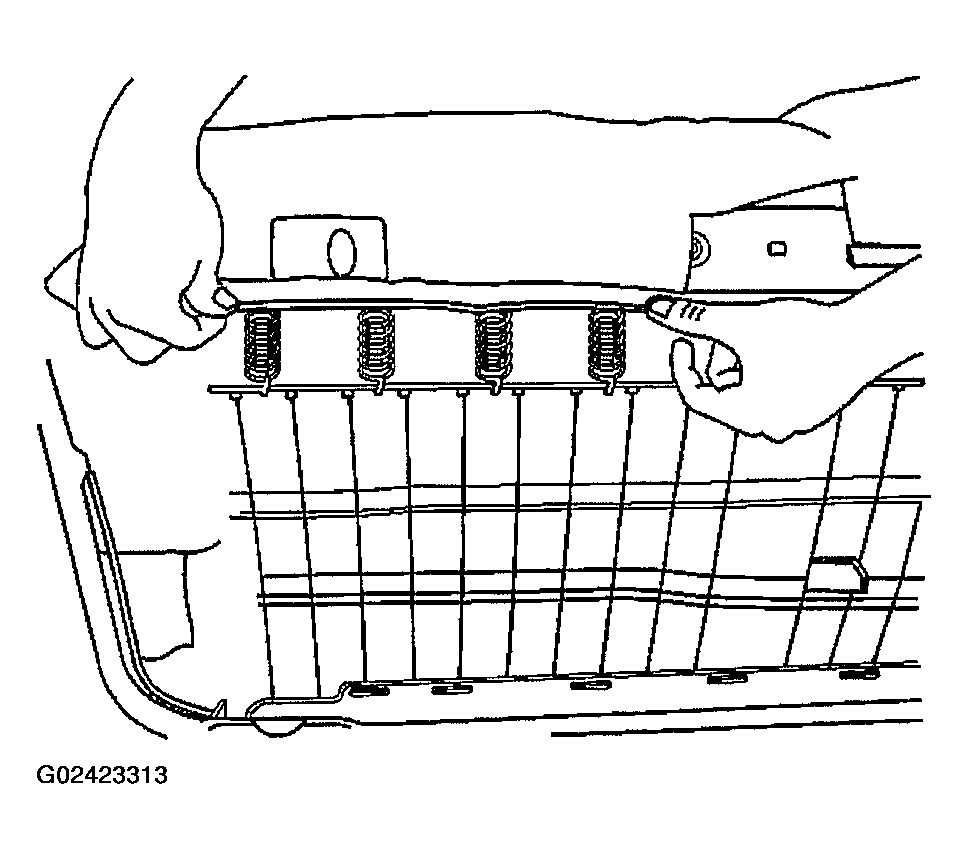

    Fig 1: Installing Rear Seat Cushion Cover & Pad
    G02423313Courtesy of GENERAL MOTORS CORP.
