Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with a power seat adjuster, raise the seat to the full up position.
  2. Remove the front seat from the vehicle. Refer to Seat Replacement .
  3. Remove the seat back cover enough to expose the recliner mechanism bolts (2,7). Refer to Seat Back Cover and Pad Replacement - Front .
  4. Remove the recliner bolts (2,7).
  5. Remove the seat back (1) from the seat assembly.

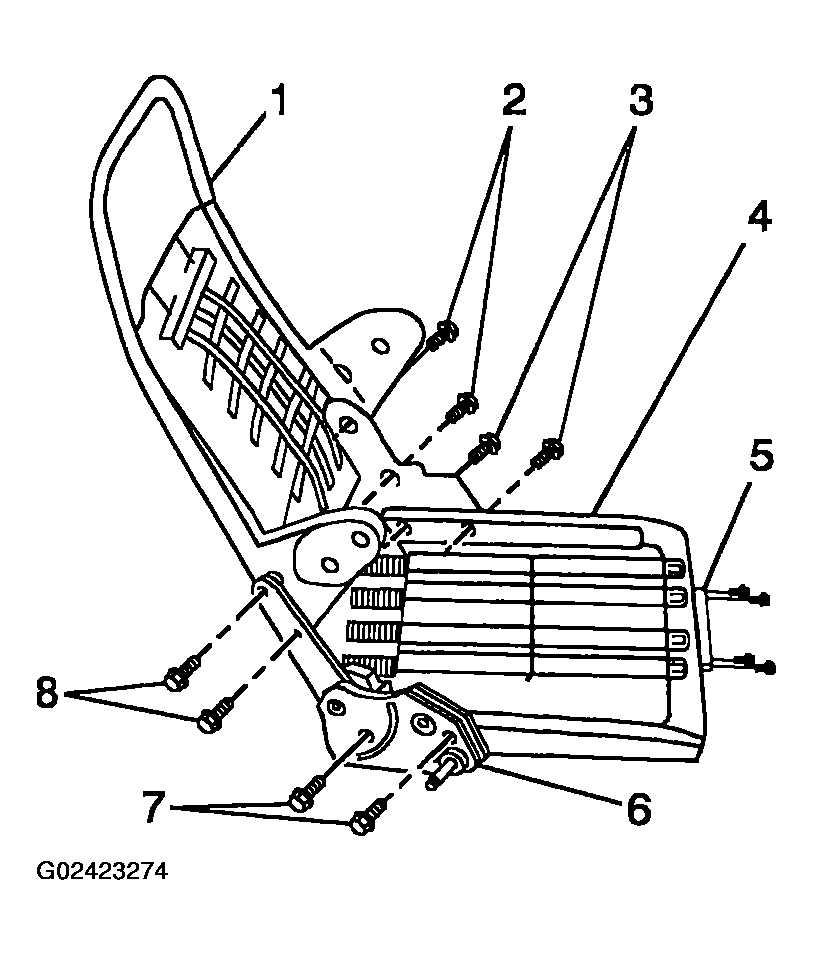

    Fig 1: Removing Recliner Mechanism Bolts & Seat Back
    G02423274Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat cushion from the seat adjuster assembly (4).
    1. 6.1. Remove the recliner handle. Refer to Seat Back Recliner Handle Replacement - Front .
    2. 6.2. Remove the power seat adjuster switch, if equipped. Refer to Seat Switch Replacement - Power .
    3. 6.3. Remove the bolts securing the seat cushion frame (3) to the adjuster assembly (4).
  7. Release the seat cushion J channel retainers from the seat cushion frame.
  8. Release the hook and loop strips that retain the seat cushion cover (1) to the seat cushion pad (2).
  9. Remove the seat cushion cover from the foam pad.
  10. Remove the foam pad (2) from the cushion frame (3).

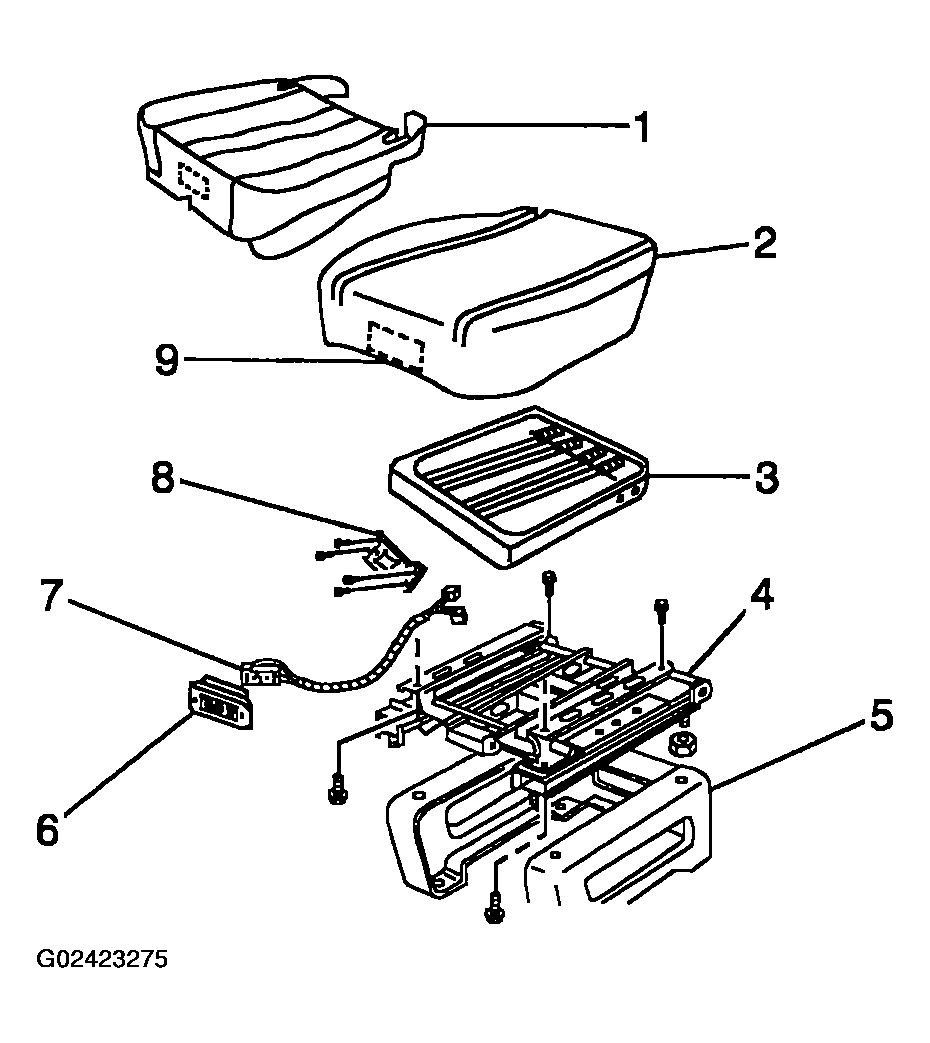

    Fig 2: Removing Front Seat Cushion Cover & Pad
    G02423275Courtesy of GENERAL MOTORS CORP.
