Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear Bench .
  2. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear .

    Important:  Note the position and the length of the bolts removed. This will assist with reassembly.

  3. Remove the right and left bolts that retain the seat back frame to the seat back hinges.

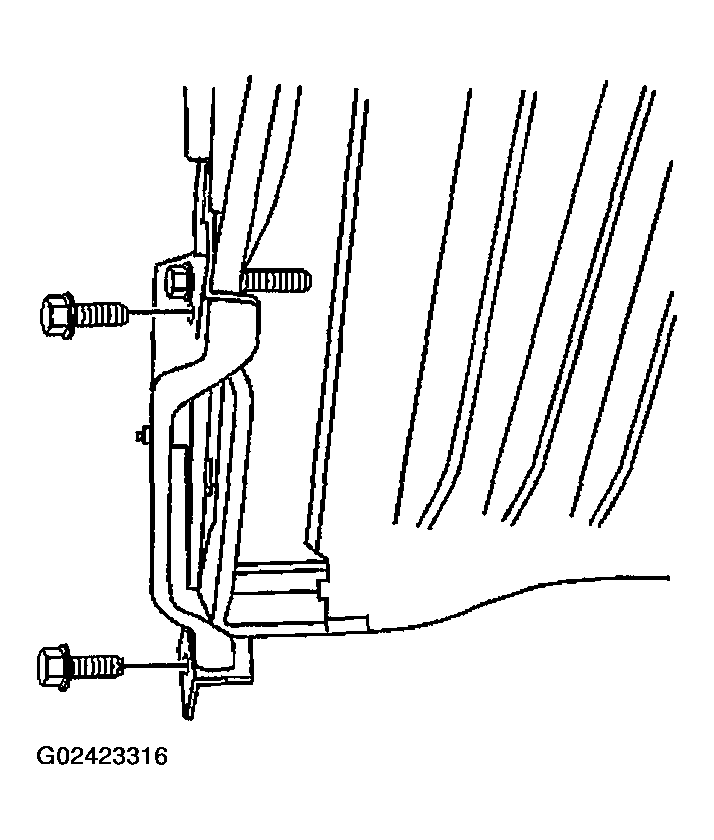

    Fig 1: Removing Seat Back Frame To Seat Back Hinge Bolts
    G02423316Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat back frame.

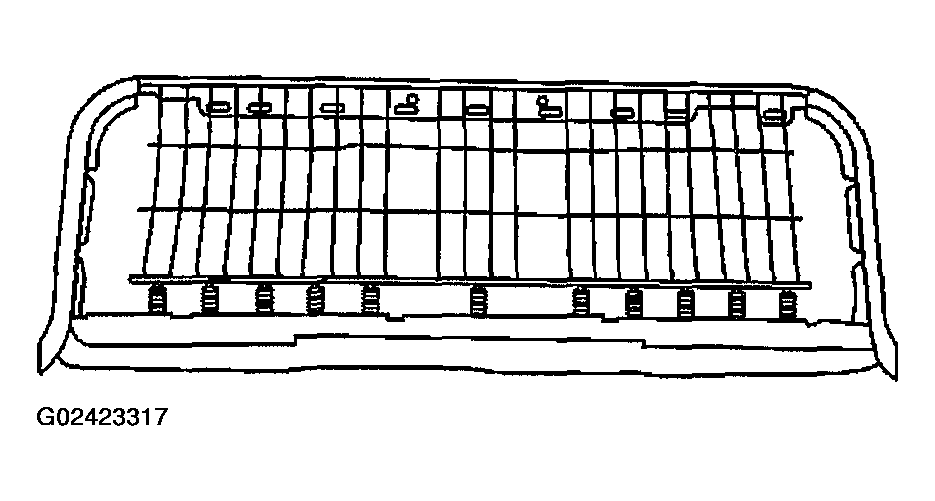

    Fig 2: Removing Rear Seat Back Frame
    G02423317Courtesy of GENERAL MOTORS CORP.
