Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement .
  2. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  3. Remove the bolts (2,8) from the recliners on the right and left side.
  4. Remove the seat back frame.

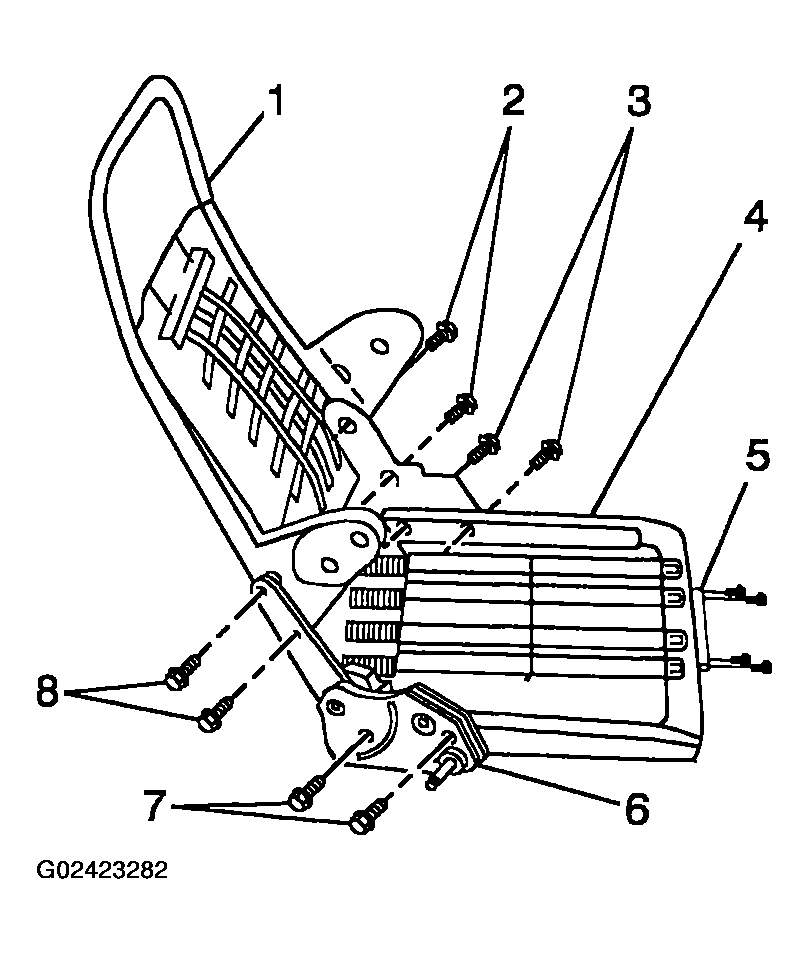

    Fig 1: Removing Front Seat Back Frame
    G02423282Courtesy of GENERAL MOTORS CORP.
