Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the armrest from the seat back. Refer to Armrest Replacement - Rear Seat .
  2. Remove the center seat belt retractor, if equipped. Refer to SEAT BELT REPLACEMENT - CENTER REAR .
  3. Release the J channel Fastener at the bottom edge of the seat back cover (3).
  4. Release the hook and loop strips that retain the seat back cover to the seat back foam pad (2).
  5. Working from side to side, carefully lift the seat back cover from the foam pad.
  6. Remove the foam pad (2) from the seat back frame (1).

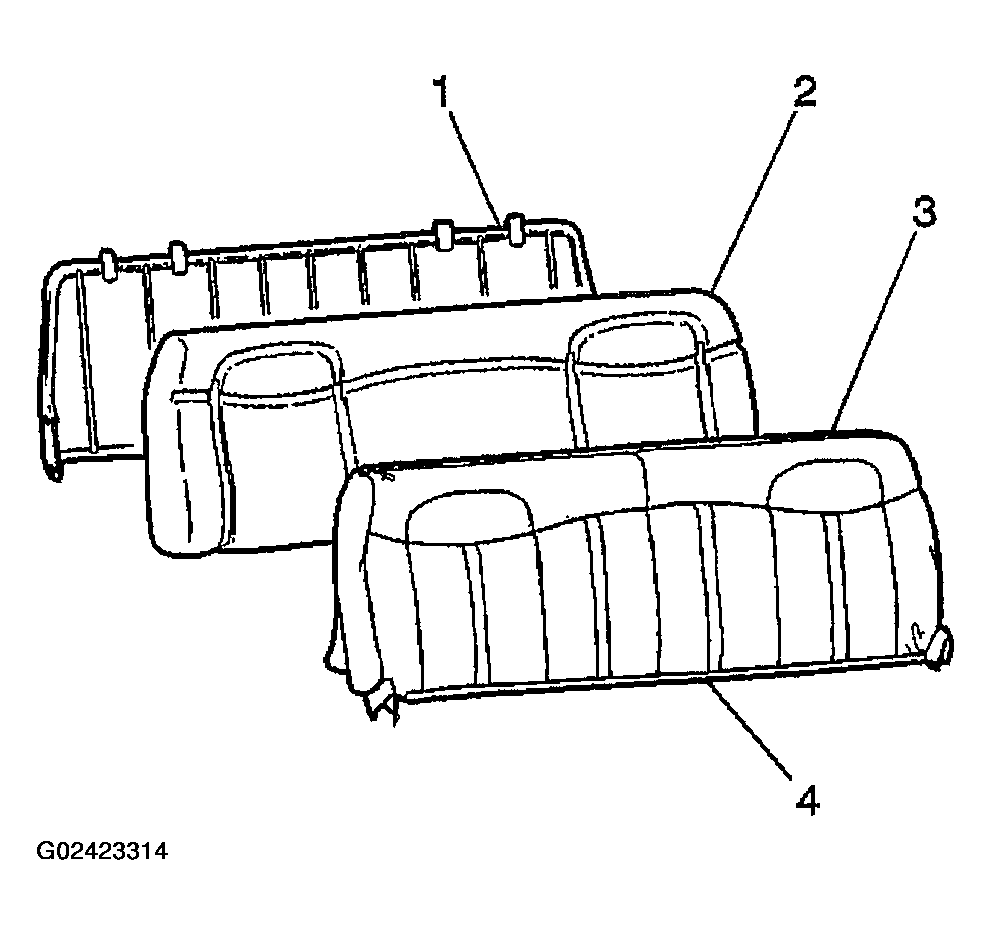

    Fig 1: Removing Rear Seat Back Cover & Pad
    G02423314Courtesy of GENERAL MOTORS CORP.
