Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the assist handle if equipped. Refer to Assist Handle Replacement .
  2. Release J channel retainers at the bottom edge of the seat back cover (1).
  3. Remove the armrest. Refer to Armrest Replacement - Front Seat .
  4. Release the hook and loop strips that retain the seat back cover (1) to the seat back foam pad (2).
  5. Working from side to side, lift the seat back cover (1) from the foam pad (2).
  6. Peel the seat back foam pad (2) away from the seat back frame.
  7. Remove any residue left from the foam pad or glue from the seat back frame.

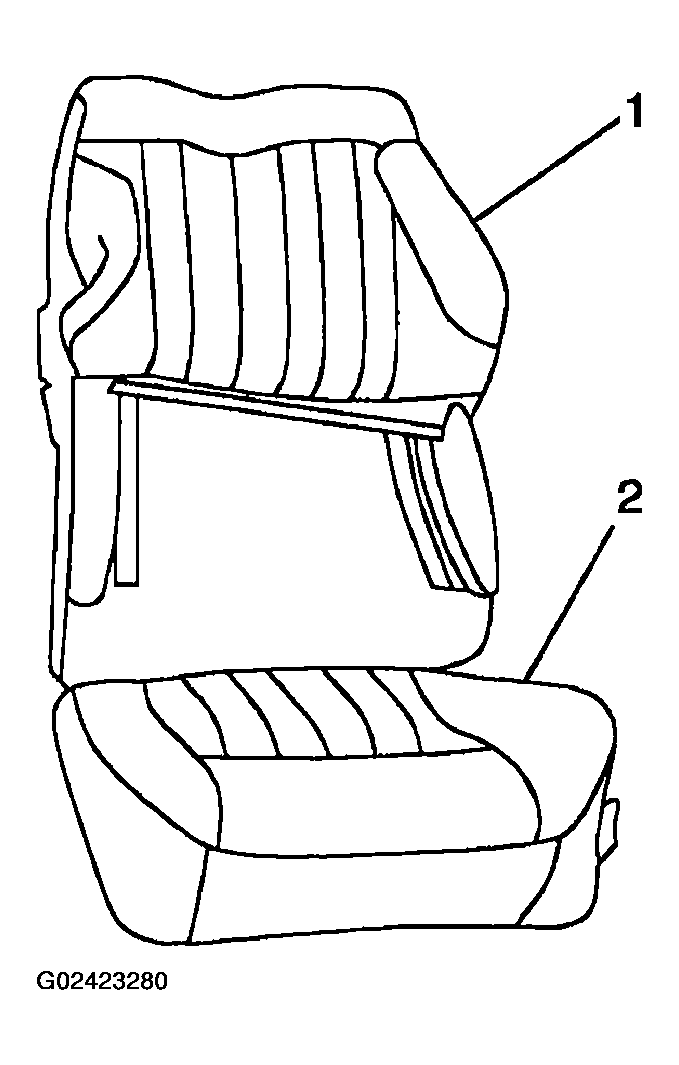

    Fig 1: Removing Front Seat Back Cover & Pad
    G02423280Courtesy of GENERAL MOTORS CORP.
