Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat adjuster (2) to the seat cushion frame (1).
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts to retain the seat adjuster (2) to the seat cushion frame (1).

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

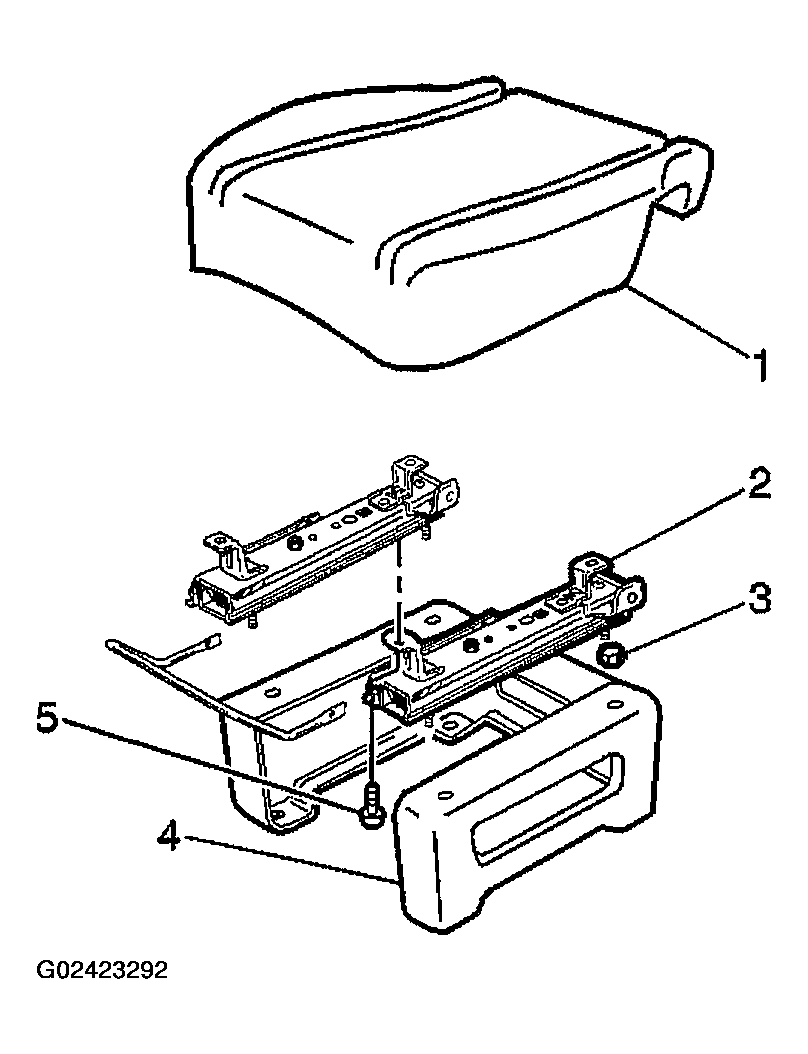

    Fig 1: Installing Front Seat Adjuster To Seat Cushion Frame
    G02423292Courtesy of GENERAL MOTORS CORP.
  3. Position the seat cushion (1) and the seat adjuster (2) to the seat riser (4).
  4. Install the nuts (3) to retain the seat adjuster to the seat riser.

    Tighten

    Tighten the nuts (3) to 45 N.m (33 lb ft).

  5. Connect the electrical connectors to the power seat motors, if equipped.

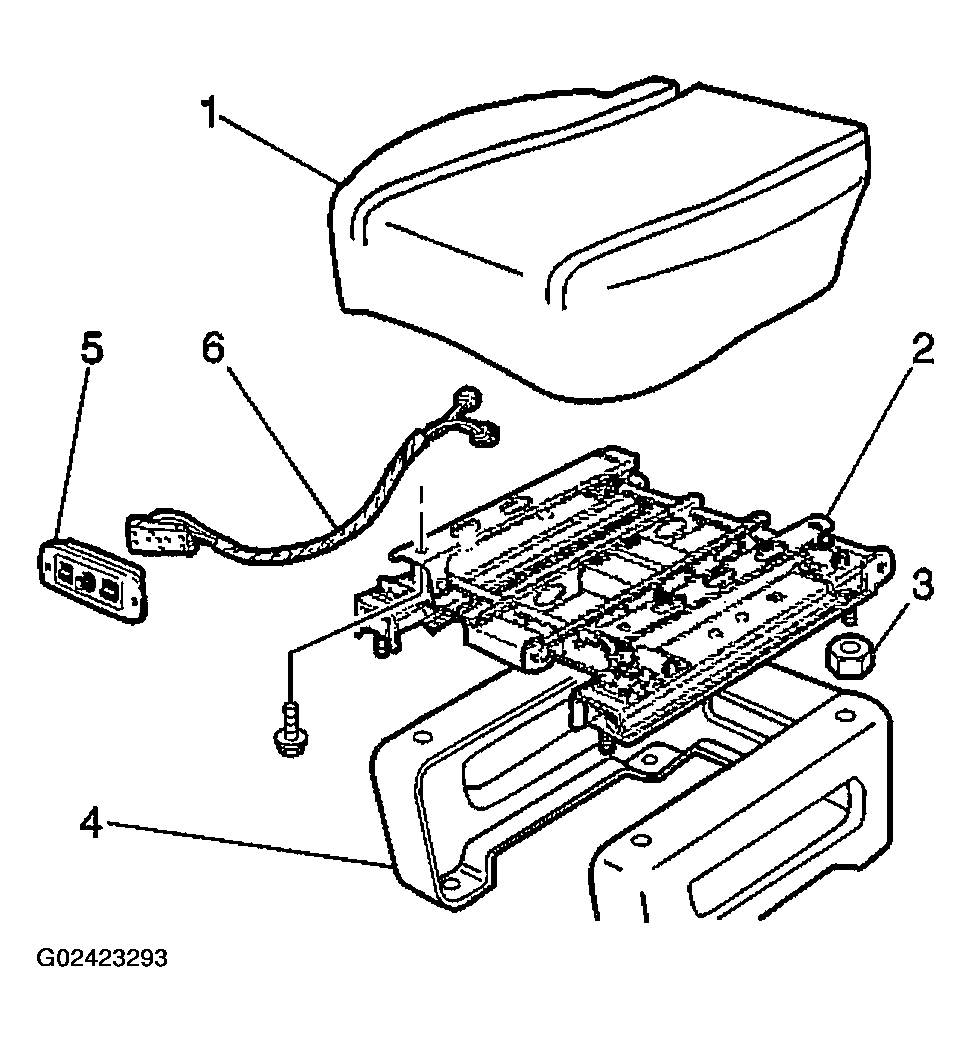

    Fig 2: Installing Front Seat Adjuster To Seat Riser
    G02423293Courtesy of GENERAL MOTORS CORP.
