Harness Routing Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

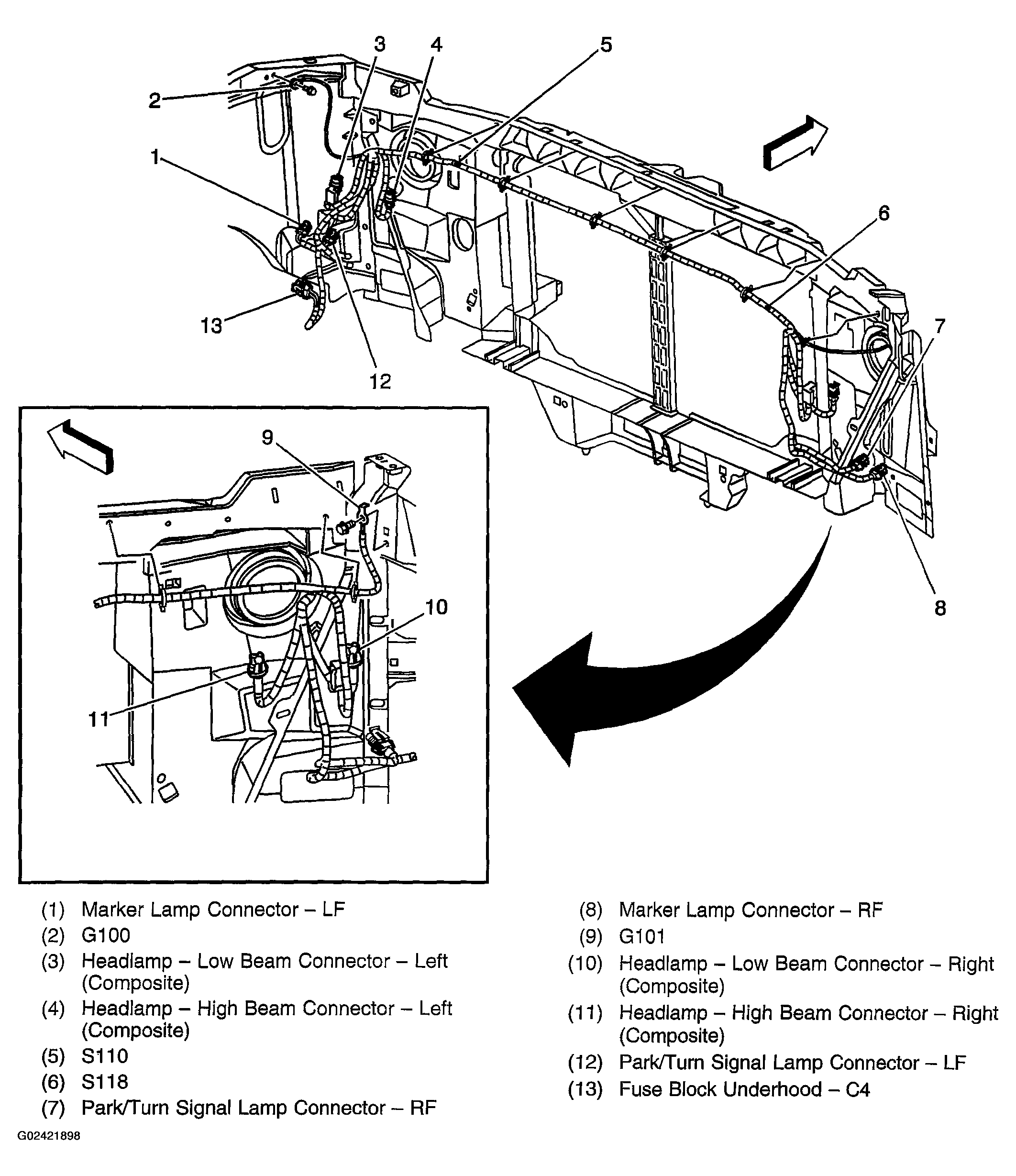

Fig 1: Forward Lamps Harness Routing

G02421898

Courtesy of GENERAL MOTORS CORP.

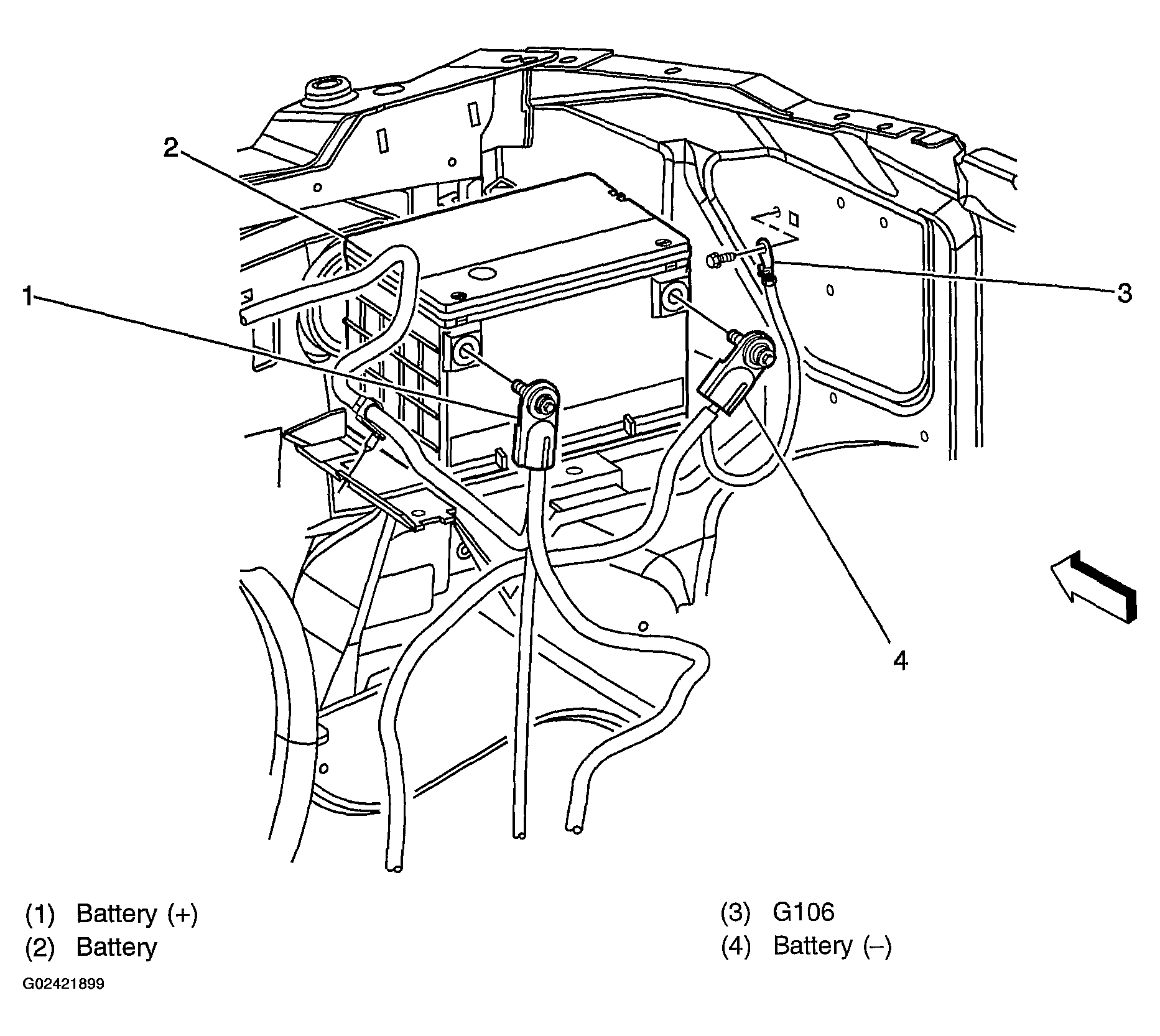

Fig 2: Battery - G106

G02421899

Courtesy of GENERAL MOTORS CORP.

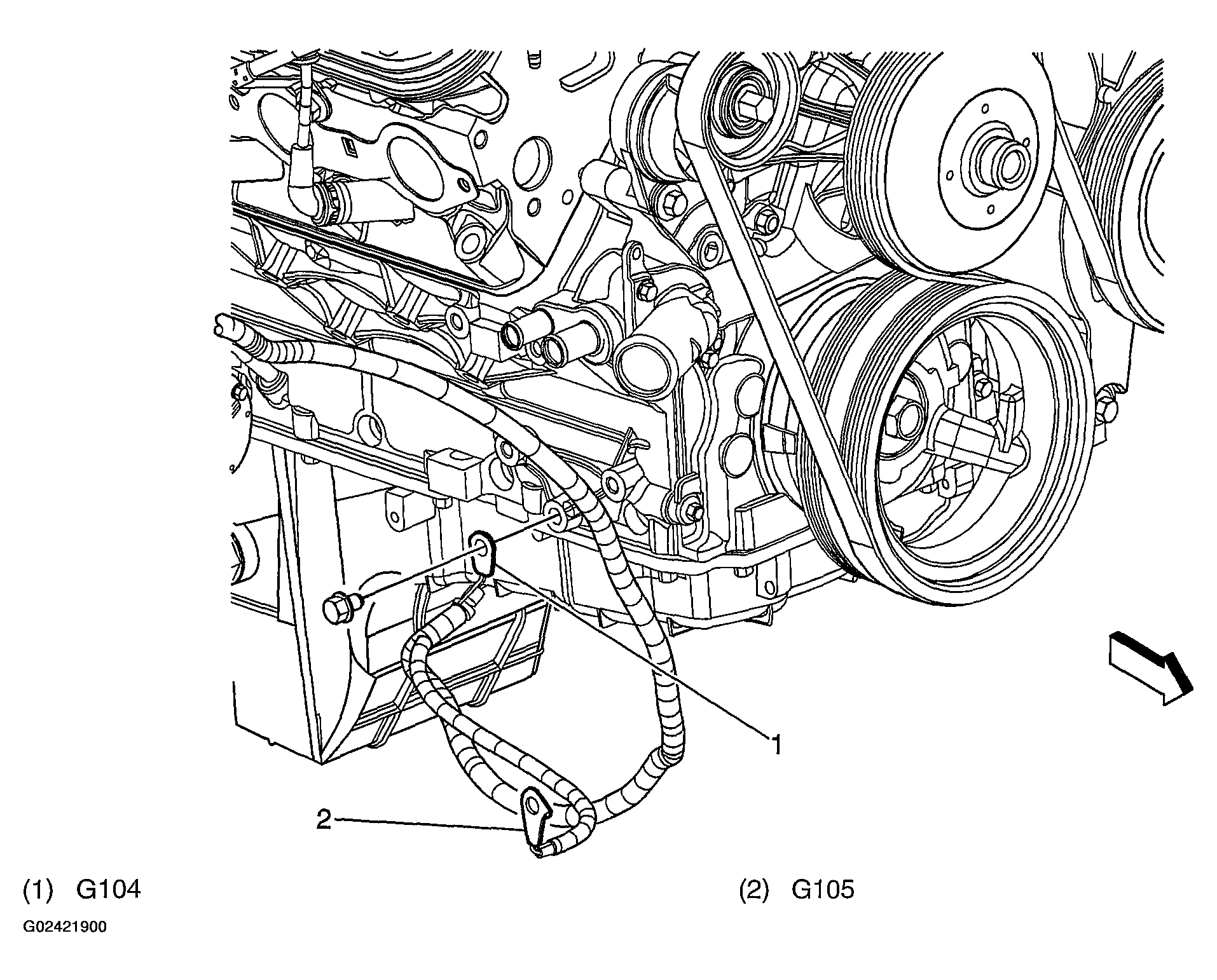

Fig 3: G104, G105

G02421900

Courtesy of GENERAL MOTORS CORP.

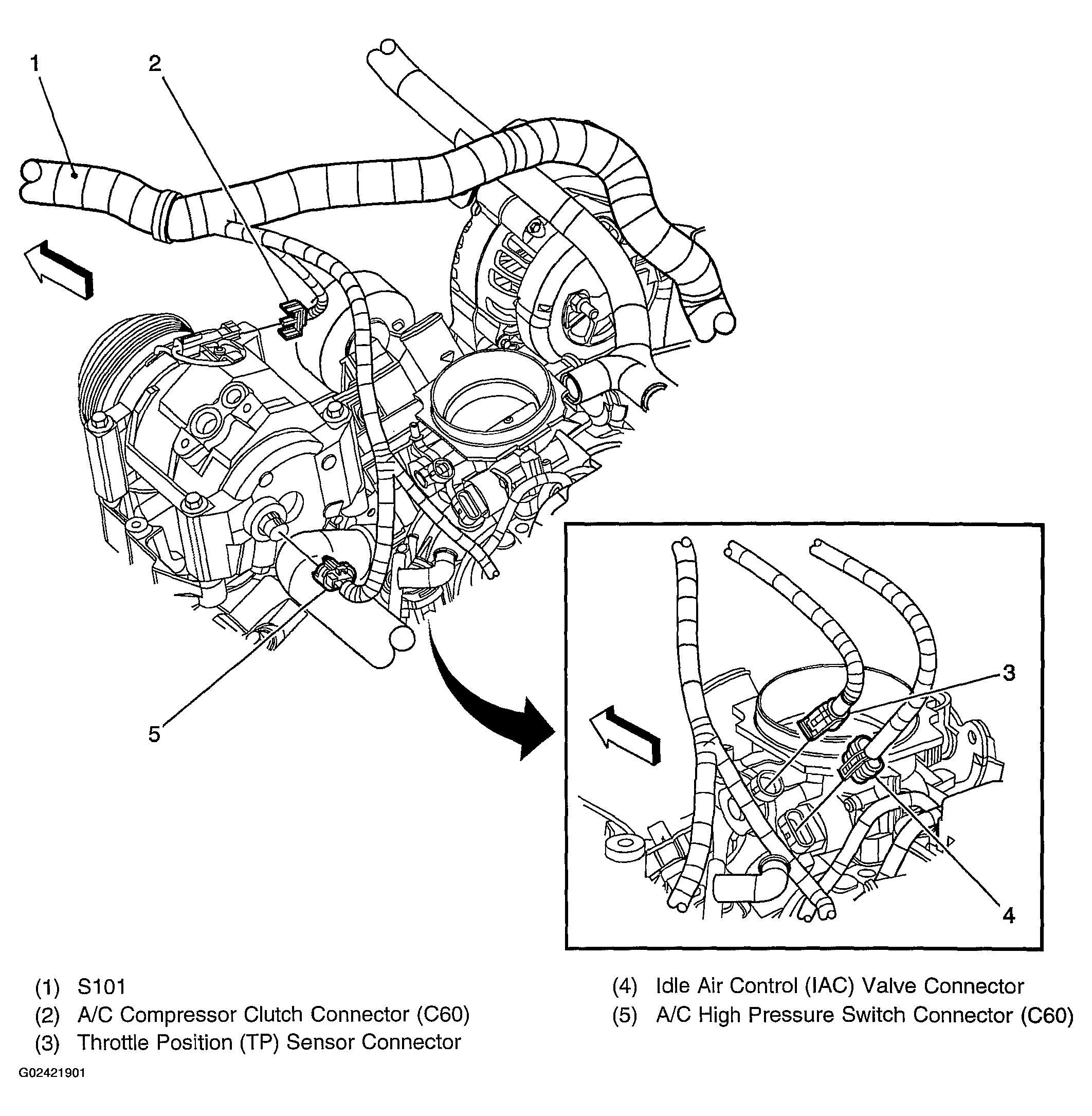

Fig 4: Engine Harness - Left Side Of Engine (4.3L)

G02421901

Courtesy of GENERAL MOTORS CORP.

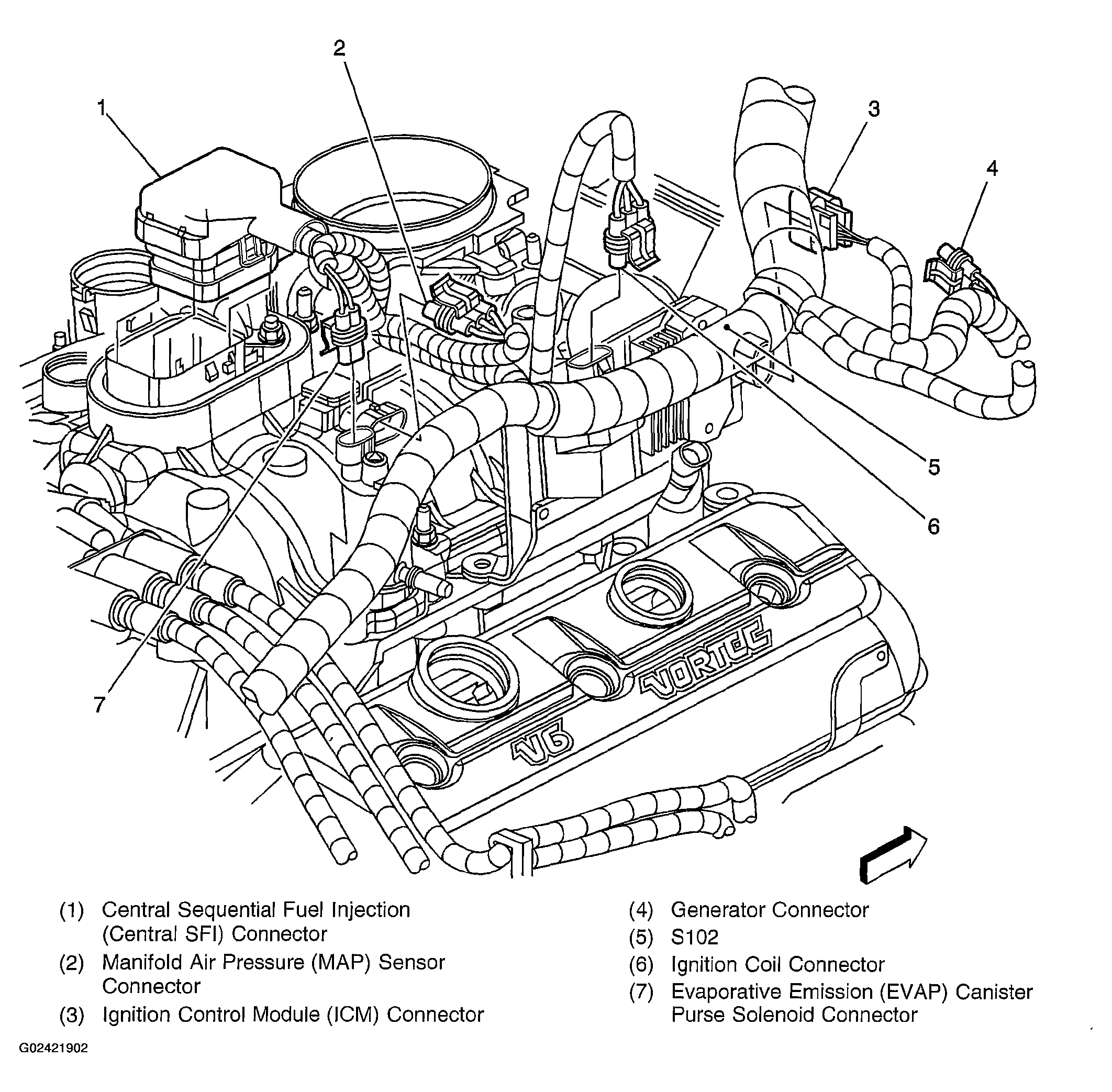

Fig 5: Engine Harness - Right Side Of Engine (4.3L)

G02421902

Courtesy of GENERAL MOTORS CORP.

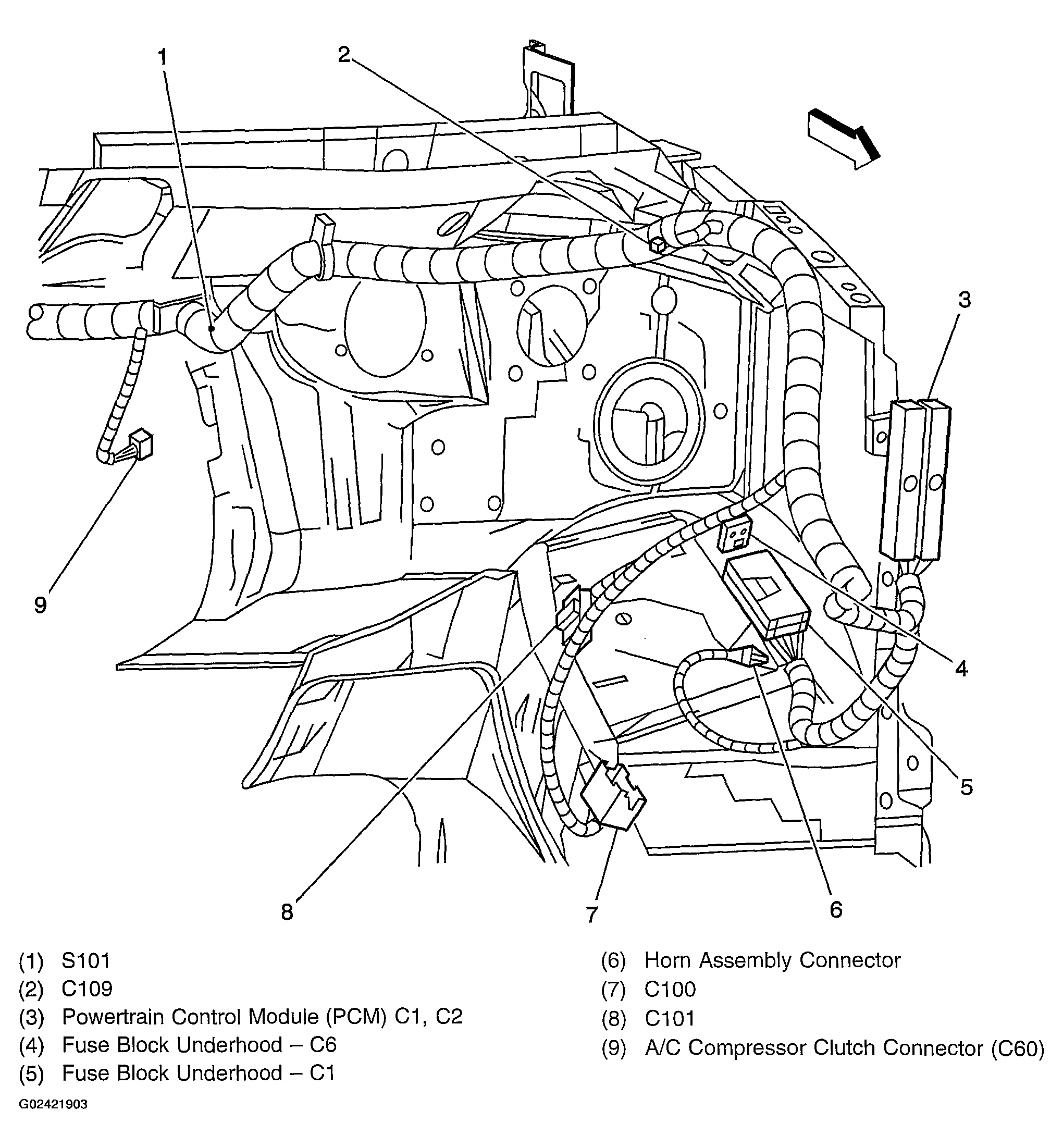

Fig 6: Engine Harness - Rear Of Engine Compartment (4.3L)

G02421903

Courtesy of GENERAL MOTORS CORP.

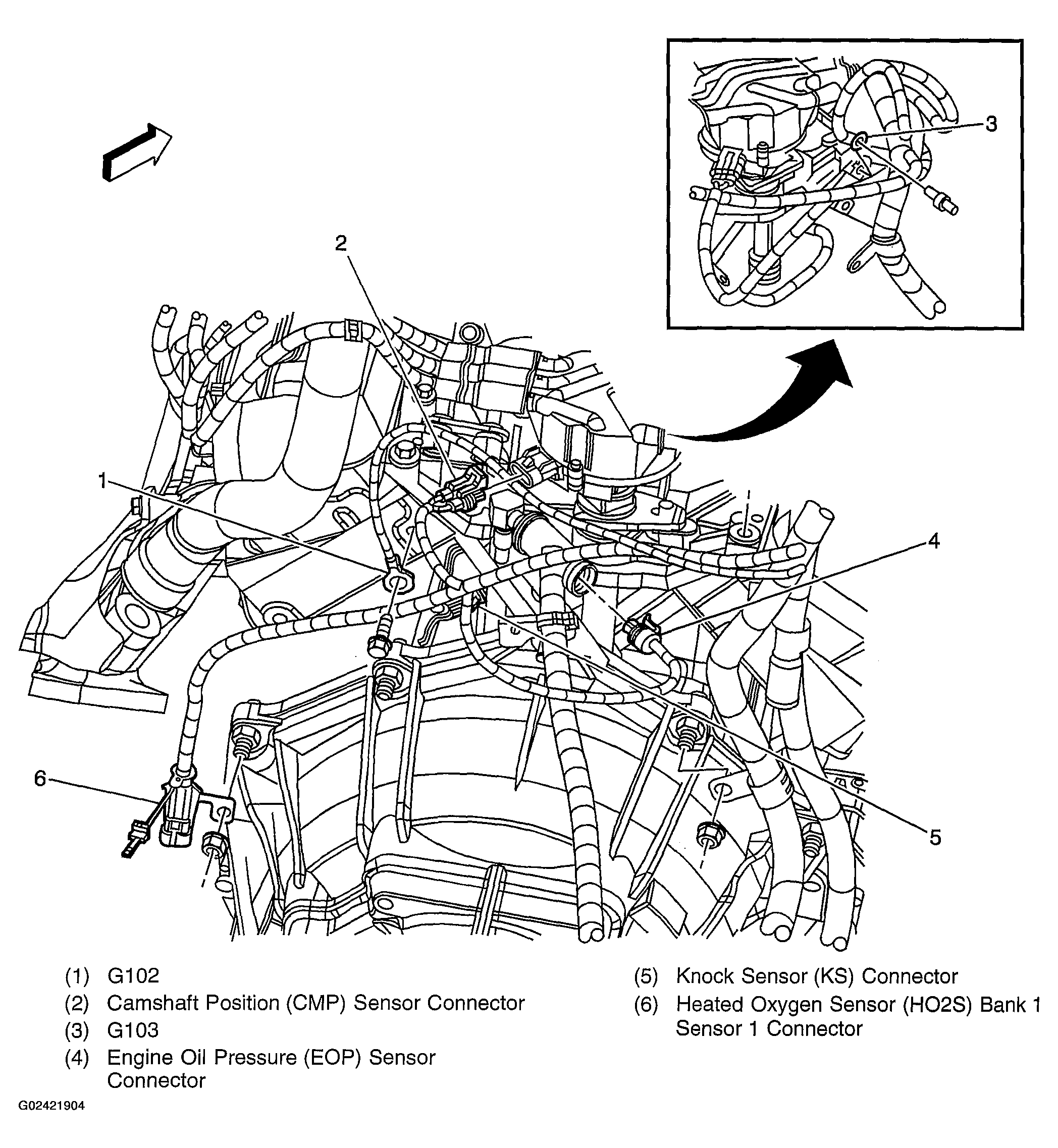

Fig 7: Engine Harness - Back Of Engine (4.3L)

G02421904

Courtesy of GENERAL MOTORS CORP.

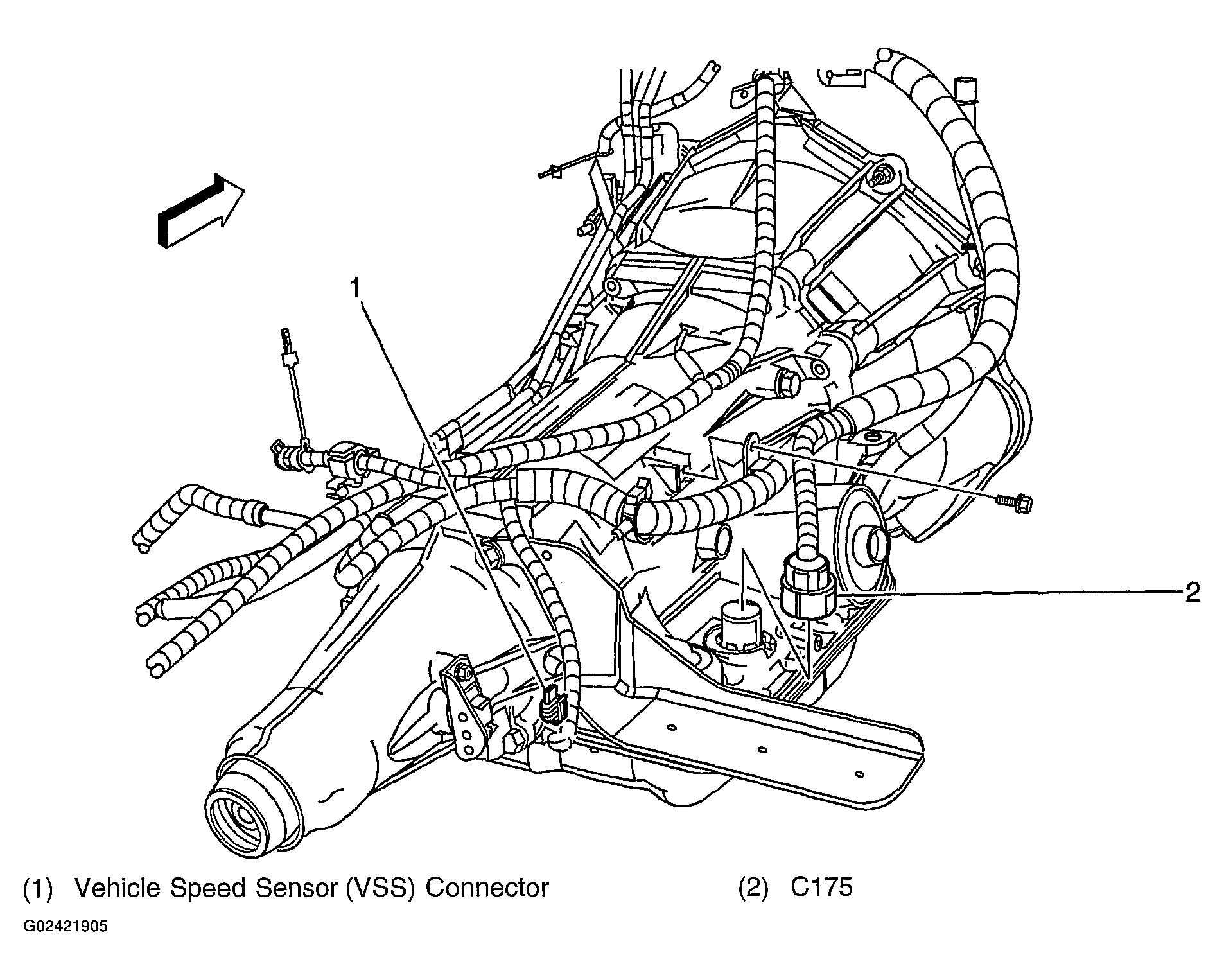

Fig 8: Engine Harness - Rear Of Engine (4.3L/5.3L)

G02421905

Courtesy of GENERAL MOTORS CORP.

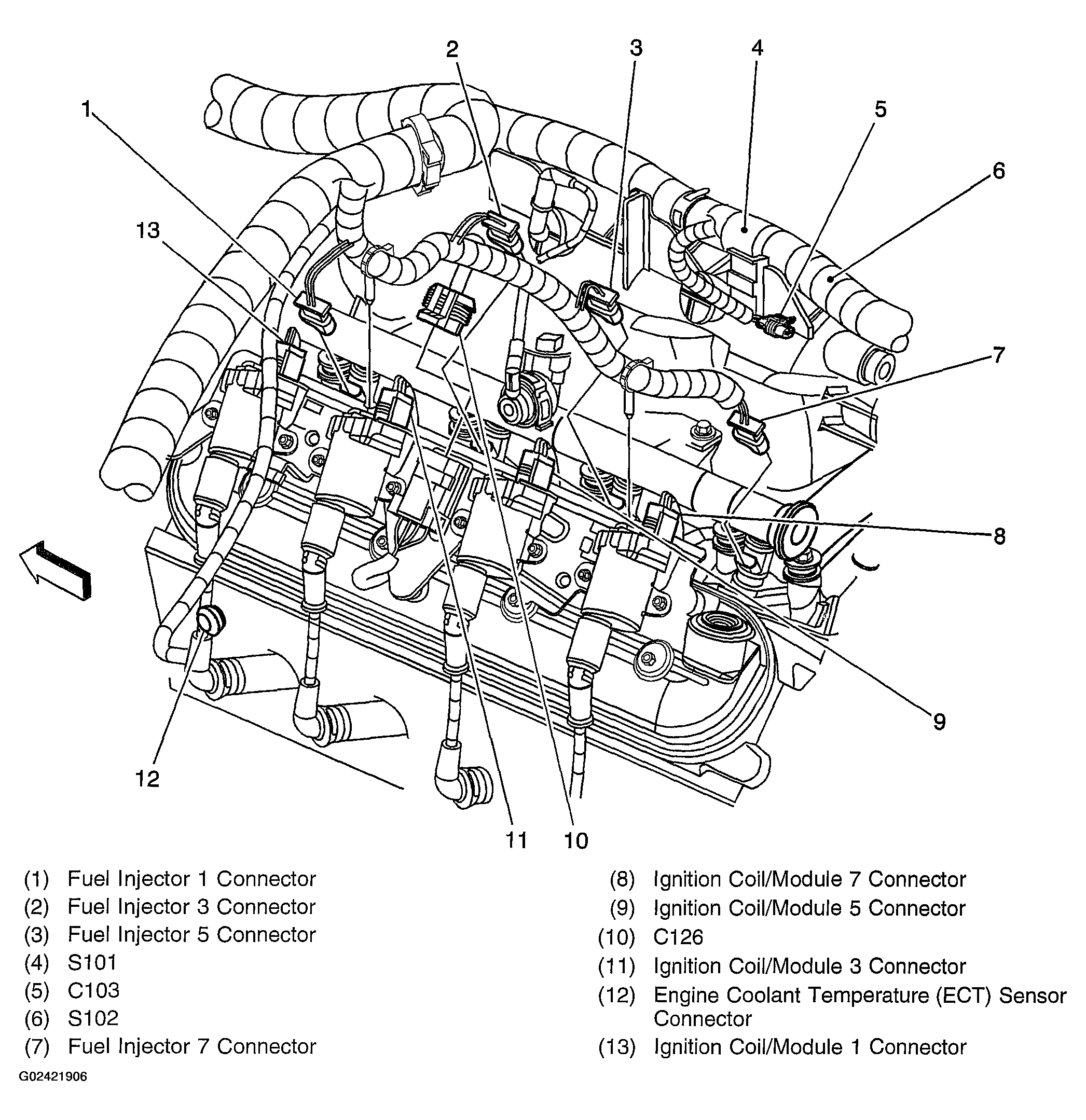

Fig 9: Engine Harness - Left Side Of Engine (4.8L/5.3L/6.0L)

G02421906

Courtesy of GENERAL MOTORS CORP.

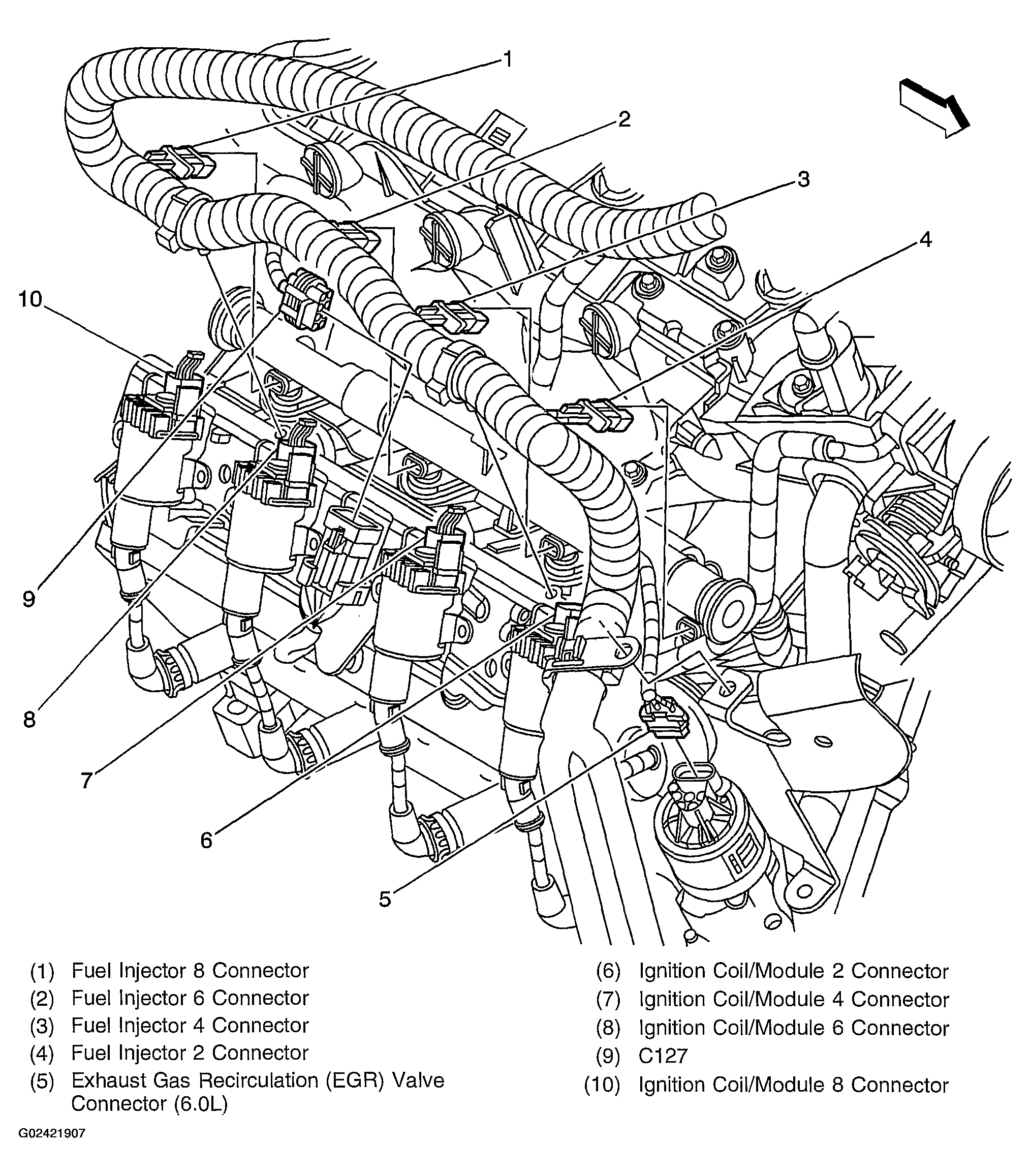

Fig 10: Engine Harness - Right Side Of Engine (4.8L/5.3L/6.0L)

G02421907

Courtesy of GENERAL MOTORS CORP.

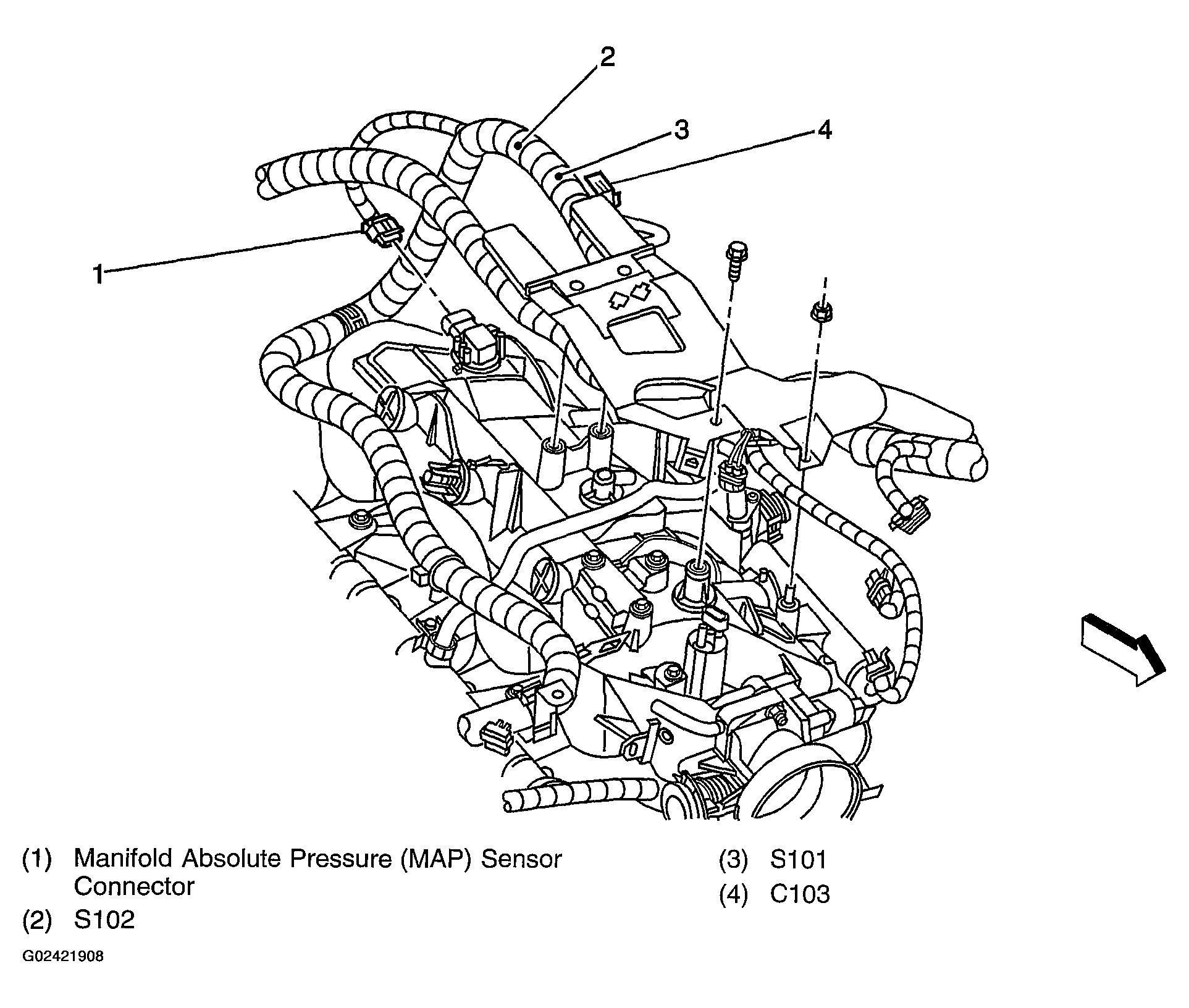

Fig 11: Engine Harness - Top Of Engine (4.8L/5.3L/6.0L)

G02421908

Courtesy of GENERAL MOTORS CORP.

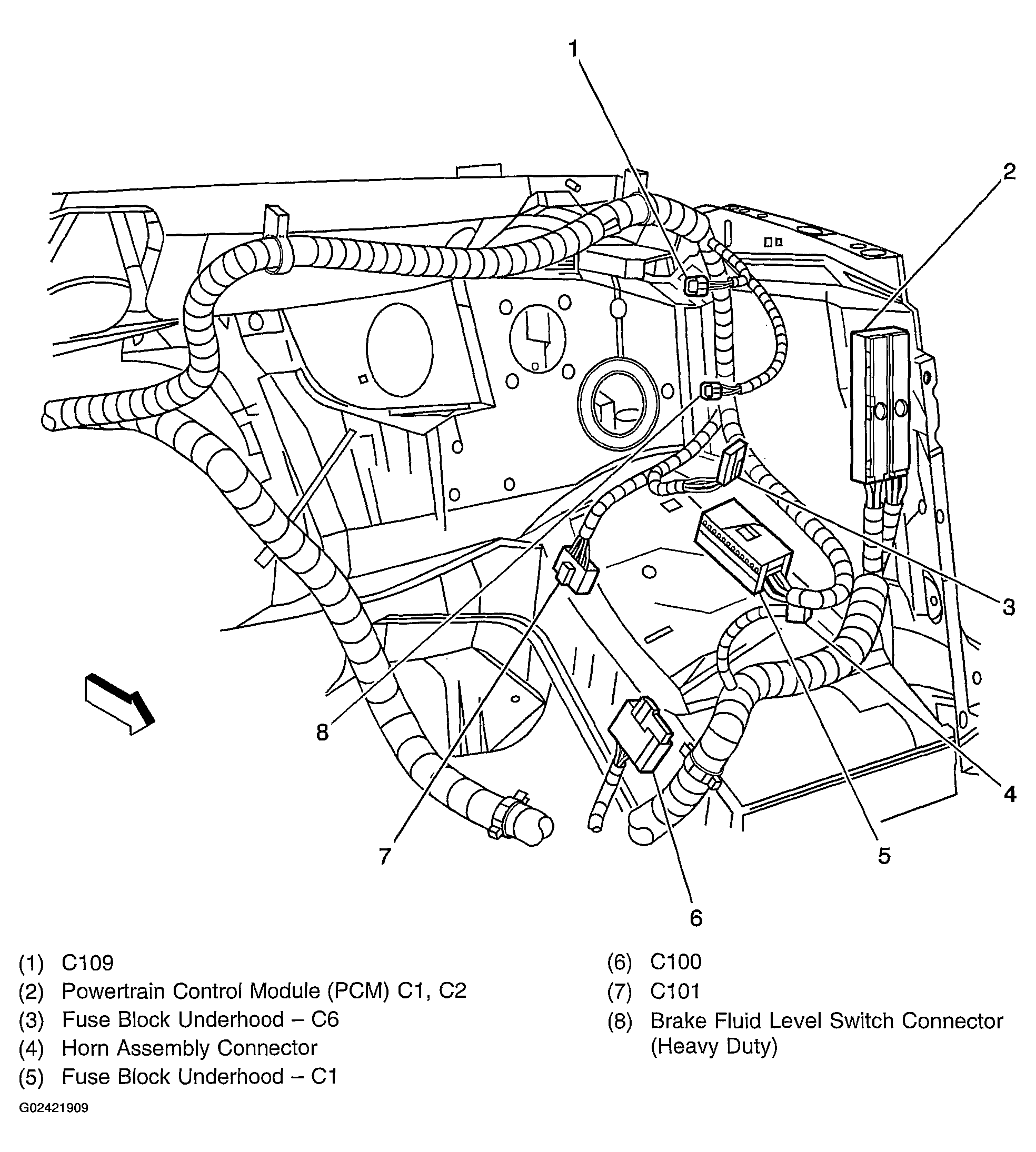

Fig 12: Engine Harness - Rear Of Engine Compartment (4.8L/5.3L/6.0L)

G02421909

Courtesy of GENERAL MOTORS CORP.

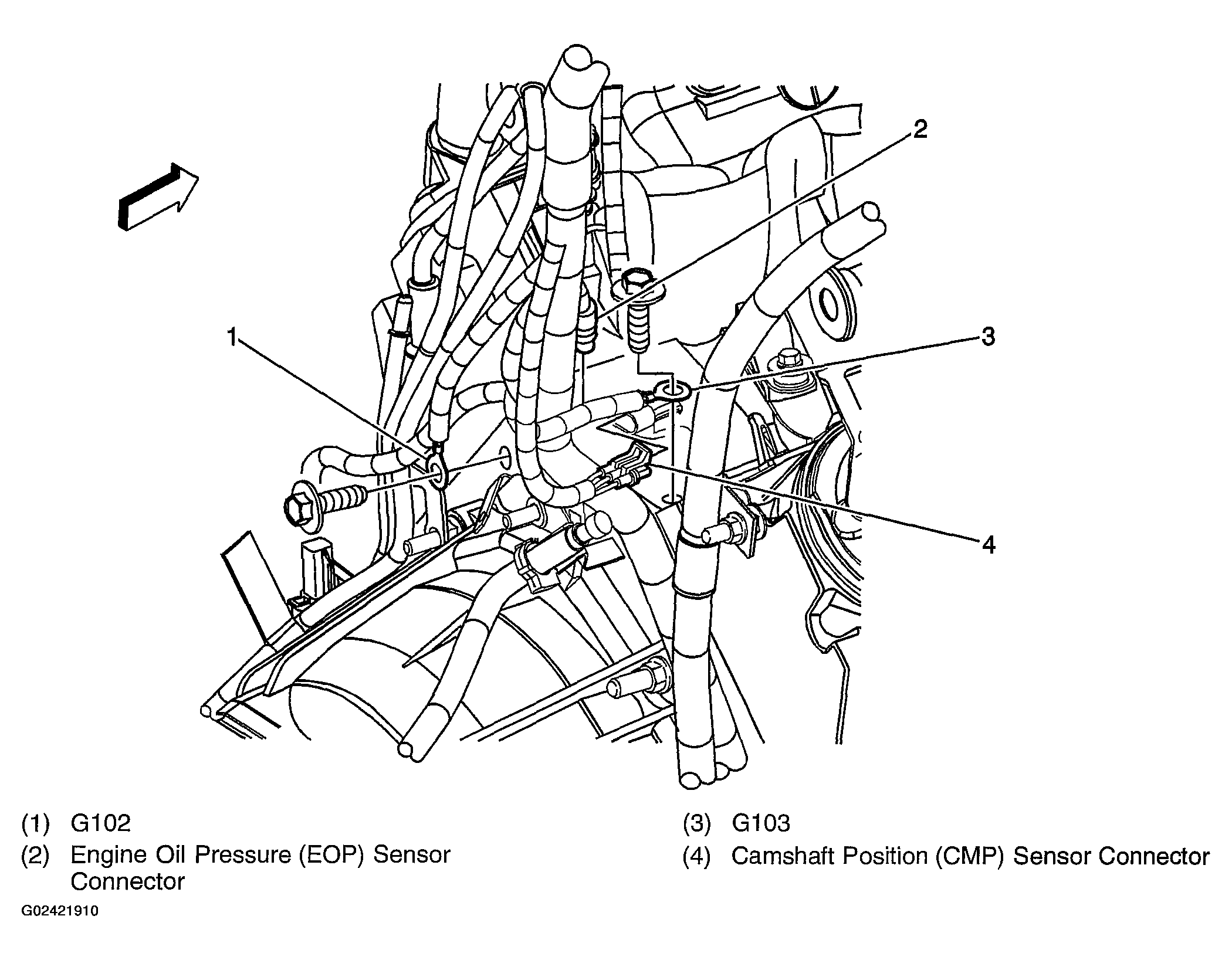

Fig 13: Engine Harness - Back Of Engine (4.8L/5.3L/6.0L)

G02421910

Courtesy of GENERAL MOTORS CORP.

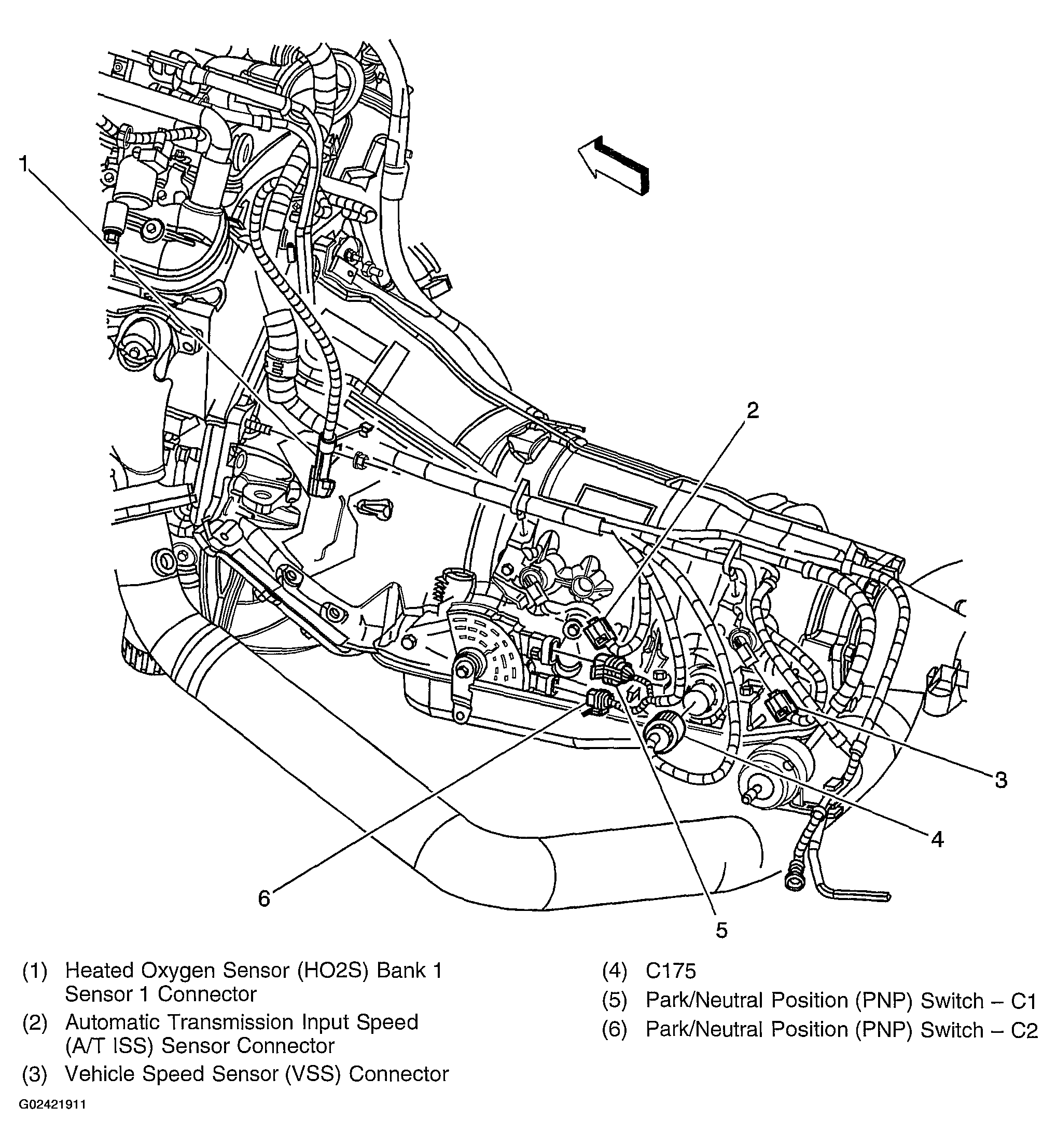

Fig 14: Engine Harness - Rear Of Engine (4.8L/6.0L)

G02421911

Courtesy of GENERAL MOTORS CORP.

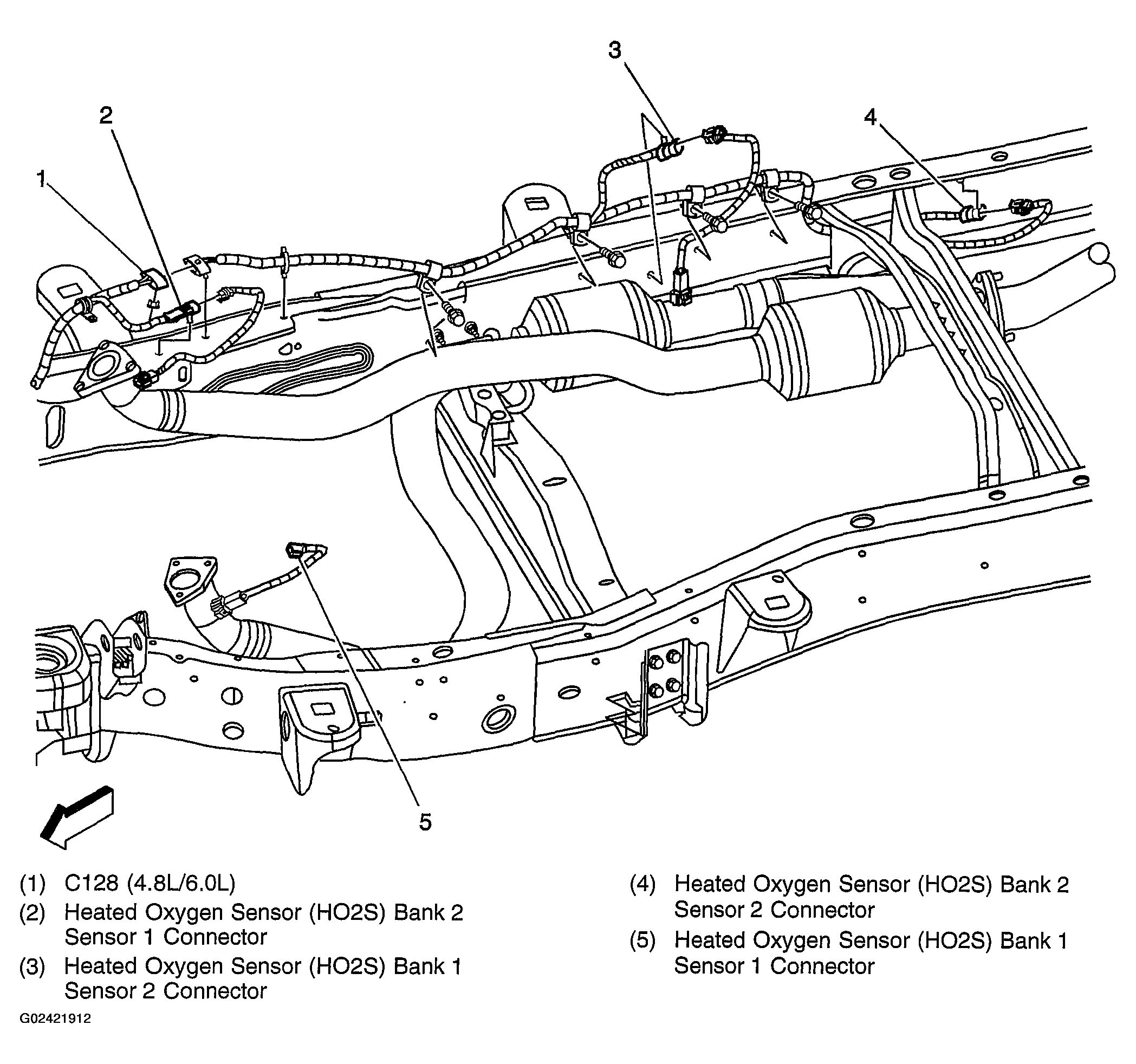

Fig 15: Engine Harness - Oxygen Sensors (4.8L/5.3L/6.0L)

G02421912

Courtesy of GENERAL MOTORS CORP.

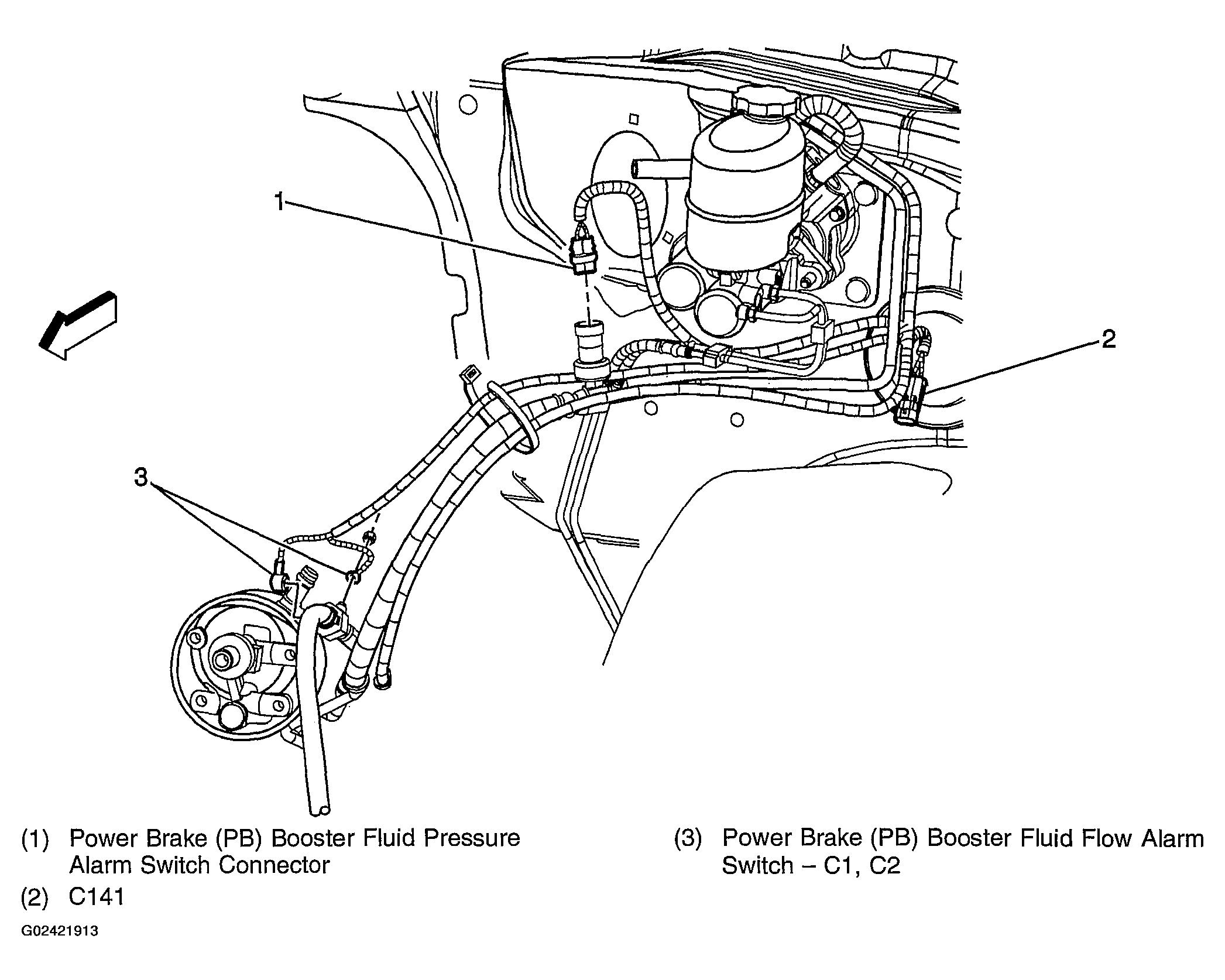

Fig 16: Power Brake (PB) Booster Fluid Alarm Switches Harness Routing (UJ1)

G02421913

Courtesy of GENERAL MOTORS CORP.

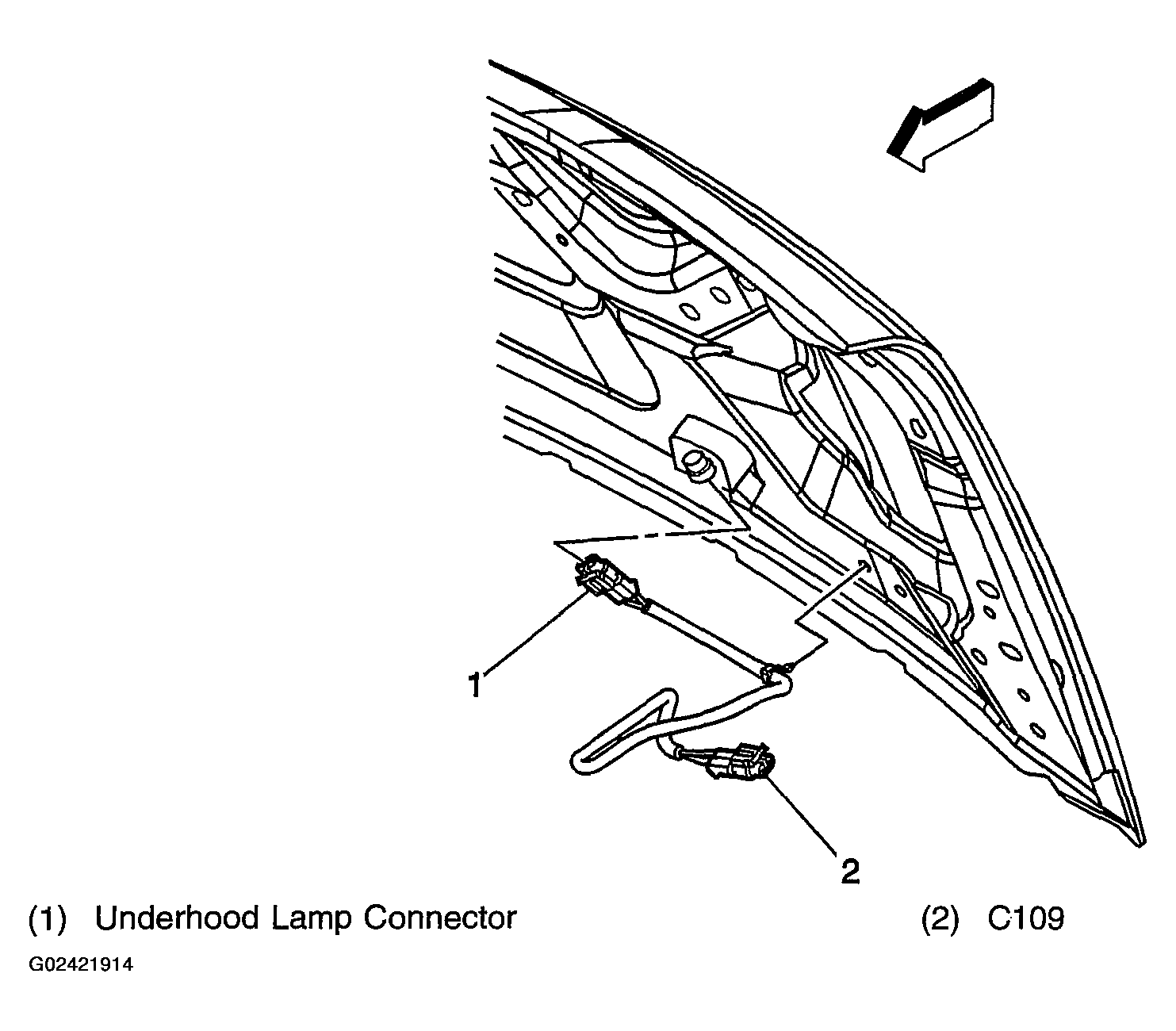

Fig 17: Underhood Lamp Harness

G02421914

Courtesy of GENERAL MOTORS CORP.

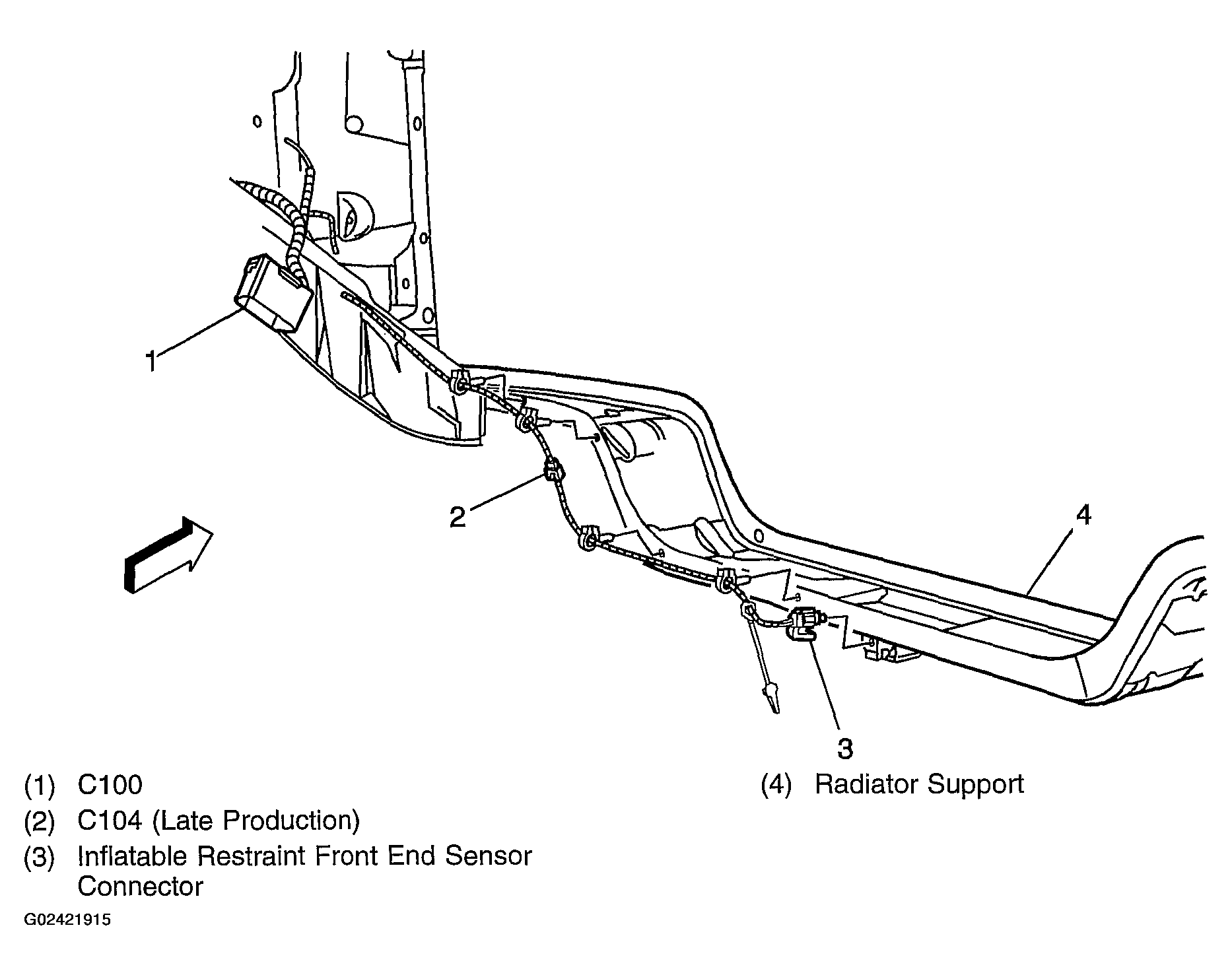

Fig 18: I/P Harness Routing - Front Of Engine Compartment

G02421915

Courtesy of GENERAL MOTORS CORP.

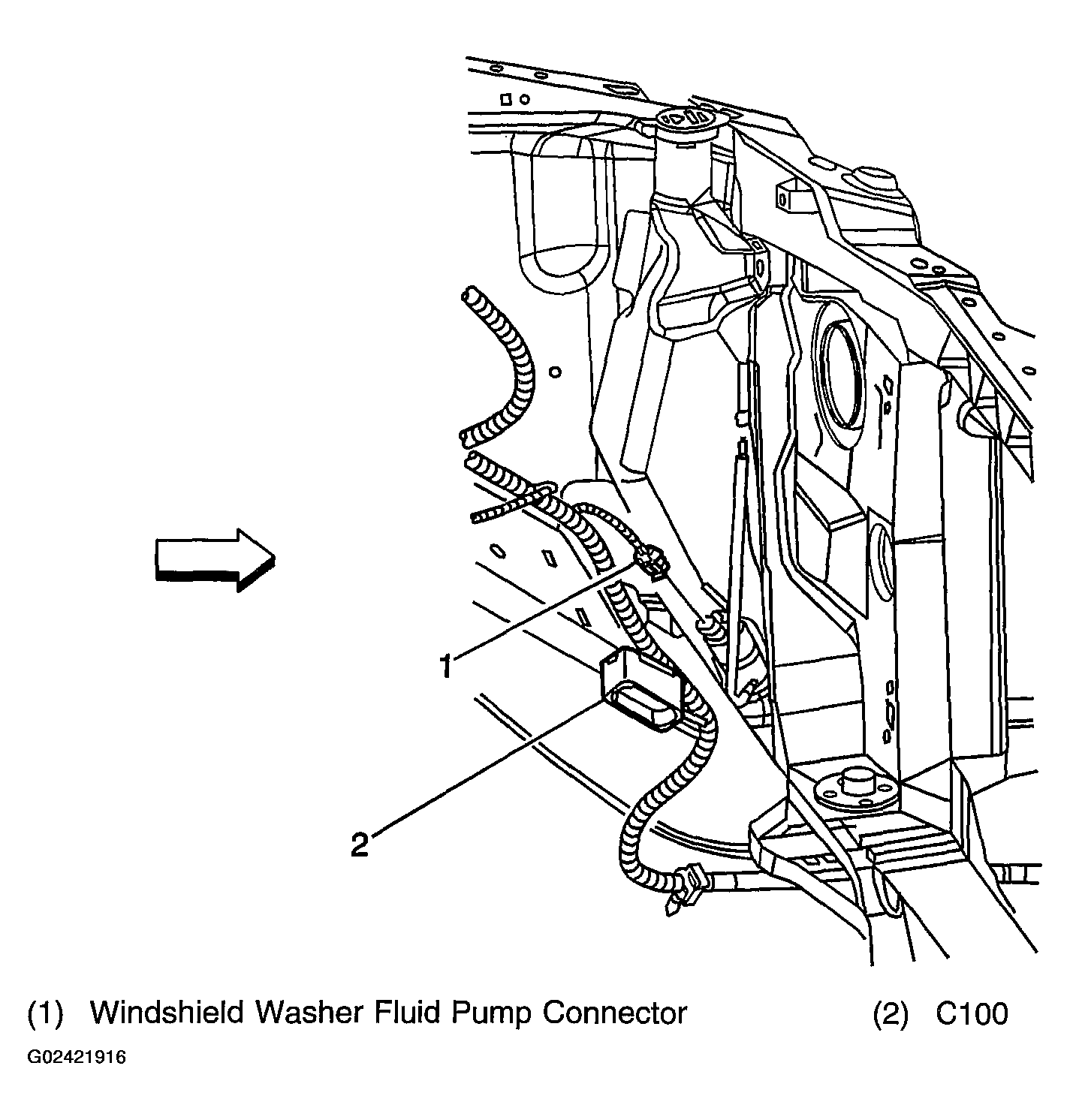

Fig 19: I/P Harness Routing - Left Front Side Of Engine Compartment

G02421916

Courtesy of GENERAL MOTORS CORP.

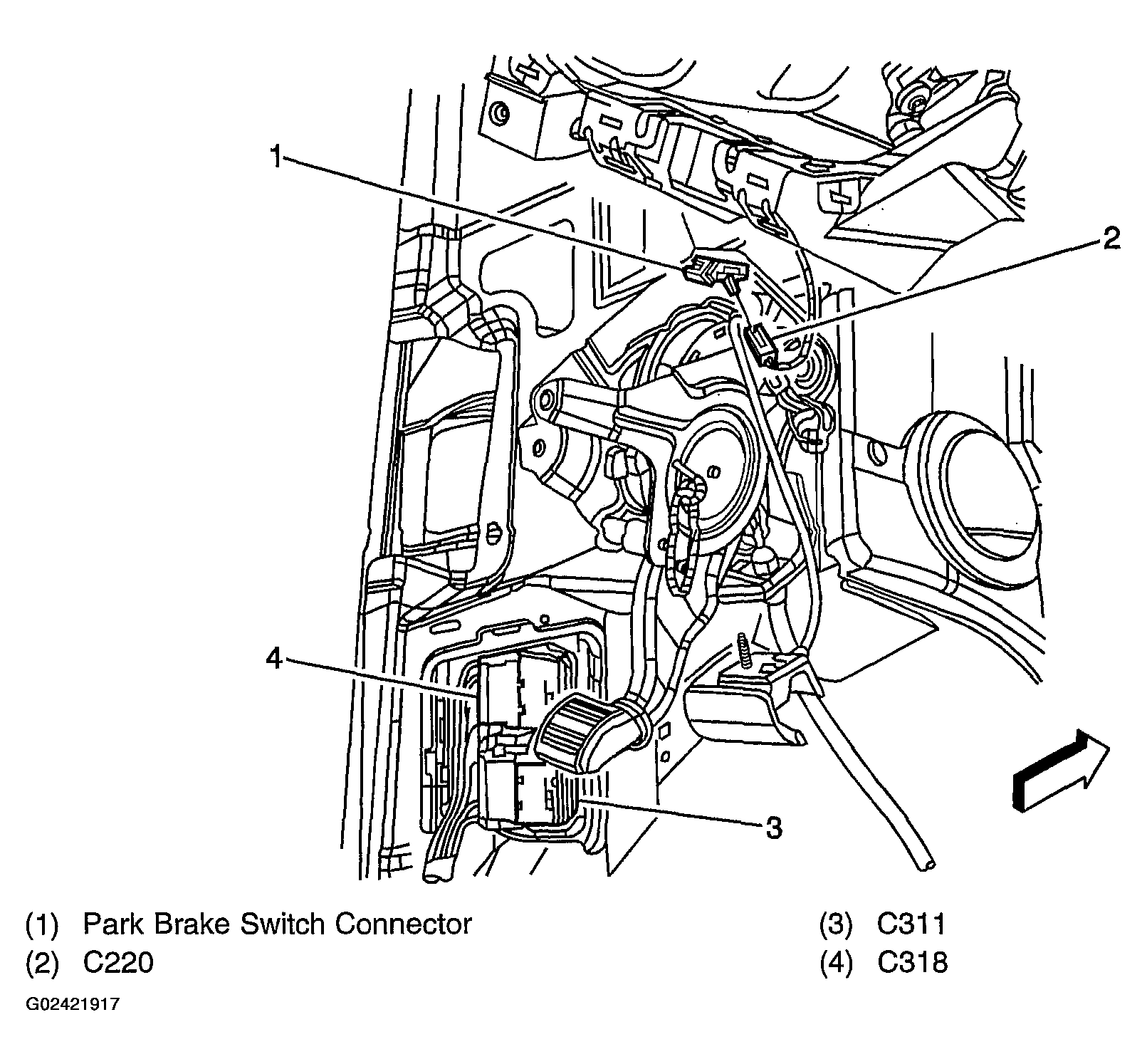

Fig 20: I/P Harness Routing - Left Side Of Passenger Compartment

G02421917

Courtesy of GENERAL MOTORS CORP.

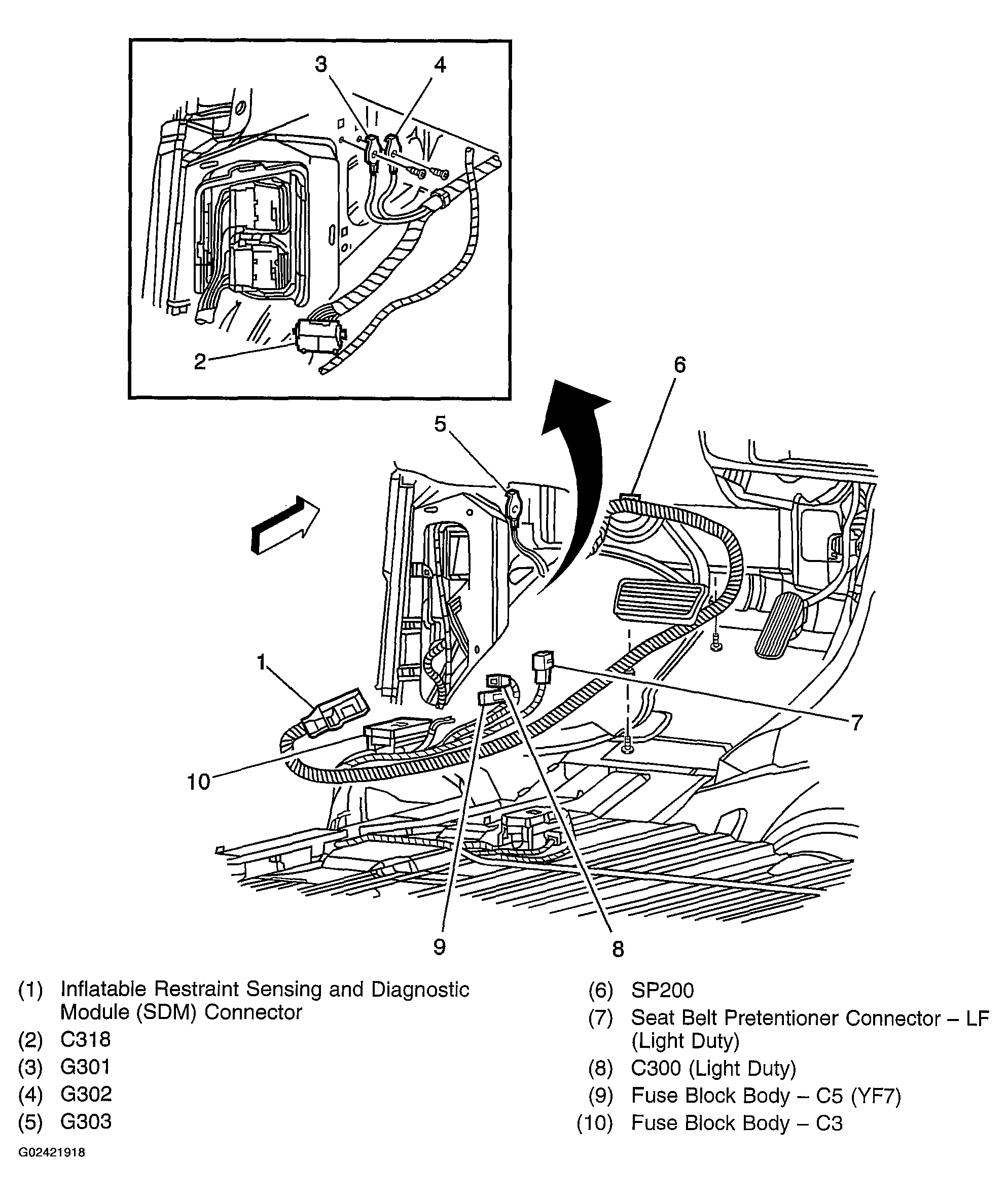

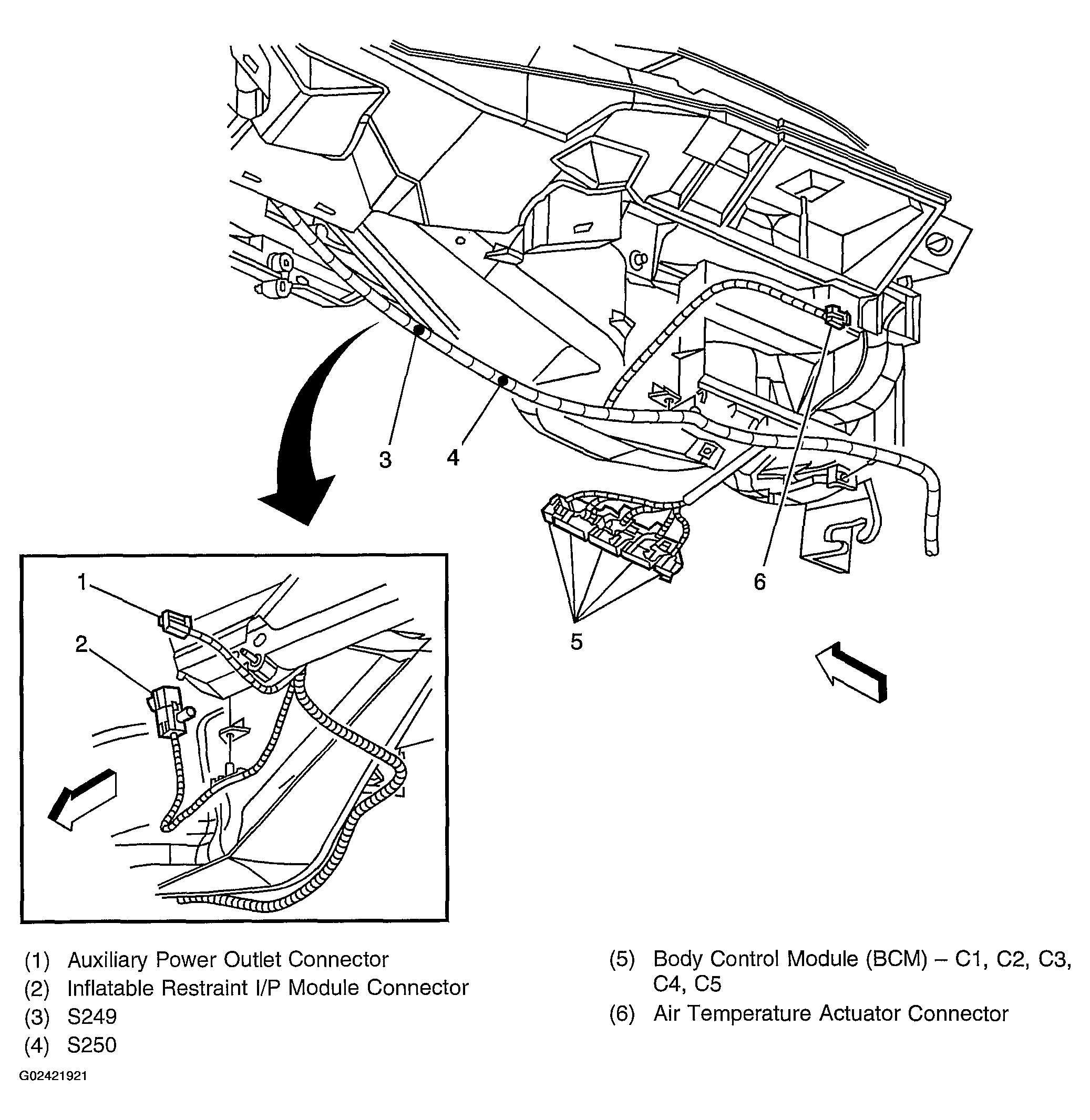

Fig 21: I/P Harness Routing - Lower Left Side Of Passenger Compartment

G02421918

Courtesy of GENERAL MOTORS CORP.

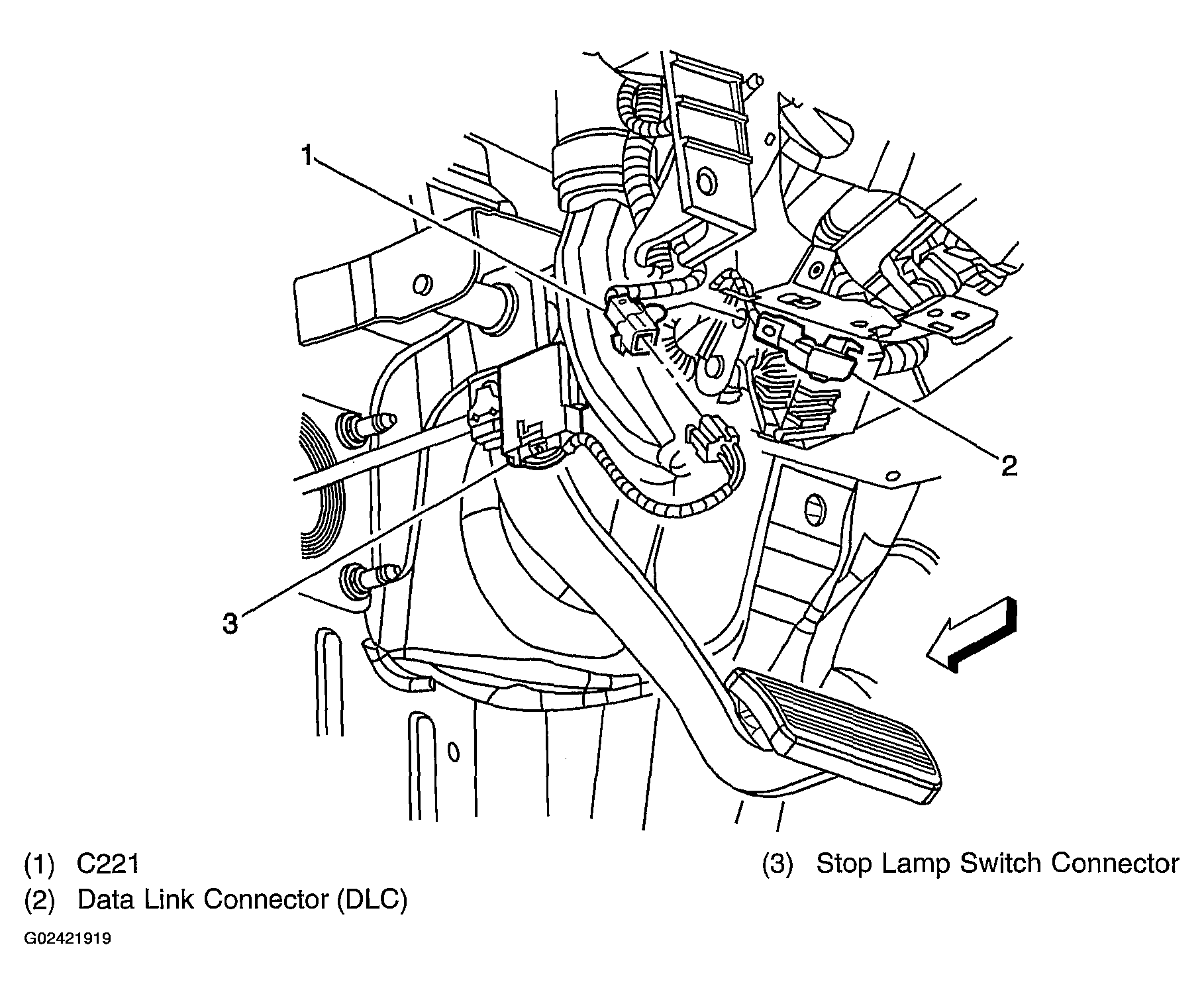

Fig 22: I/P Harness Routing - Left Side Of I/P

G02421919

Courtesy of GENERAL MOTORS CORP.

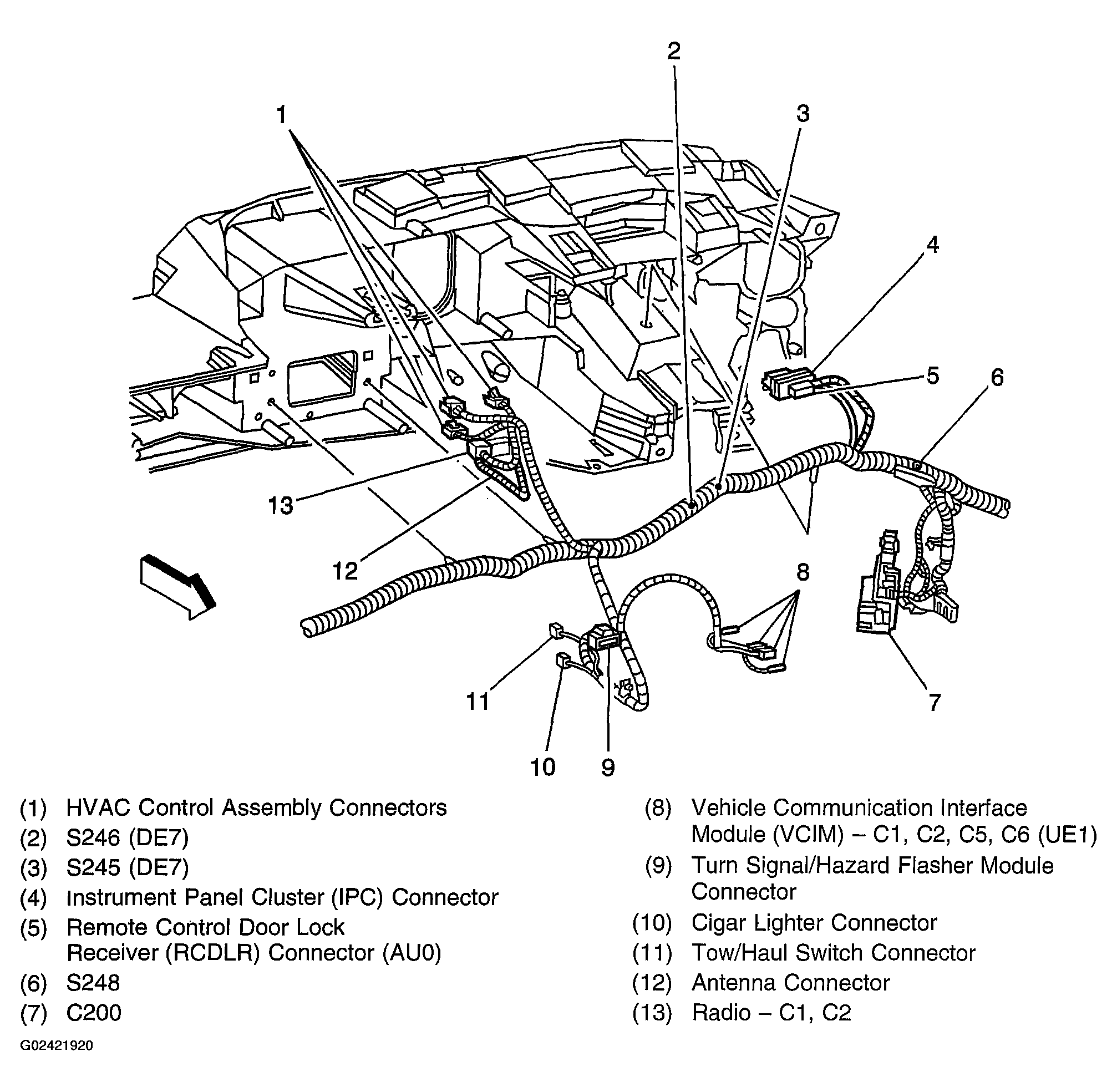

Fig 23: I/P Harness Routing - Center Of I/P

G02421920

Courtesy of GENERAL MOTORS CORP.

Fig 24: I/P Harness Routing - Right Side Of I/P

G02421921

Courtesy of GENERAL MOTORS CORP.

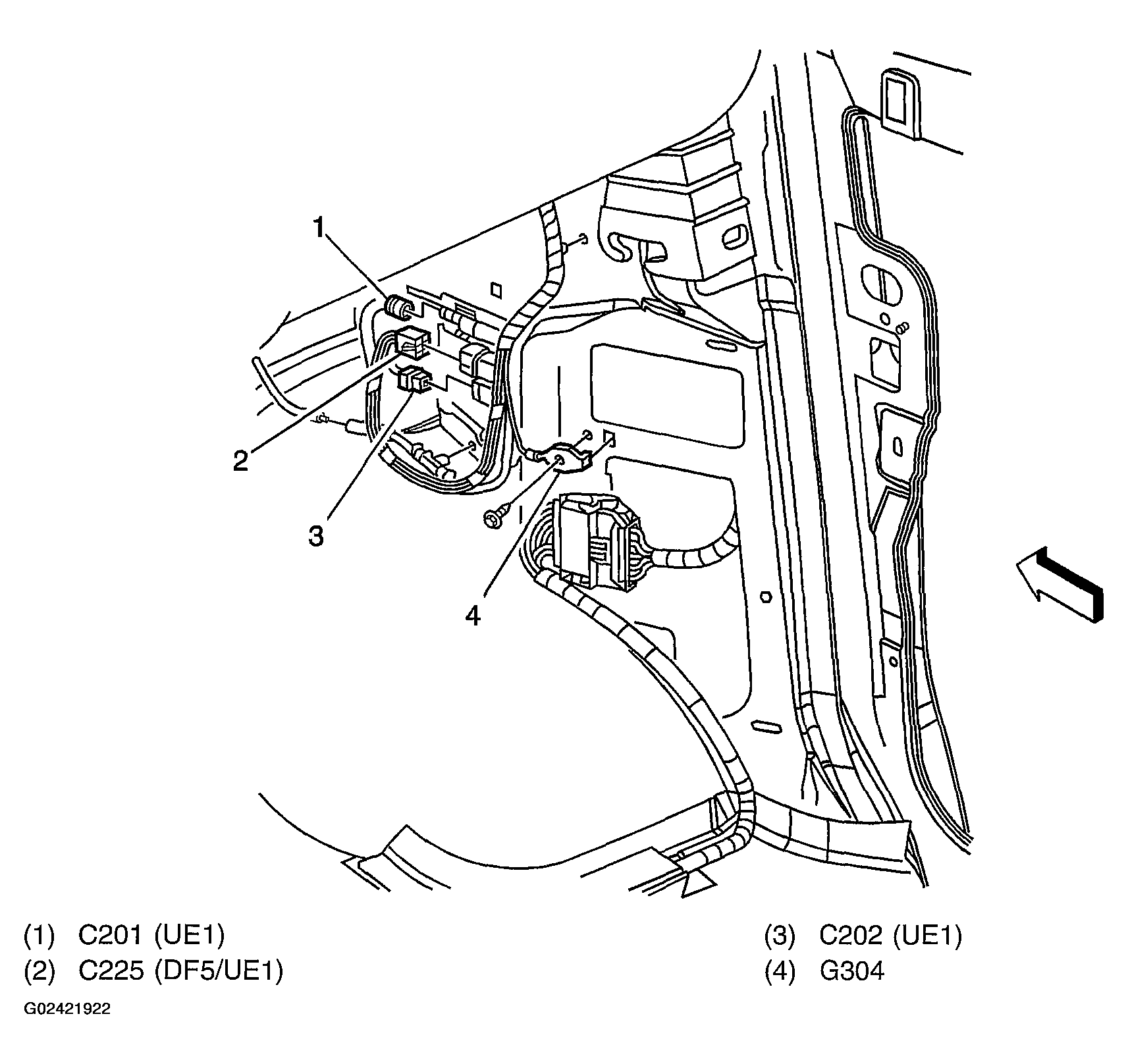

Fig 25: I/P Harness Routing - Right Side Of Passenger Compartment

G02421922

Courtesy of GENERAL MOTORS CORP.

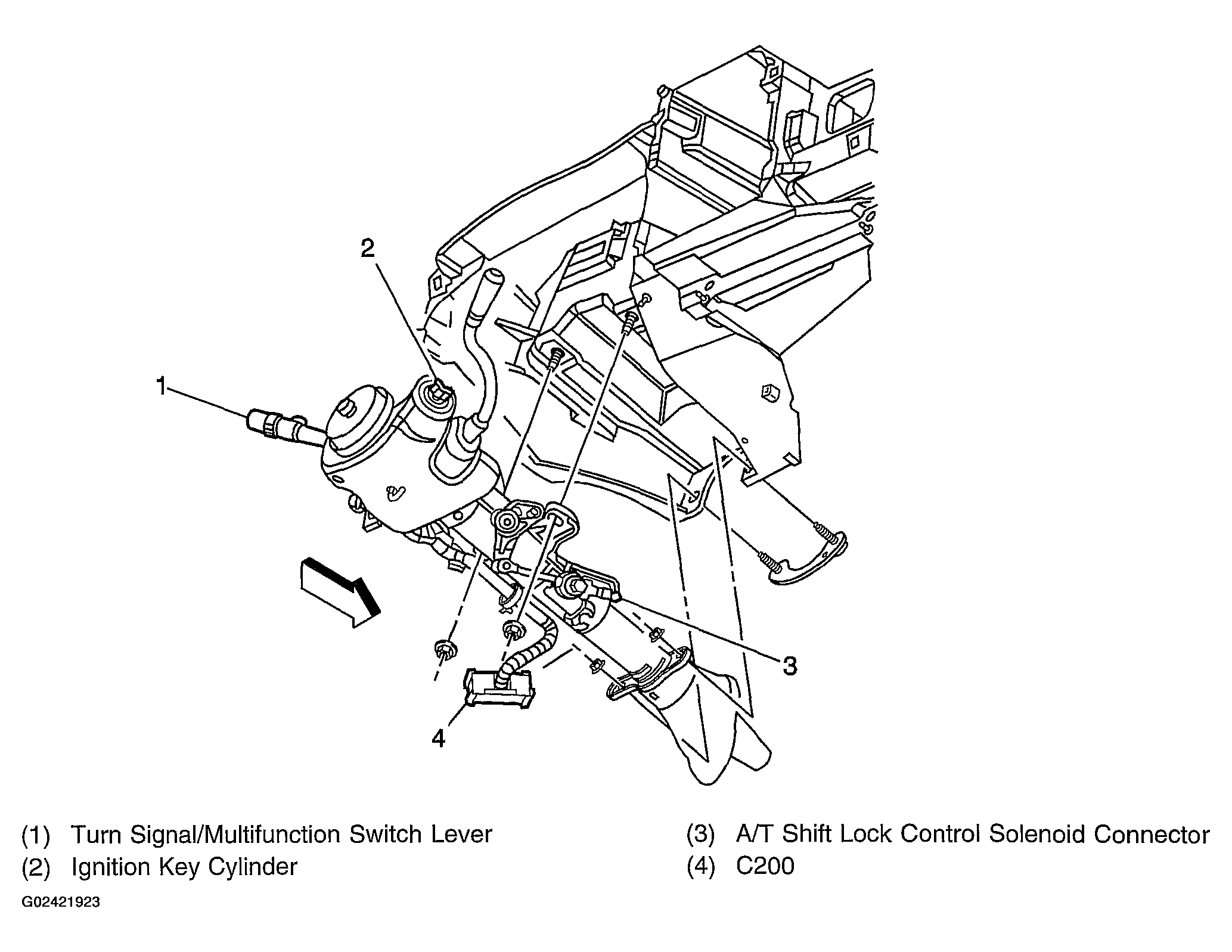

Fig 26: Steering Column Harness Routing

G02421923

Courtesy of GENERAL MOTORS CORP.

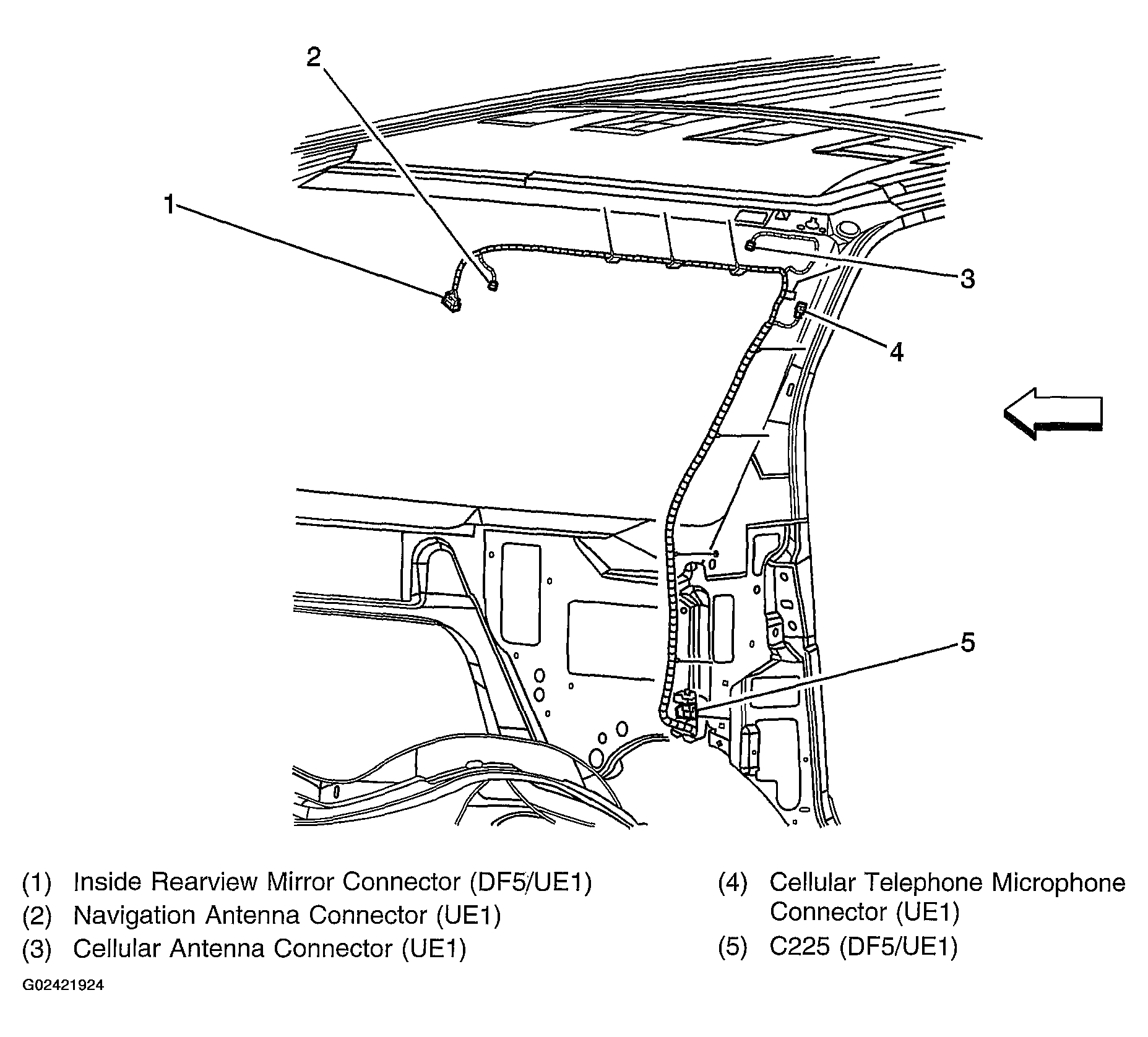

Fig 27: Mobile Telephone, Navigation & Inside Rearview Mirror Harness

G02421924

Courtesy of GENERAL MOTORS CORP.

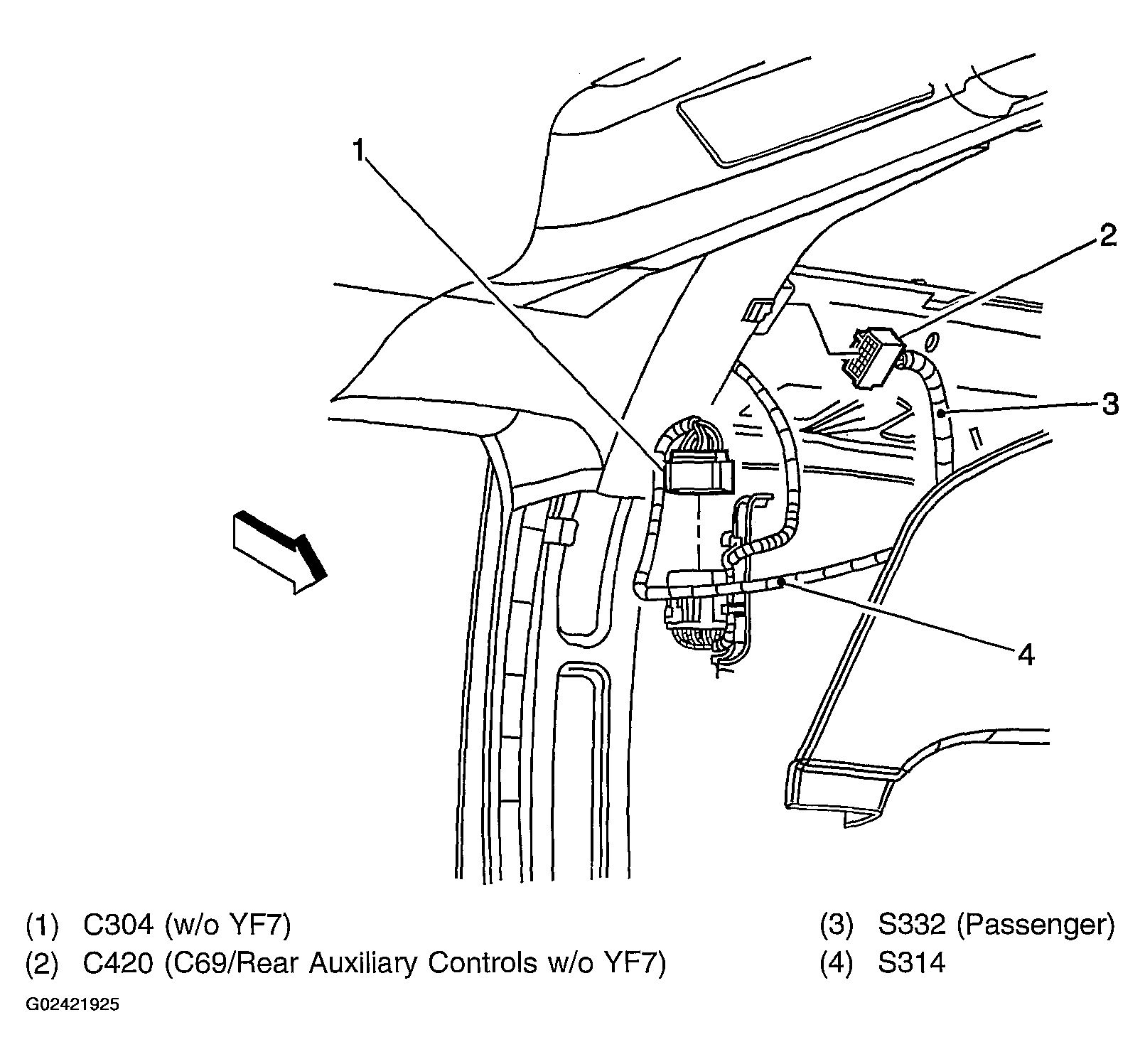

Fig 28: Front Headliner Harness Routing

G02421925

Courtesy of GENERAL MOTORS CORP.

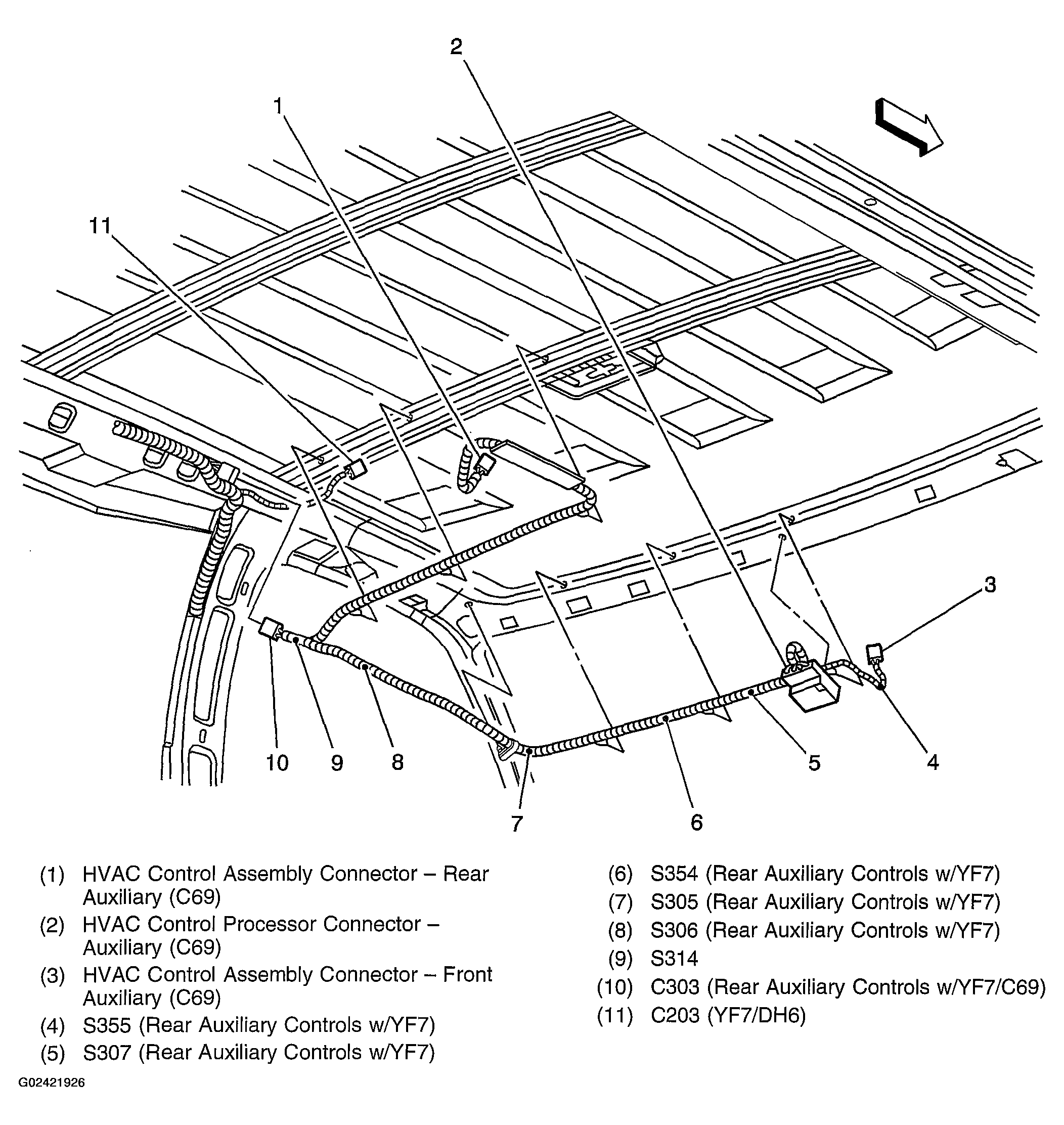

Fig 29: HVAC Controls Harness Routing

G02421926

Courtesy of GENERAL MOTORS CORP.

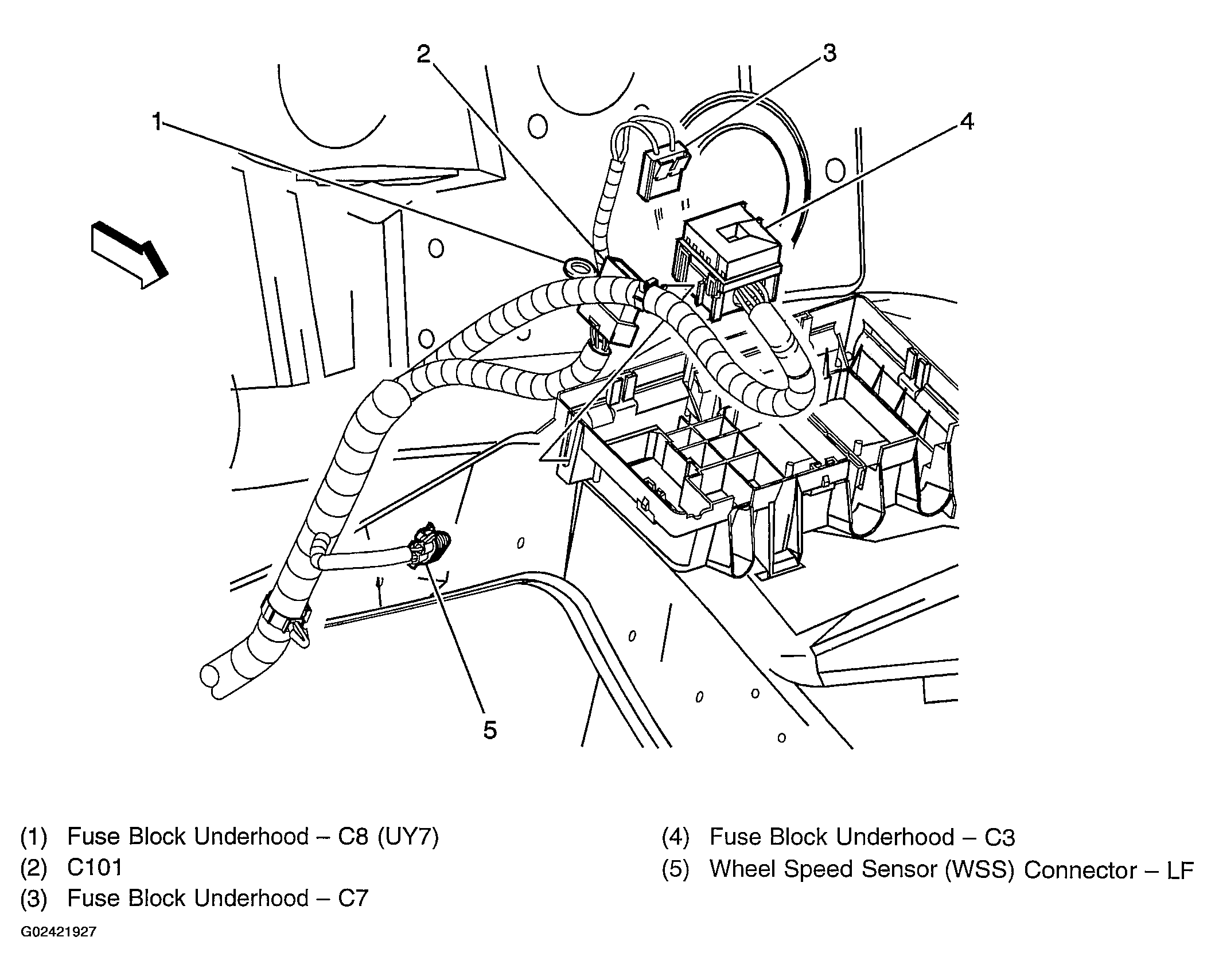

Fig 30: Chassis Harness Routing - Front

G02421927

Courtesy of GENERAL MOTORS CORP.

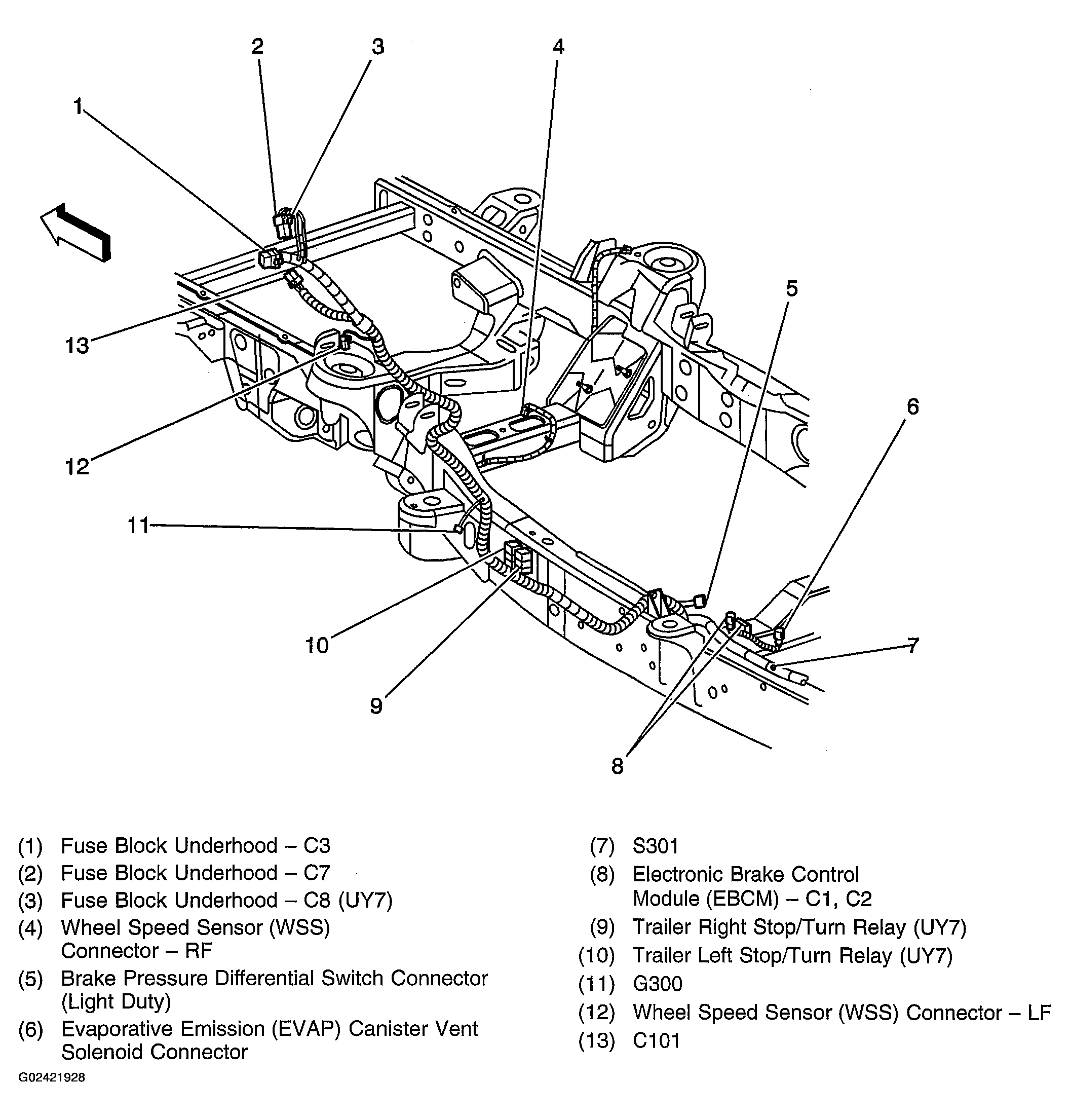

Fig 31: Chassis Harness Routing (Passenger/Cargo)

G02421928

Courtesy of GENERAL MOTORS CORP.

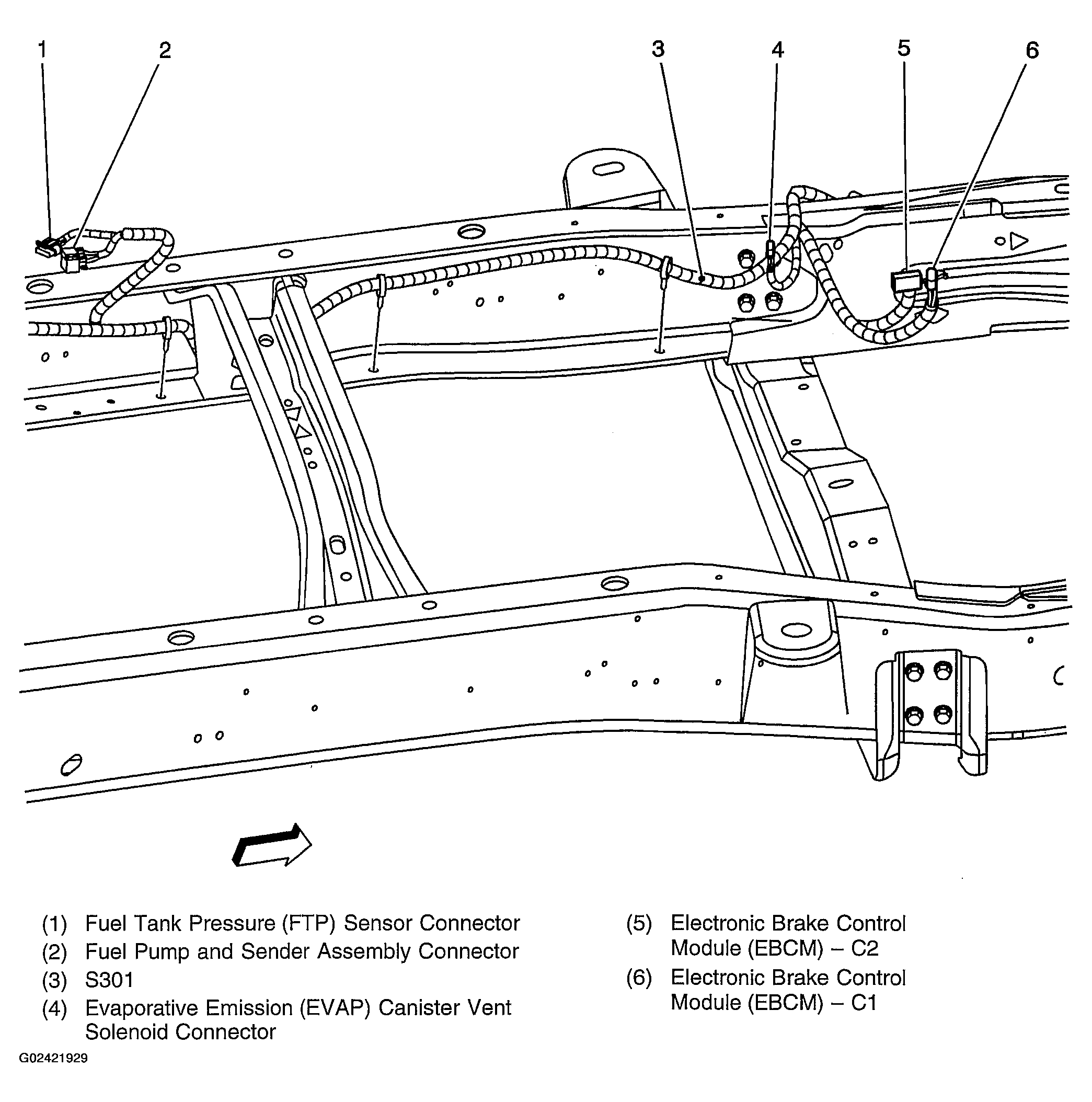

Fig 32: Inner Center Frame (Cutaway)

G02421929

Courtesy of GENERAL MOTORS CORP.

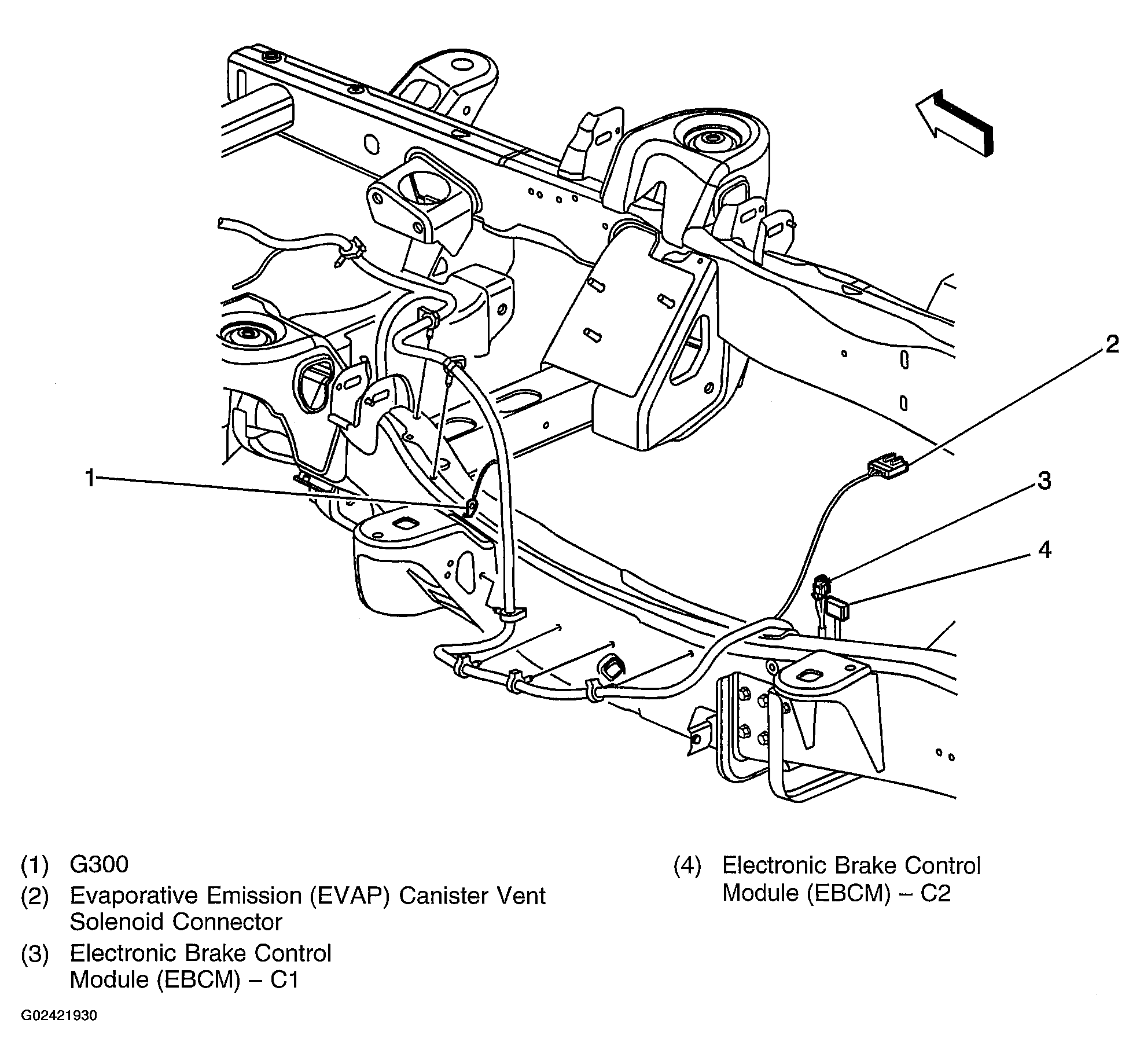

Fig 33: Outer Center Frame (Cutaway)

G02421930

Courtesy of GENERAL MOTORS CORP.

Fig 34: Rear Frame (Cutaway)

G02421931

Courtesy of GENERAL MOTORS CORP.

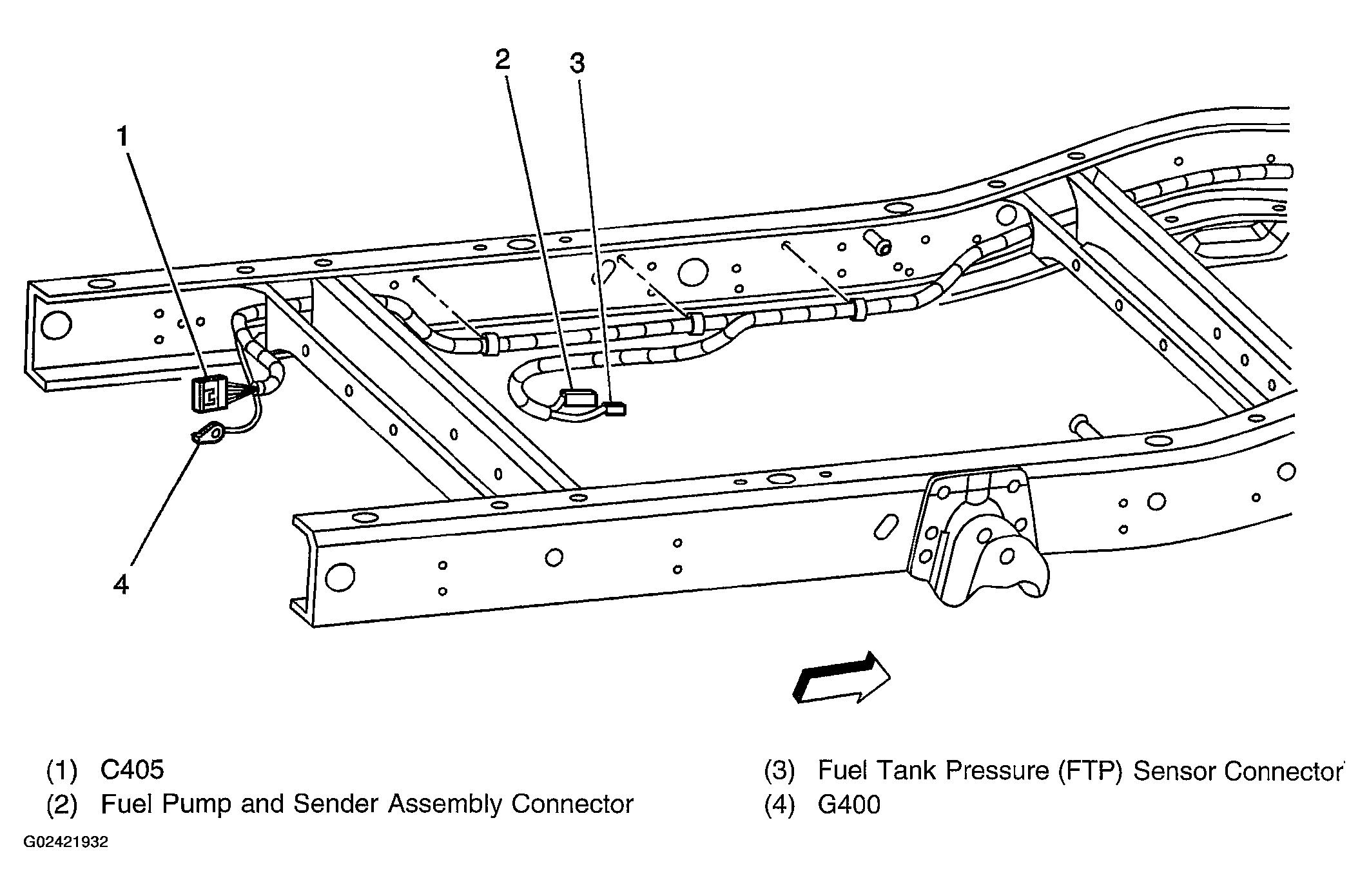

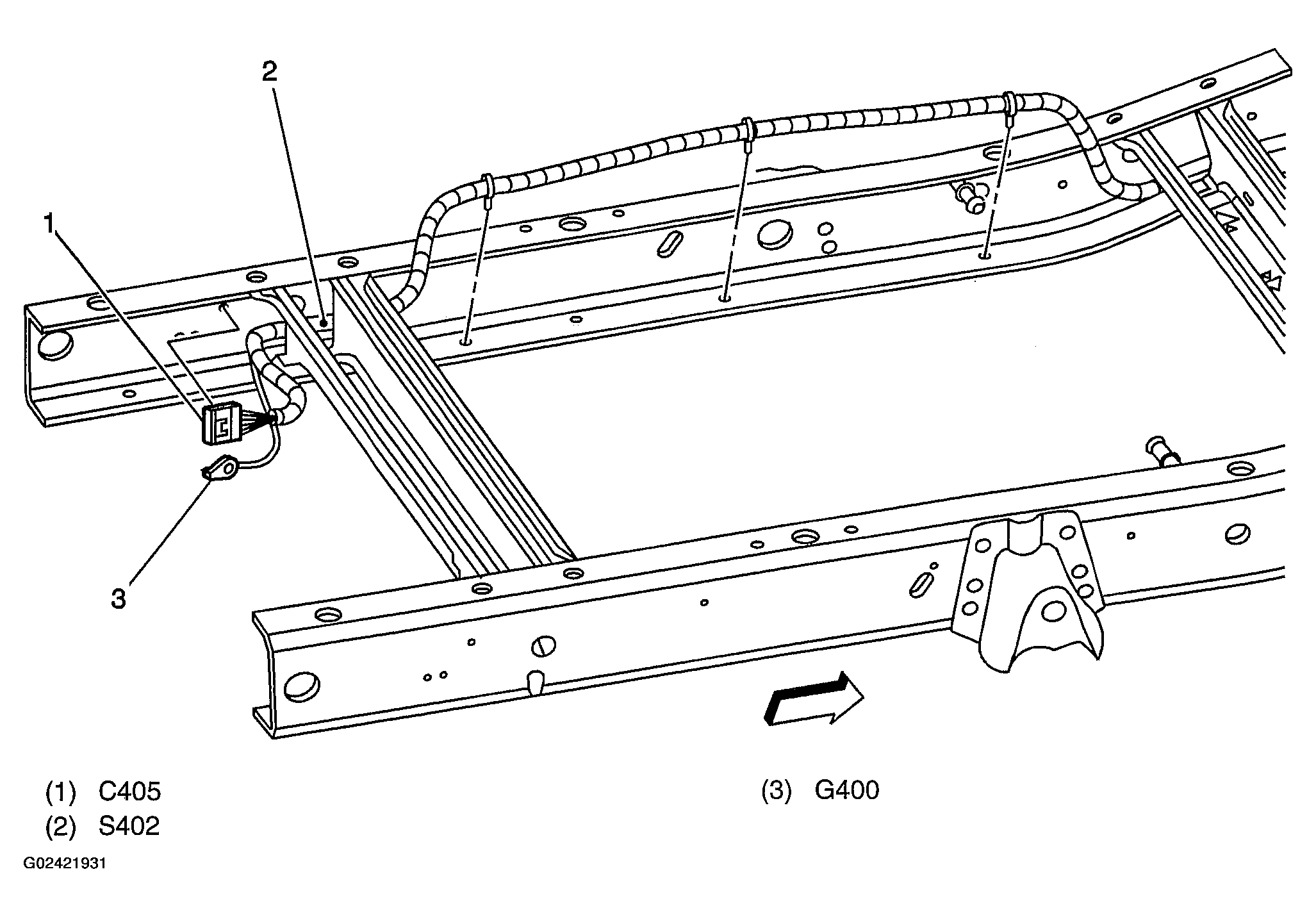

Fig 35: Rear Frame (Cutaway w/NE7)

G02421932

Courtesy of GENERAL MOTORS CORP.

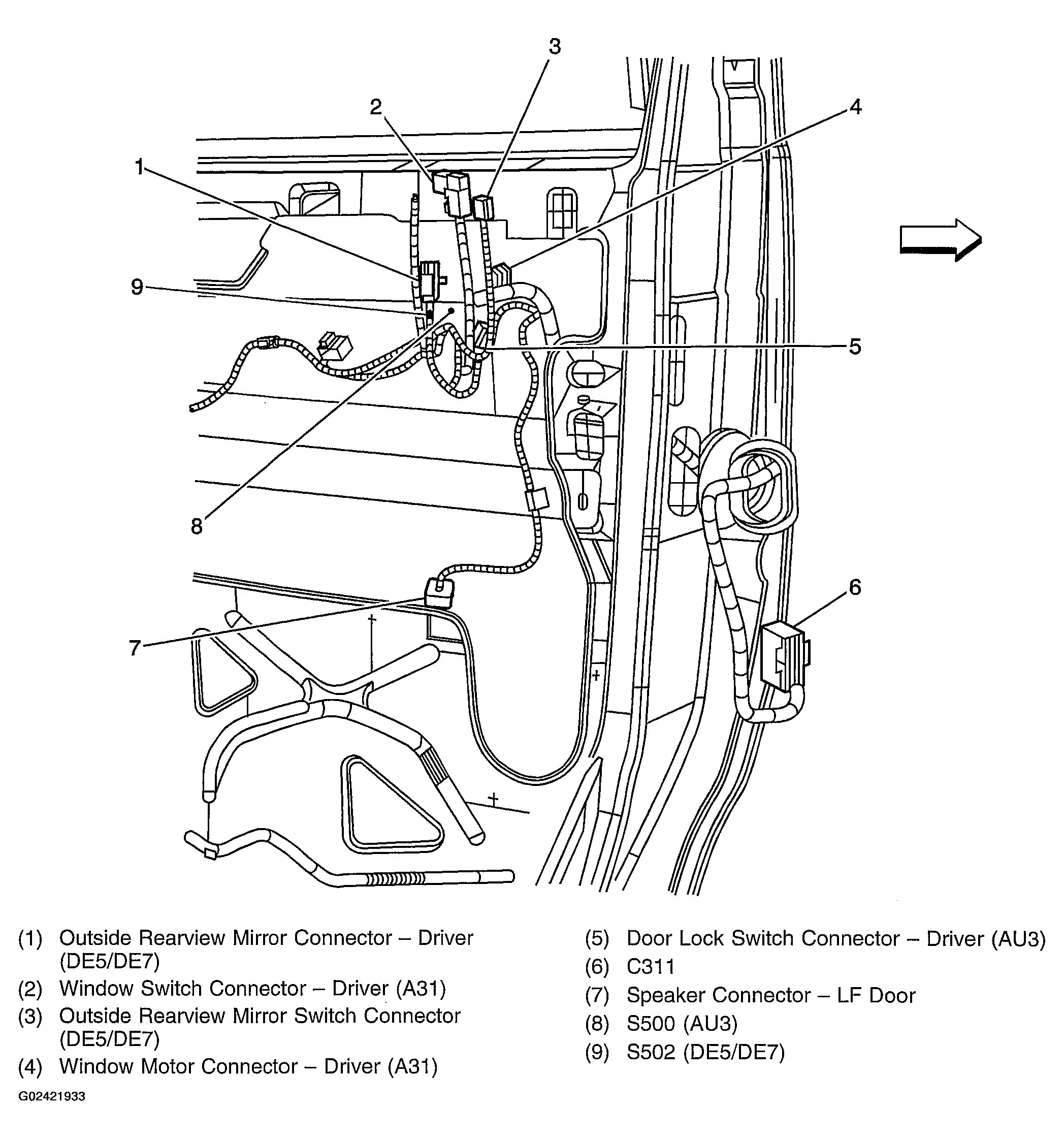

Fig 36: Driver Door Harness Routing

G02421933

Courtesy of GENERAL MOTORS CORP.

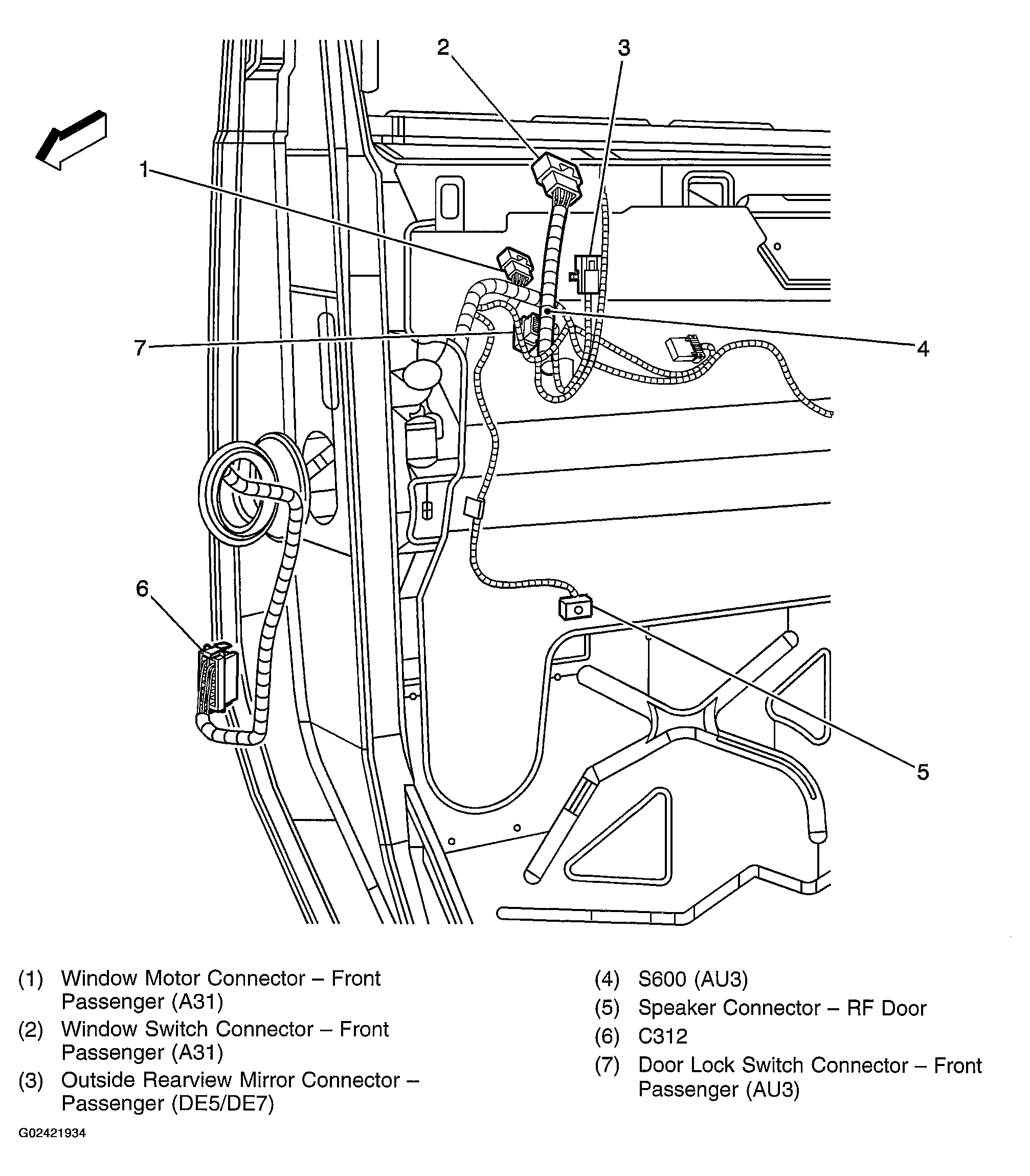

Fig 37: Passenger Door Harness Routing

G02421934

Courtesy of GENERAL MOTORS CORP.

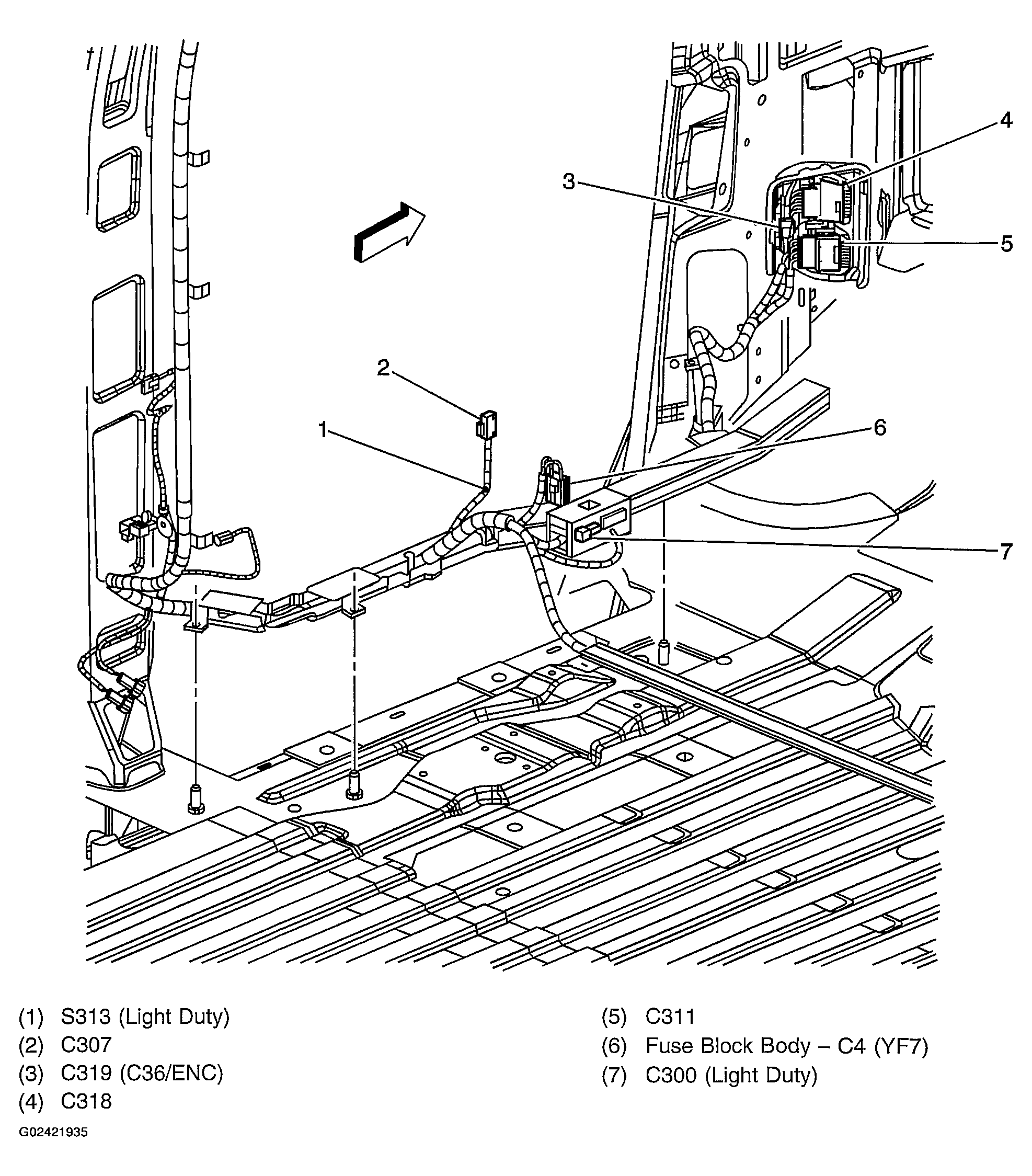

Fig 38: Body Harness Routing - Left Front Of Passenger Compartment

G02421935

Courtesy of GENERAL MOTORS CORP.

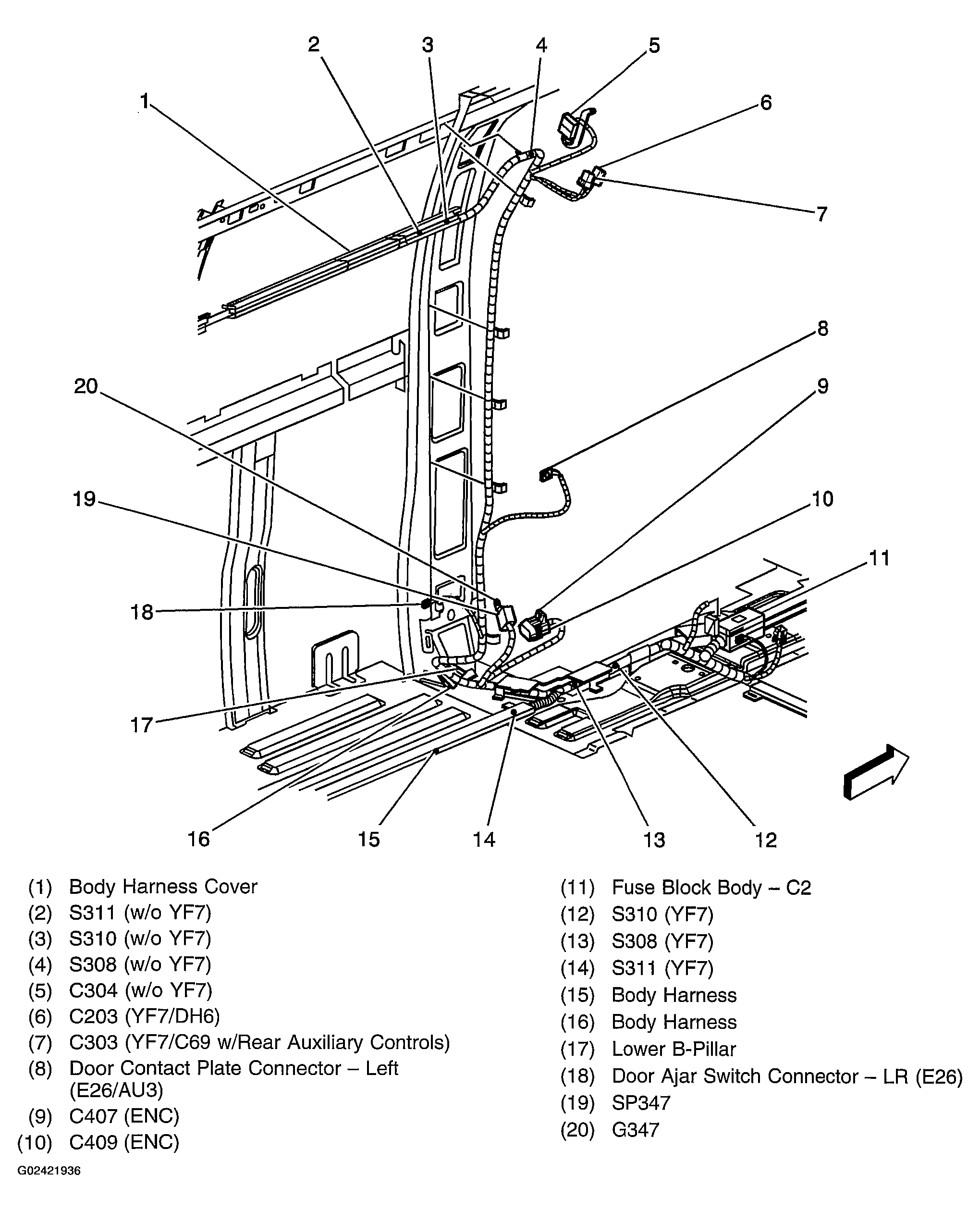

Fig 39: Body Harness Routing - Left B-Pillar (Passenger/Cargo)

G02421936

Courtesy of GENERAL MOTORS CORP.

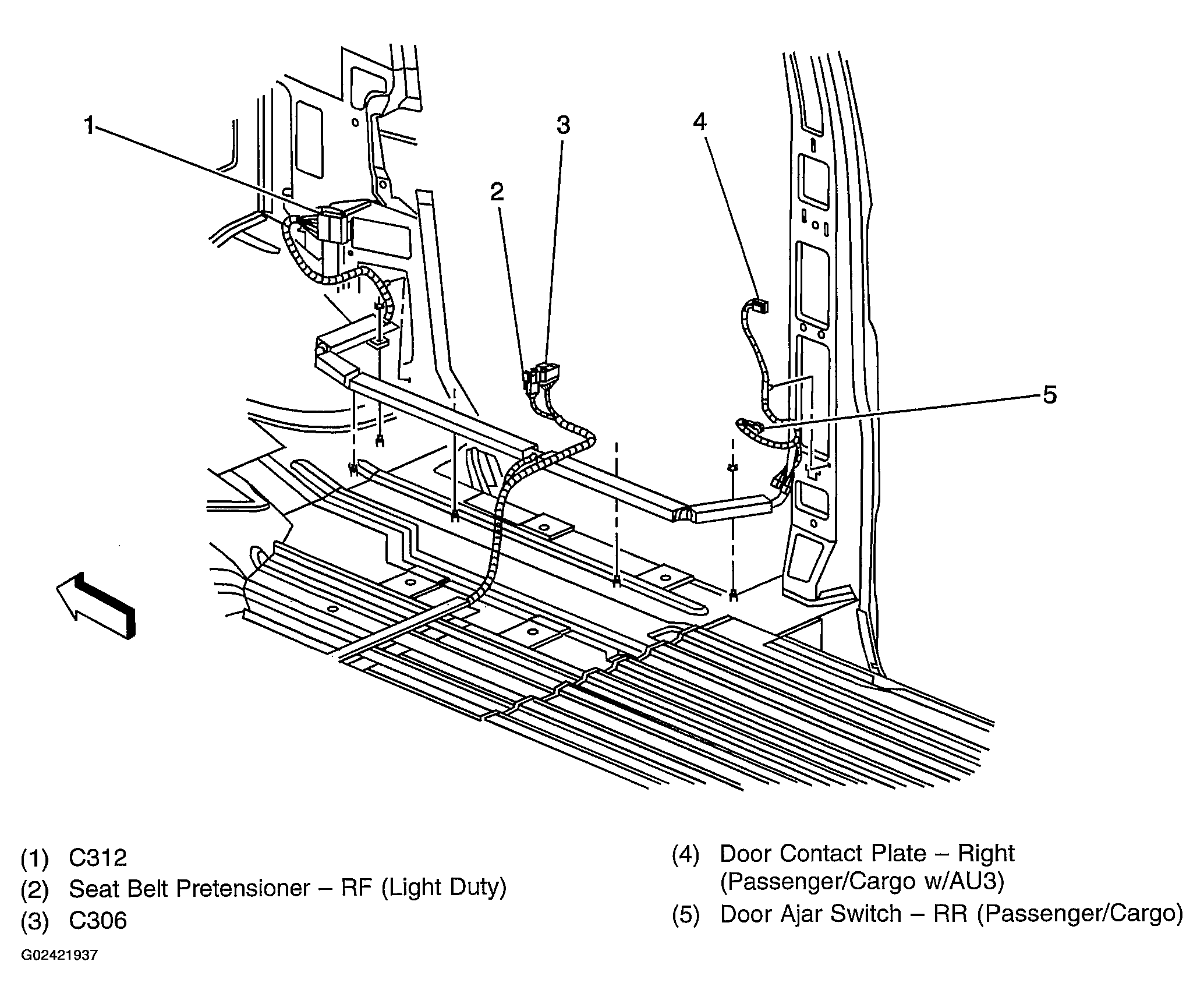

Fig 40: Body Harness Routing - Right B-Pillar

G02421937

Courtesy of GENERAL MOTORS CORP.

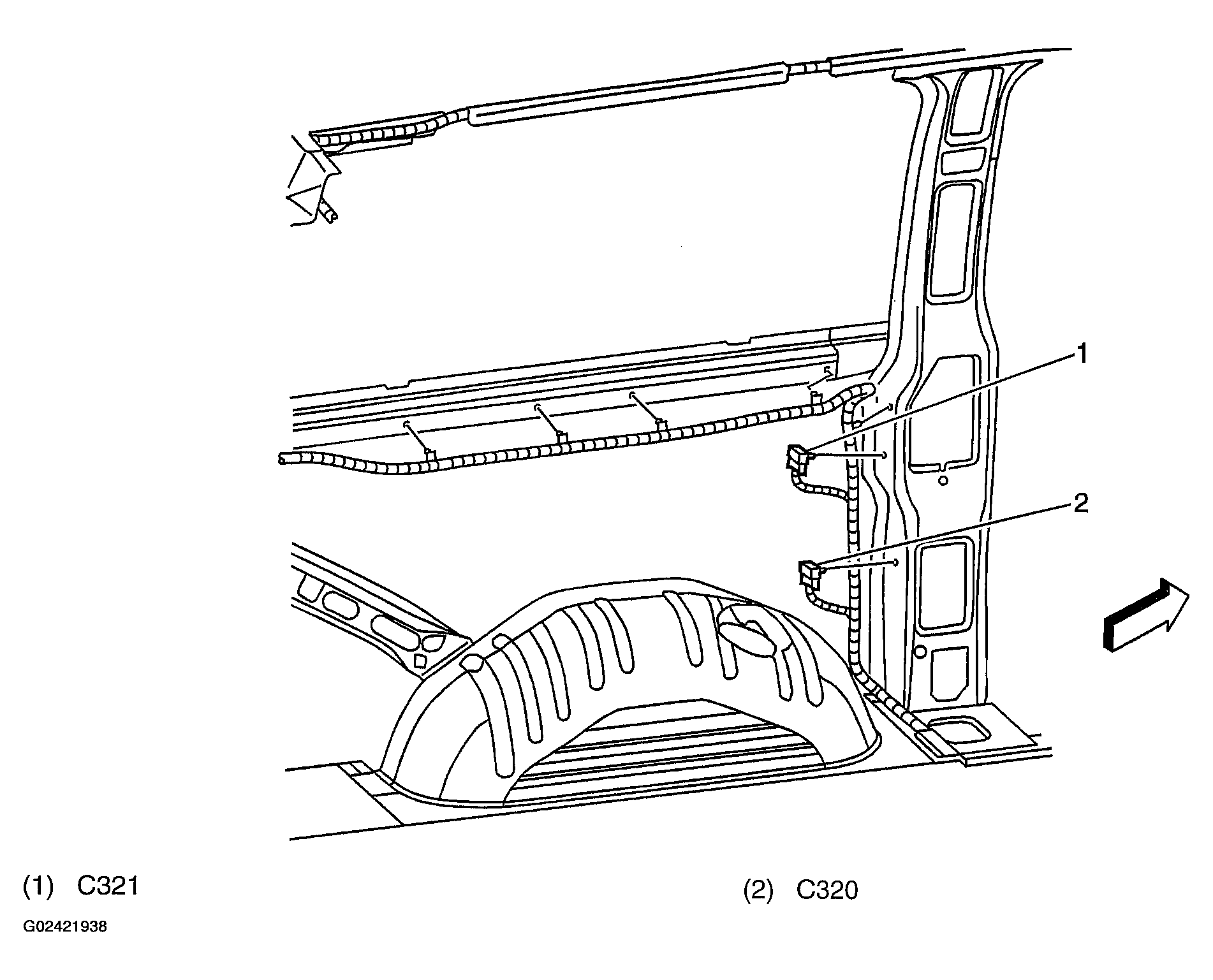

Fig 41: Body Harness Routing - Left Rear Of Passenger Compartment (YF7)

G02421938

Courtesy of GENERAL MOTORS CORP.

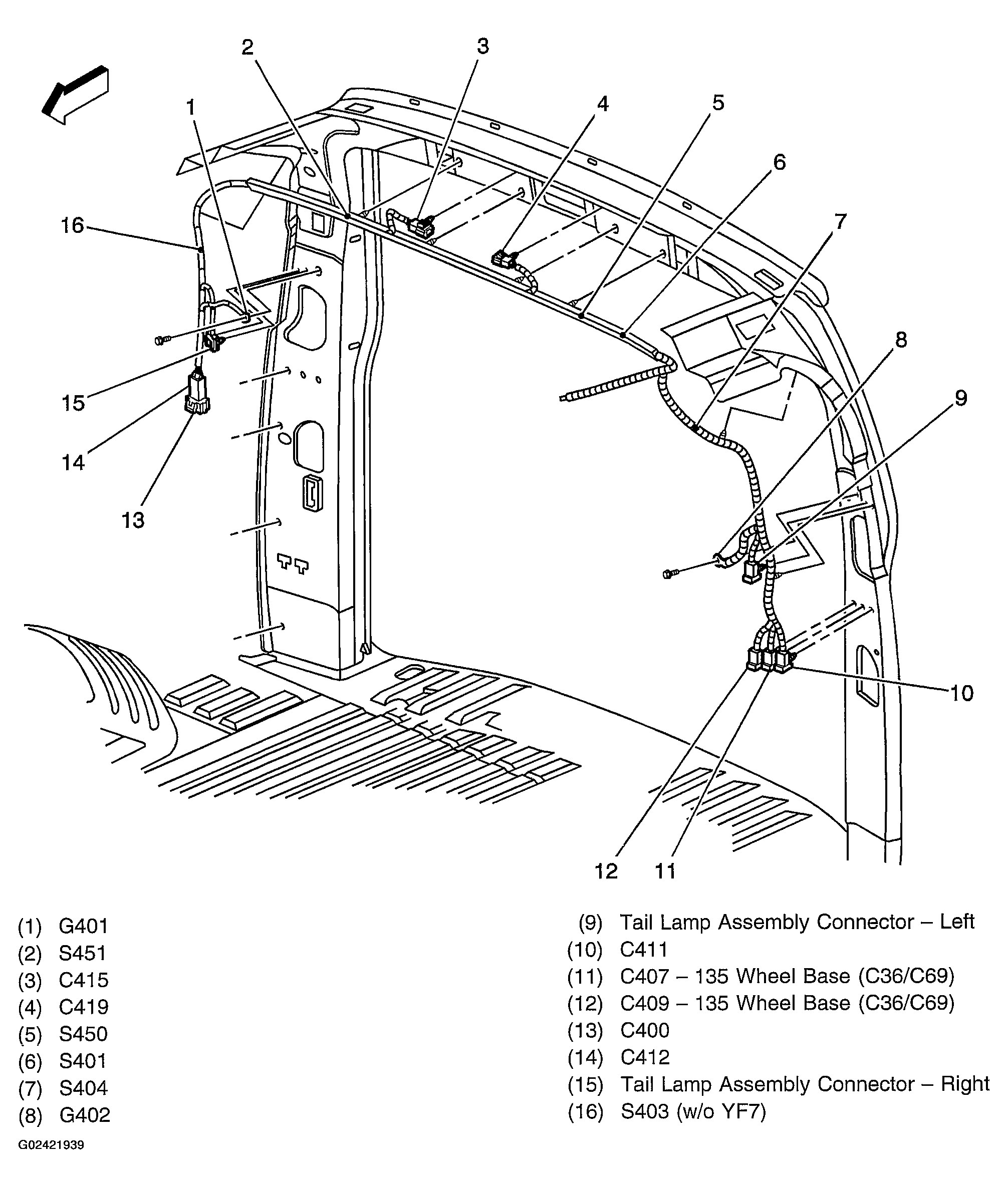

Fig 42: Body Harness Routing - Rear Of Passenger Compartment (Passenger/Cargo)

G02421939

Courtesy of GENERAL MOTORS CORP.

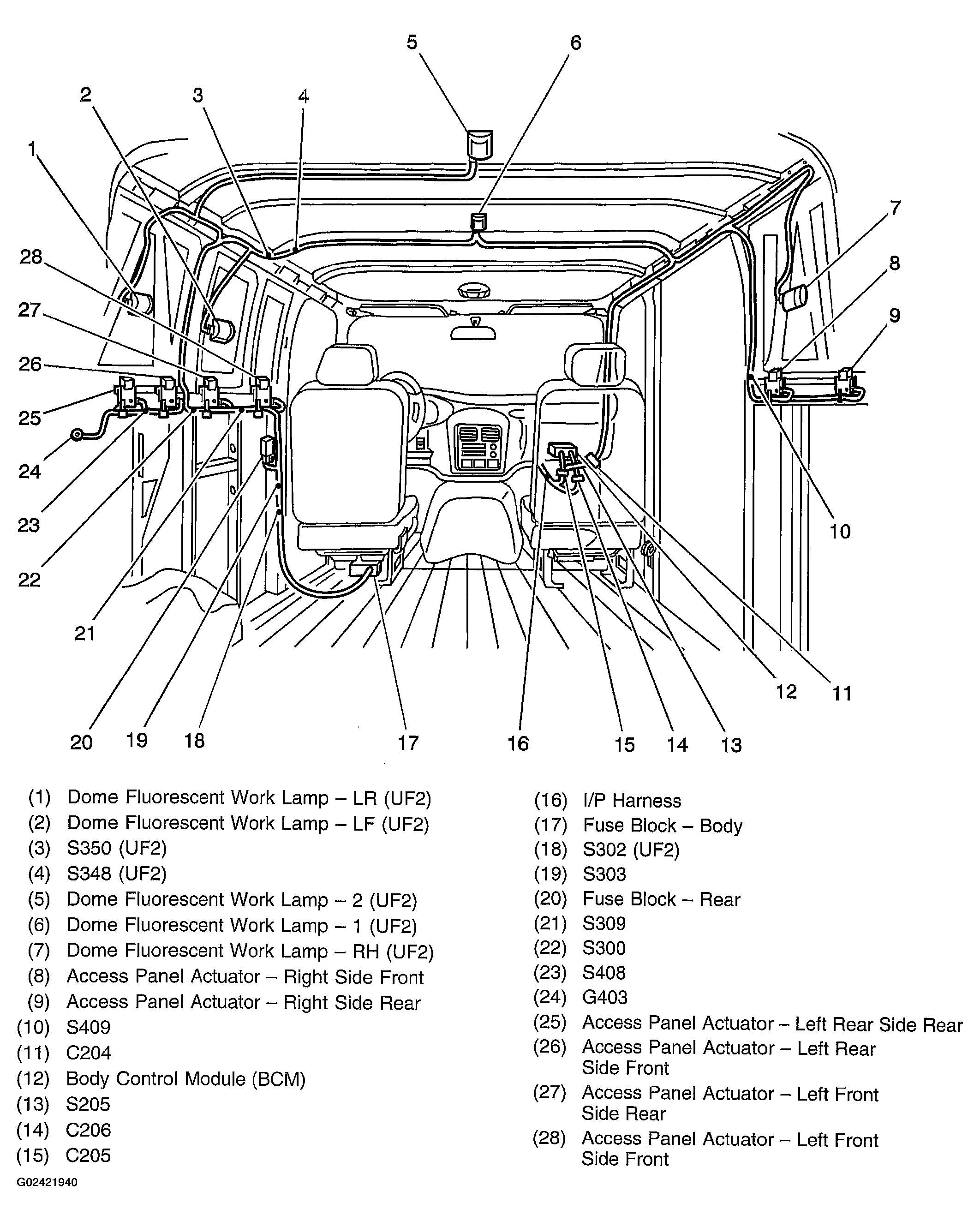

Fig 43: Pro Harness & Components (PRP)

G02421940

Courtesy of GENERAL MOTORS CORP.

Fig 44: Auxiliary Heater & A/C Harness Routing - Front (C36/C69)

G02421941

Courtesy of GENERAL MOTORS CORP.

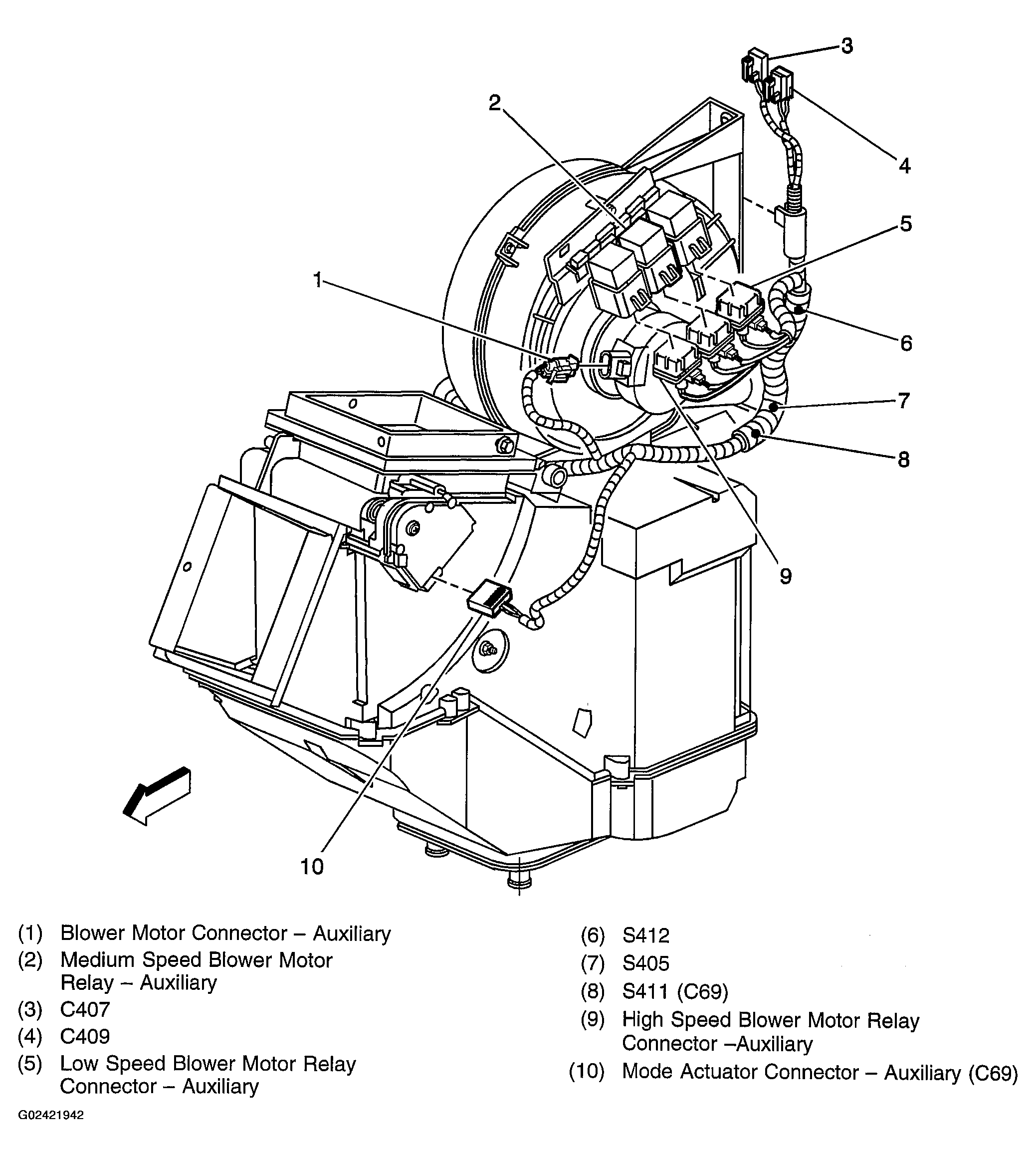

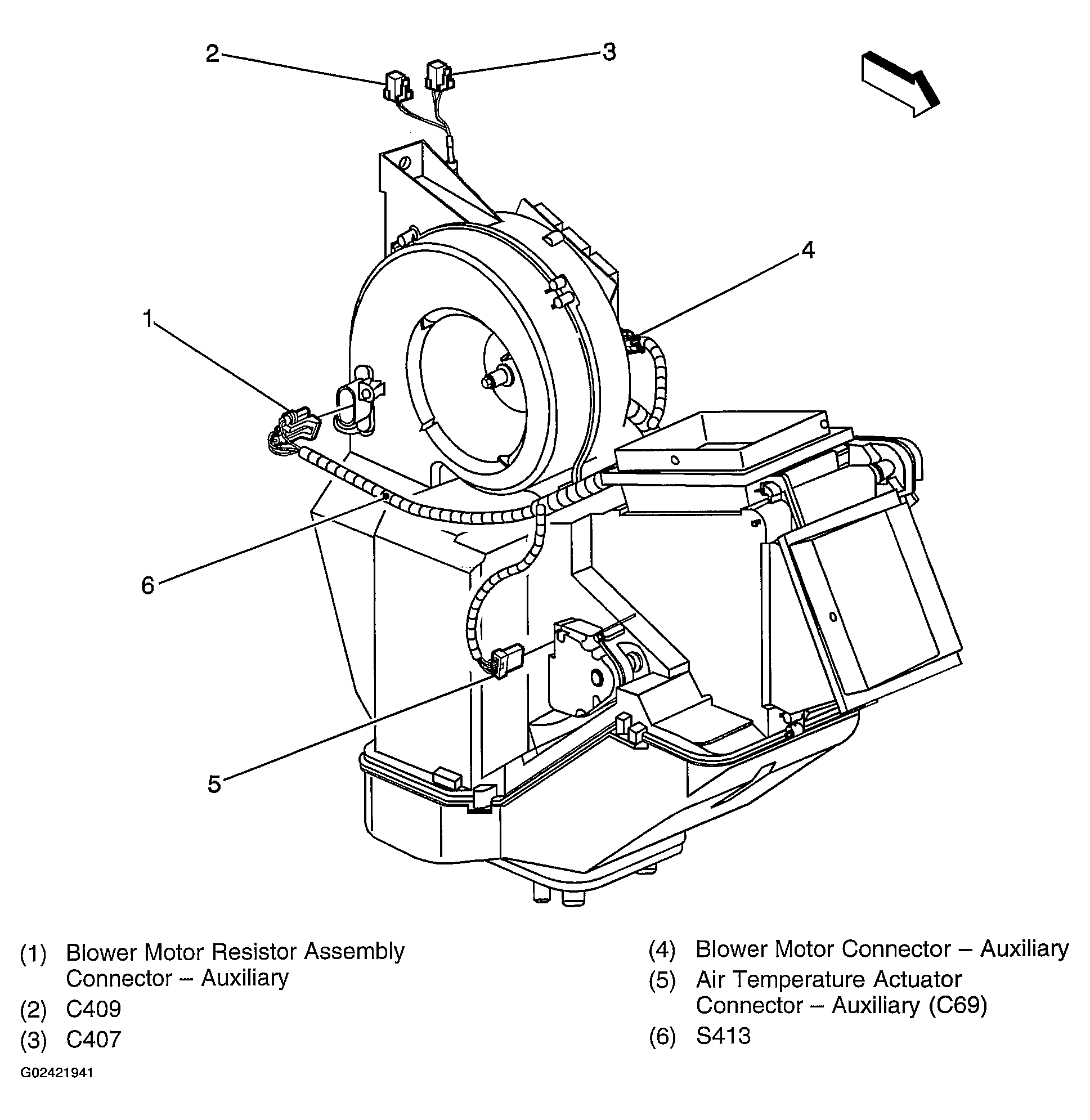

Fig 45: Auxiliary Heater & A/C Harness Routing - Rear (C36/C69)

G02421942

Courtesy of GENERAL MOTORS CORP.

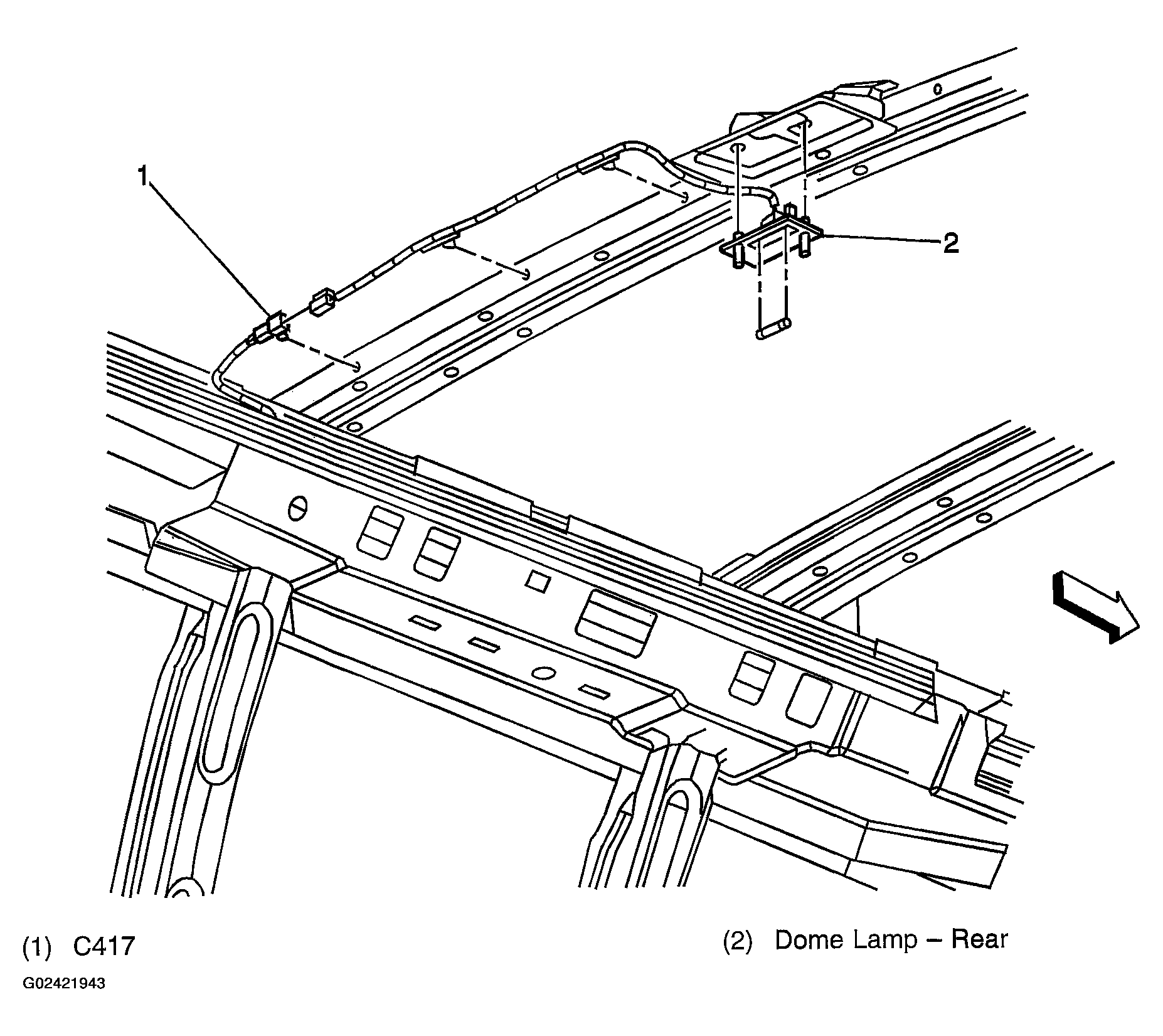

Fig 46: Rear Dome Lamp Harness Routing (Cargo)

G02421943

Courtesy of GENERAL MOTORS CORP.

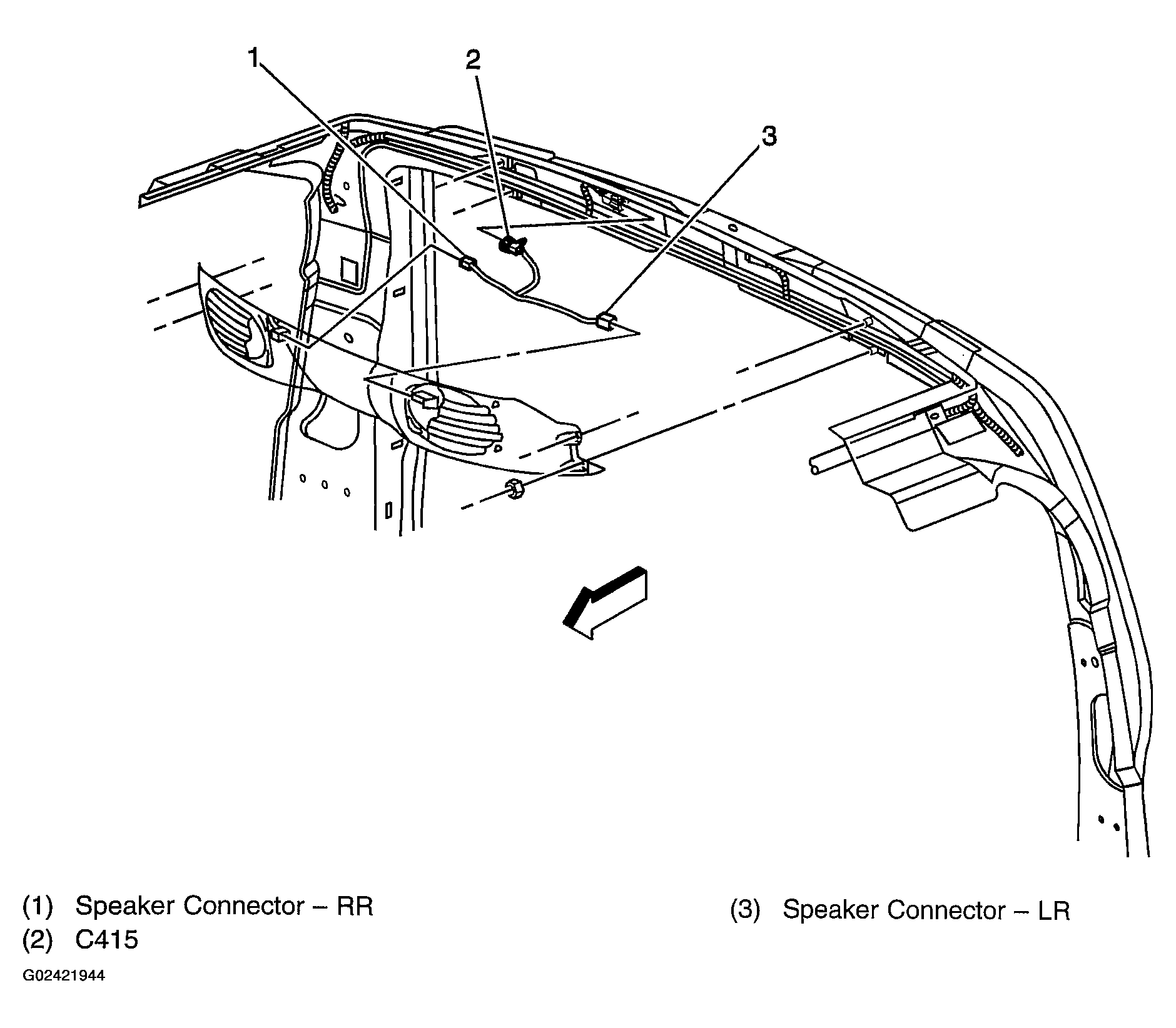

Fig 47: Upper Rear Speakers Harness Routing (Passenger/Cargo)

G02421944

Courtesy of GENERAL MOTORS CORP.

Fig 48: Left Rear Cargo Door Harness Routing (Passenger/Cargo)

G02421945

Courtesy of GENERAL MOTORS CORP.

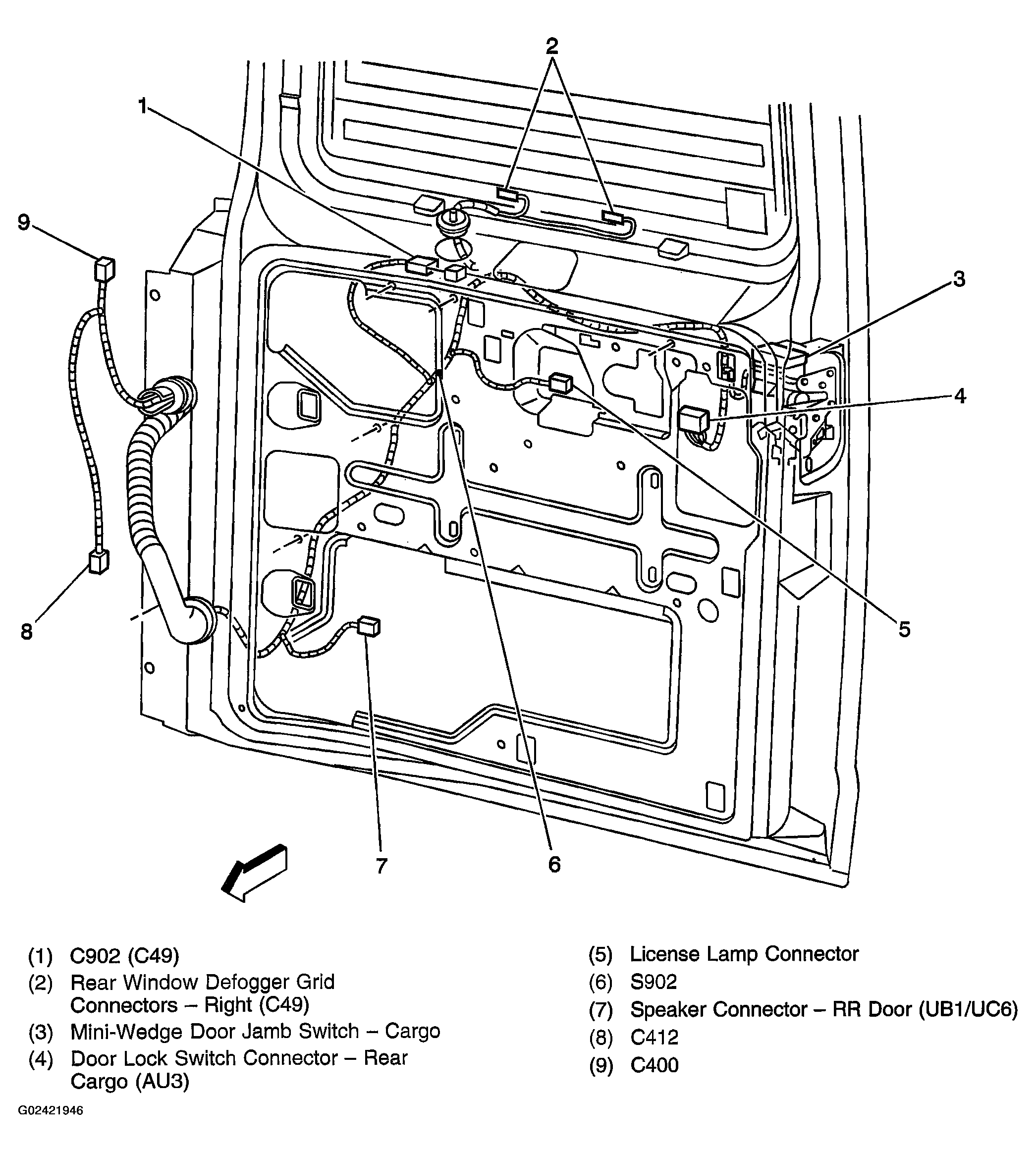

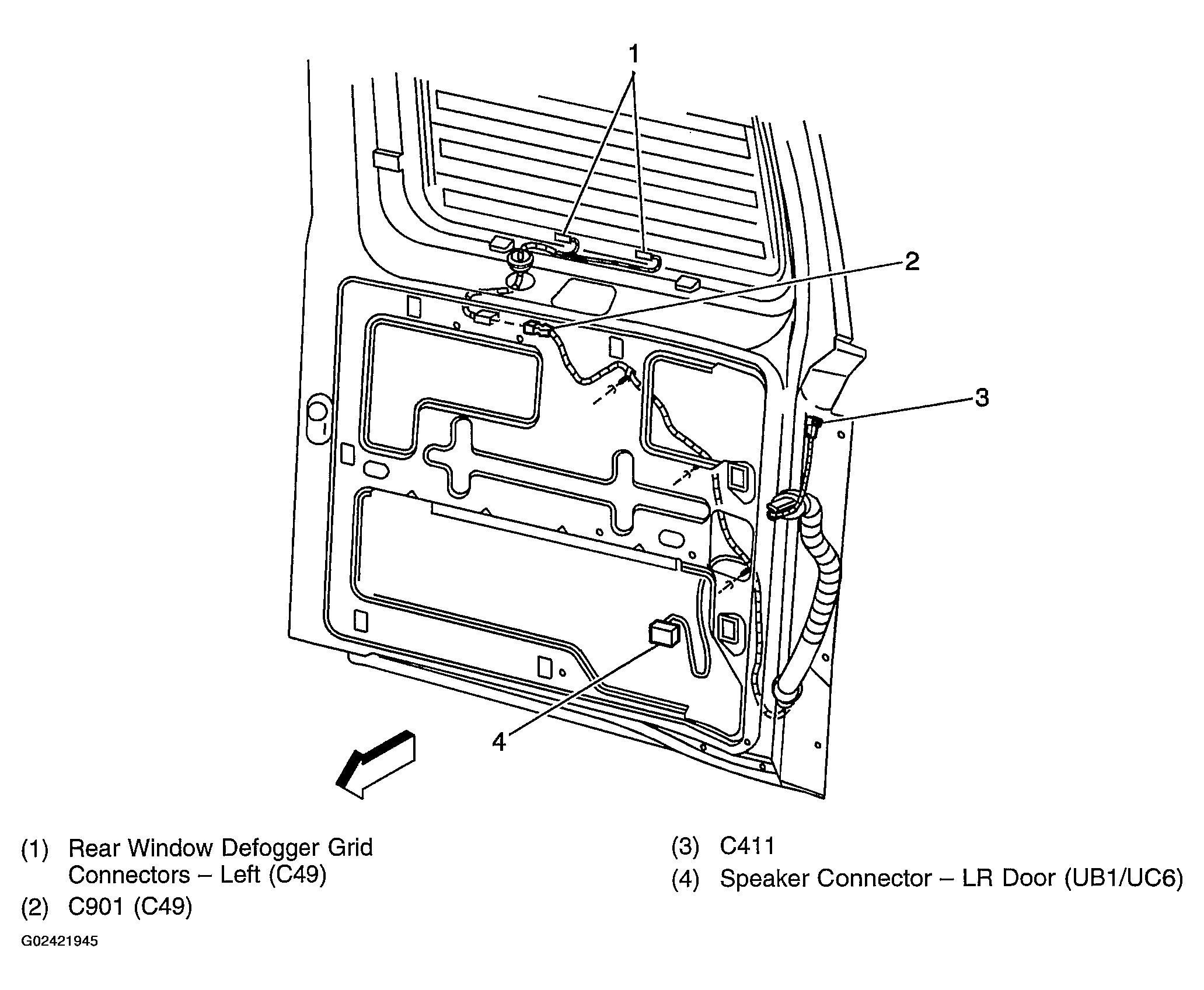

Fig 49: Right Rear Cargo Door Harness Routing (Passenger/Cargo)

G02421946

Courtesy of GENERAL MOTORS CORP.
