Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate the relay. Refer to the Master Electrical Component List  on to locate the relay in the vehicle.
  2. Remove any fasteners which hold the relay in place.
  3. Remove any connector position assurance (CPA) devices or secondary locks.

    Important:  Use care when removing a relay in a wiring harness when the relay is secured by fasteners or tape.

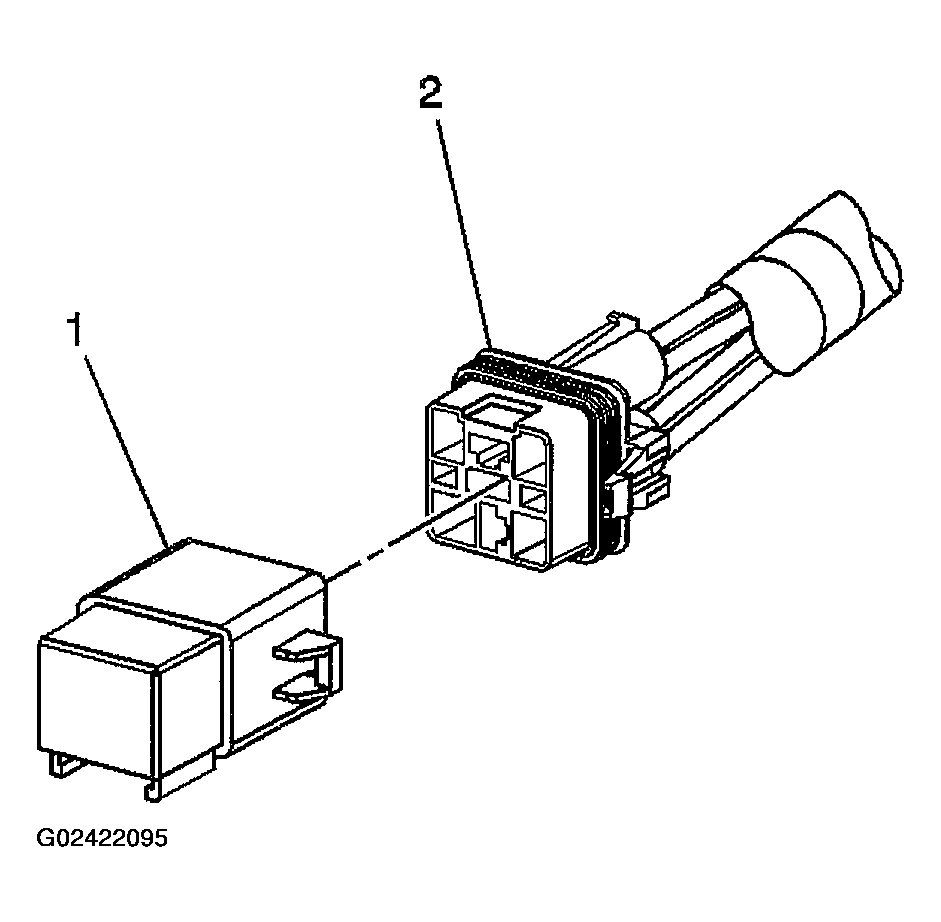

  4. Separate the relay (1) from the wire harness connector (2).
    Fig 1: Separating Relay From Wire Harness Connector
    G02422095Courtesy of GENERAL MOTORS CORP.
