Power and Grounding Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

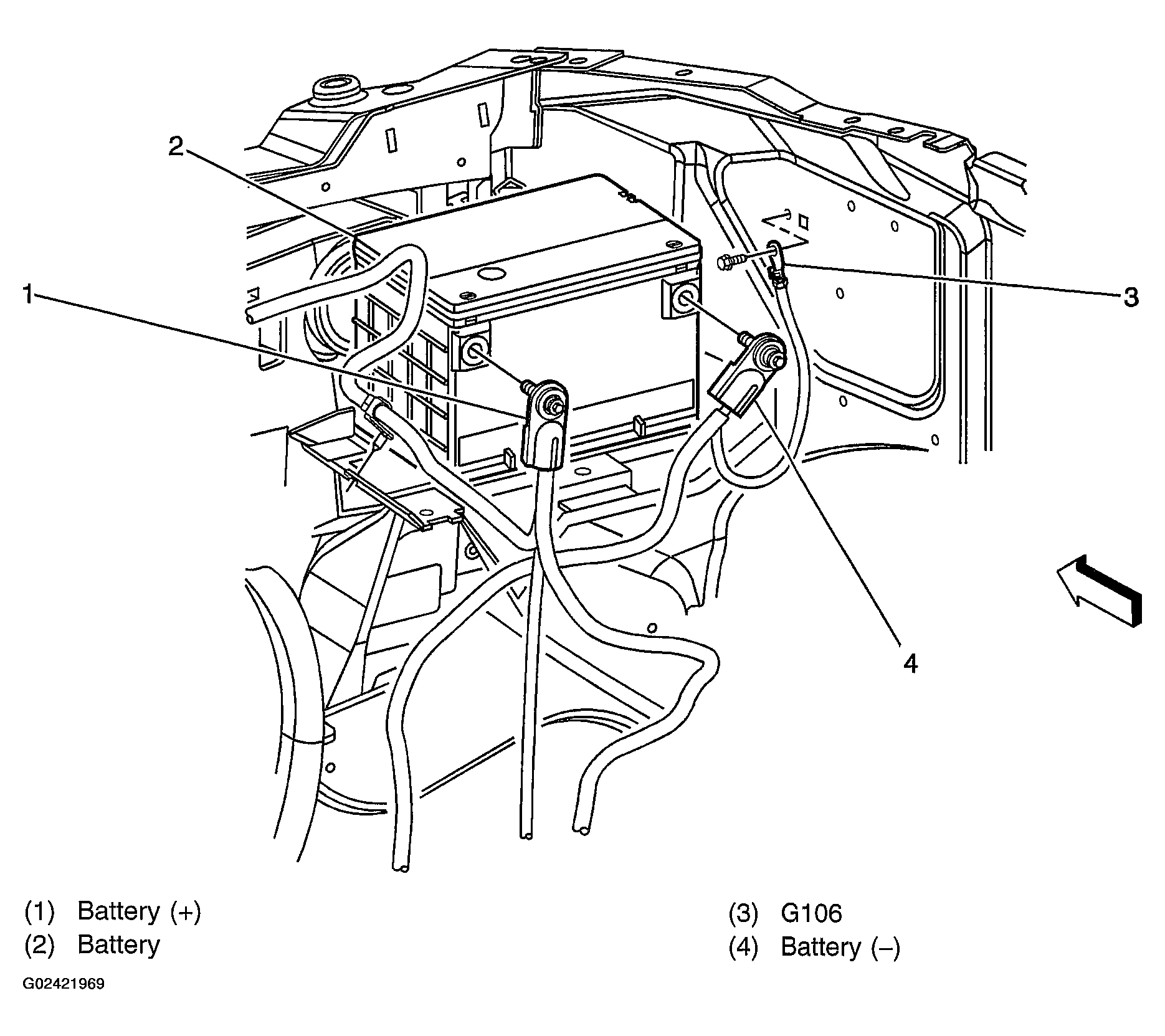

Fig 1: Battery - G106

G02421969

Courtesy of GENERAL MOTORS CORP.

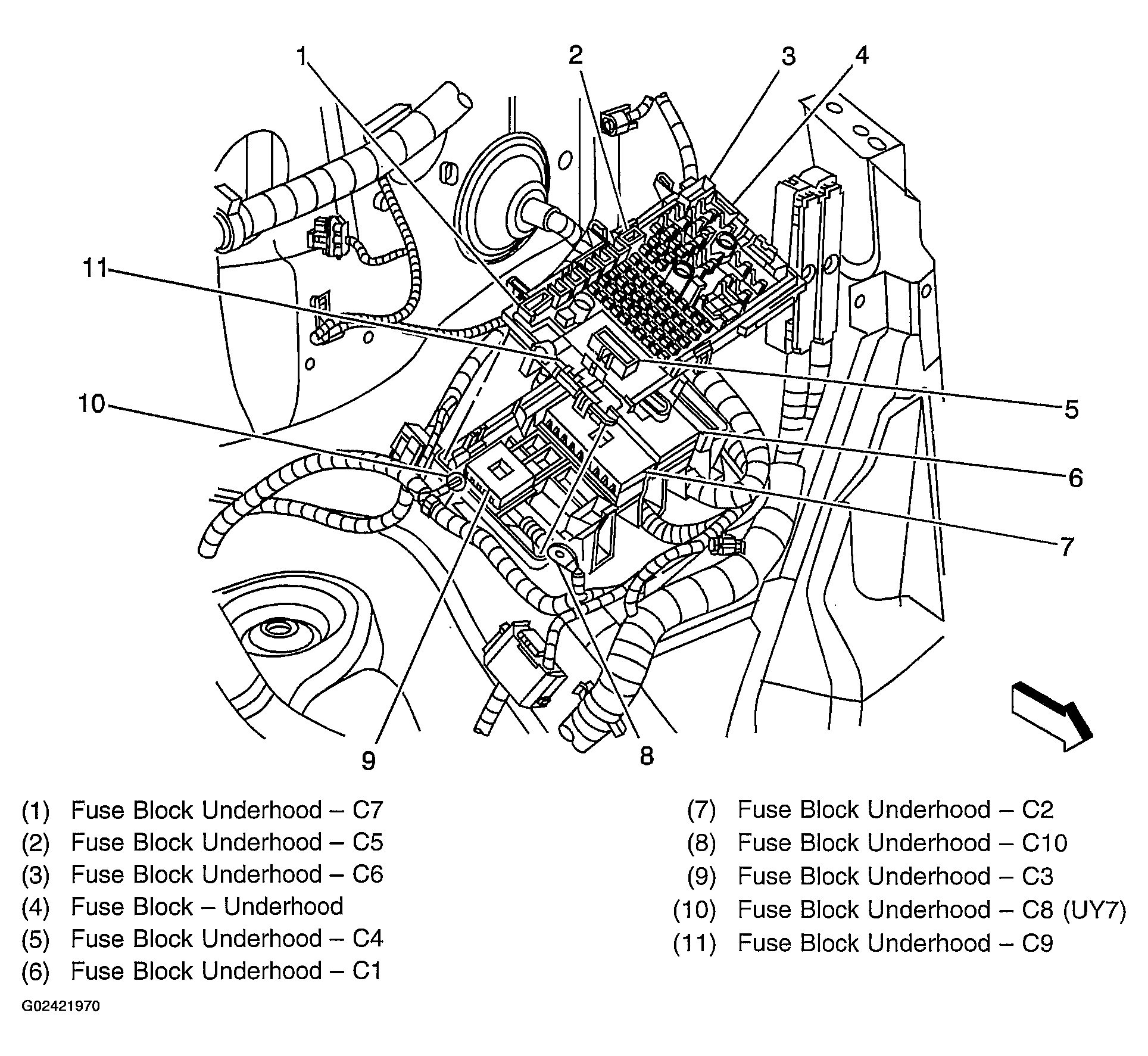

Fig 2: Fuse Block - Underhood

G02421970

Courtesy of GENERAL MOTORS CORP.

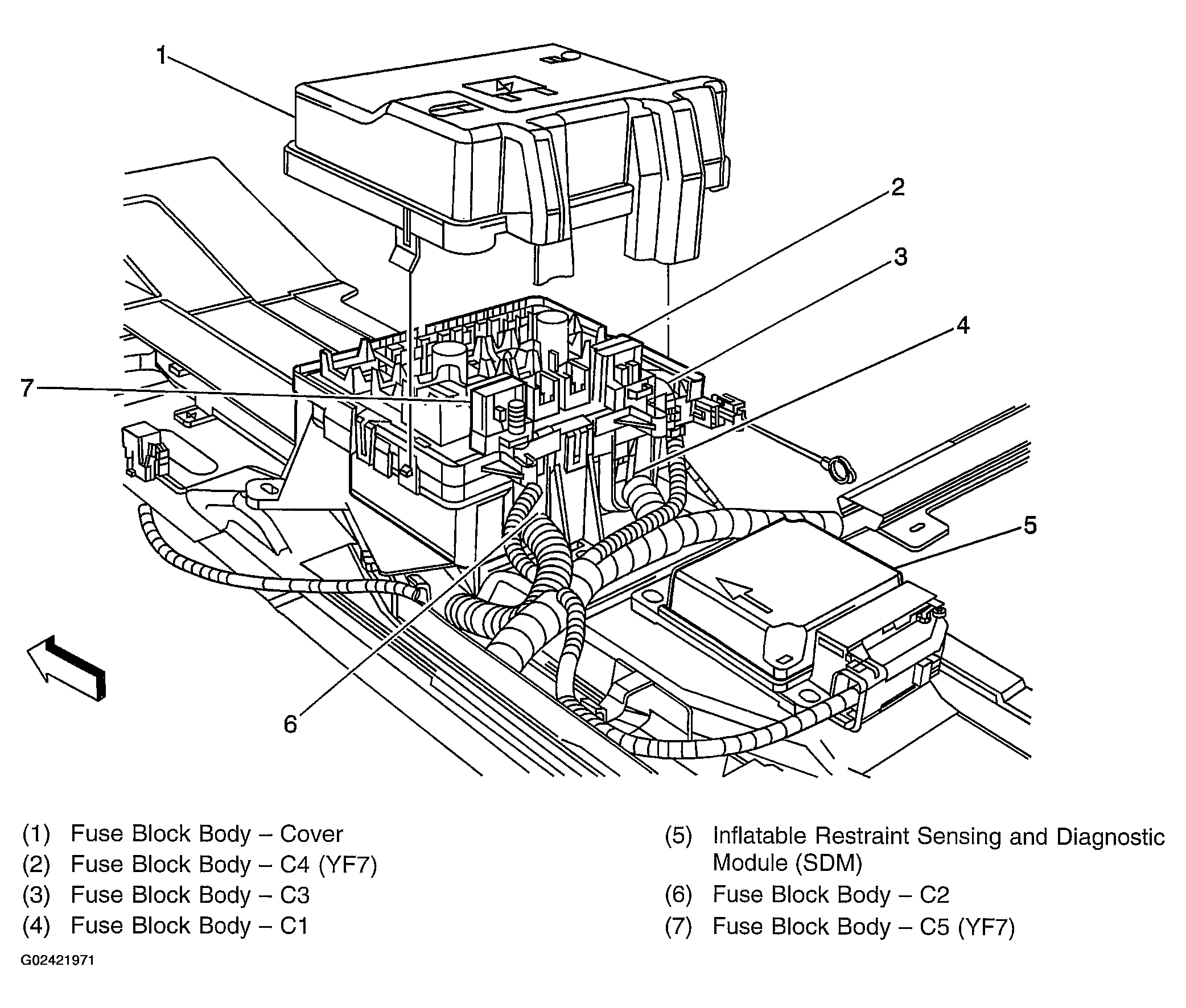

Fig 3: Fuse Block - Body

G02421971

Courtesy of GENERAL MOTORS CORP.

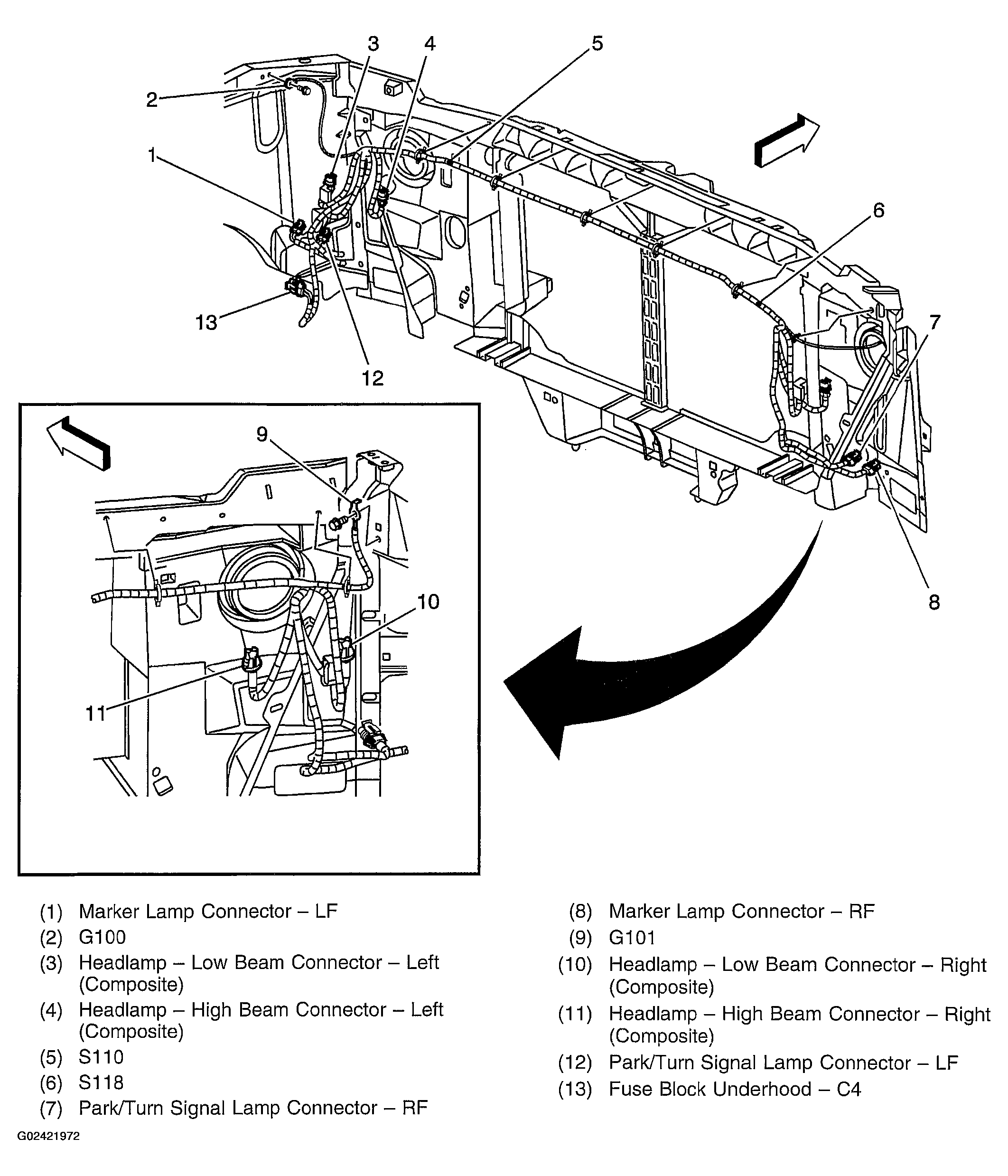

Fig 4: Forward Lamps Harness Routing

G02421972

Courtesy of GENERAL MOTORS CORP.

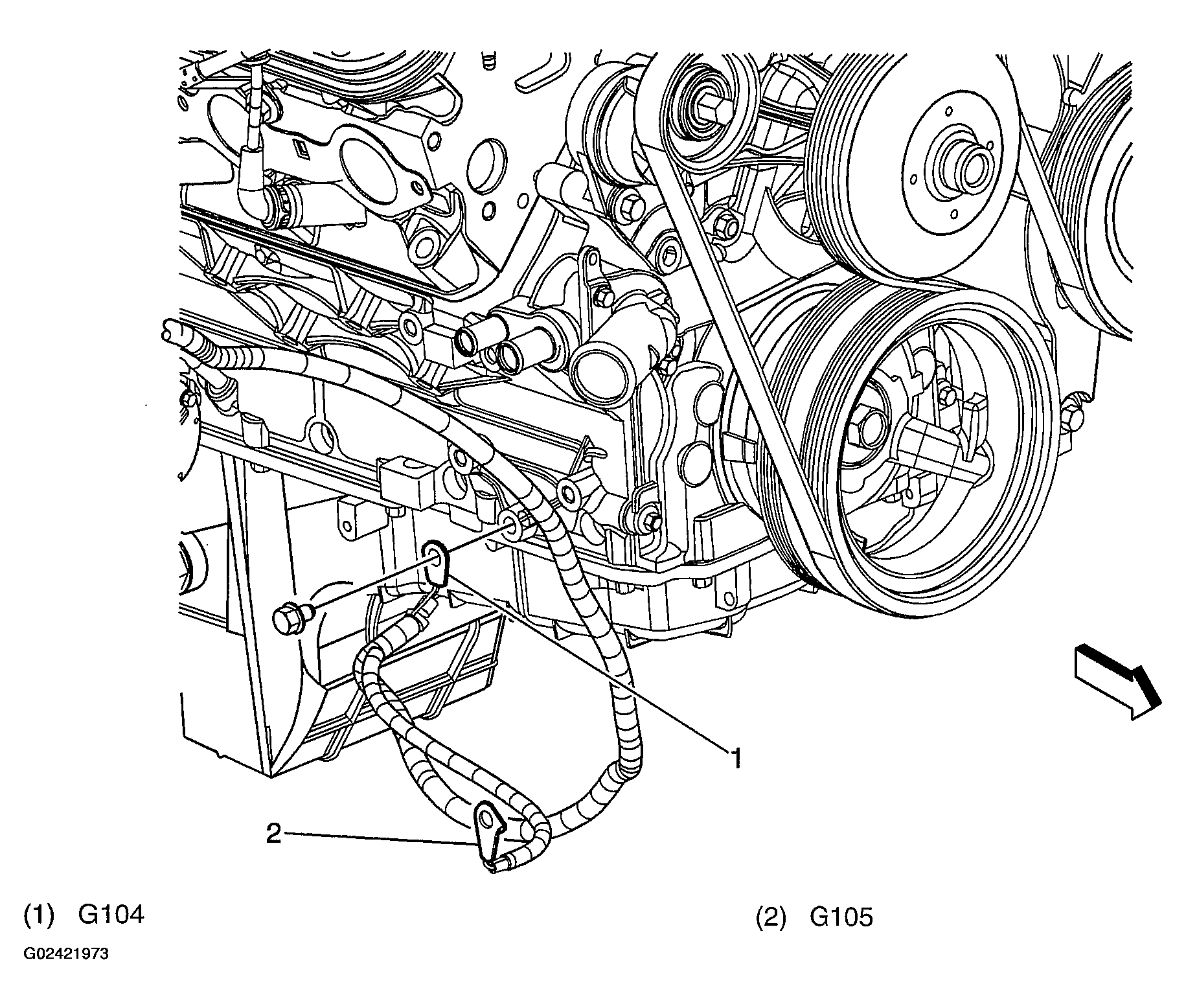

Fig 5: G104, G105

G02421973

Courtesy of GENERAL MOTORS CORP.

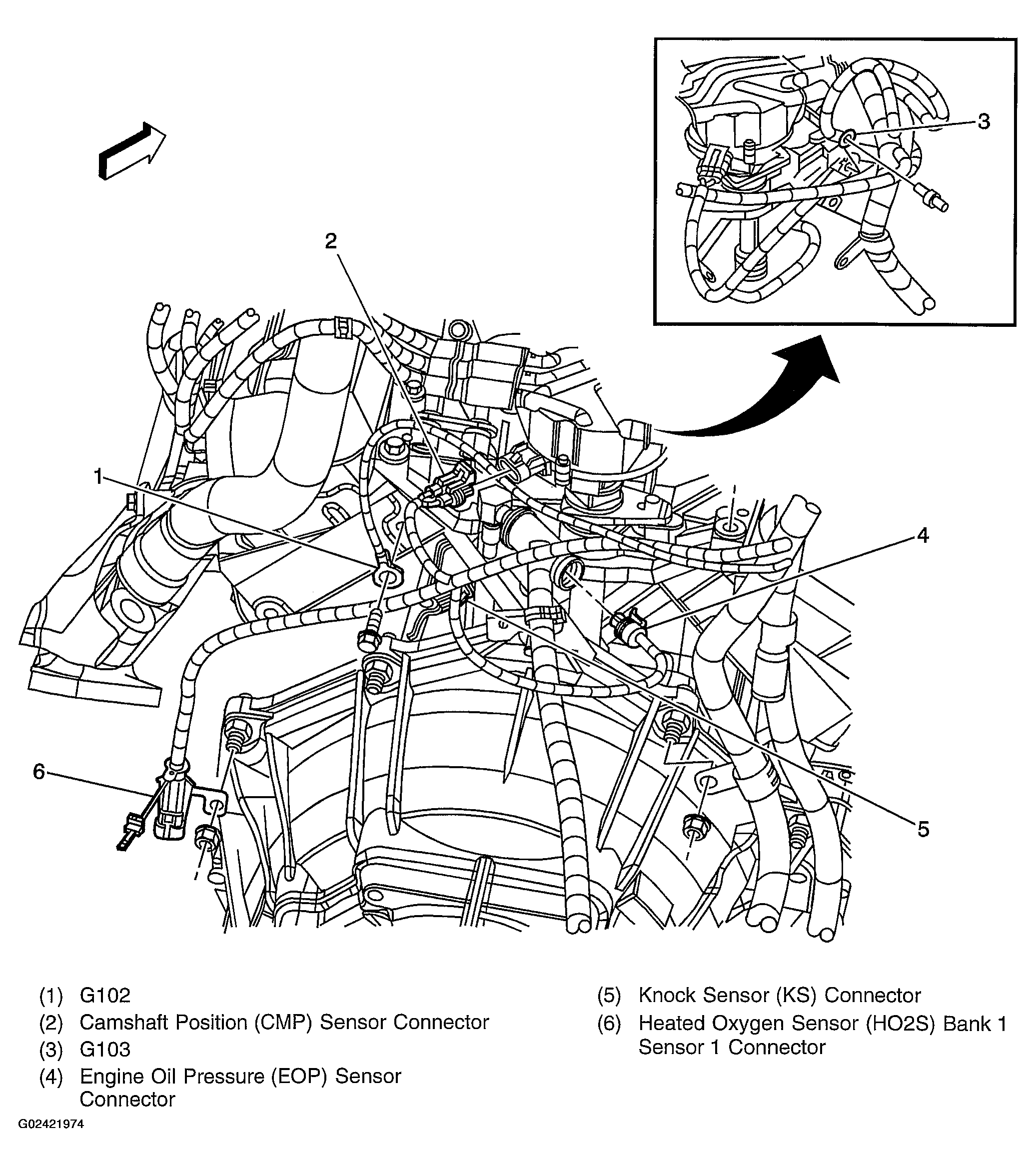

Fig 6: Engine Harness - Back Of Engine (4.3L)

G02421974

Courtesy of GENERAL MOTORS CORP.

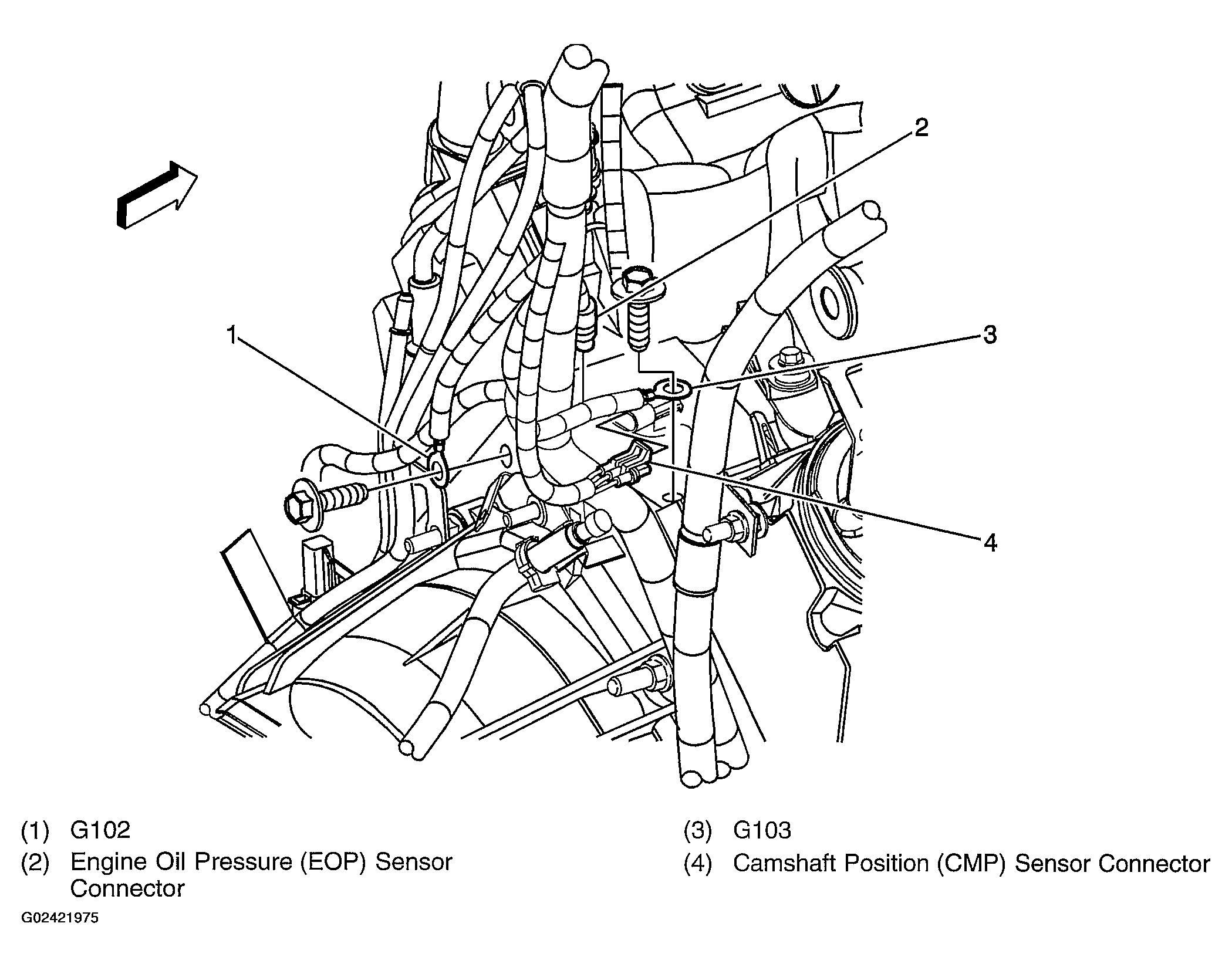

Fig 7: Engine Harness - Back Of Engine (4.8L/5.3L/6.0L)

G02421975

Courtesy of GENERAL MOTORS CORP.

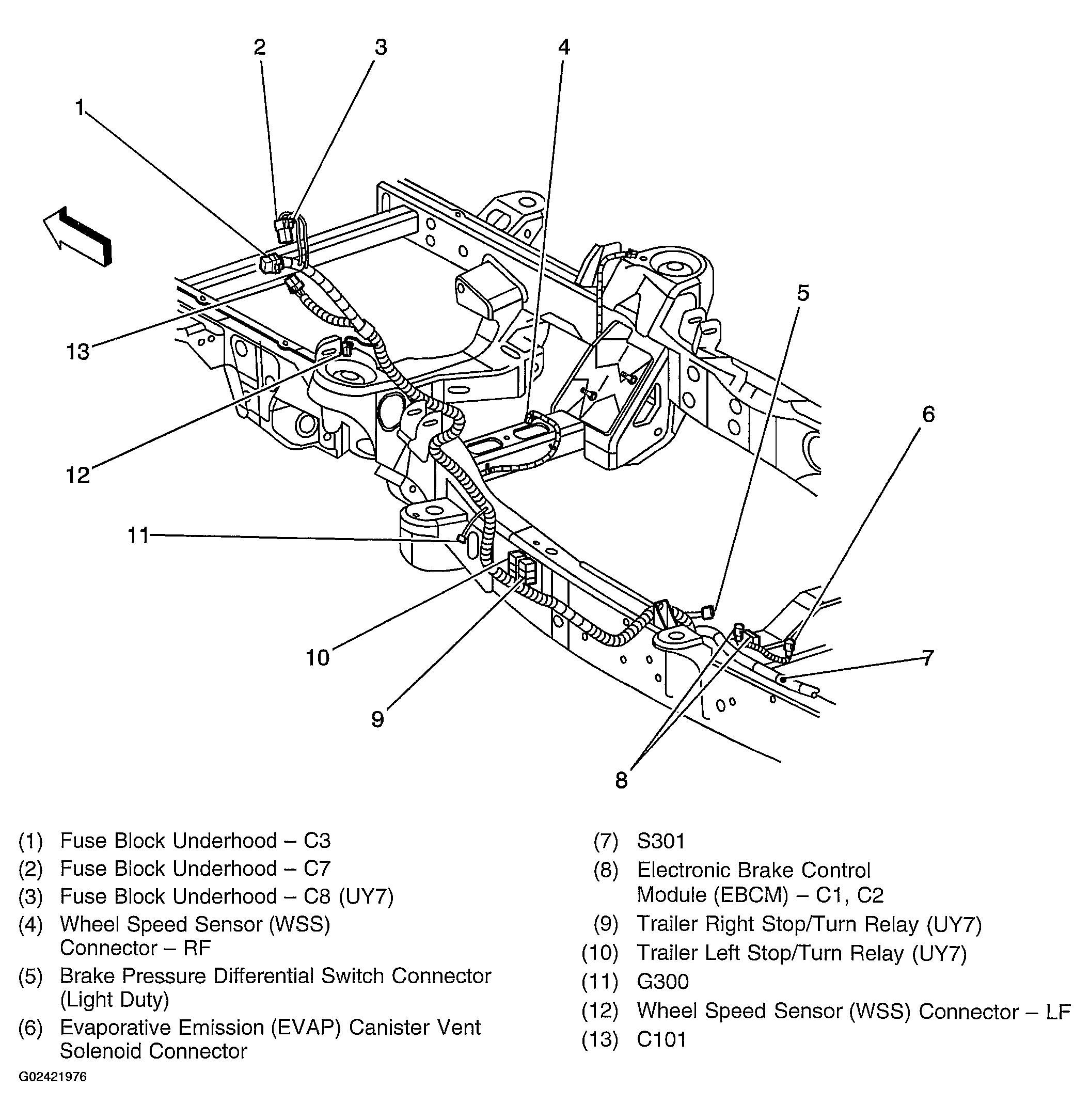

Fig 8: Chassis Harness Routing (Passenger/Cargo)

G02421976

Courtesy of GENERAL MOTORS CORP.

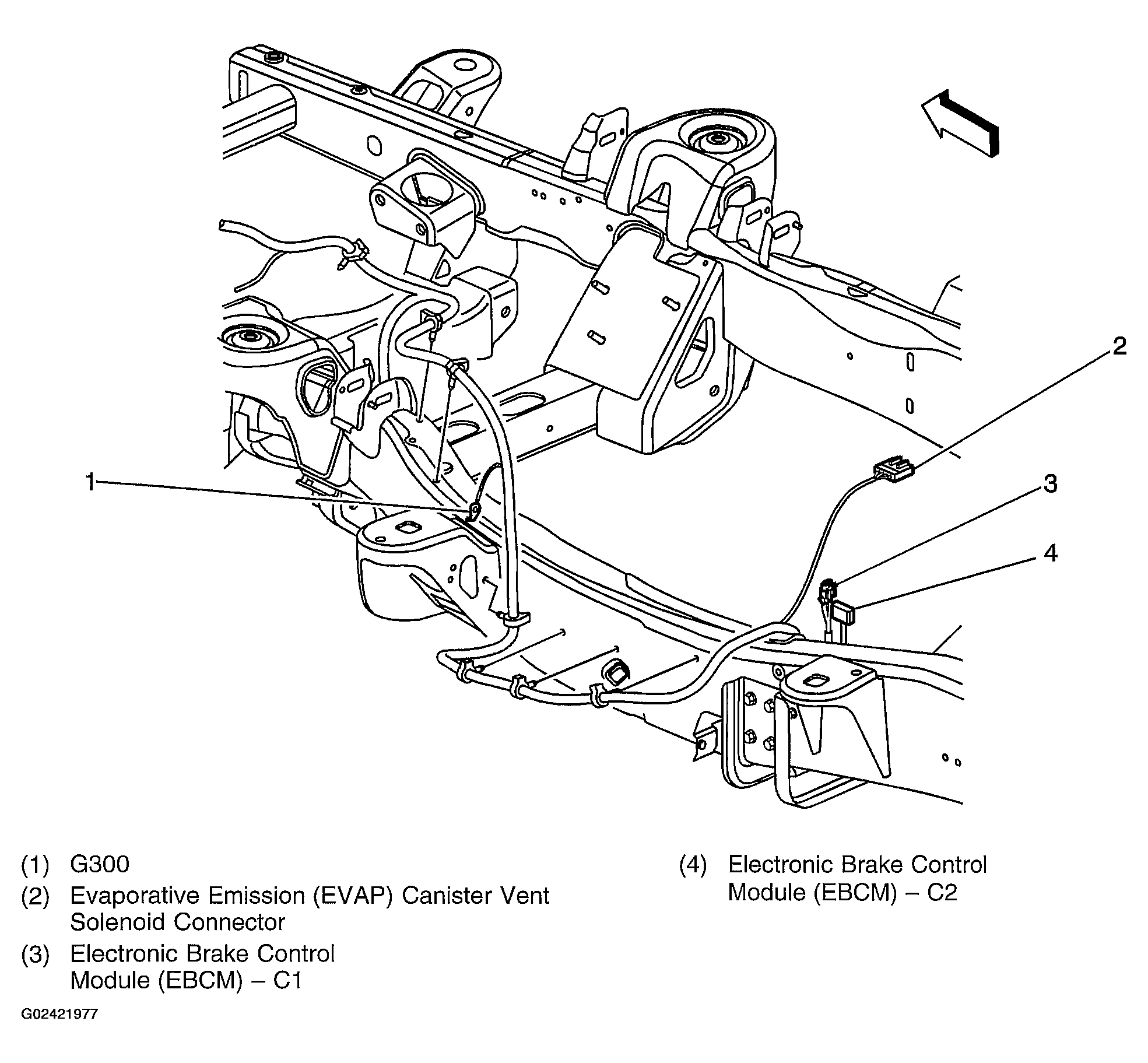

Fig 9: Outer Center Frame (Cutaway)

G02421977

Courtesy of GENERAL MOTORS CORP.

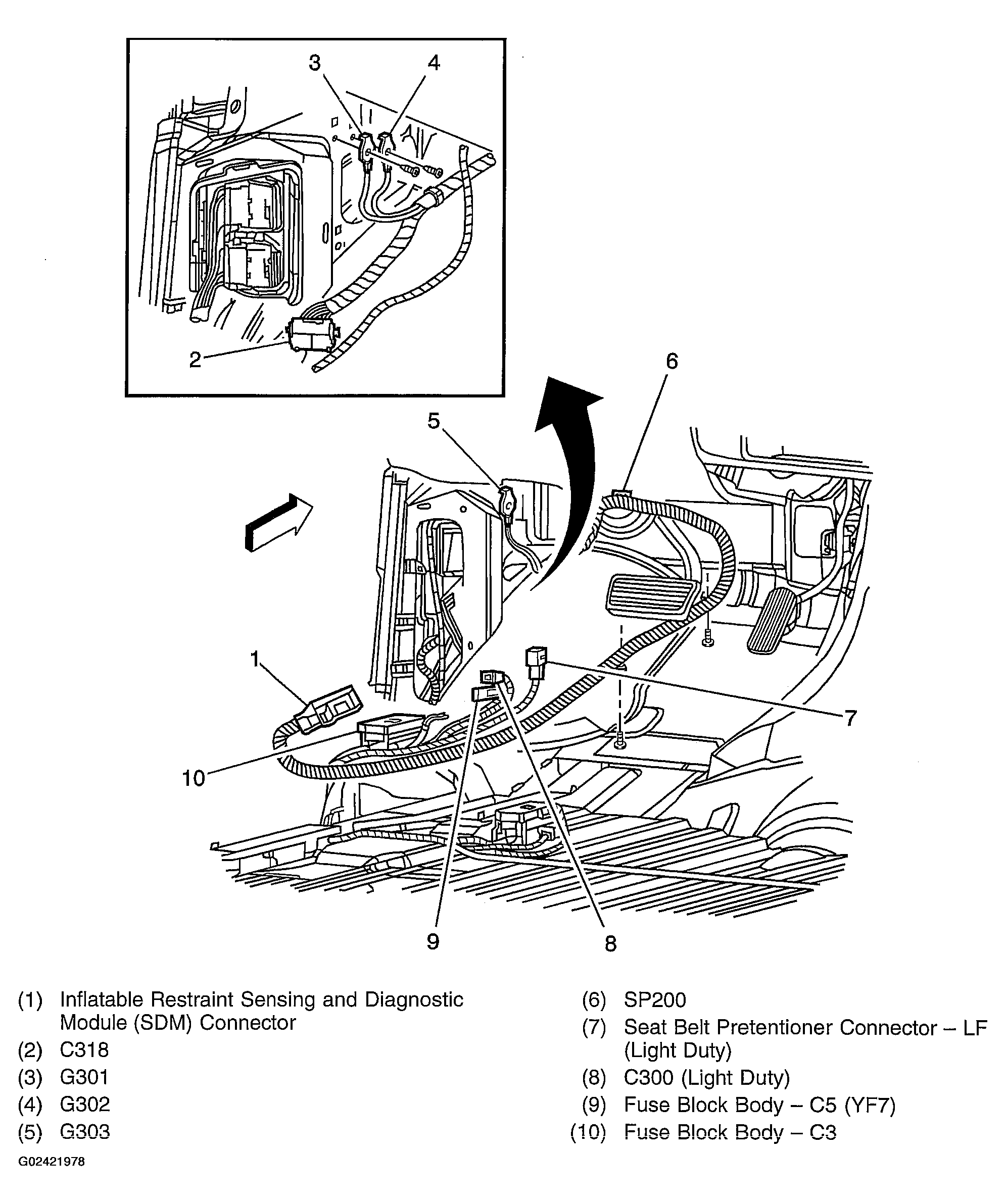

Fig 10: I/P Harness Routing - Lower Left Side Of Passenger Compartment

G02421978

Courtesy of GENERAL MOTORS CORP.

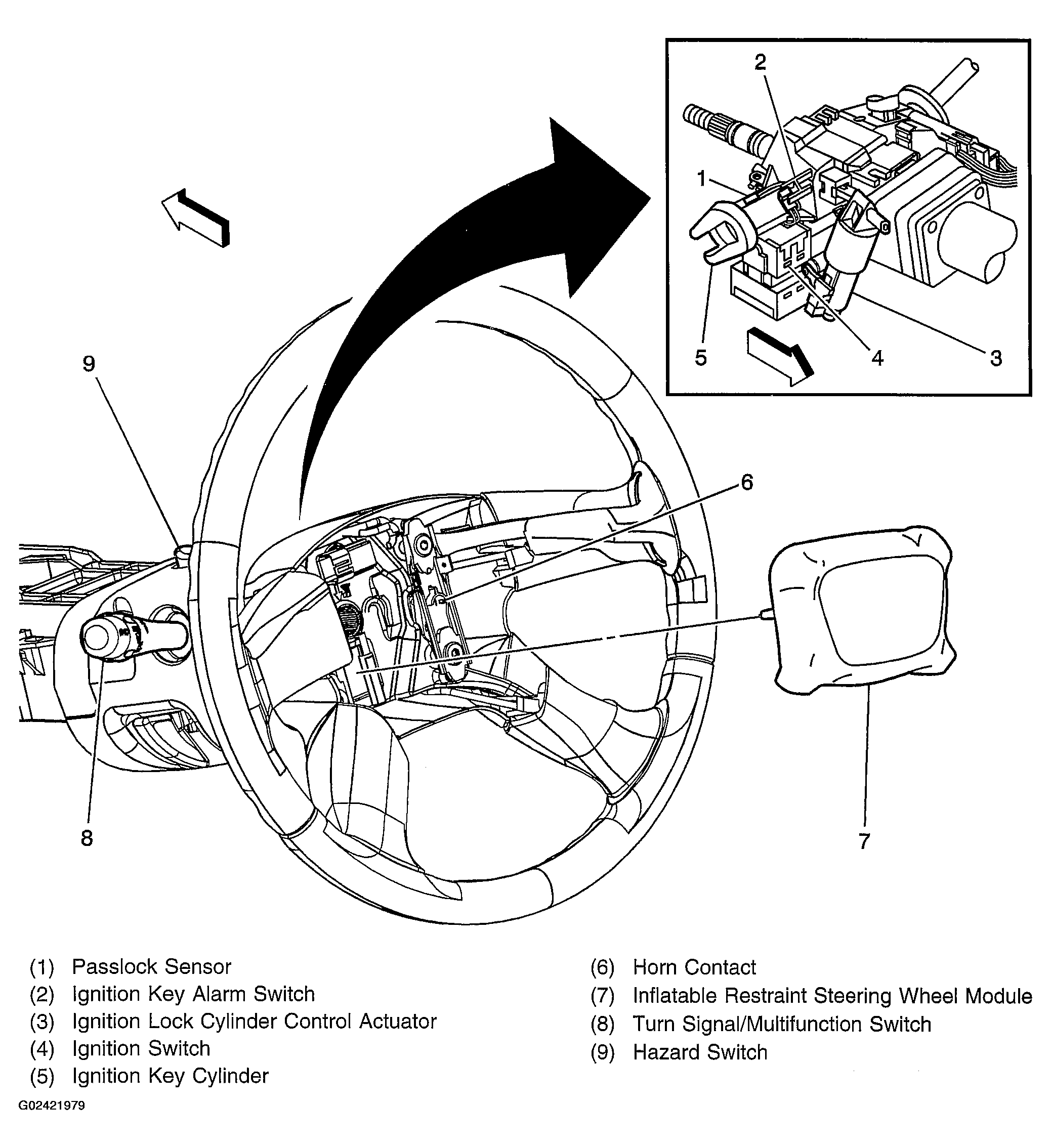

Fig 11: Upper Steering Column

G02421979

Courtesy of GENERAL MOTORS CORP.

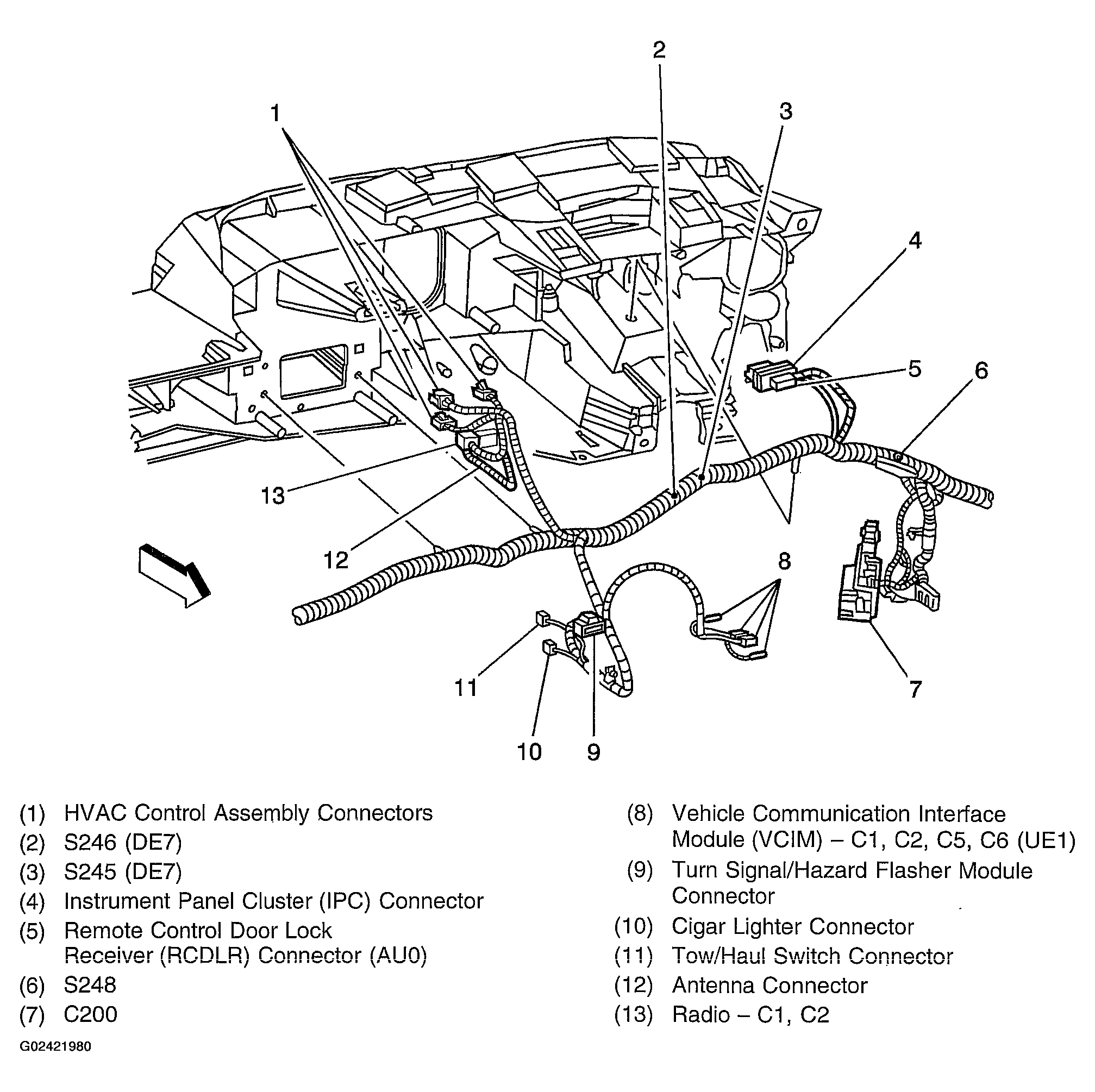

Fig 12: I/P Harness Routing - Center Of I/P

G02421980

Courtesy of GENERAL MOTORS CORP.

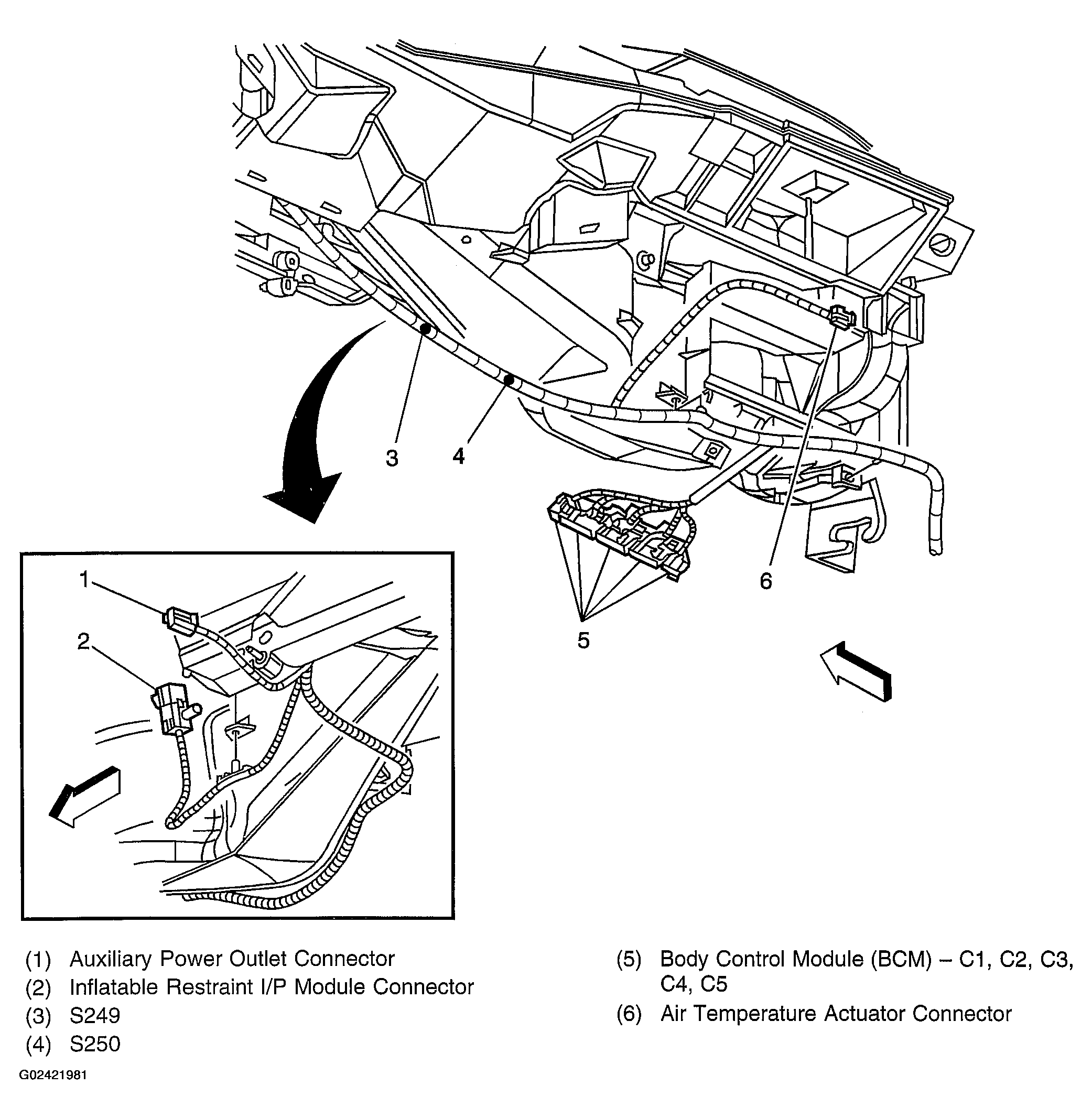

Fig 13: I/P Harness Routing - Right Side Of I/P

G02421981

Courtesy of GENERAL MOTORS CORP.

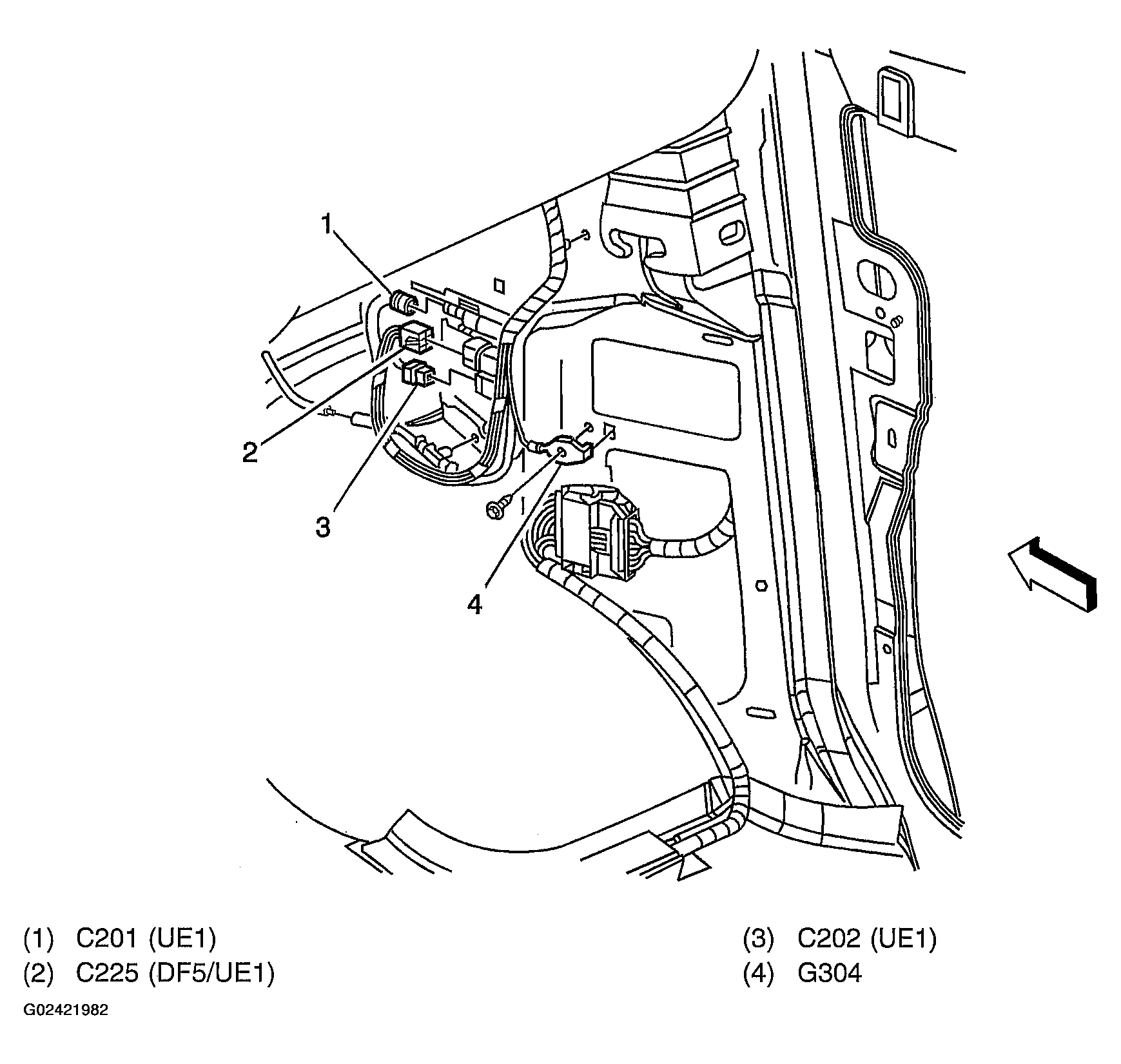

Fig 14: I/P Harness Routing - Right Side Of Passenger Compartment

G02421982

Courtesy of GENERAL MOTORS CORP.

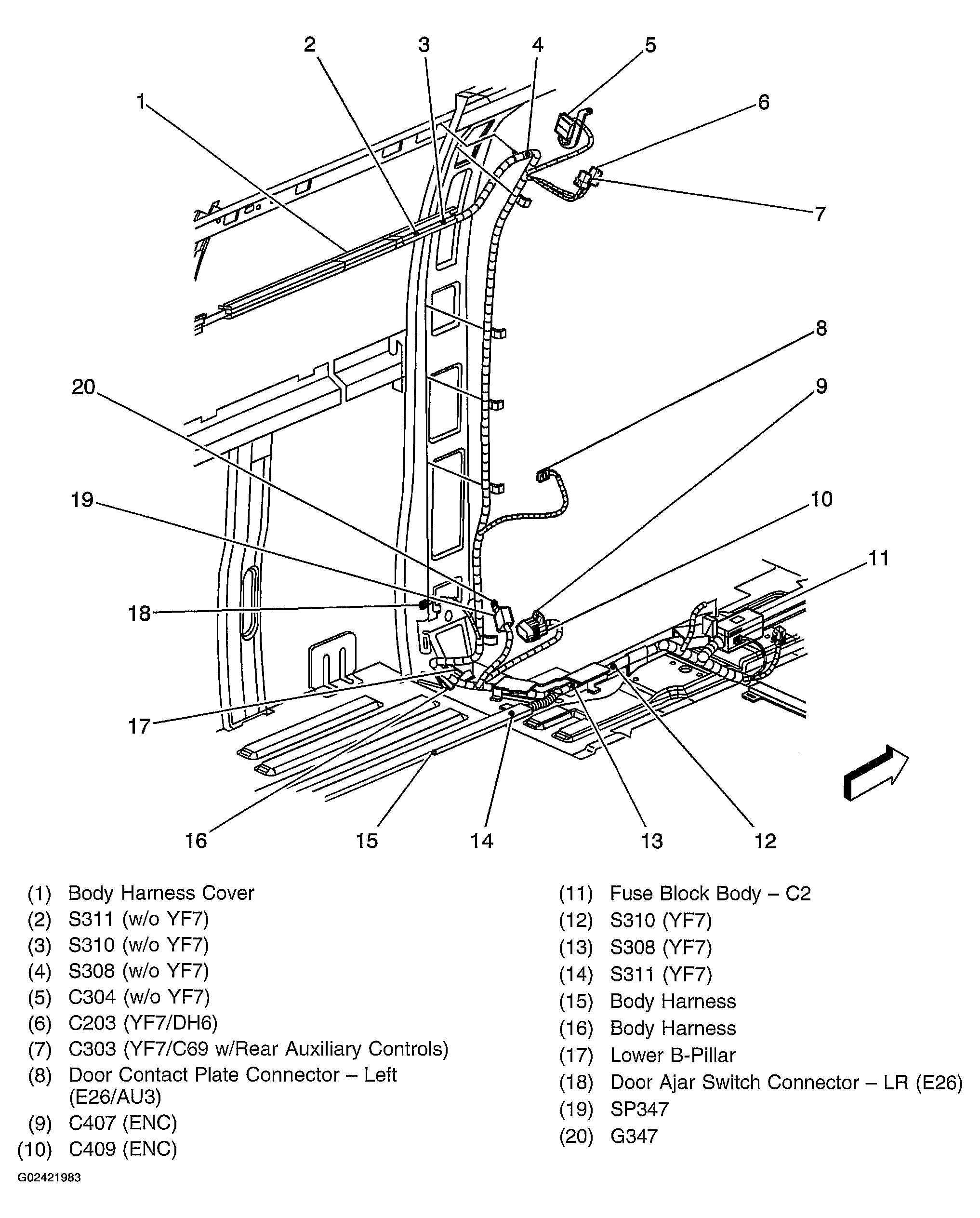

Fig 15: Body Harness Routing - Left B-Pillar (Passenger/Cargo)

G02421983

Courtesy of GENERAL MOTORS CORP.

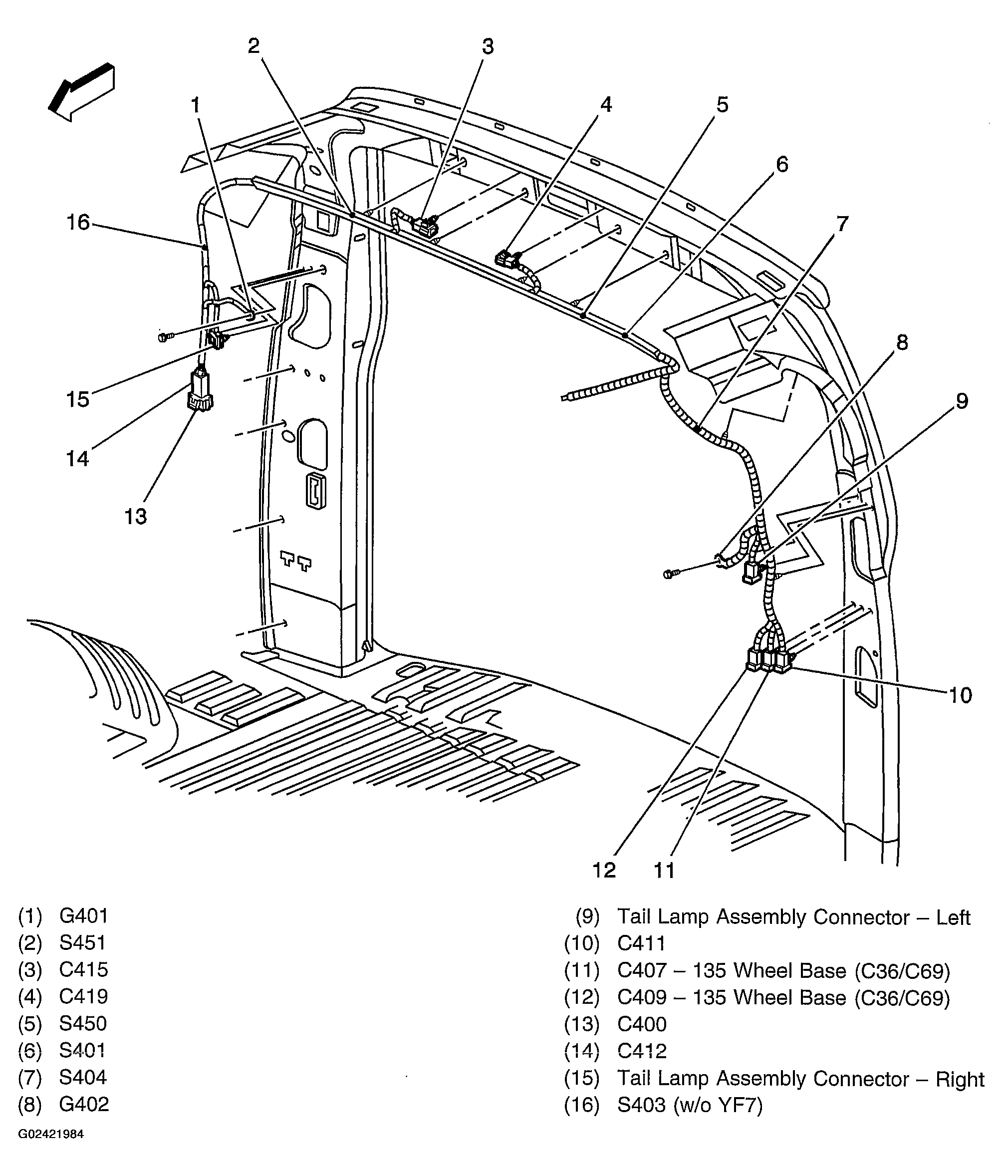

Fig 16: Body Harness Routing - Rear Of Passenger Compartment (Passenger/Cargo)

G02421984

Courtesy of GENERAL MOTORS CORP.

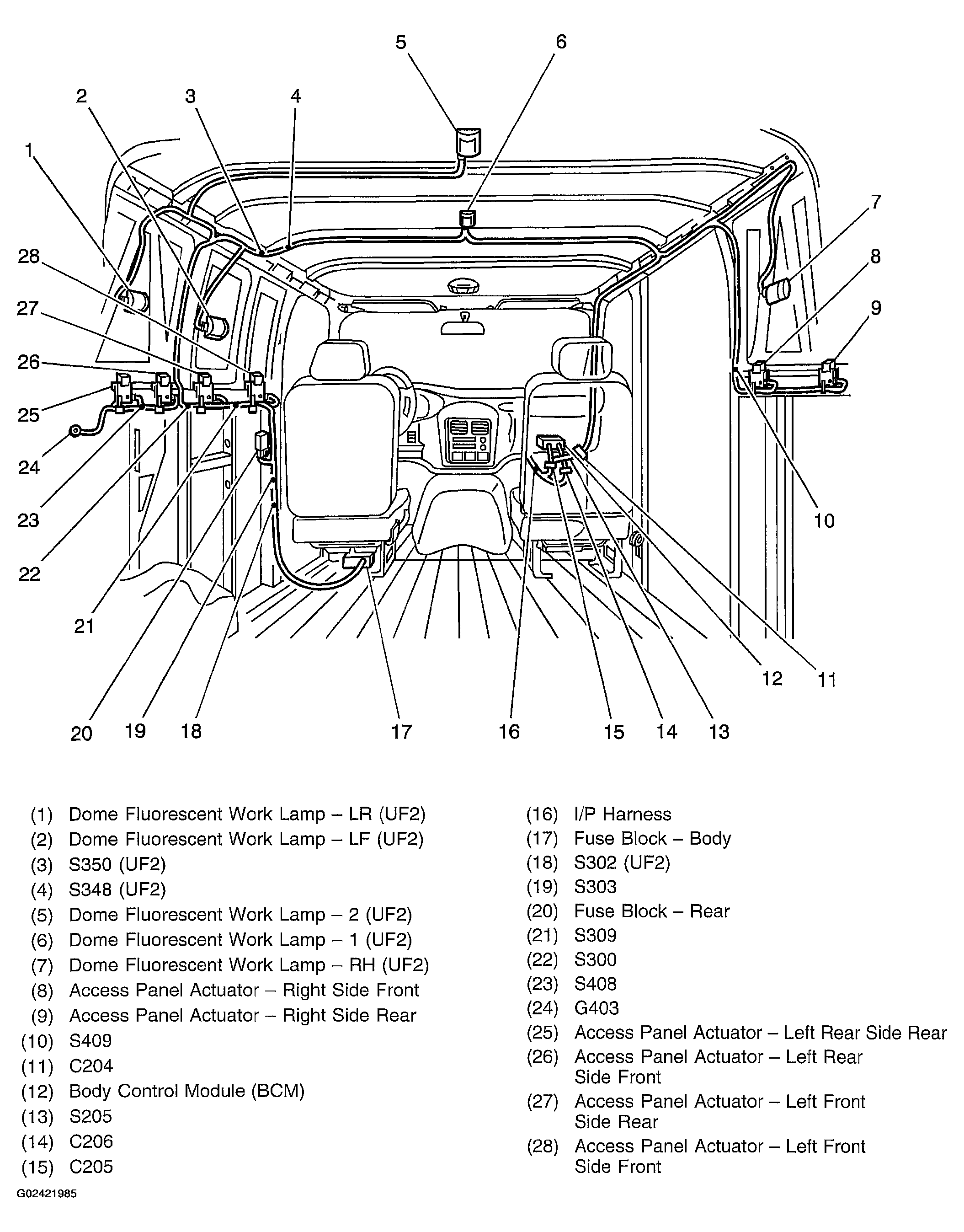

Fig 17: Pro Harness & Components (PRP)

G02421985

Courtesy of GENERAL MOTORS CORP.

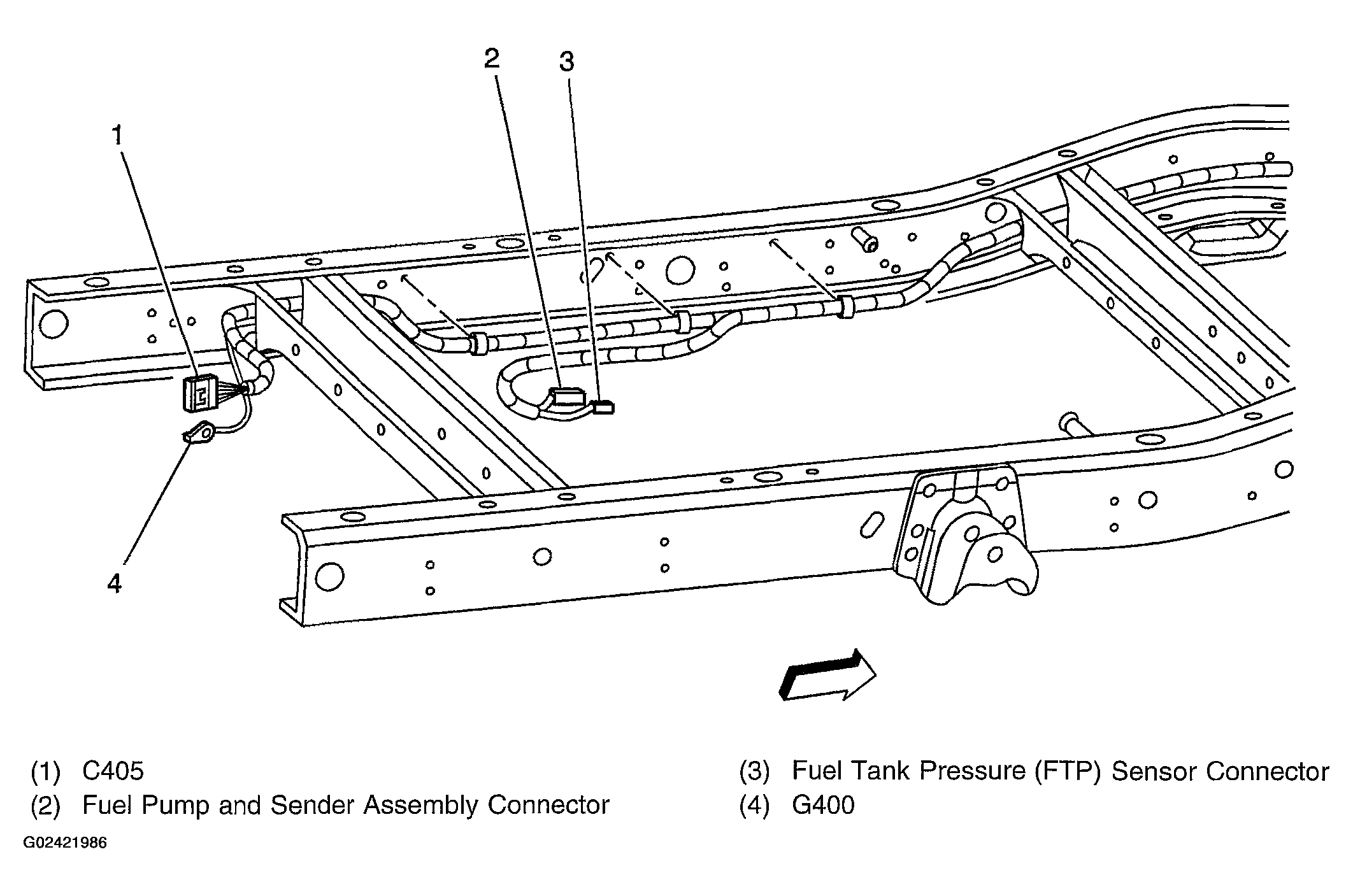

Fig 18: Rear Frame (Cutaway w/NE7)

G02421986

Courtesy of GENERAL MOTORS CORP.
