Inline Harness Connector End Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

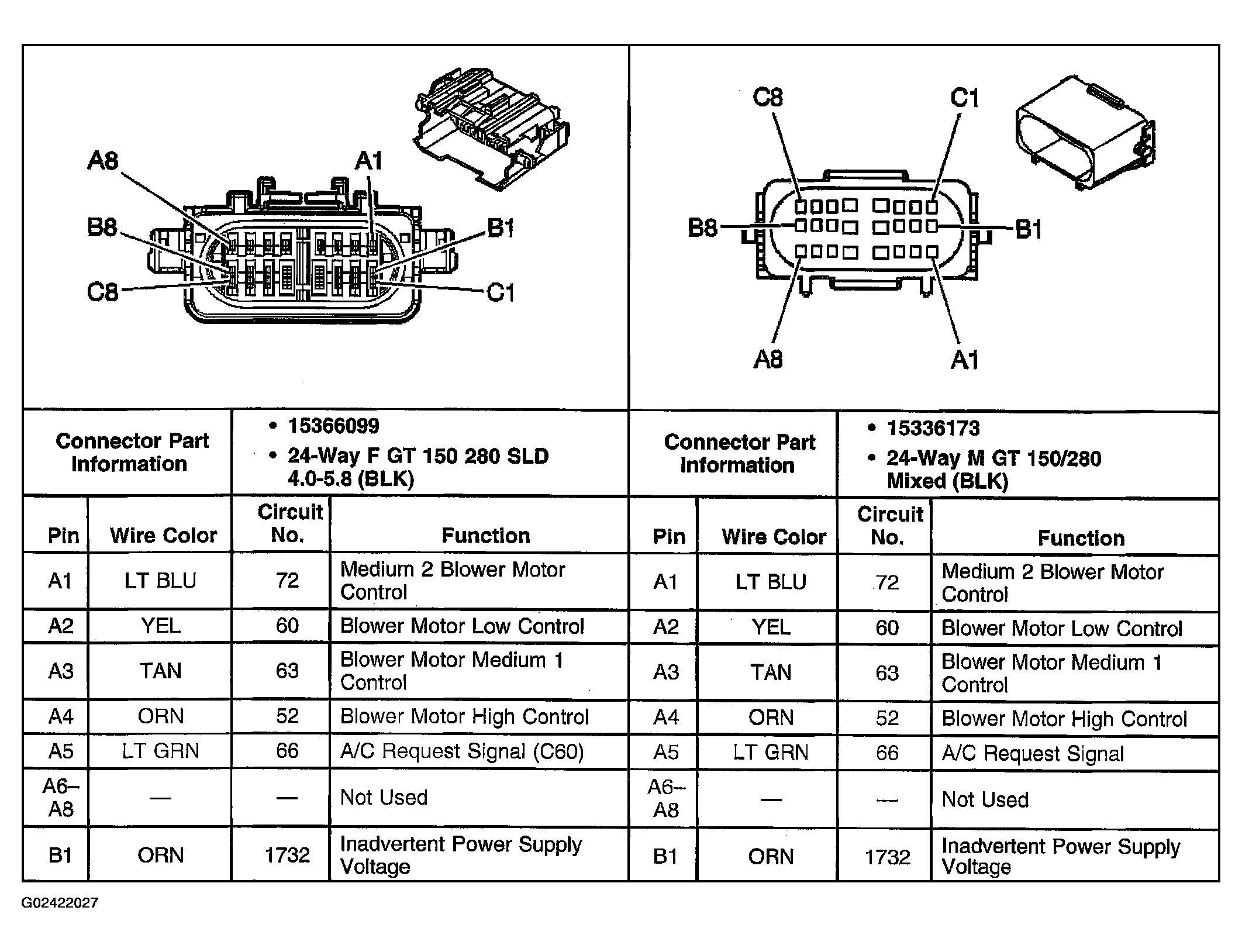

Fig 1: C100 Engine Harness To I/P Harness (Early Production) 1 Of 2

G02422027

Courtesy of GENERAL MOTORS CORP.

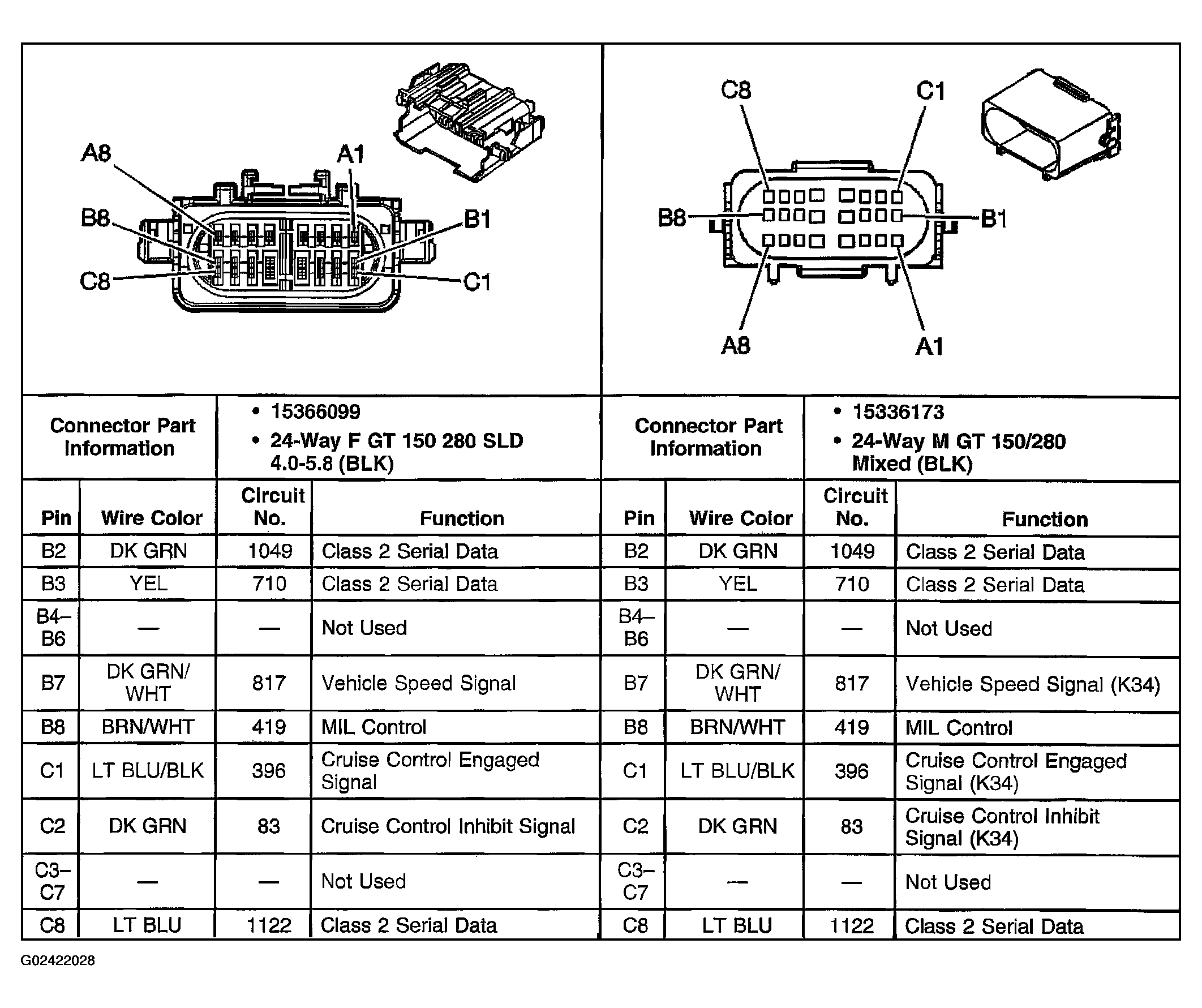

Fig 2: C100 Engine Harness To I/P Harness (Early Production) 2 Of 2

G02422028

Courtesy of GENERAL MOTORS CORP.

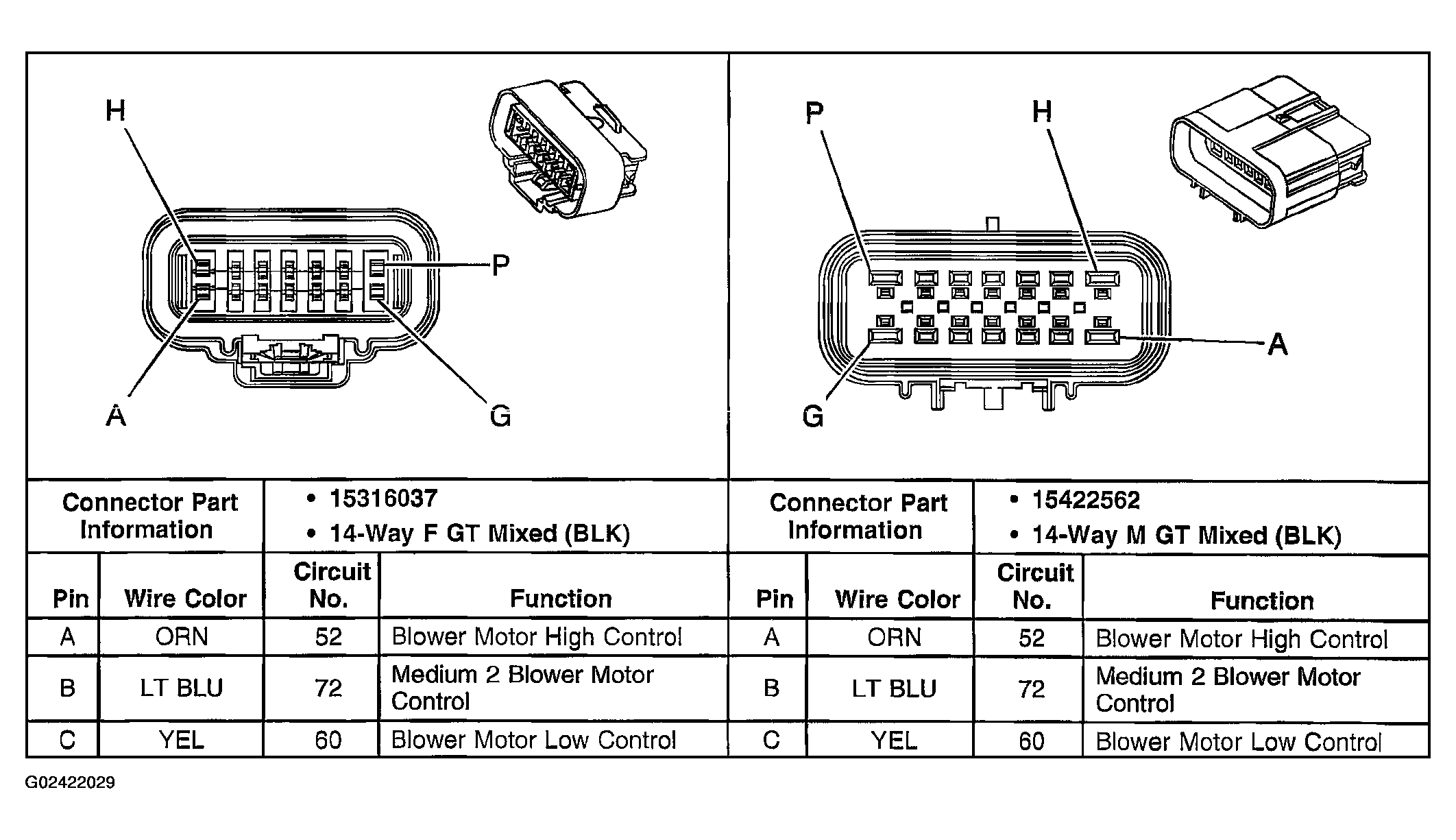

Fig 3: C100 I/P Harness To Engine Harness (Late Production) 1 Of 2

G02422029

Courtesy of GENERAL MOTORS CORP.

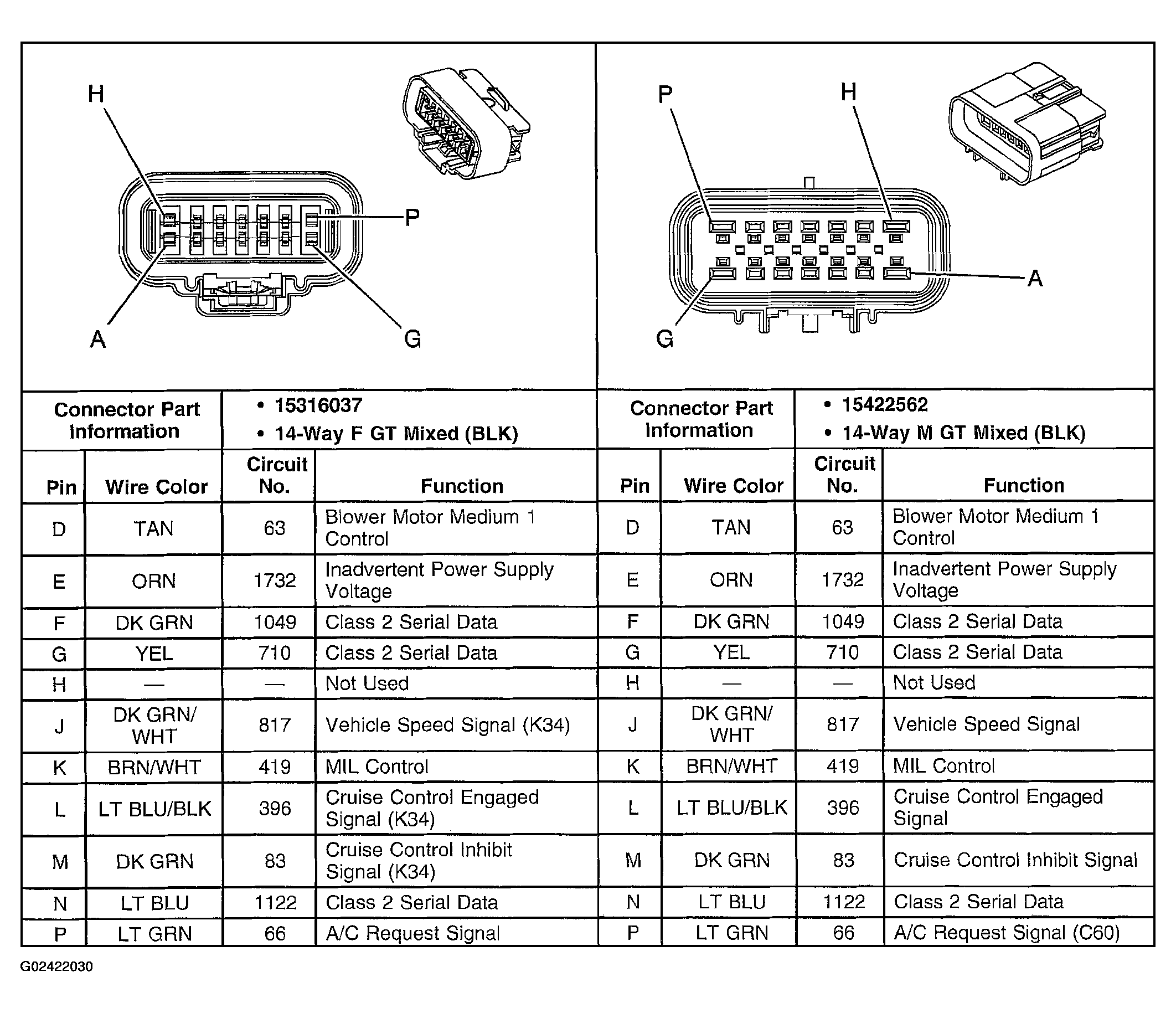

Fig 4: C100 I/P Harness To Engine Harness (Late Production) 2 Of 2

G02422030

Courtesy of GENERAL MOTORS CORP.

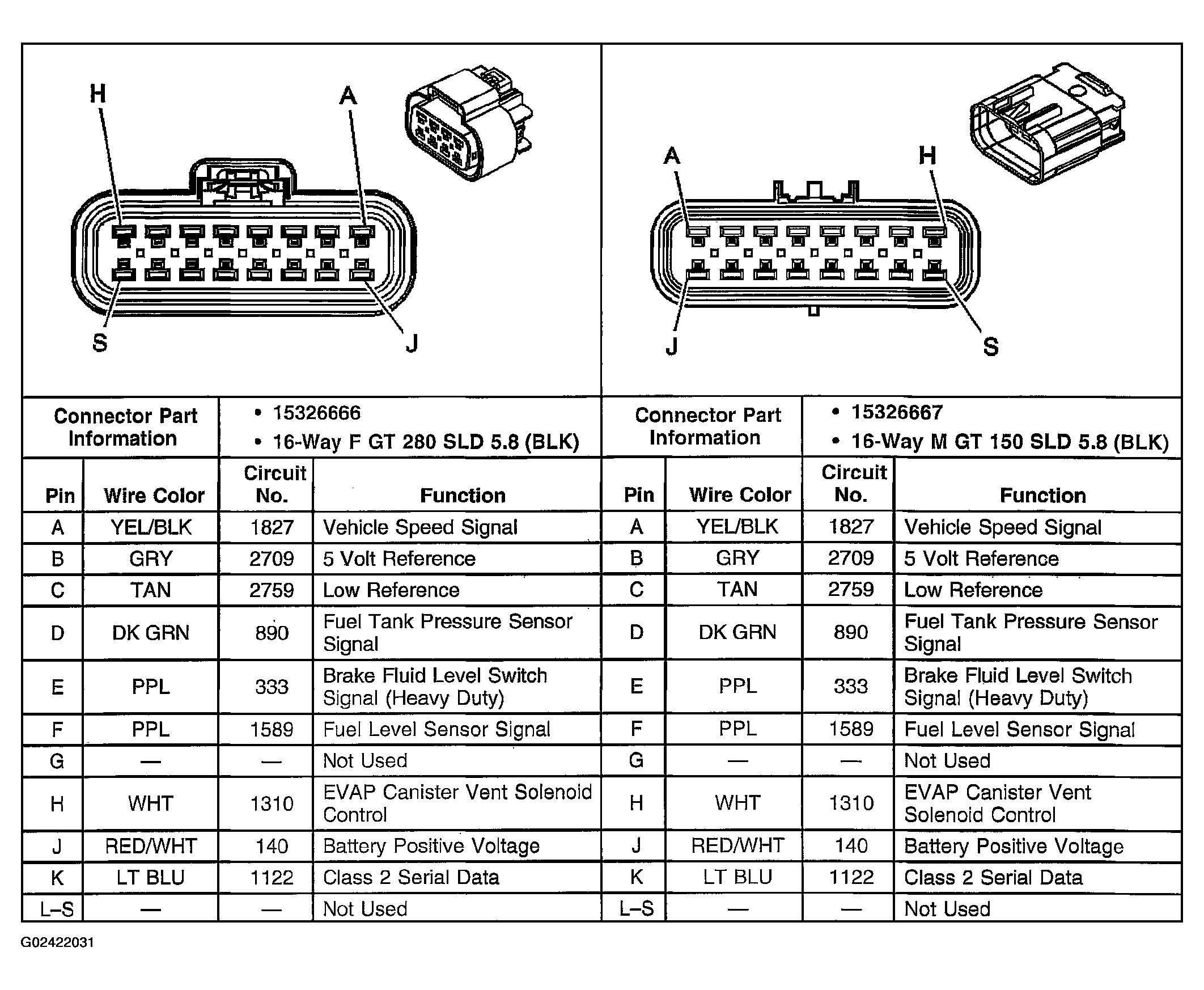

Fig 5: C101 Engine Harness To Chassis Harness

G02422031

Courtesy of GENERAL MOTORS CORP.

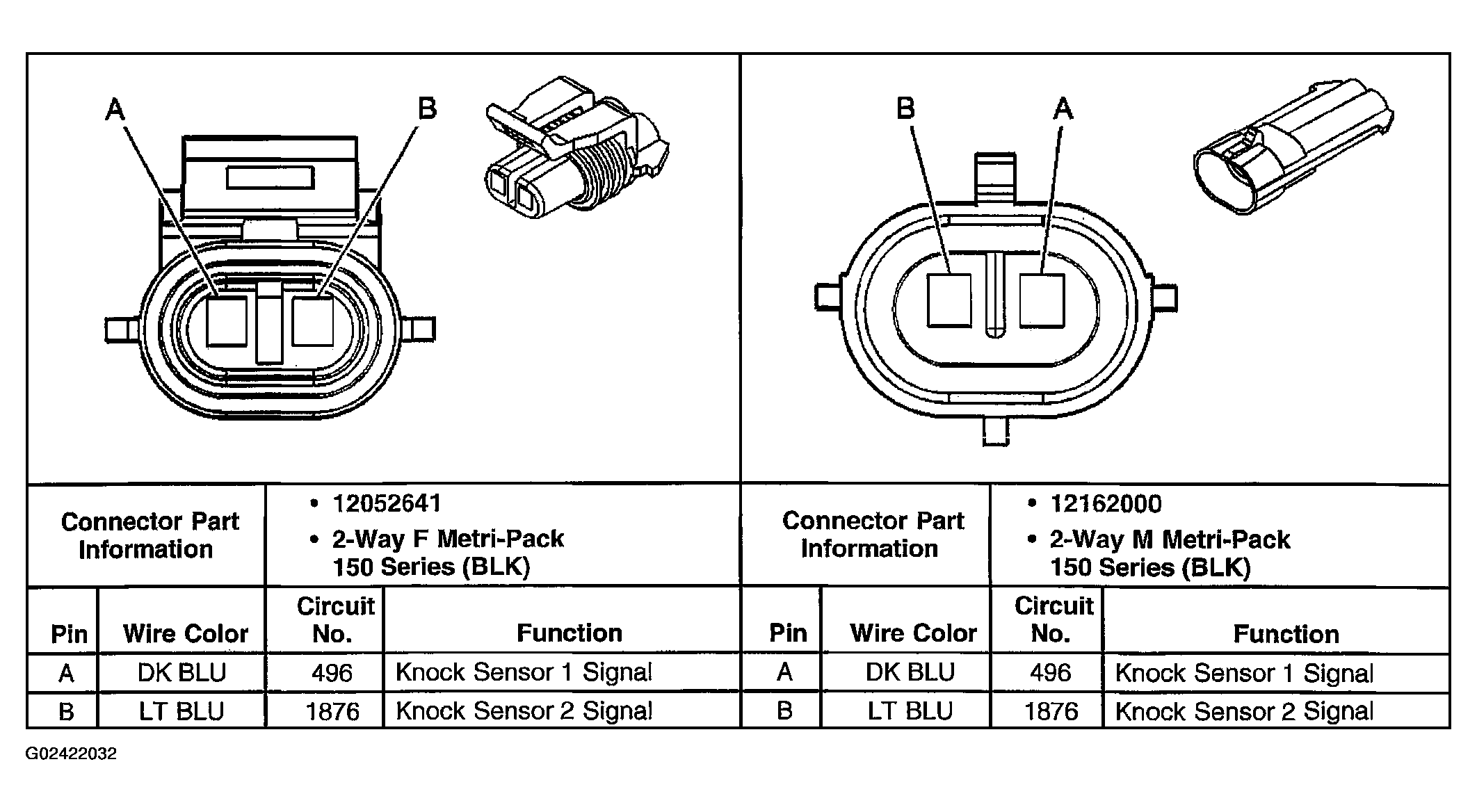

Fig 6: C103 Engine Harness To Knock Sensor Harness (4.8L/5.3L/6.0L)

G02422032

Courtesy of GENERAL MOTORS CORP.

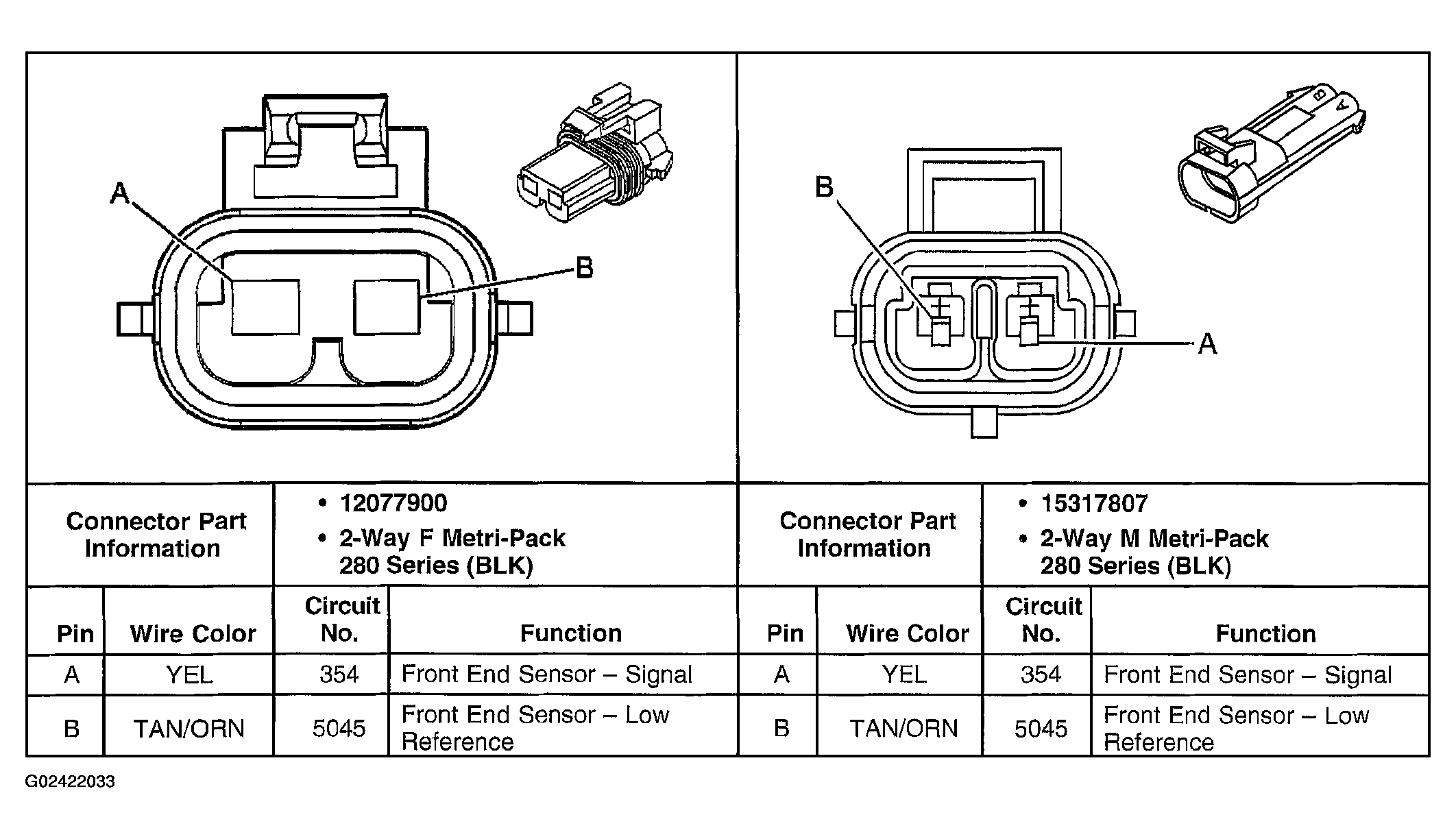

Fig 7: C104 I/P Harness To Front End Sensor Harness (Heavy Duty - Late Production)

G02422033

Courtesy of GENERAL MOTORS CORP.

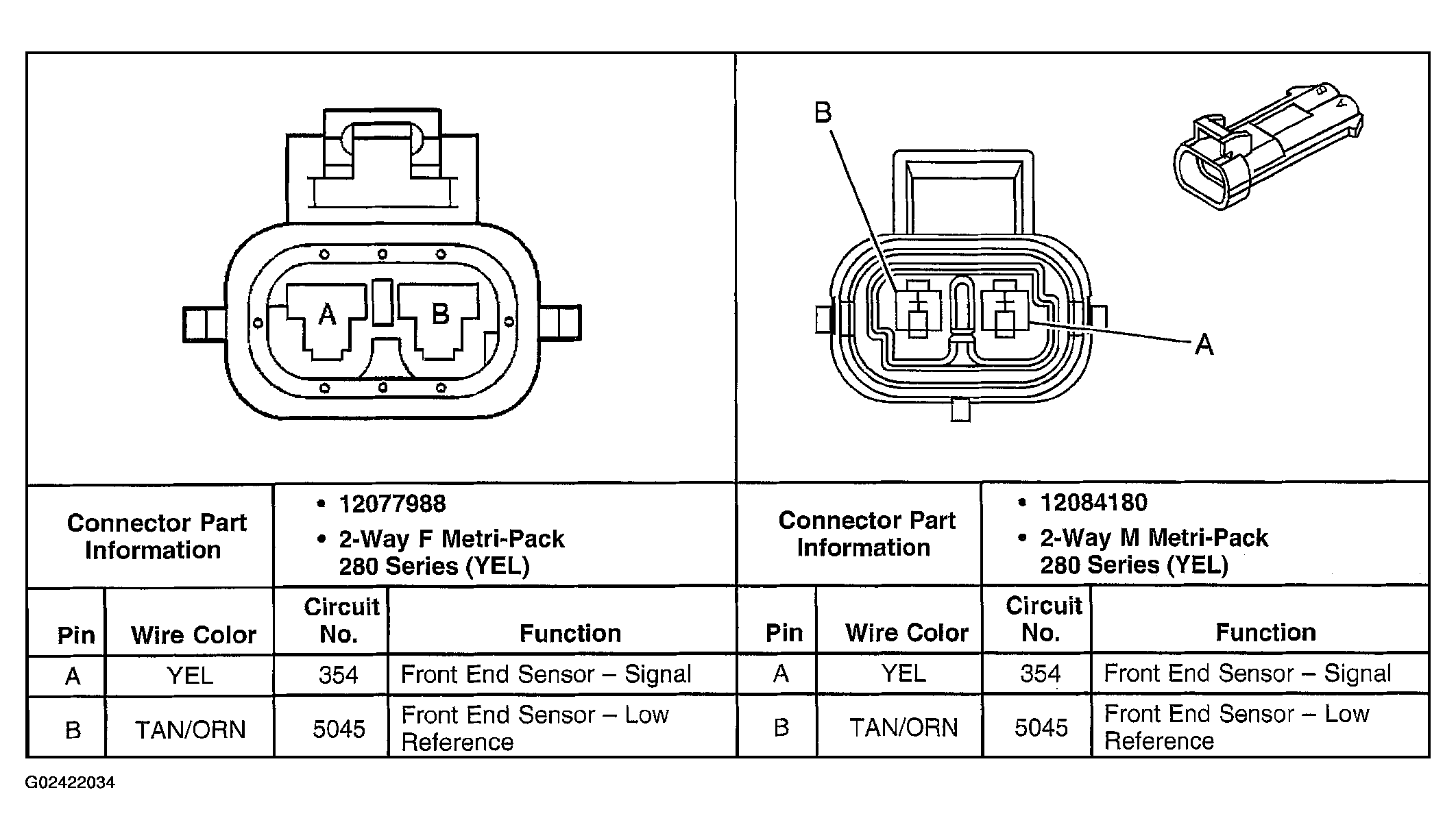

Fig 8: C104 I/P Harness To Front End Sensor Harness (Light Duty - Late Production)

G02422034

Courtesy of GENERAL MOTORS CORP.

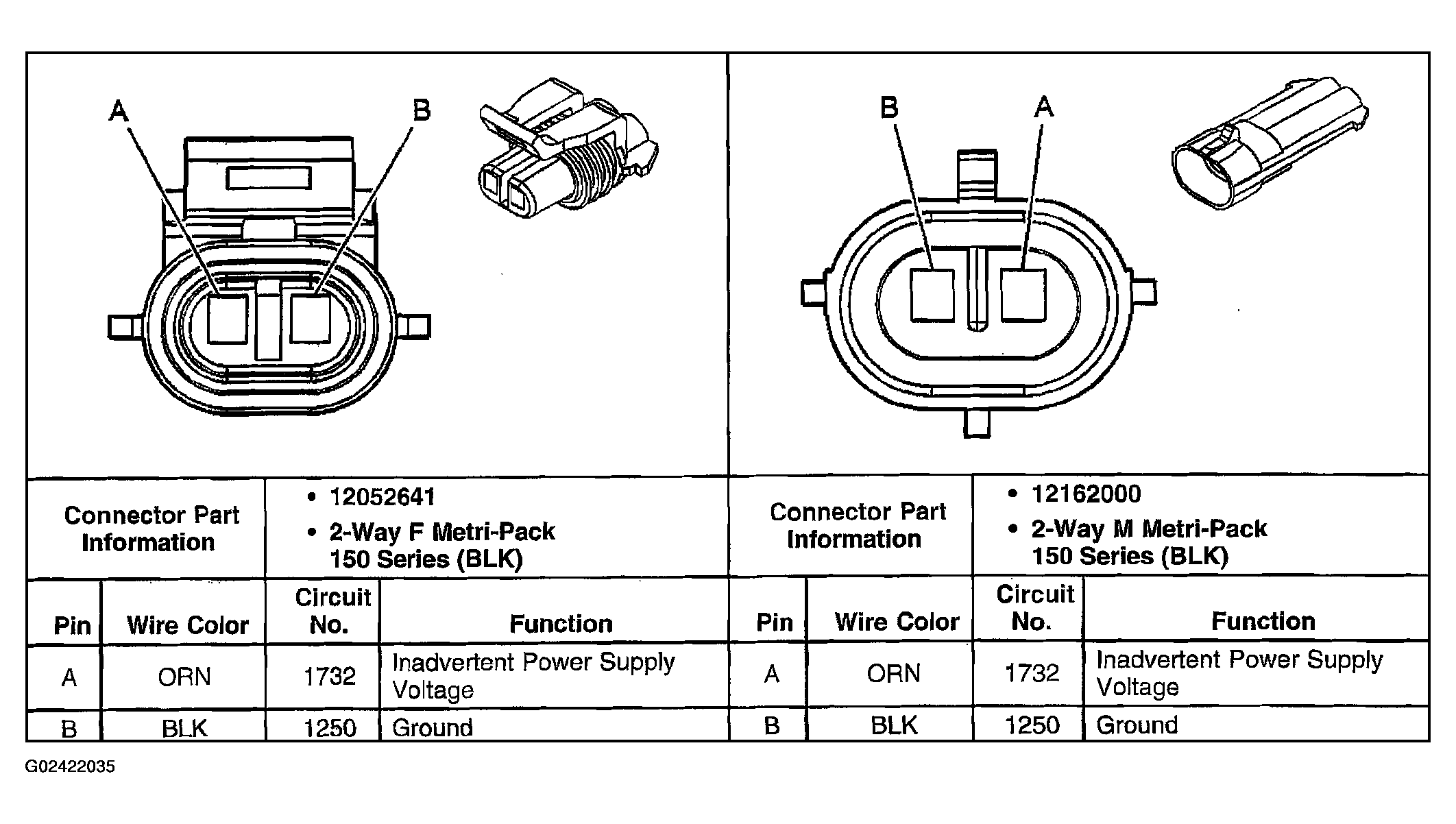

Fig 9: C109 Engine Harness To Underhood Lamp Harness

G02422035

Courtesy of GENERAL MOTORS CORP.

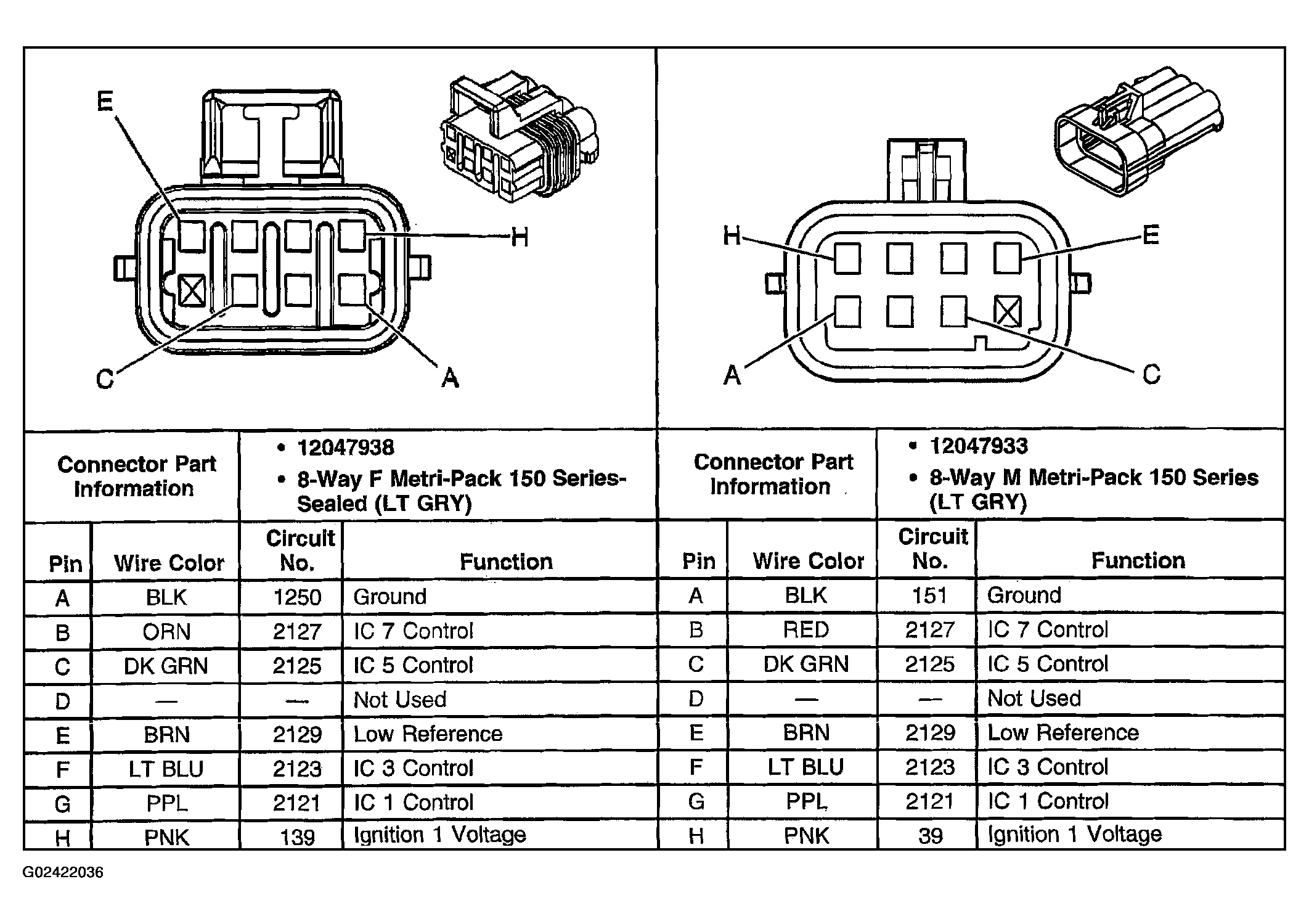

Fig 10: C126 Engine Harness To Left Ignition Coil Harness (4.8L/5.3L/6.0L)

G02422036

Courtesy of GENERAL MOTORS CORP.

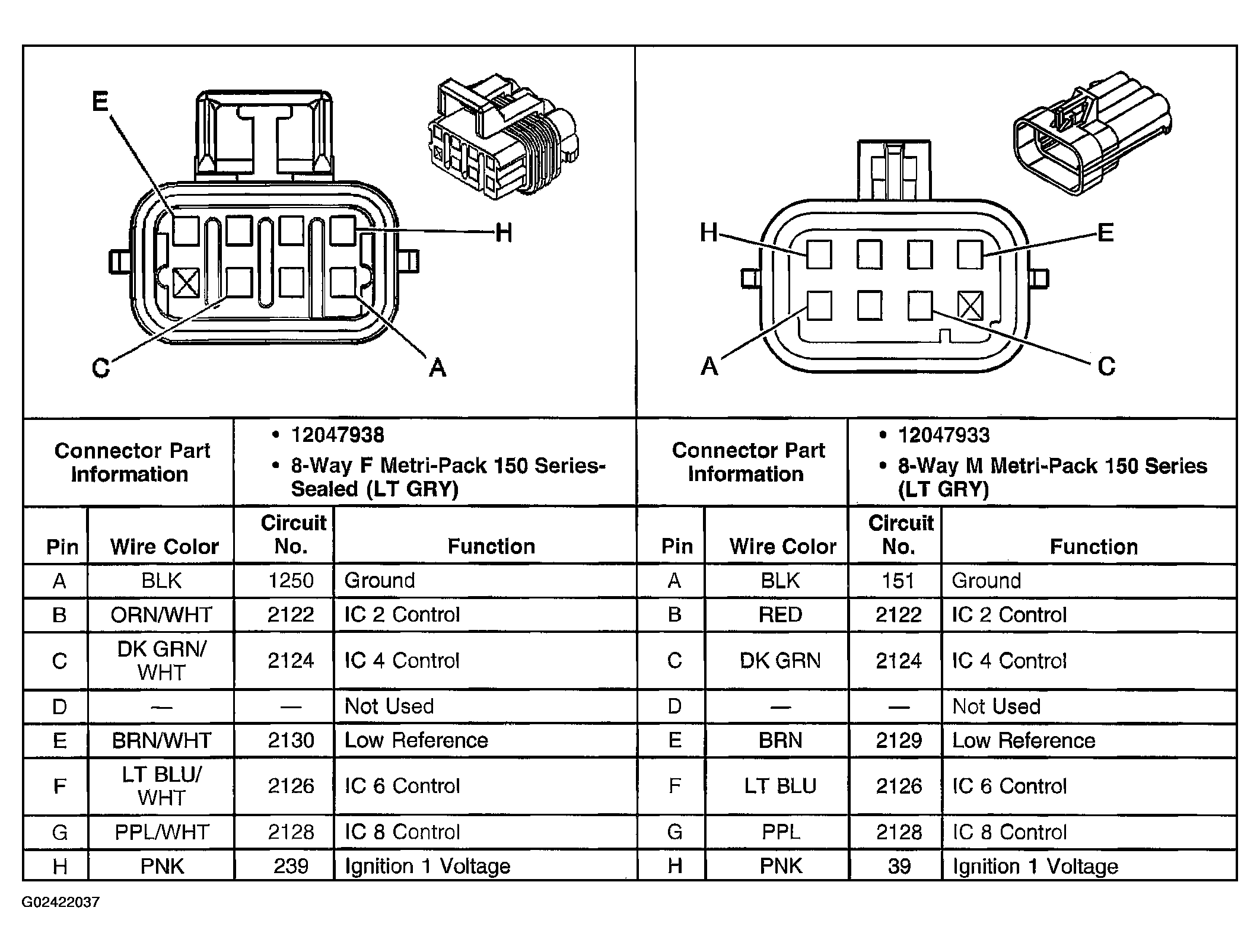

Fig 11: C127 Engine Harness To Right Ignition Coil Harness (4.8L/5.3L/6.0L)

G02422037

Courtesy of GENERAL MOTORS CORP.

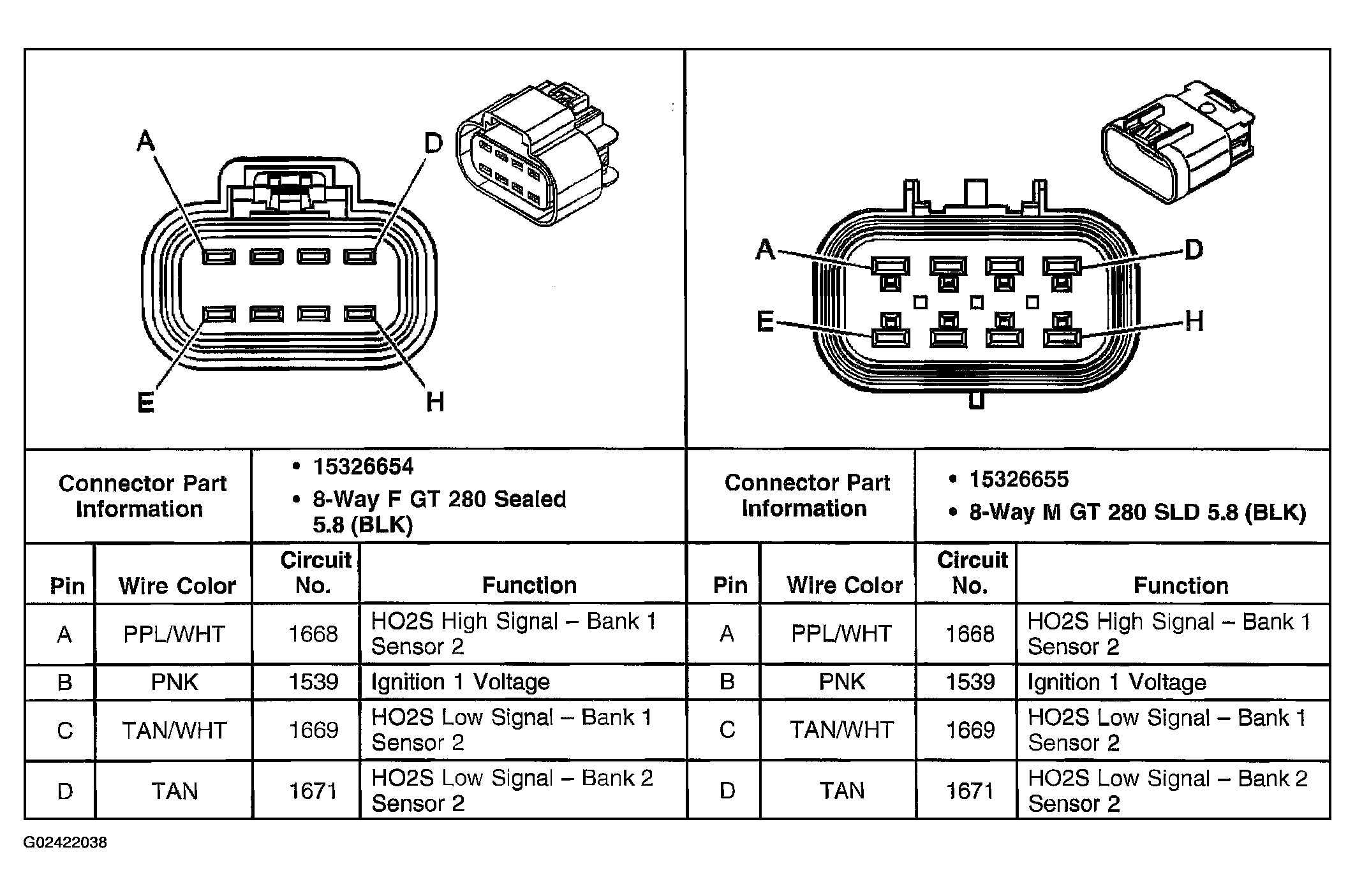

Fig 12: C128 Engine Harness To Oxygen Sensor Harness (4.8L/6.0L) 1 Of 2

G02422038

Courtesy of GENERAL MOTORS CORP.

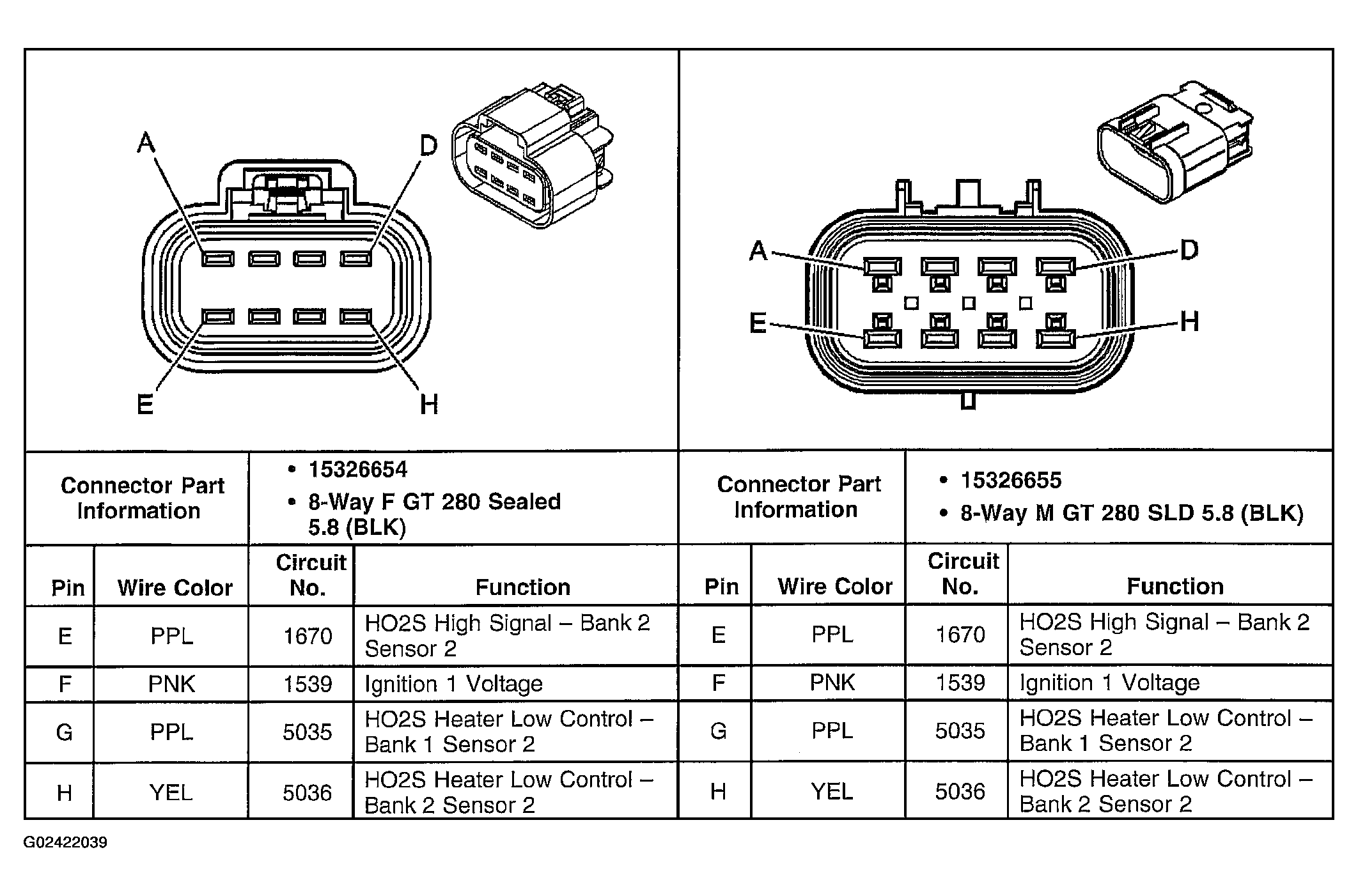

Fig 13: C128 Engine Harness To Oxygen Sensor Harness (4.8L/6.0L) 2 Of 2

G02422039

Courtesy of GENERAL MOTORS CORP.

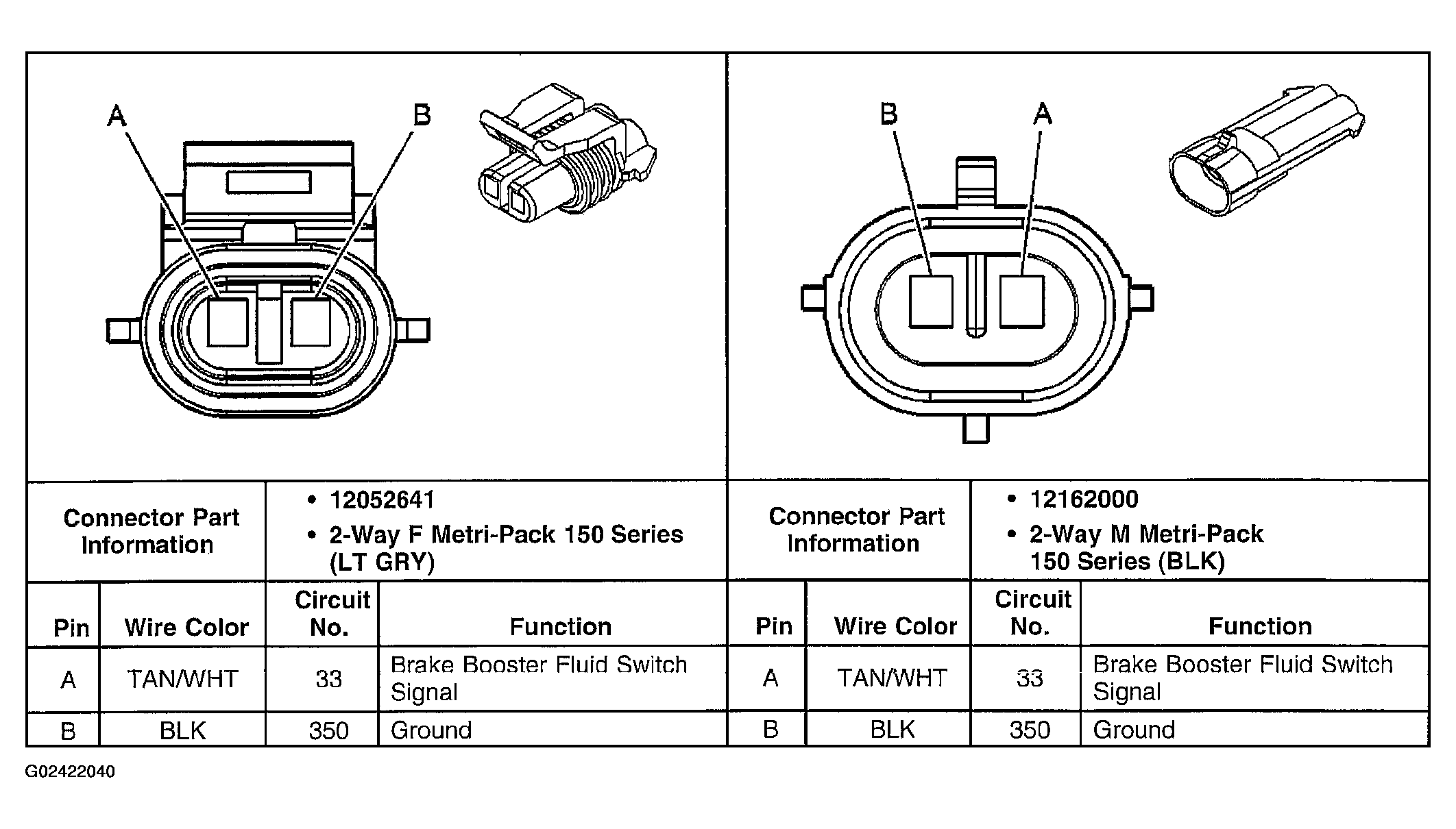

Fig 14: C141 I/P Harness To Brake Fluid Level Harness (UJ1 - Early Production)

G02422040

Courtesy of GENERAL MOTORS CORP.

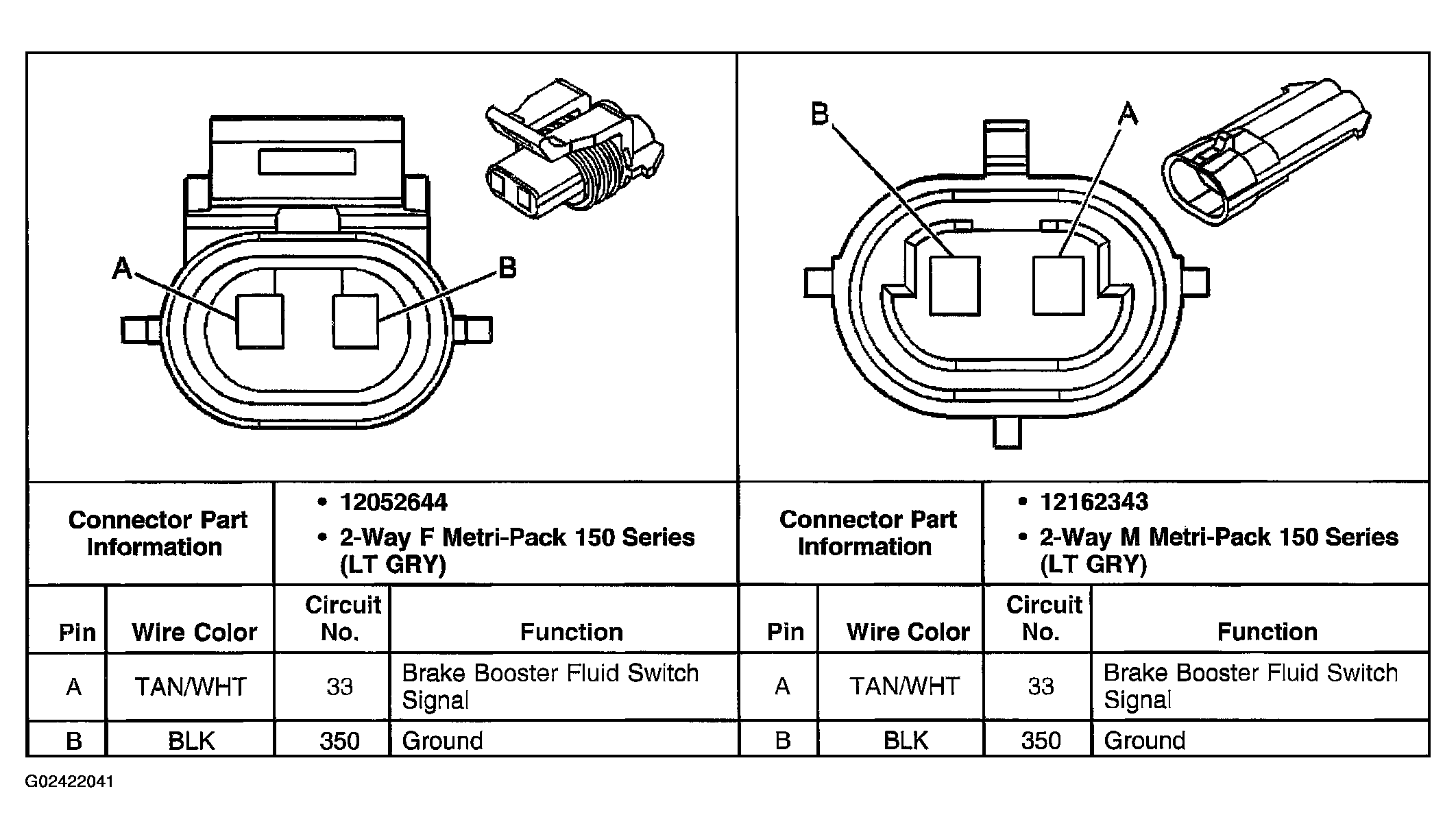

Fig 15: C141 I/P Harness To Brake Fluid Level Harness (UJ1 - Late Production)

G02422041

Courtesy of GENERAL MOTORS CORP.

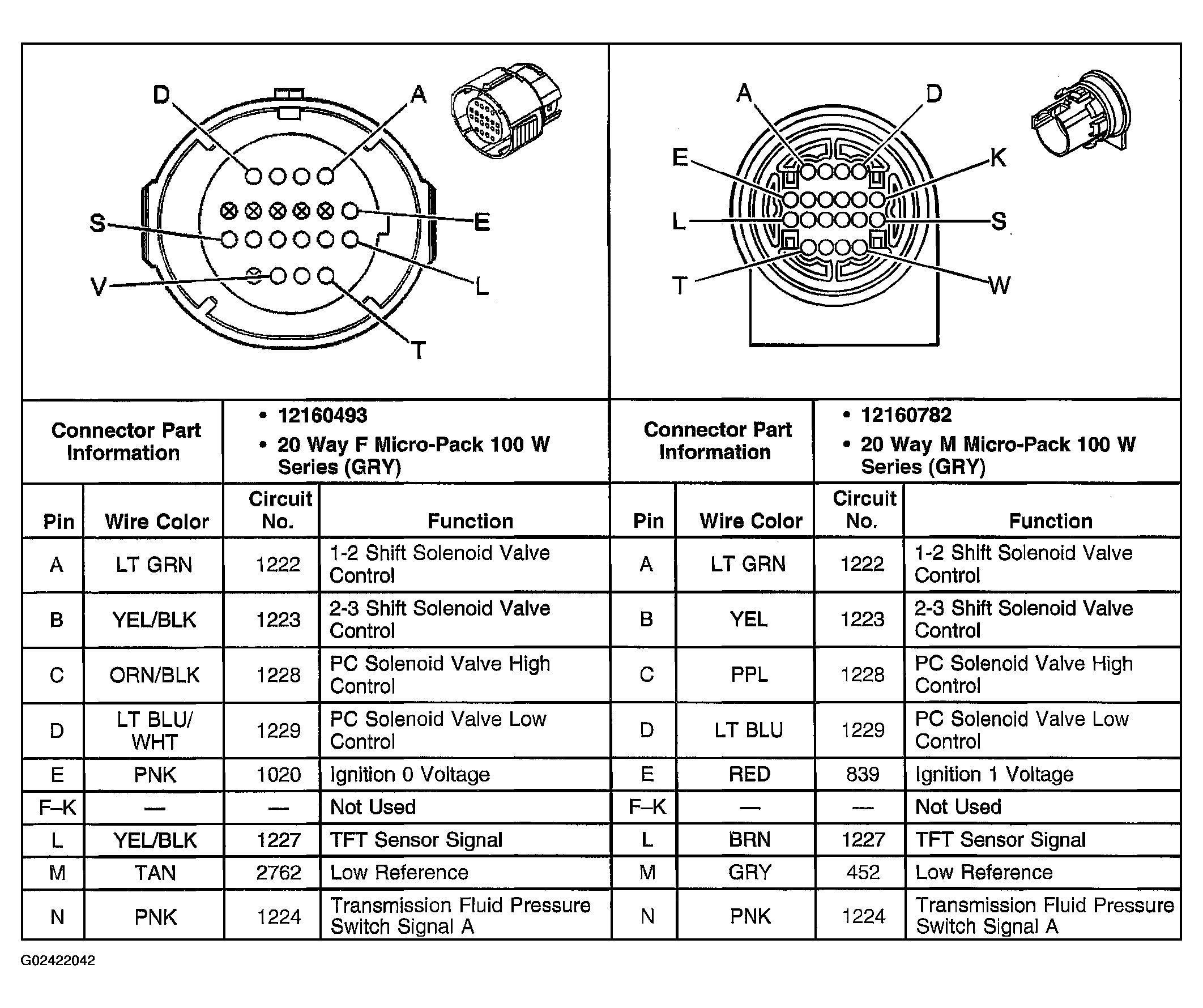

Fig 16: C175 Engine Harness To Transmission (4L60-E) 1 Of 2

G02422042

Courtesy of GENERAL MOTORS CORP.

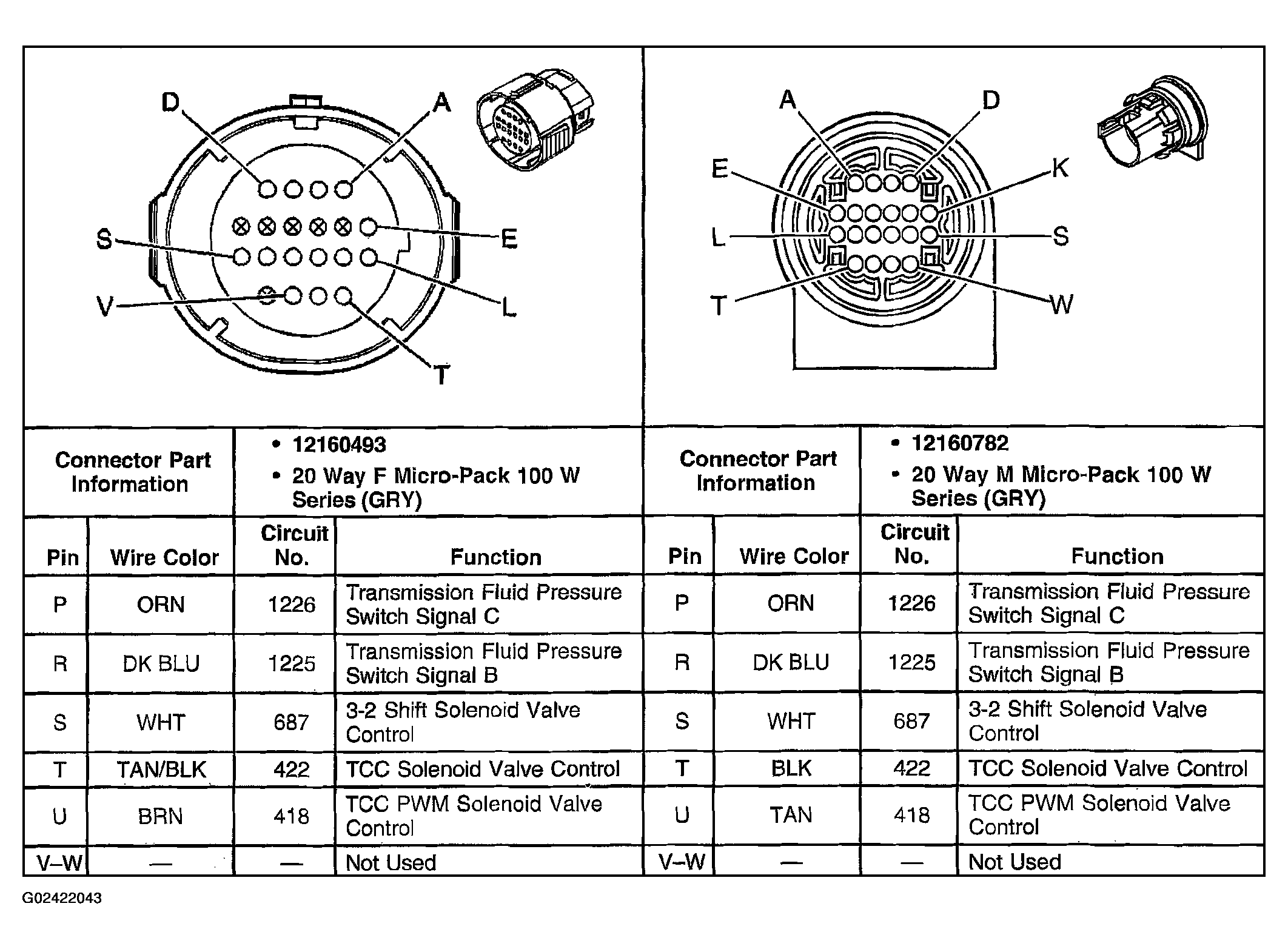

Fig 17: C175 Engine Harness To Transmission (4L60-E) 2 Of 2

G02422043

Courtesy of GENERAL MOTORS CORP.

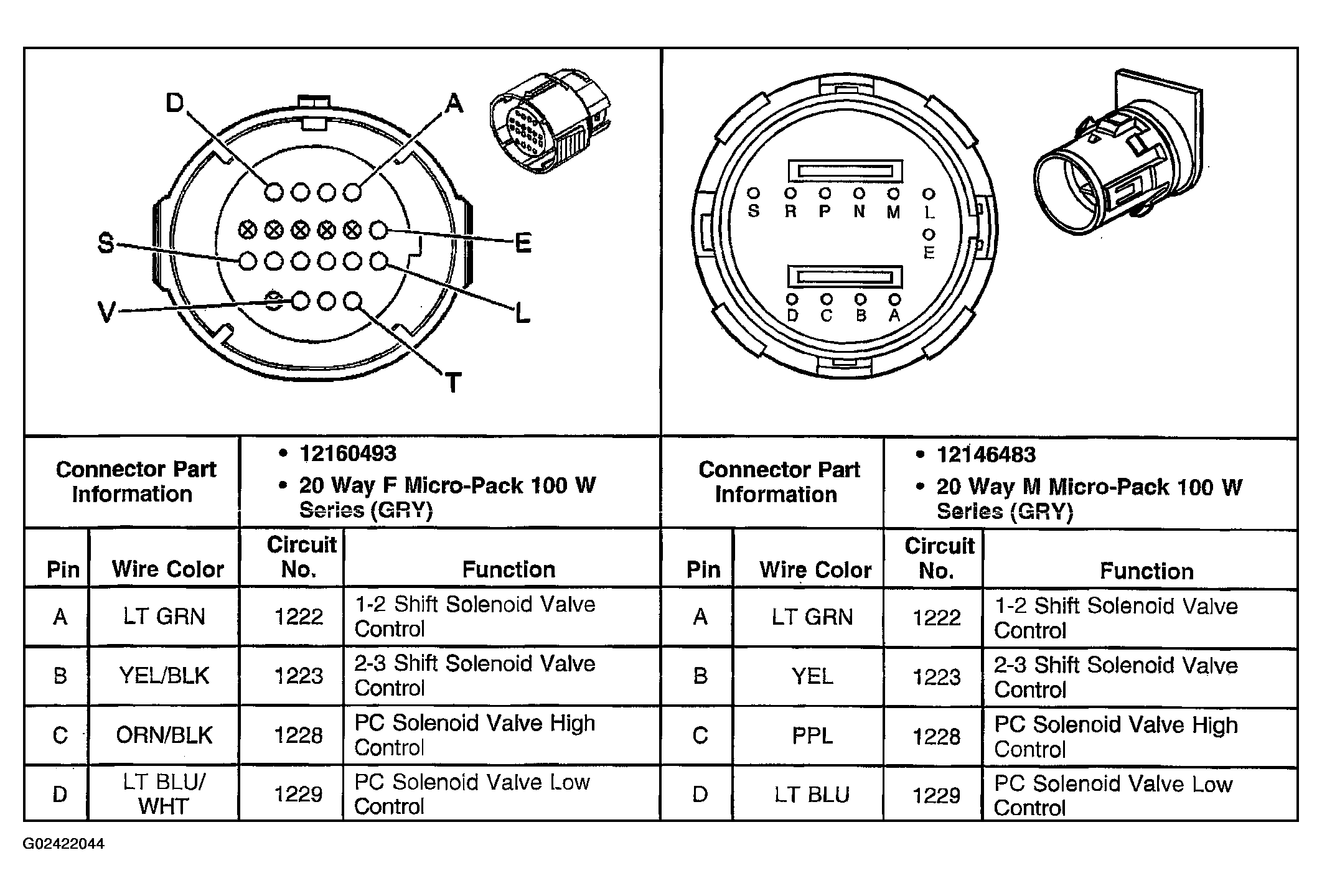

Fig 18: C175 Engine Harness To Transmission (4L80-E) 1 Of 2

G02422044

Courtesy of GENERAL MOTORS CORP.

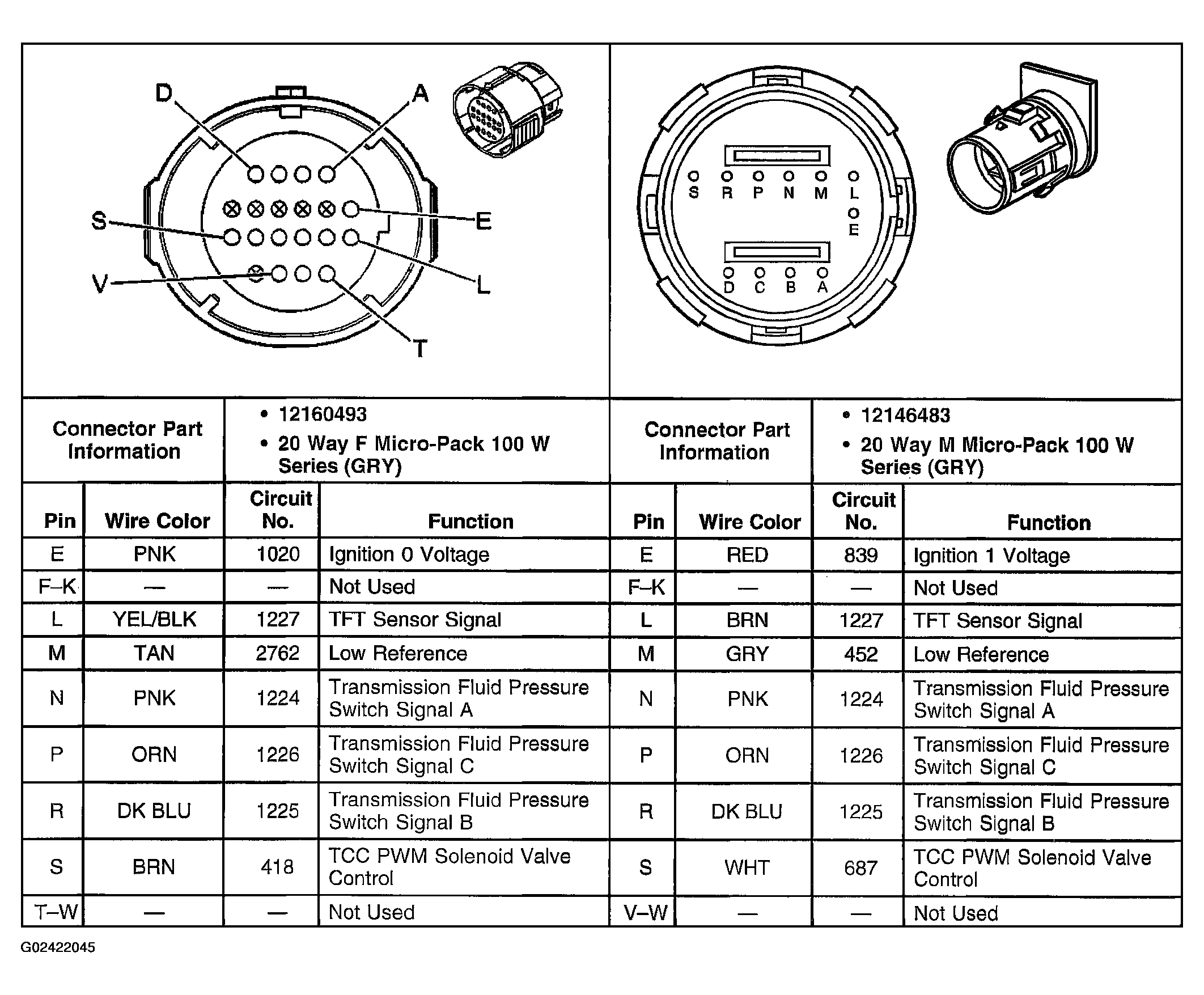

Fig 19: C175 Engine Harness To Transmission (4L80-E) 2 Of 2

G02422045

Courtesy of GENERAL MOTORS CORP.

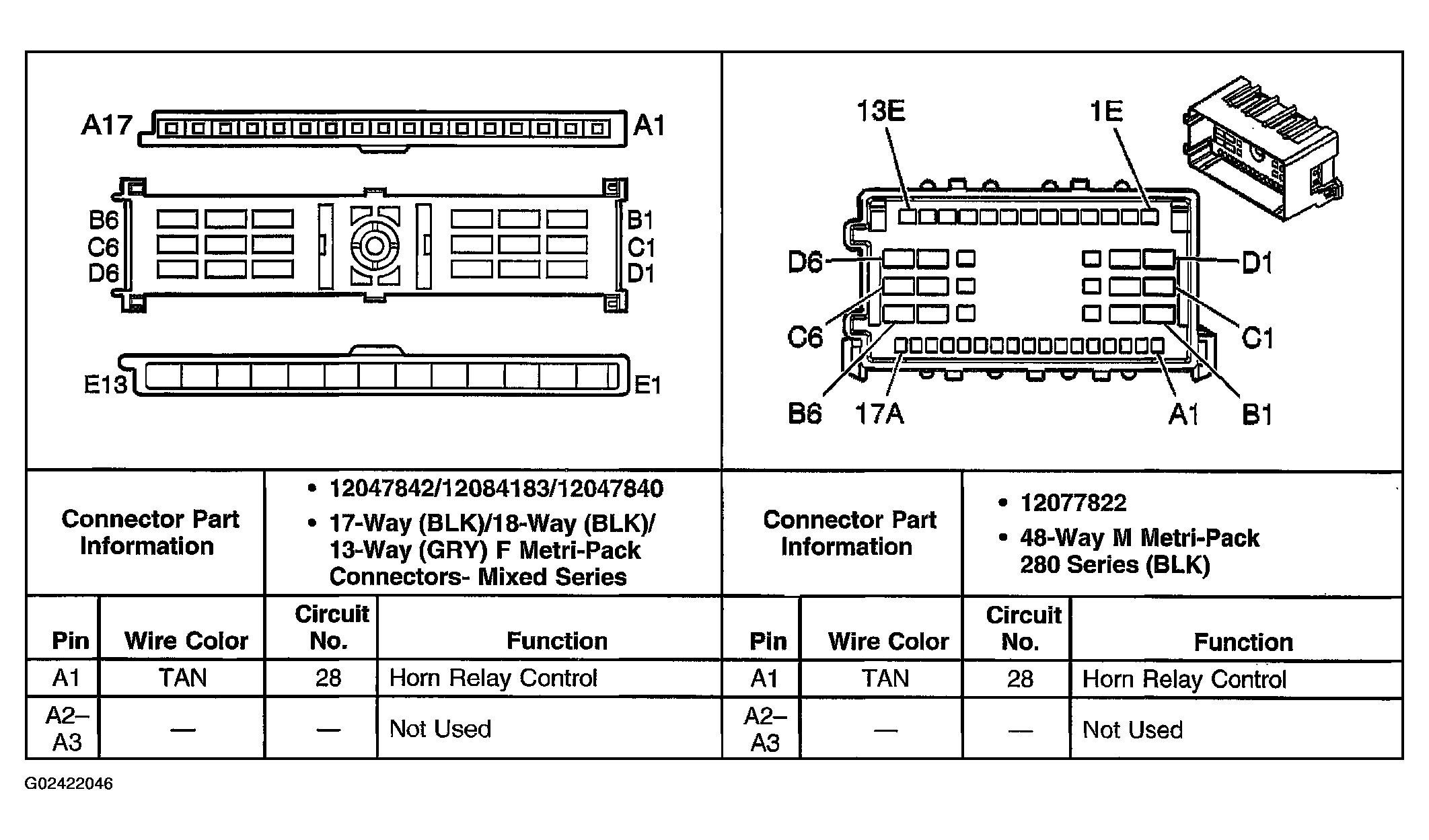

Fig 20: C200 Steering Column Harness To I/P Harness (1 Of 3)

G02422046

Courtesy of GENERAL MOTORS CORP.

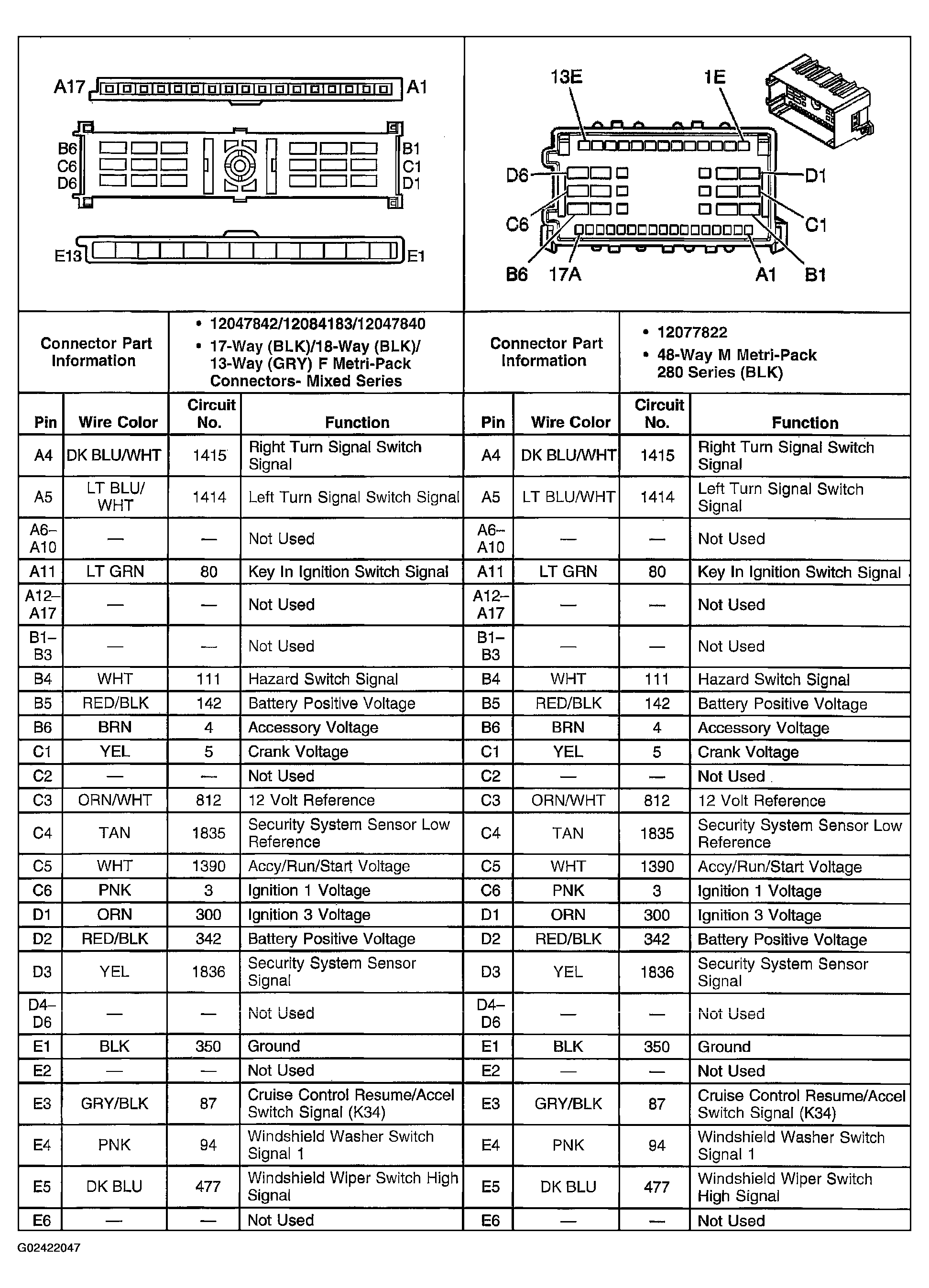

Fig 21: C200 Steering Column Harness To I/P Harness (2 Of 3)

G02422047

Courtesy of GENERAL MOTORS CORP.

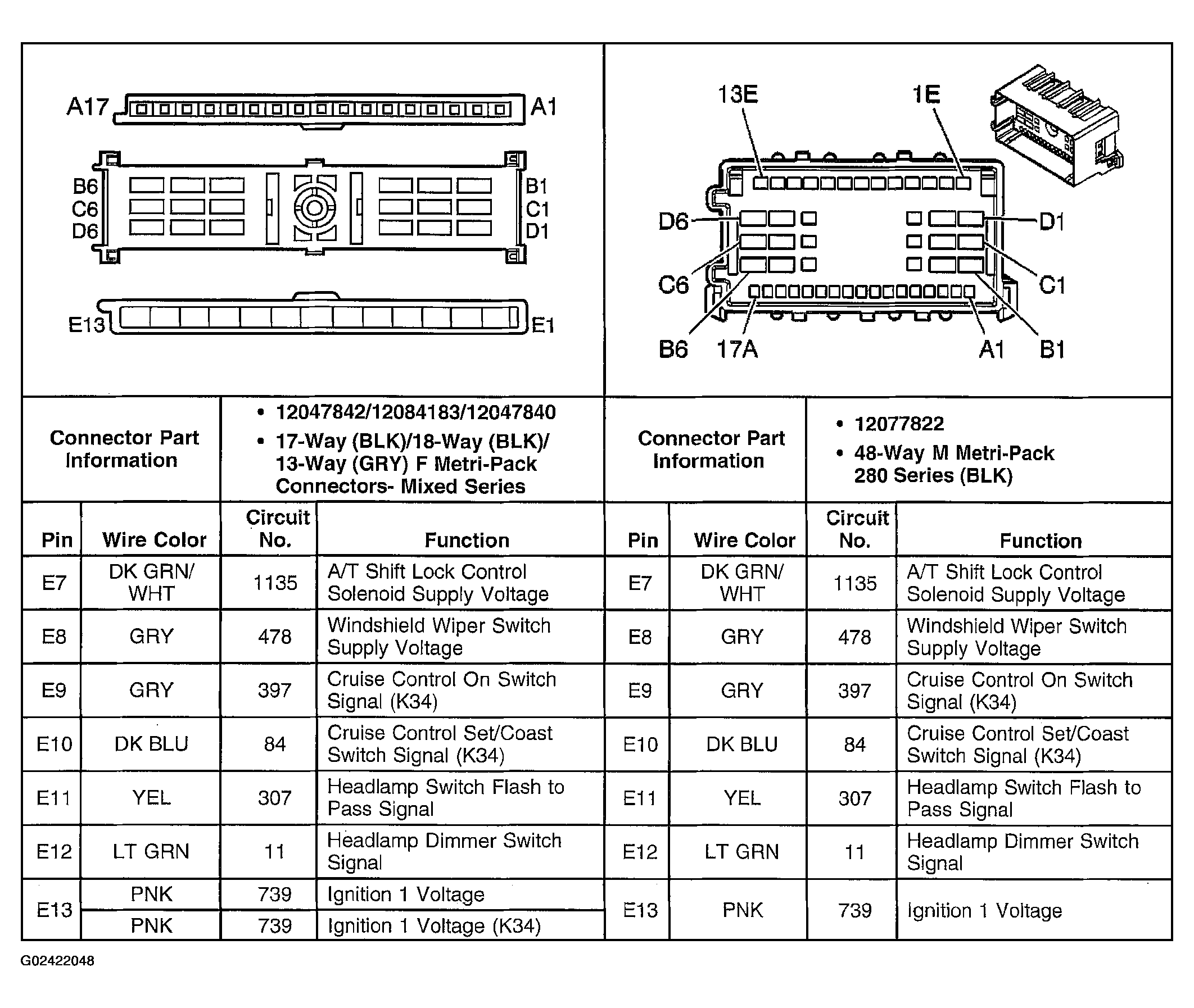

Fig 22: C200 Steering Column Harness To I/P Harness (3 Of 3)

G02422048

Courtesy of GENERAL MOTORS CORP.

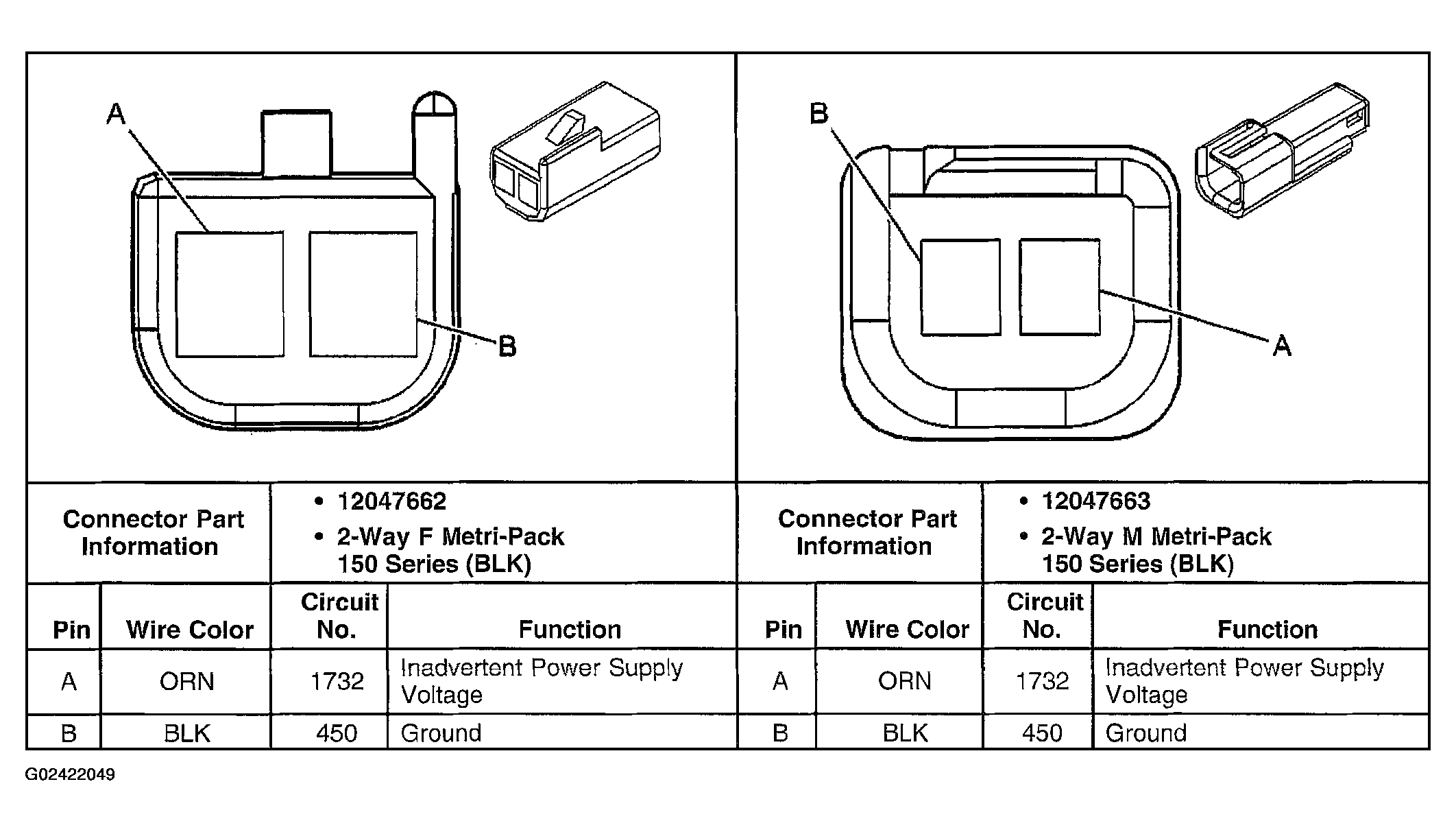

Fig 23: C203 Vanity Lamp Harness To Body Harness (YF7/DH6)

G02422049

Courtesy of GENERAL MOTORS CORP.

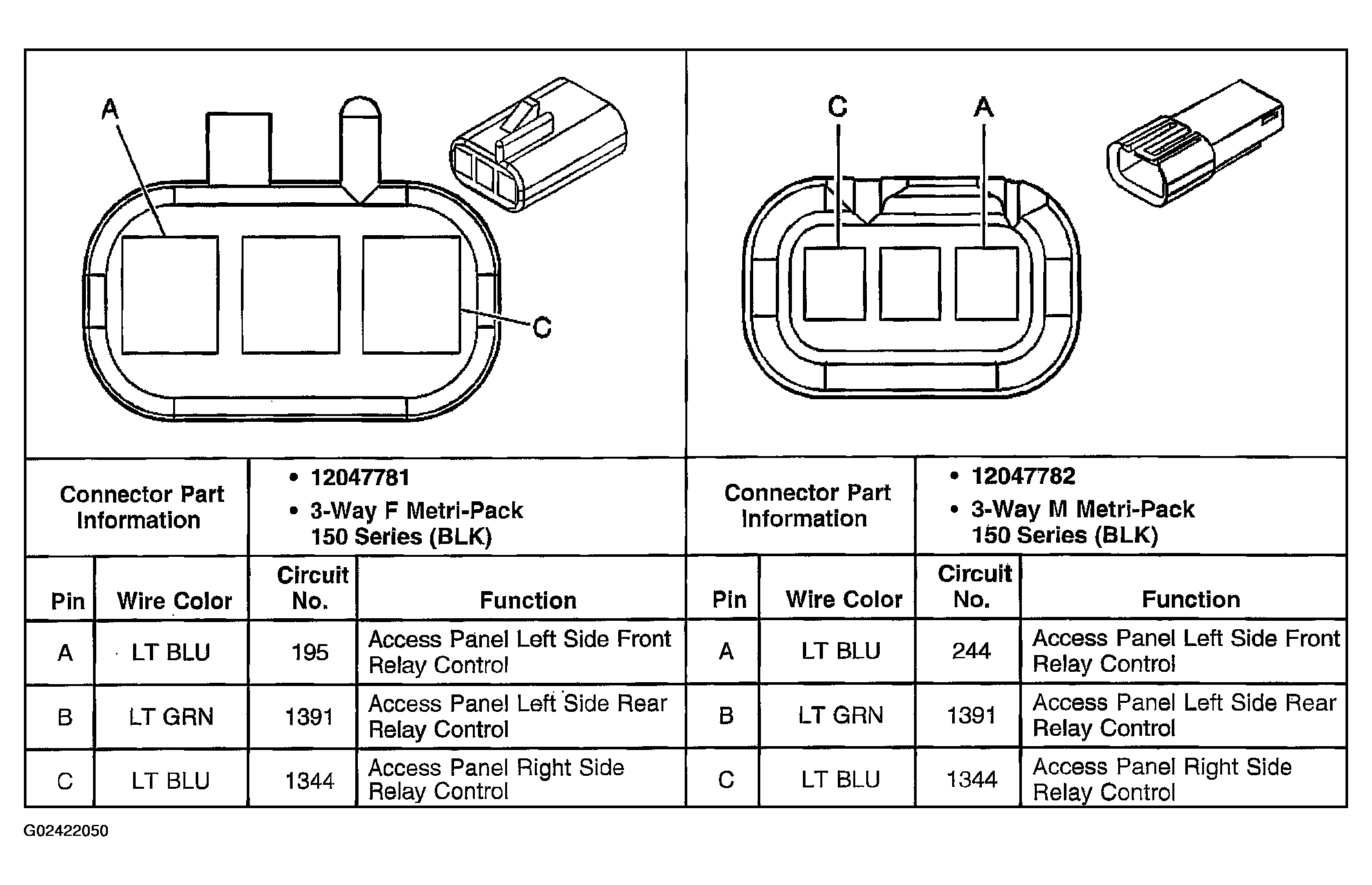

Fig 24: C204 Pro Harness To Pro Jumper Harness (PRP)

G02422050

Courtesy of GENERAL MOTORS CORP.

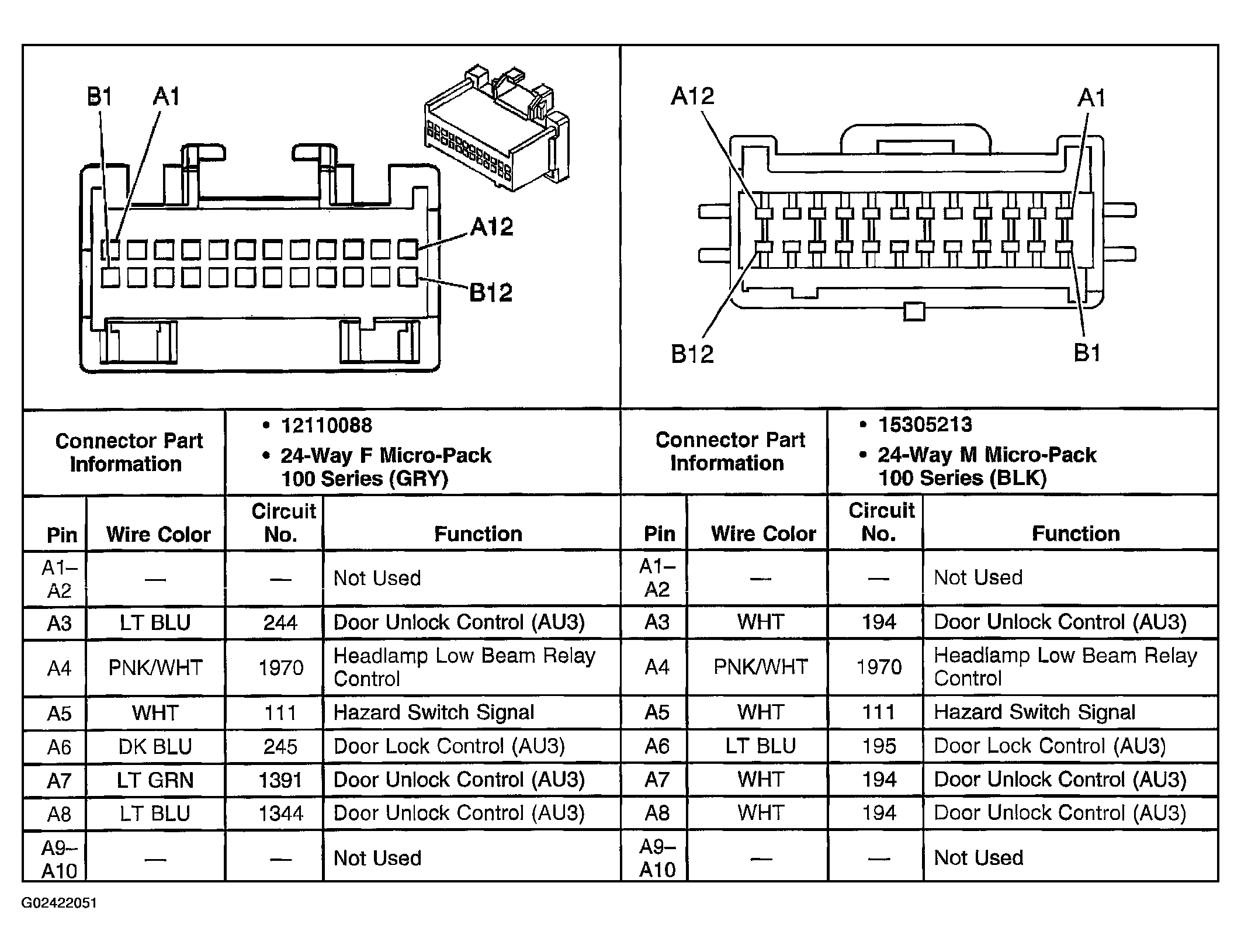

Fig 25: C205 I/P Harness To Pro Harness (PRP) 1 Of 2

G02422051

Courtesy of GENERAL MOTORS CORP.

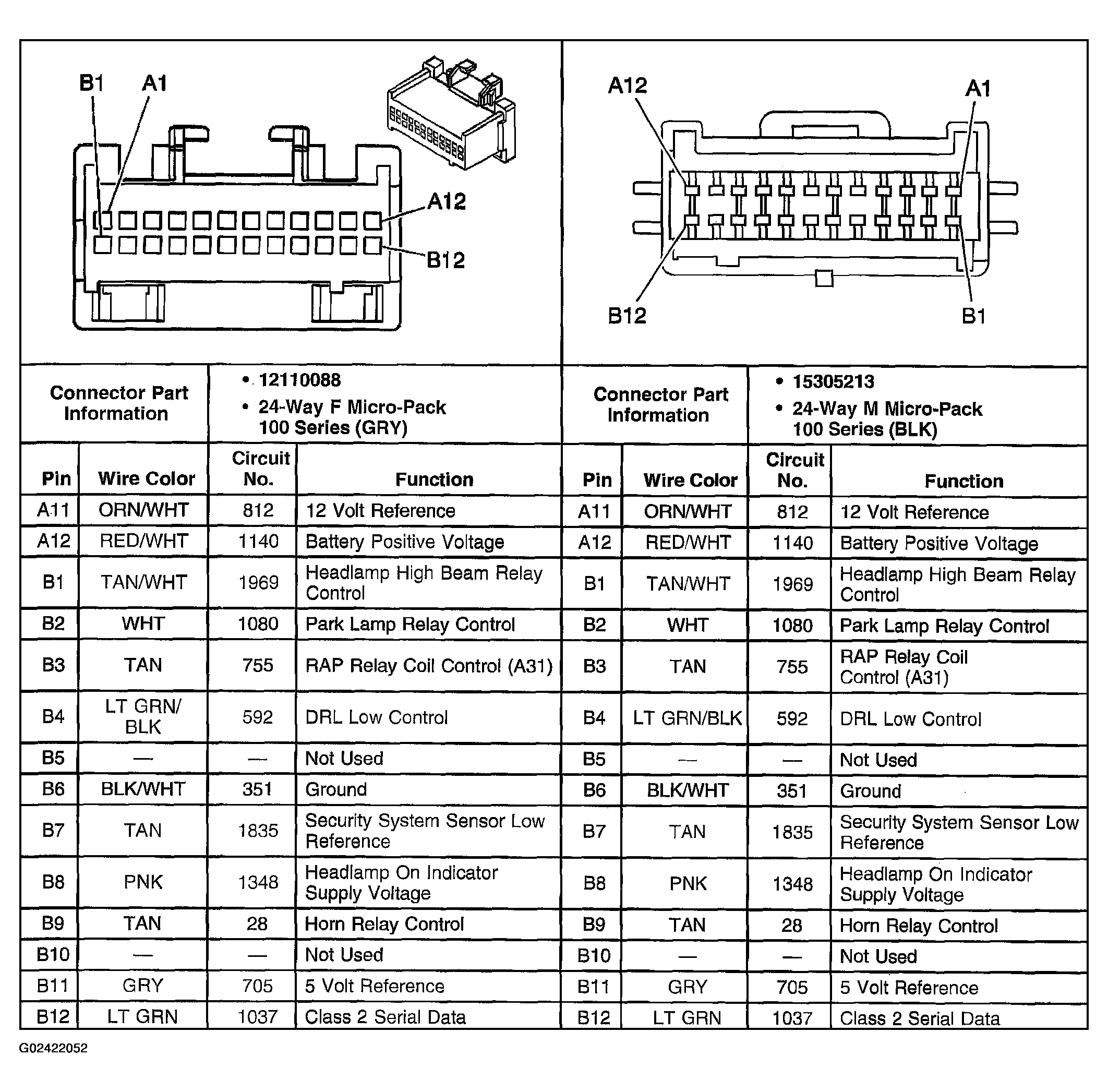

Fig 26: C205 I/P Harness To Pro Harness (PRP) 2 Of 2

G02422052

Courtesy of GENERAL MOTORS CORP.

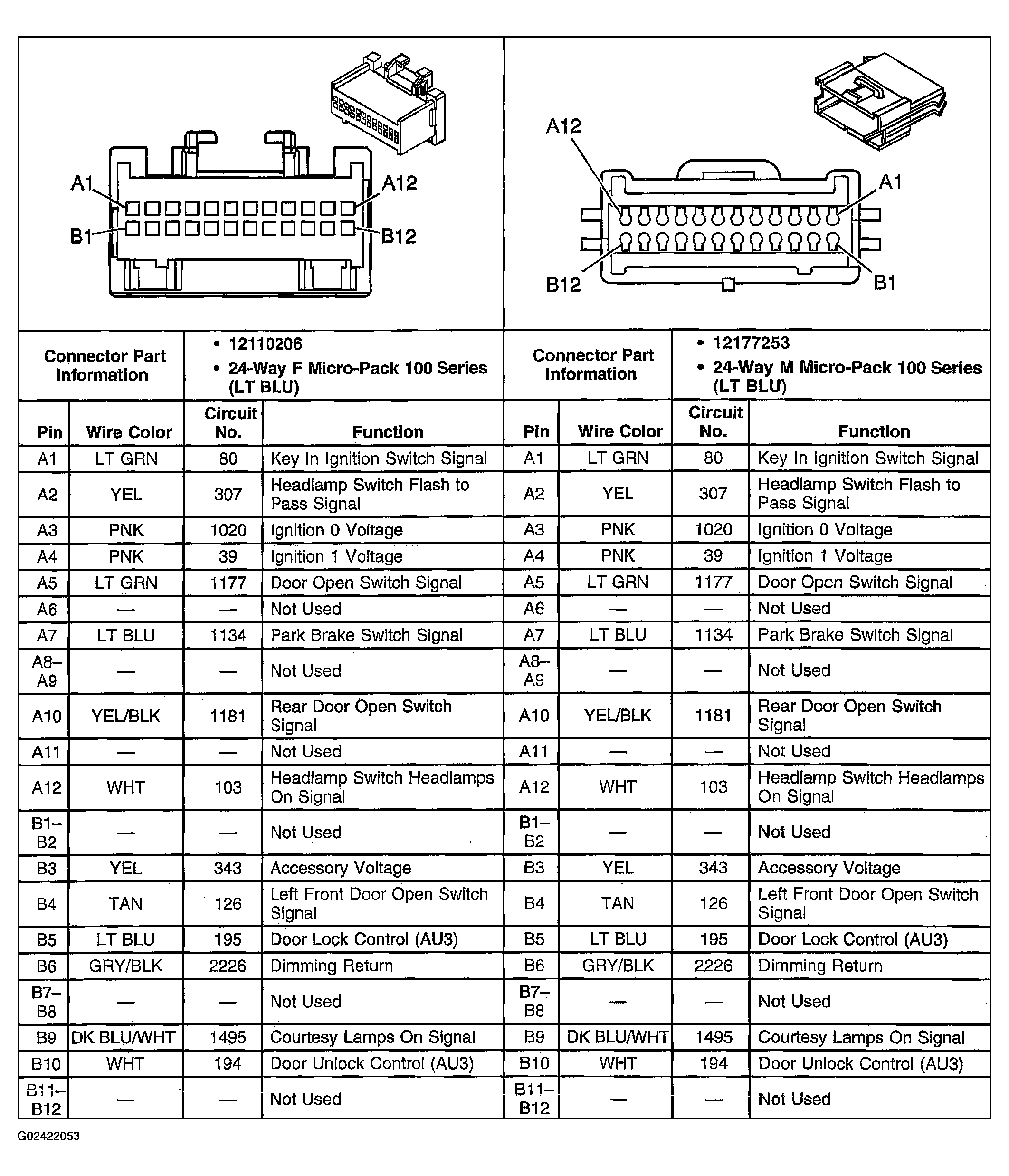

Fig 27: C206 I/P Harness To Pro Harness (PRP)

G02422053

Courtesy of GENERAL MOTORS CORP.

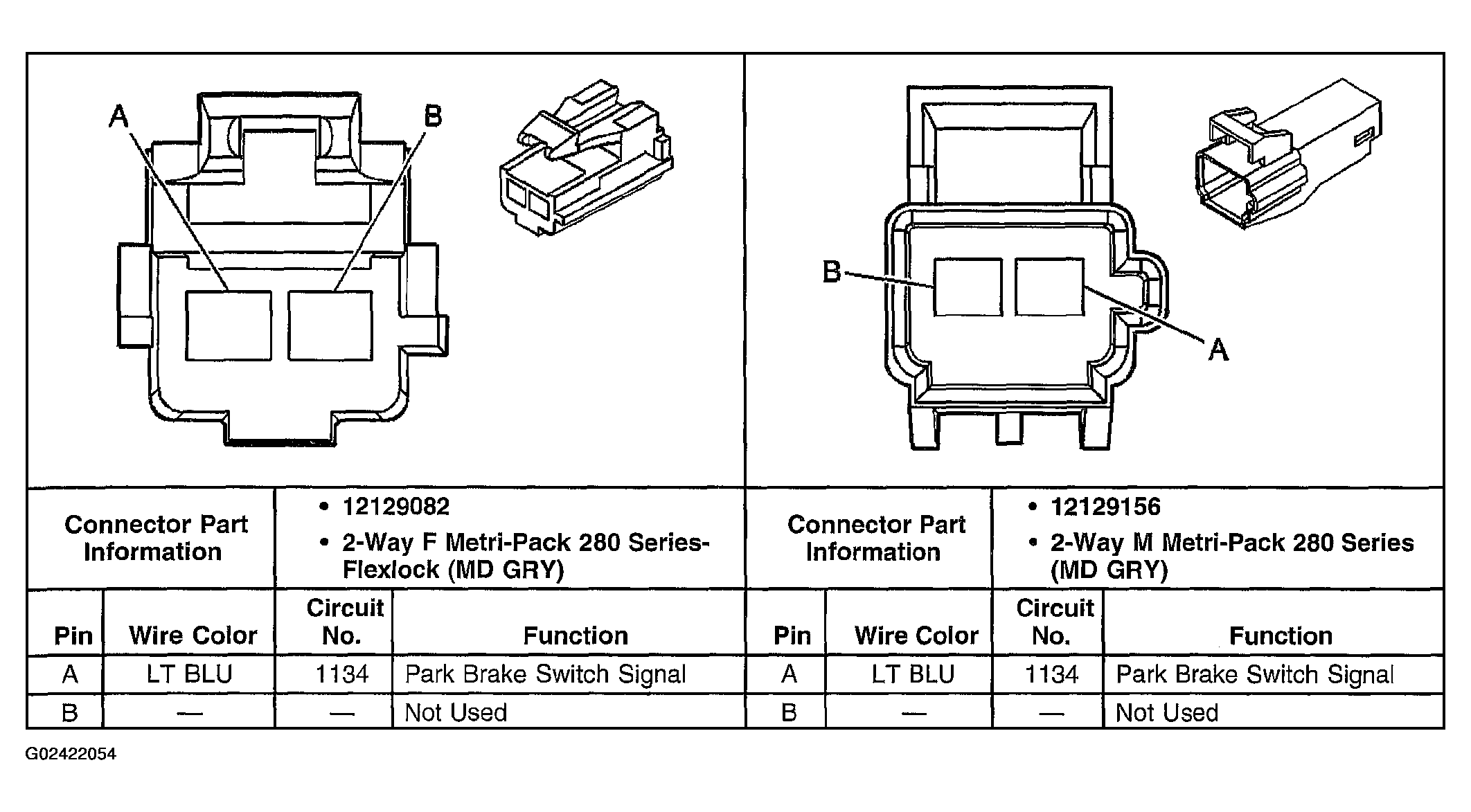

Fig 28: C220 I/P Harness To Parking Brake Harness

G02422054

Courtesy of GENERAL MOTORS CORP.

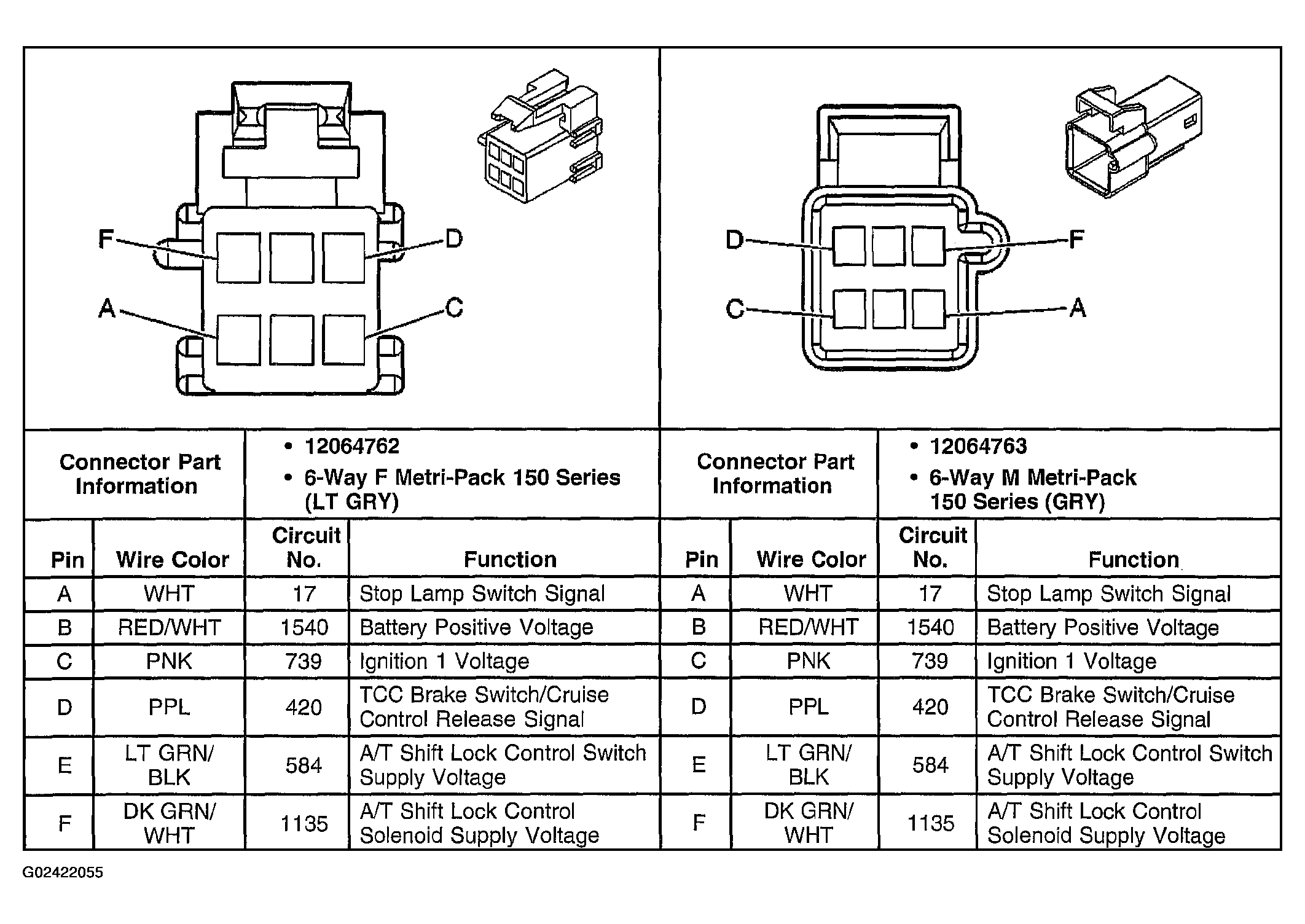

Fig 29: C221 I/P Harness To Brake Switch Harness

G02422055

Courtesy of GENERAL MOTORS CORP.

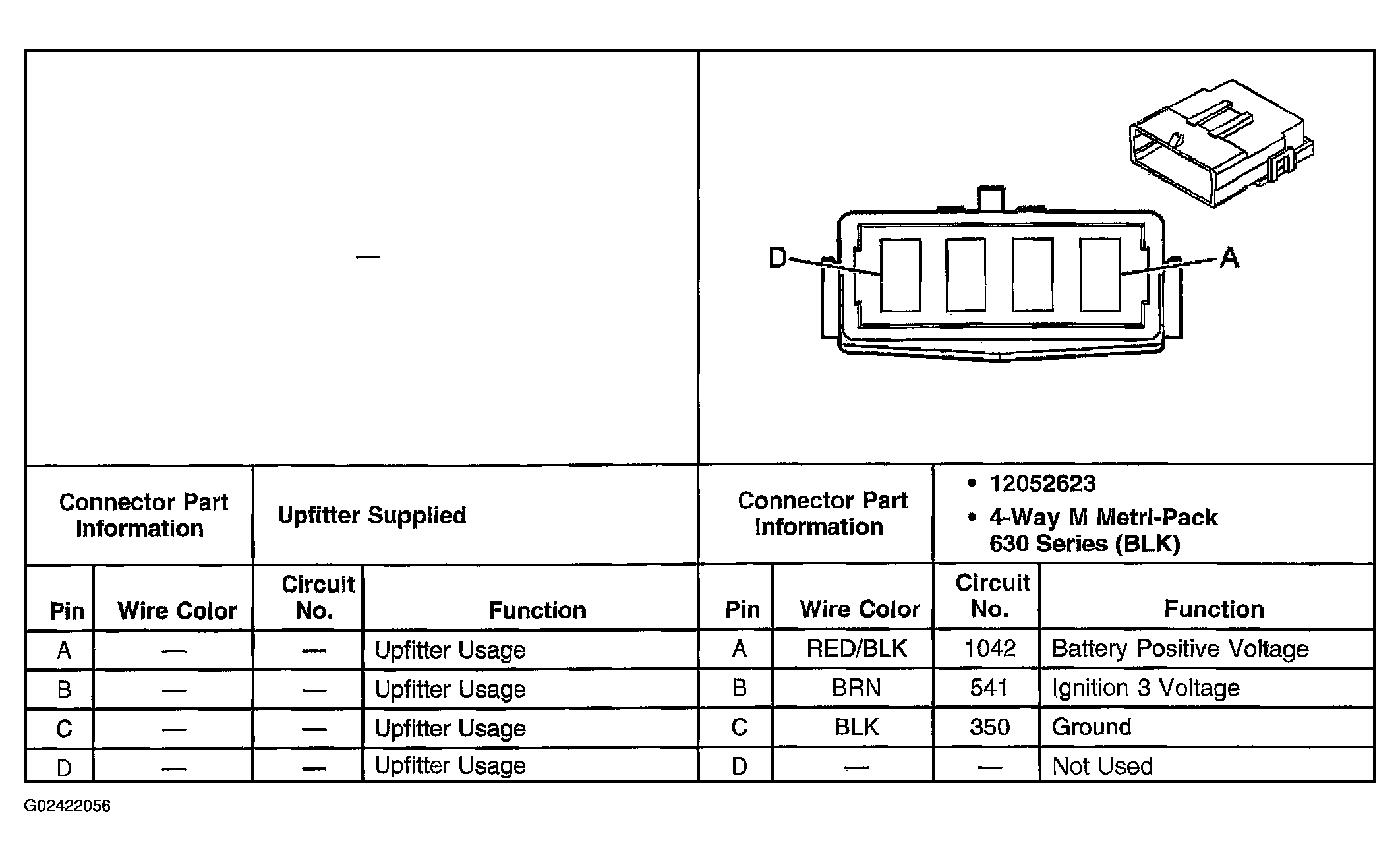

Fig 30: C222 Upfitter Harness To I/P Harness (YF7)

G02422056

Courtesy of GENERAL MOTORS CORP.

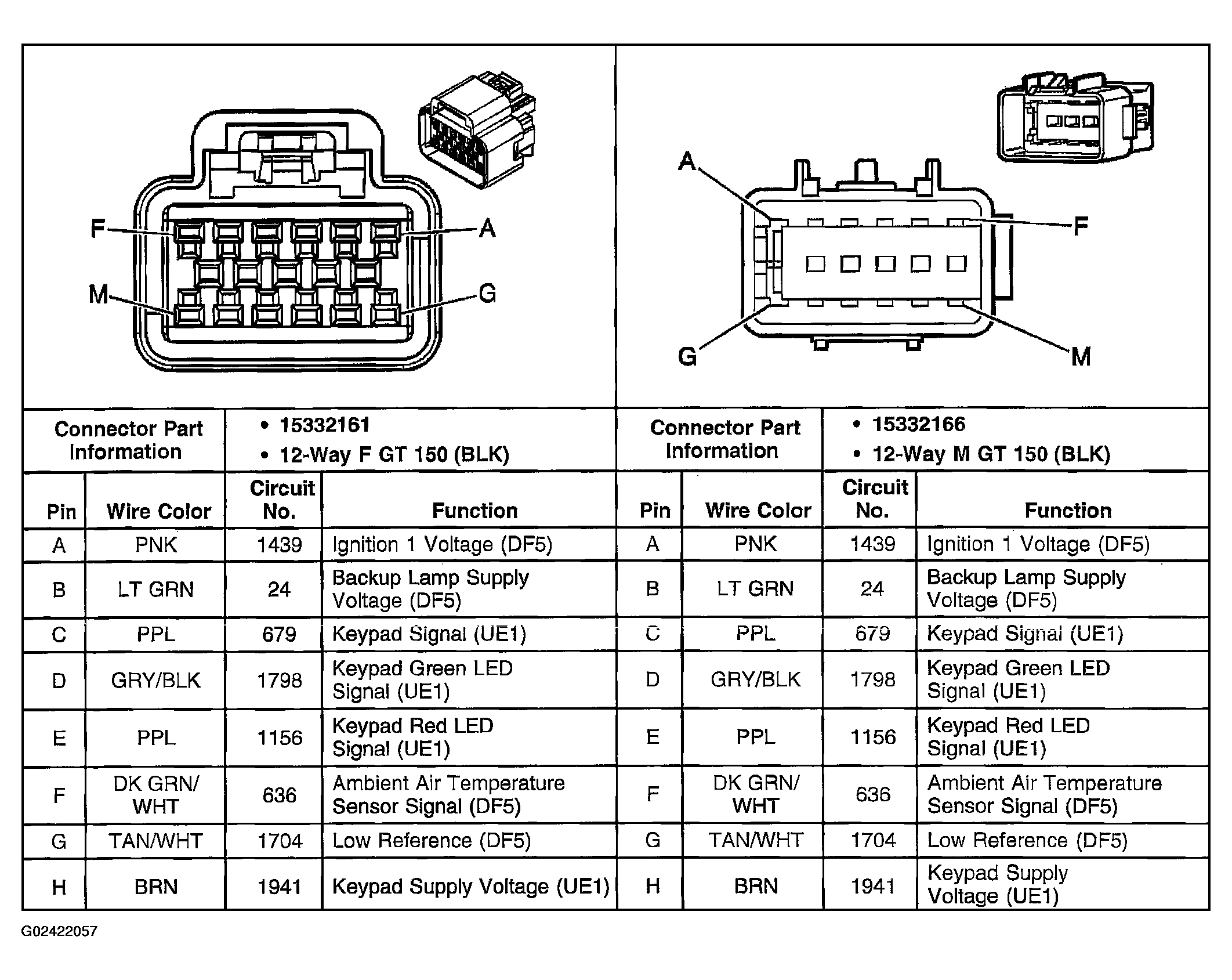

Fig 31: C225 I/P Harness To Mirror Harness (1 Of 2)

G02422057

Courtesy of GENERAL MOTORS CORP.

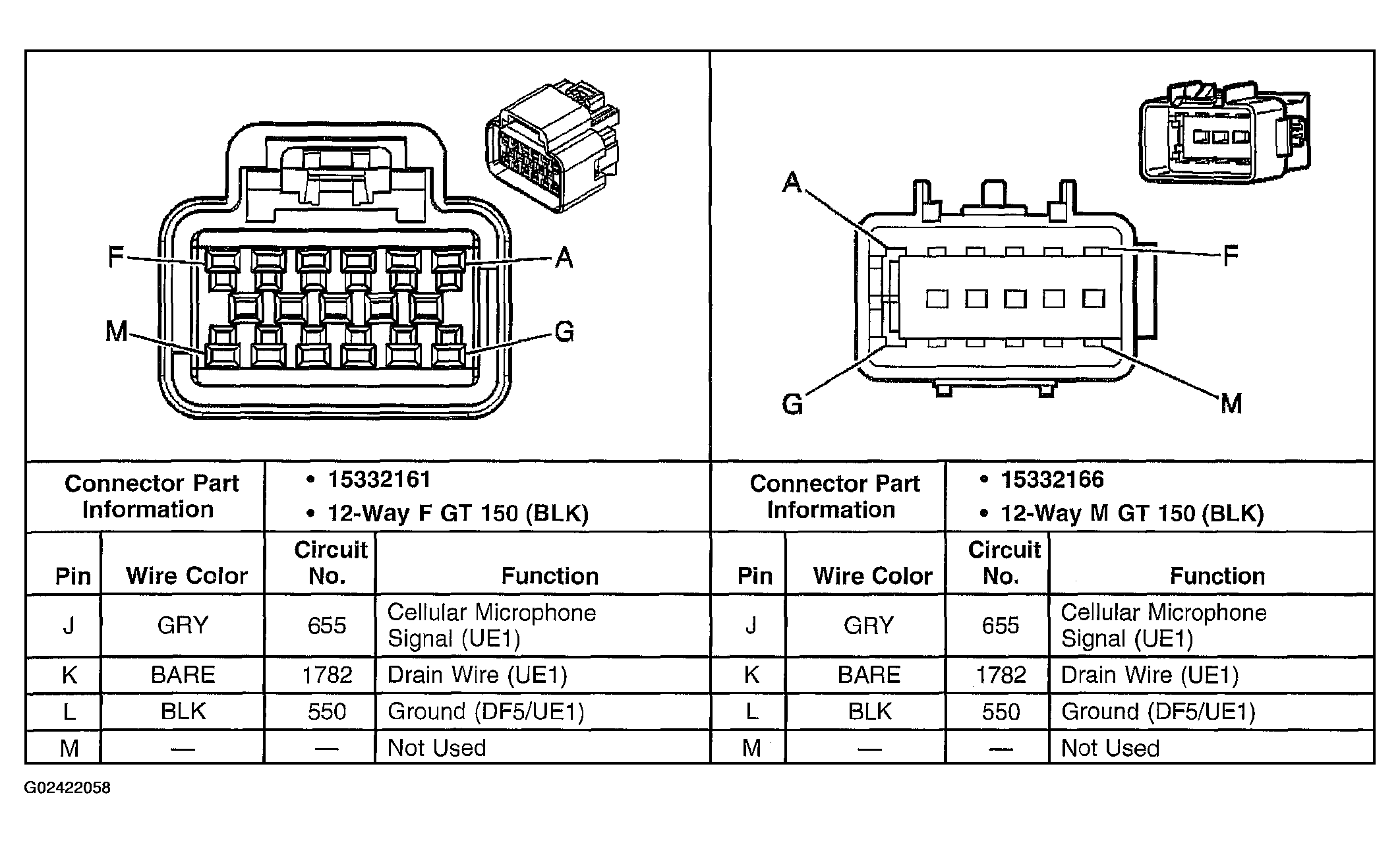

Fig 32: C225 I/P Harness To Mirror Harness (2 Of 2)

G02422058

Courtesy of GENERAL MOTORS CORP.

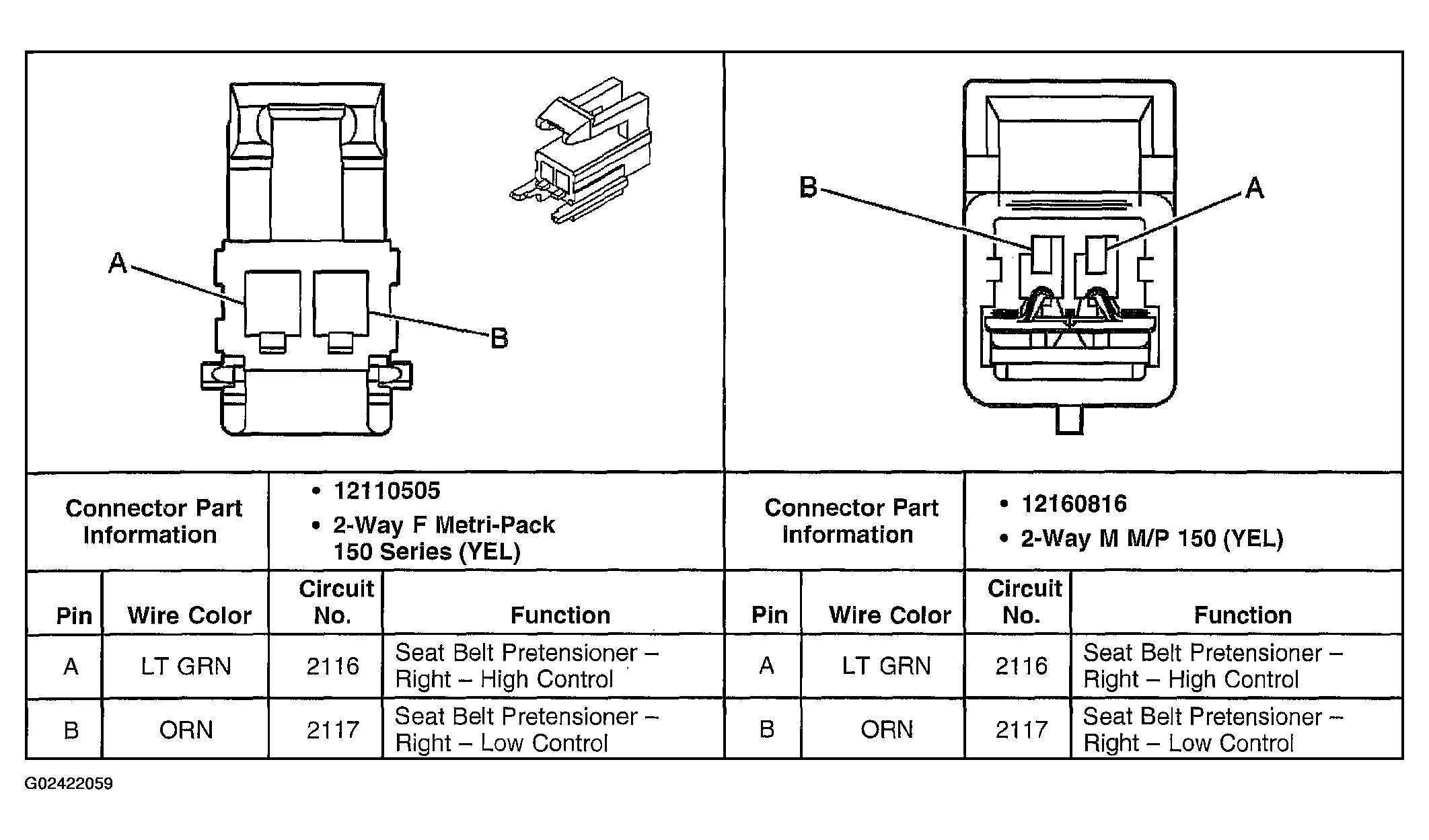

Fig 33: C300 I/P Harness To Body Harness (Light Duty)

G02422059

Courtesy of GENERAL MOTORS CORP.

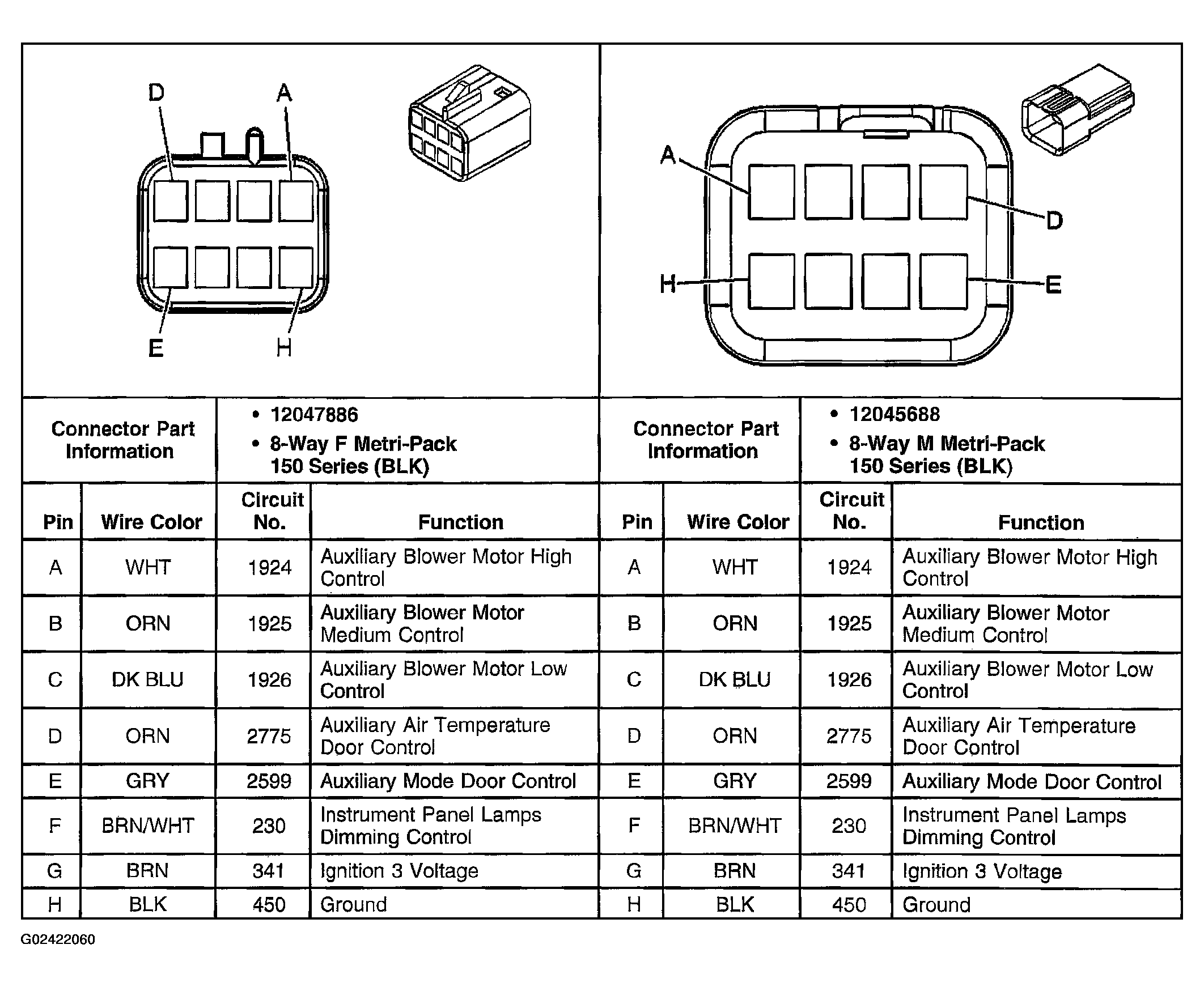

Fig 34: C303 Upfitter Harness To Body Harness (YF7 w/Rear Auxiliary Controls)

G02422060

Courtesy of GENERAL MOTORS CORP.

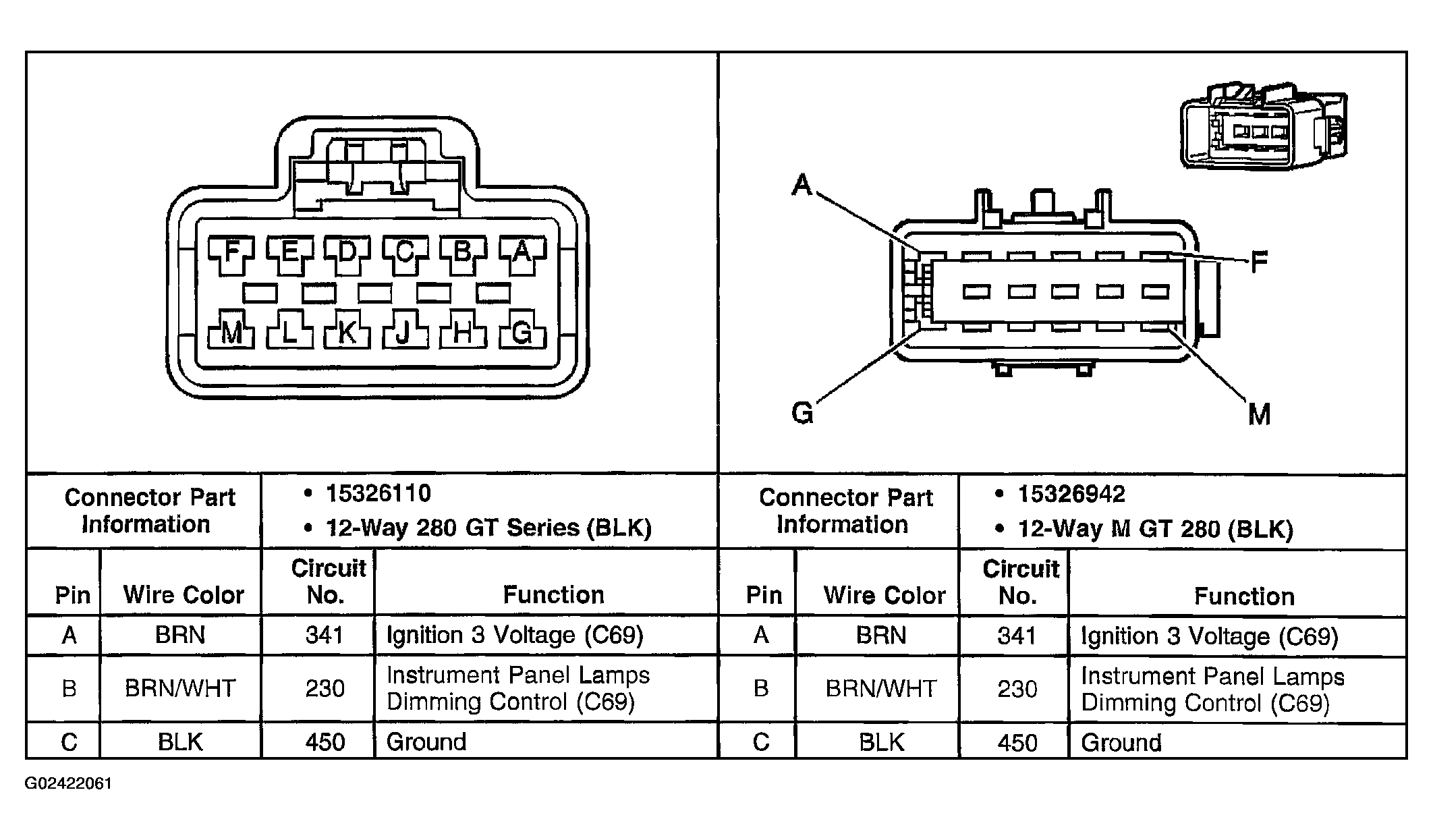

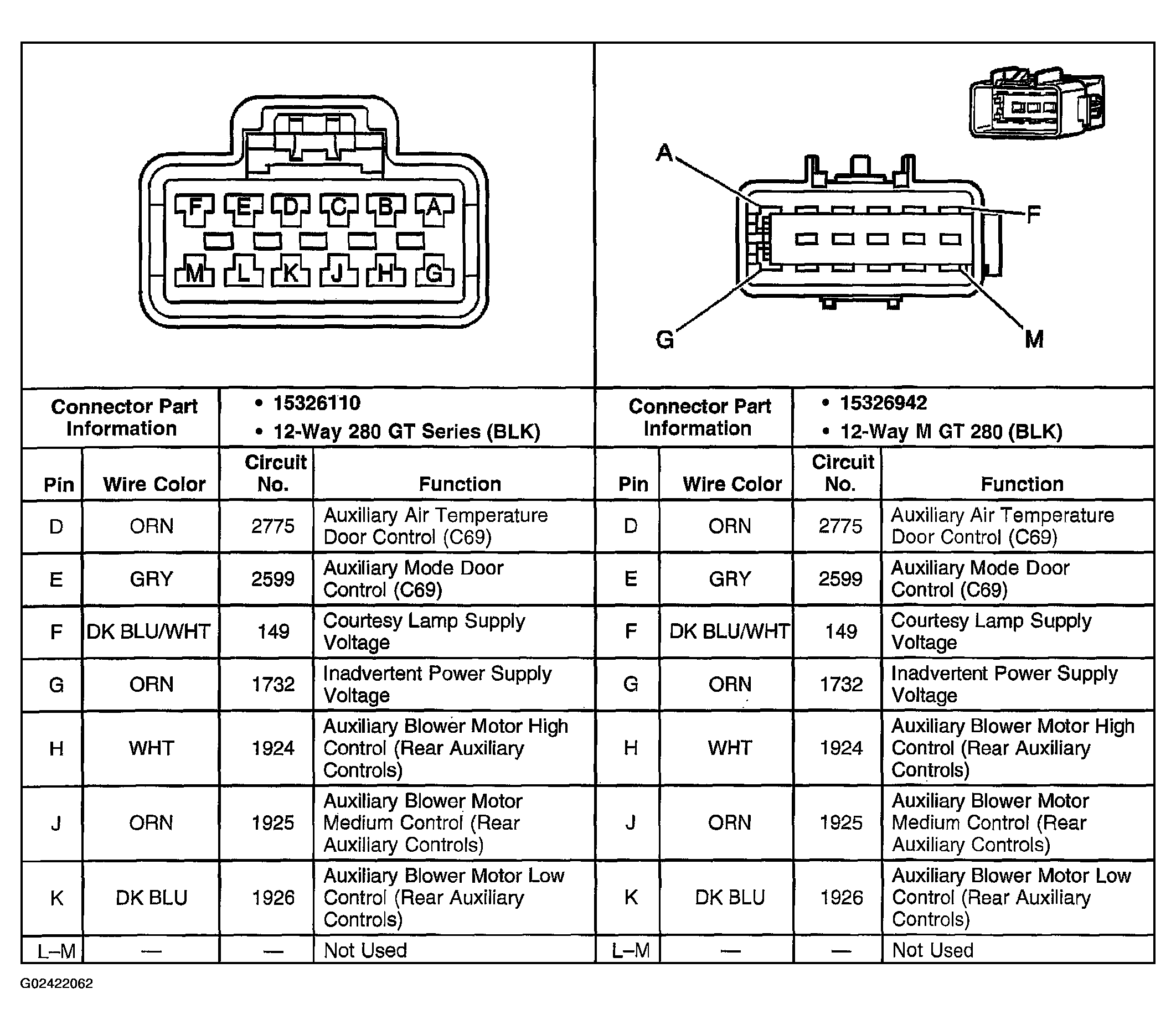

Fig 35: C304 Headliner Harness To Body Harness (w/o YF7) 1 Of 2

G02422061

Courtesy of GENERAL MOTORS CORP.

Fig 36: C304 Headliner Harness To Body Harness (w/o YF7) 2 Of 2

G02422062

Courtesy of GENERAL MOTORS CORP.

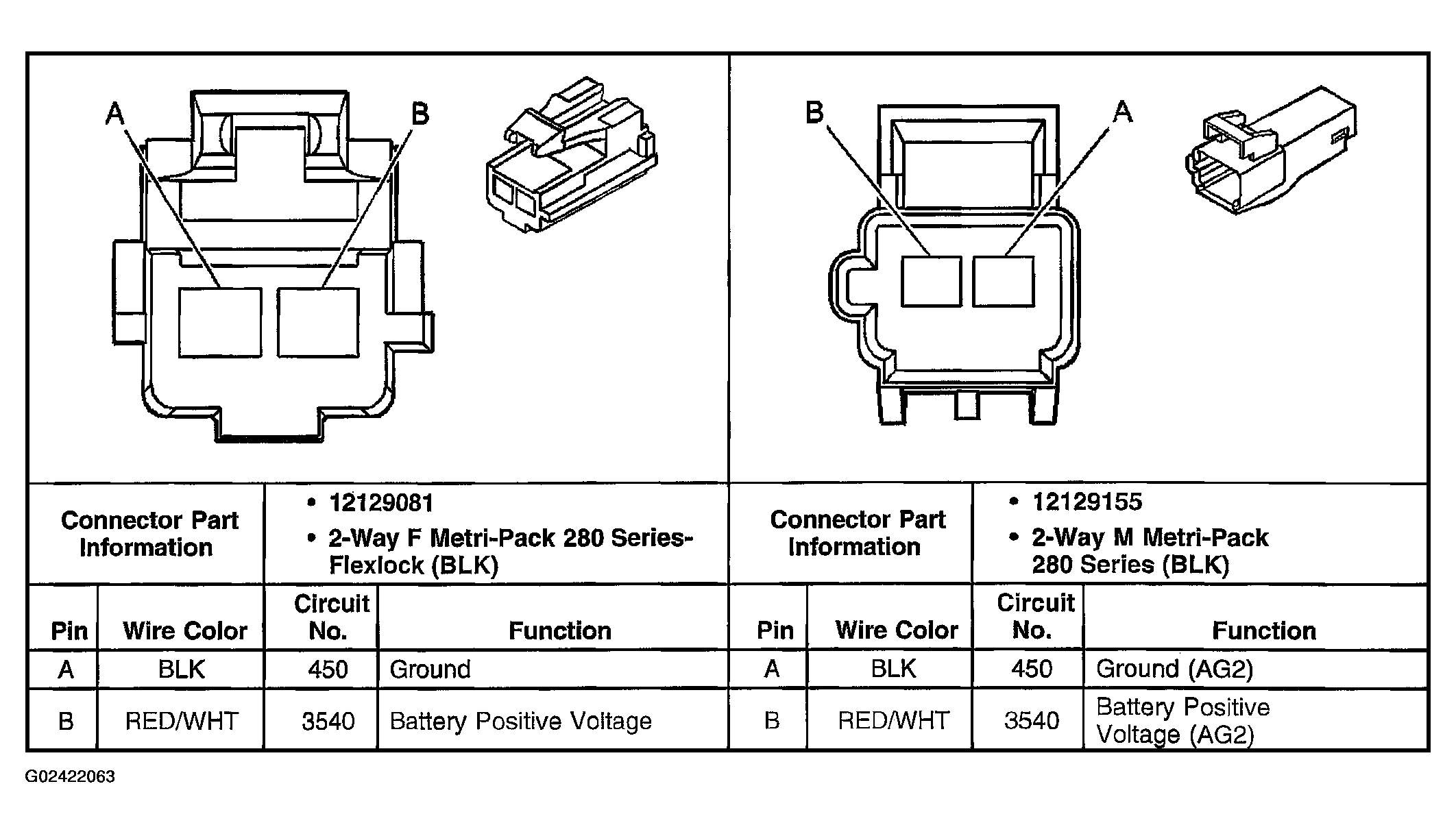

Fig 37: C306 Body Harness To Front Passenger Seat Harness (Heavy Duty W/AG1/AG2)

G02422063

Courtesy of GENERAL MOTORS CORP.

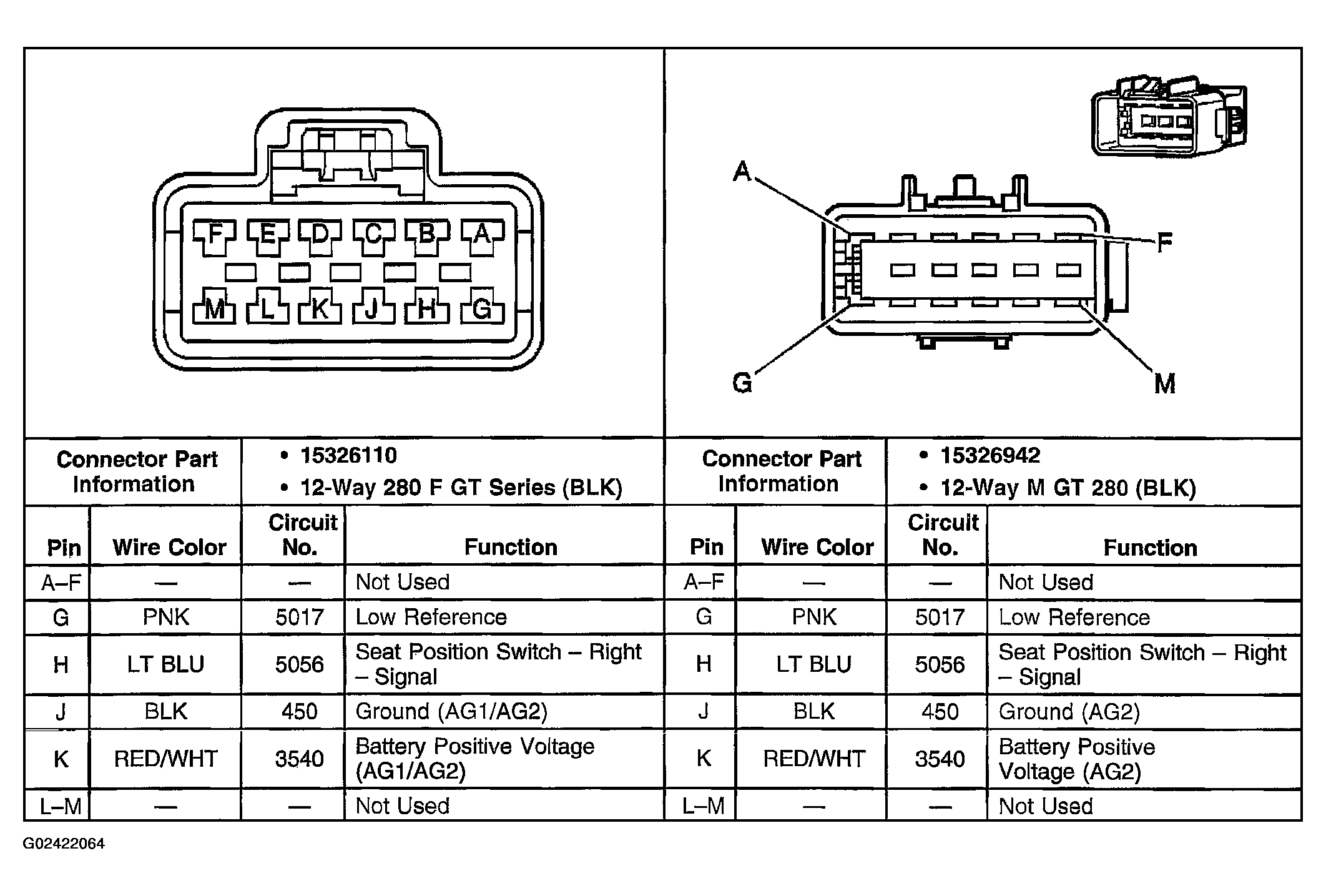

Fig 38: C306 Body Harness To Front Passenger Seat Harness (Light Duty)

G02422064

Courtesy of GENERAL MOTORS CORP.

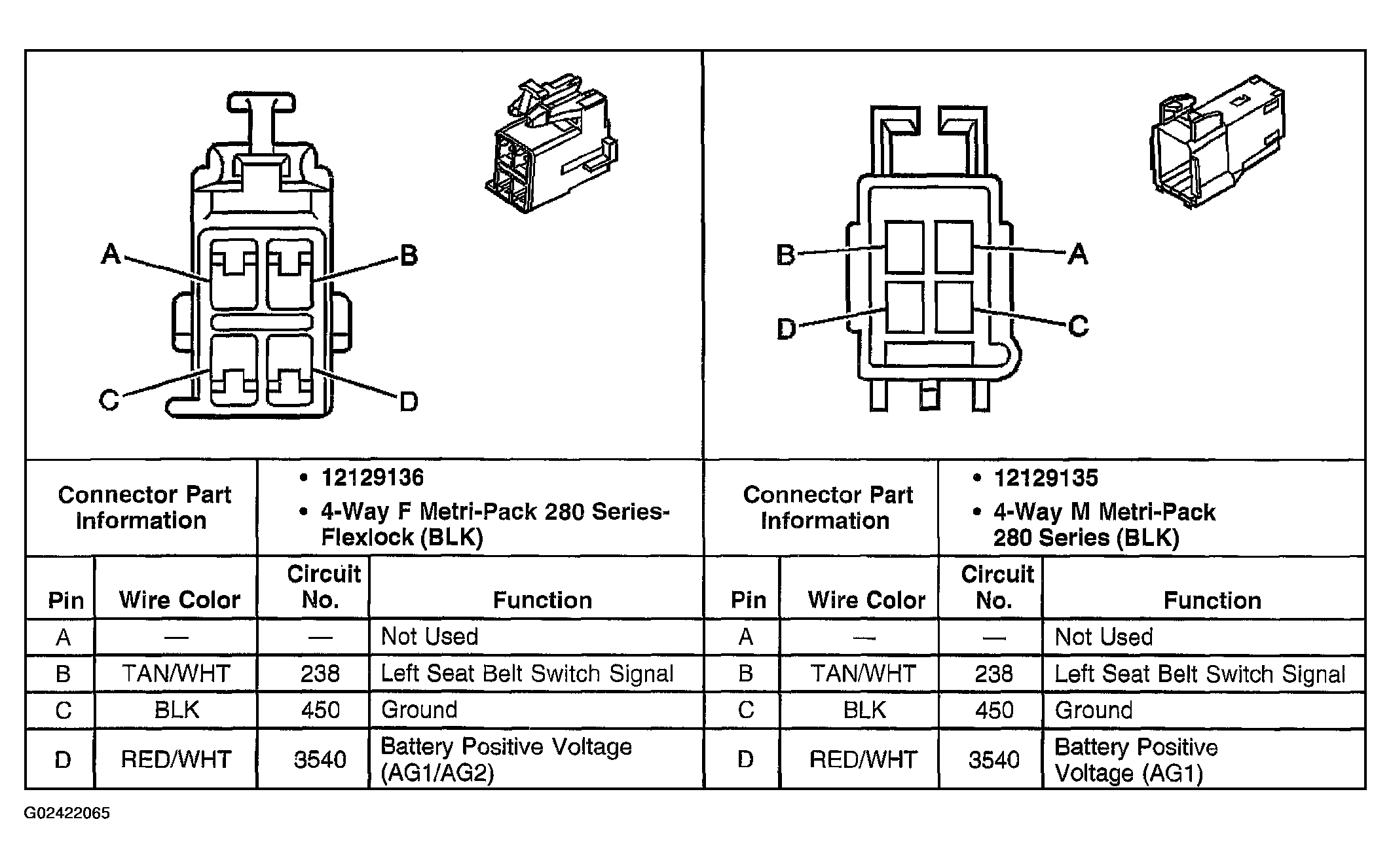

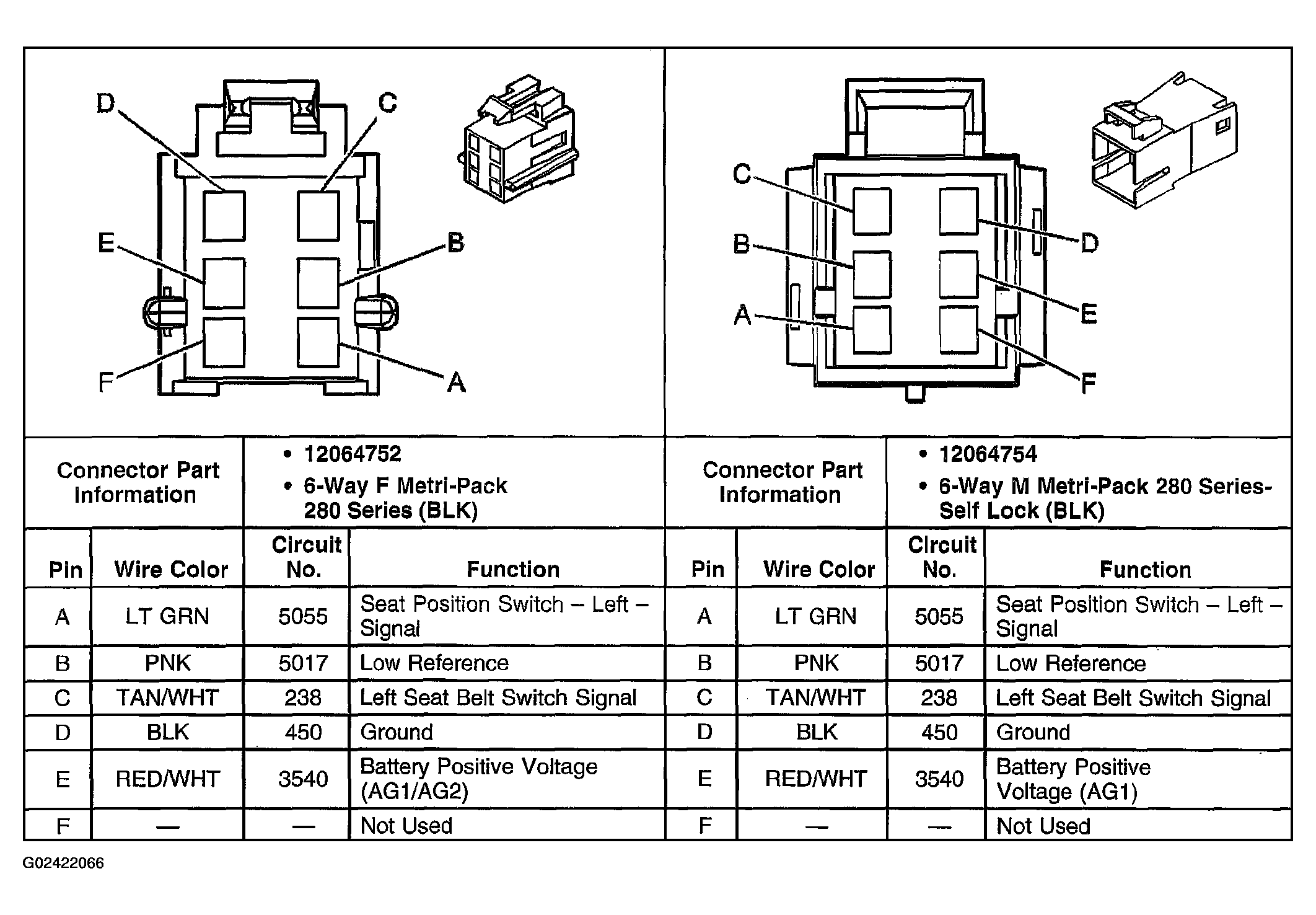

Fig 39: C307 Body Harness To Driver Seat Harness (Heavy Duty)

G02422065

Courtesy of GENERAL MOTORS CORP.

Fig 40: C307 Body Harness To Driver Seat Harness (Light Duty)

G02422066

Courtesy of GENERAL MOTORS CORP.

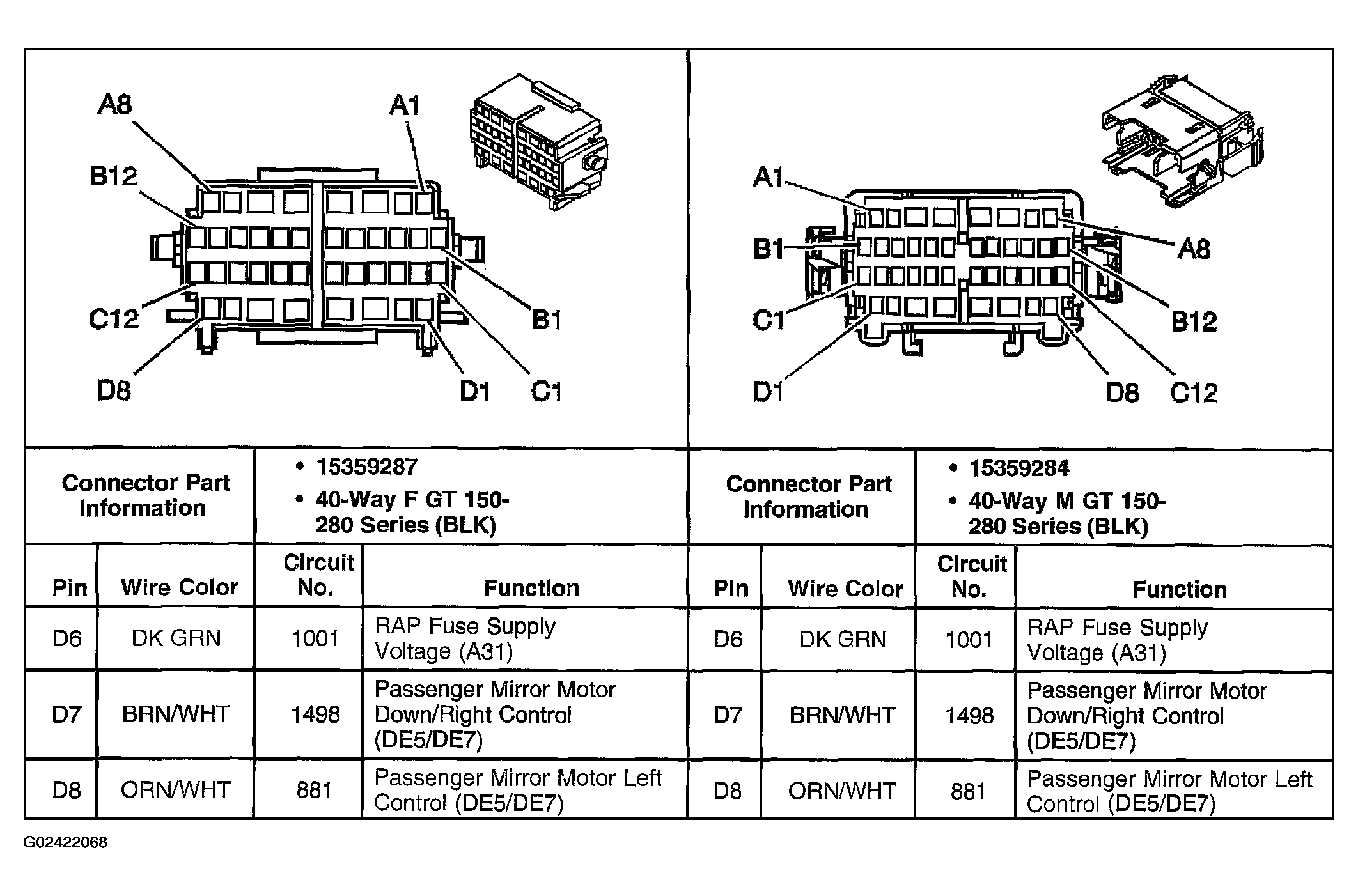

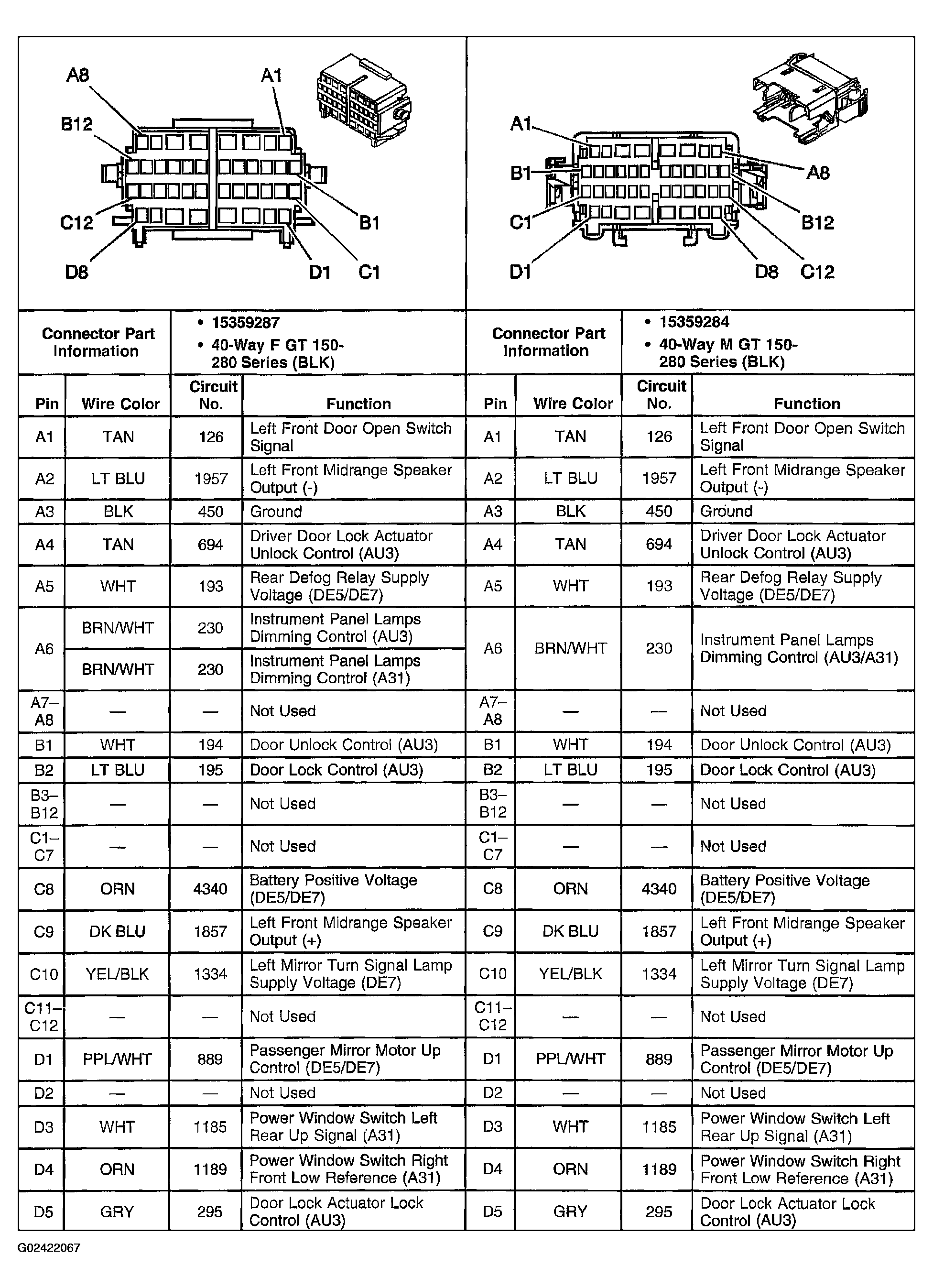

Fig 41: C311 Driver Door Harness To Body Harness (1 Of 2)

G02422067

Courtesy of GENERAL MOTORS CORP.

Fig 42: C311 Driver Door Harness To Body Harness (2 Of 2)

G02422068

Courtesy of GENERAL MOTORS CORP.

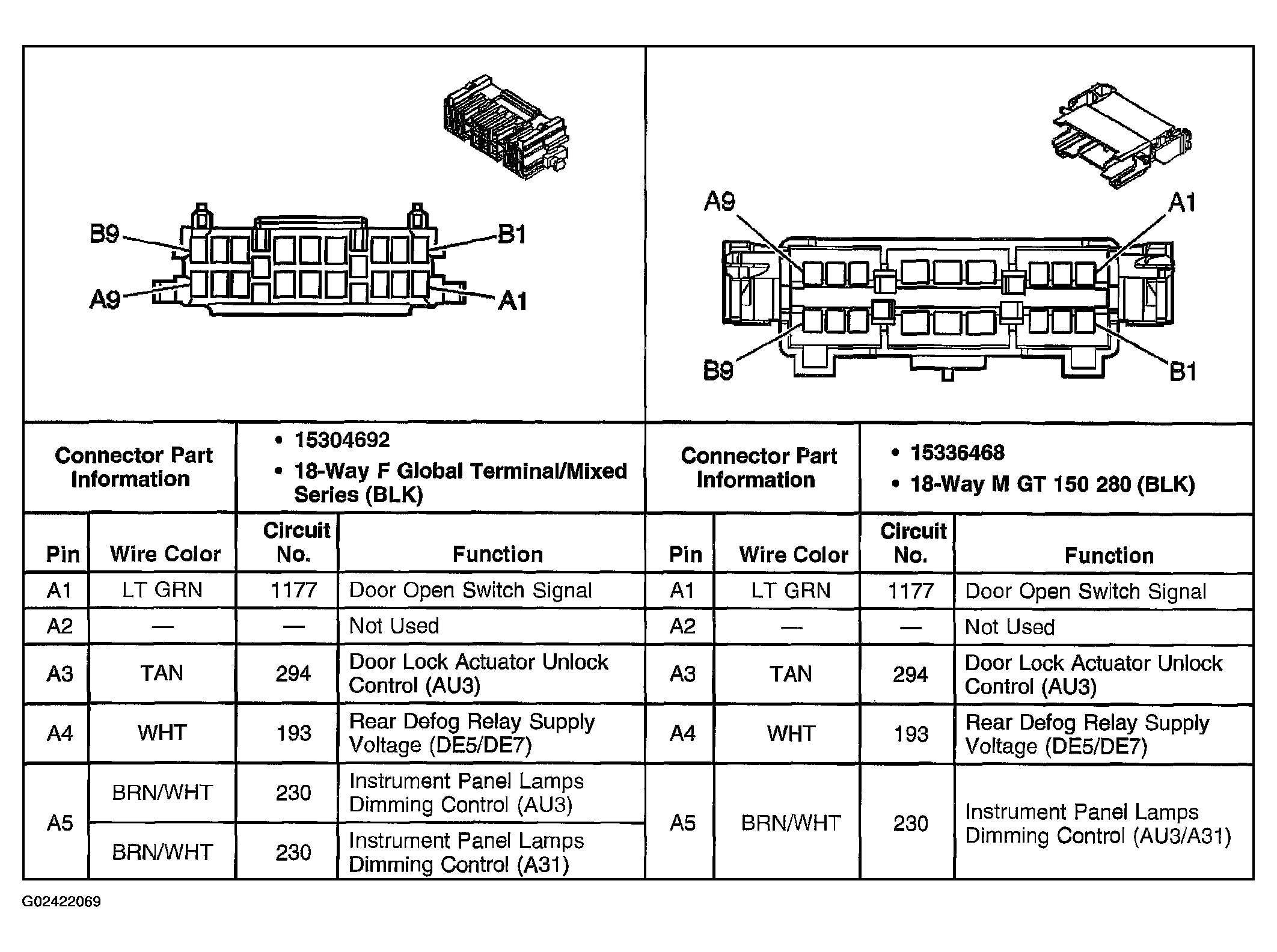

Fig 43: C312 Front Passenger Door Harness To Body Harness (1 Of 2)

G02422069

Courtesy of GENERAL MOTORS CORP.

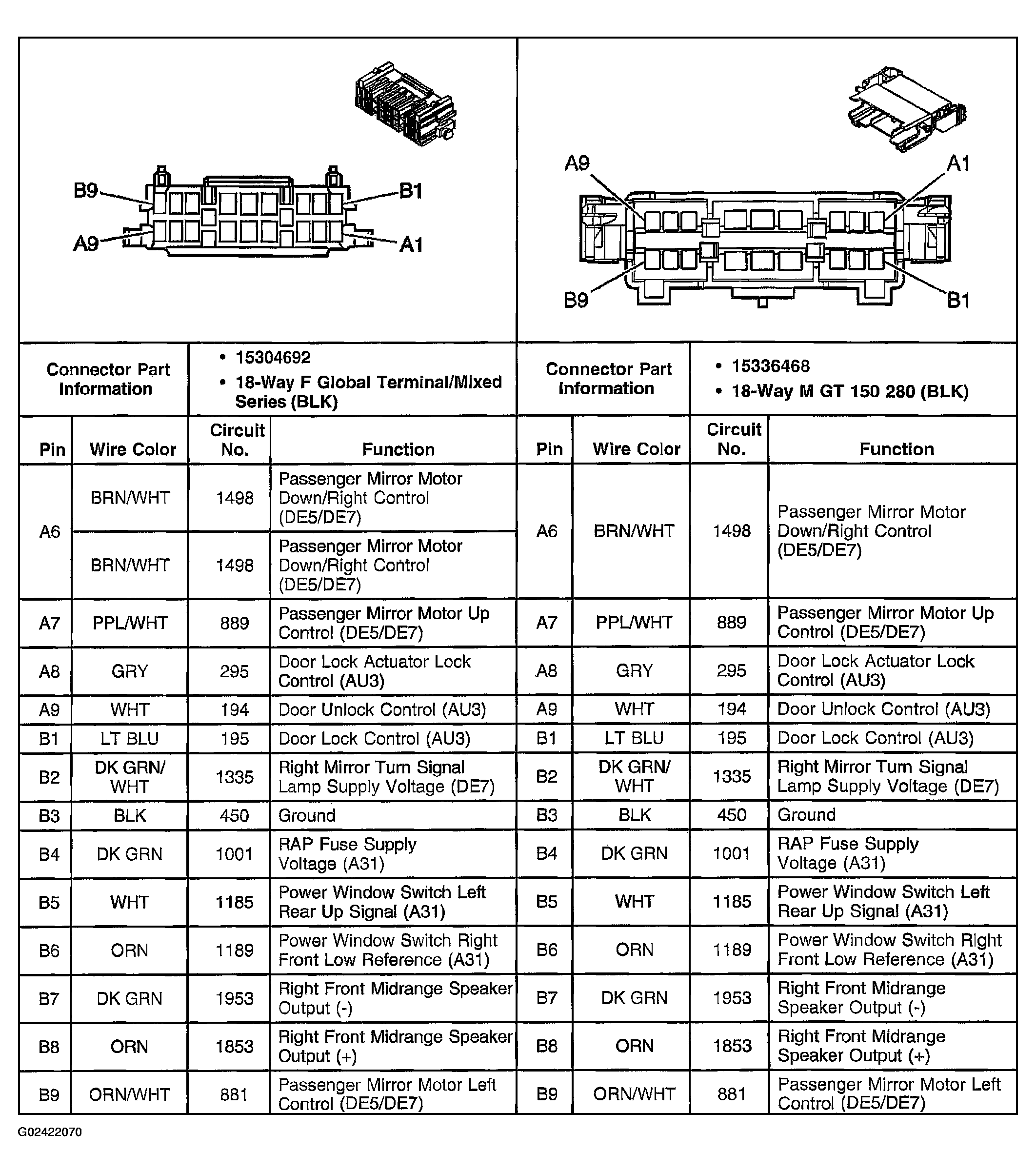

Fig 44: C312 Front Passenger Door Harness To Body Harness (2 Of 2)

G02422070

Courtesy of GENERAL MOTORS CORP.

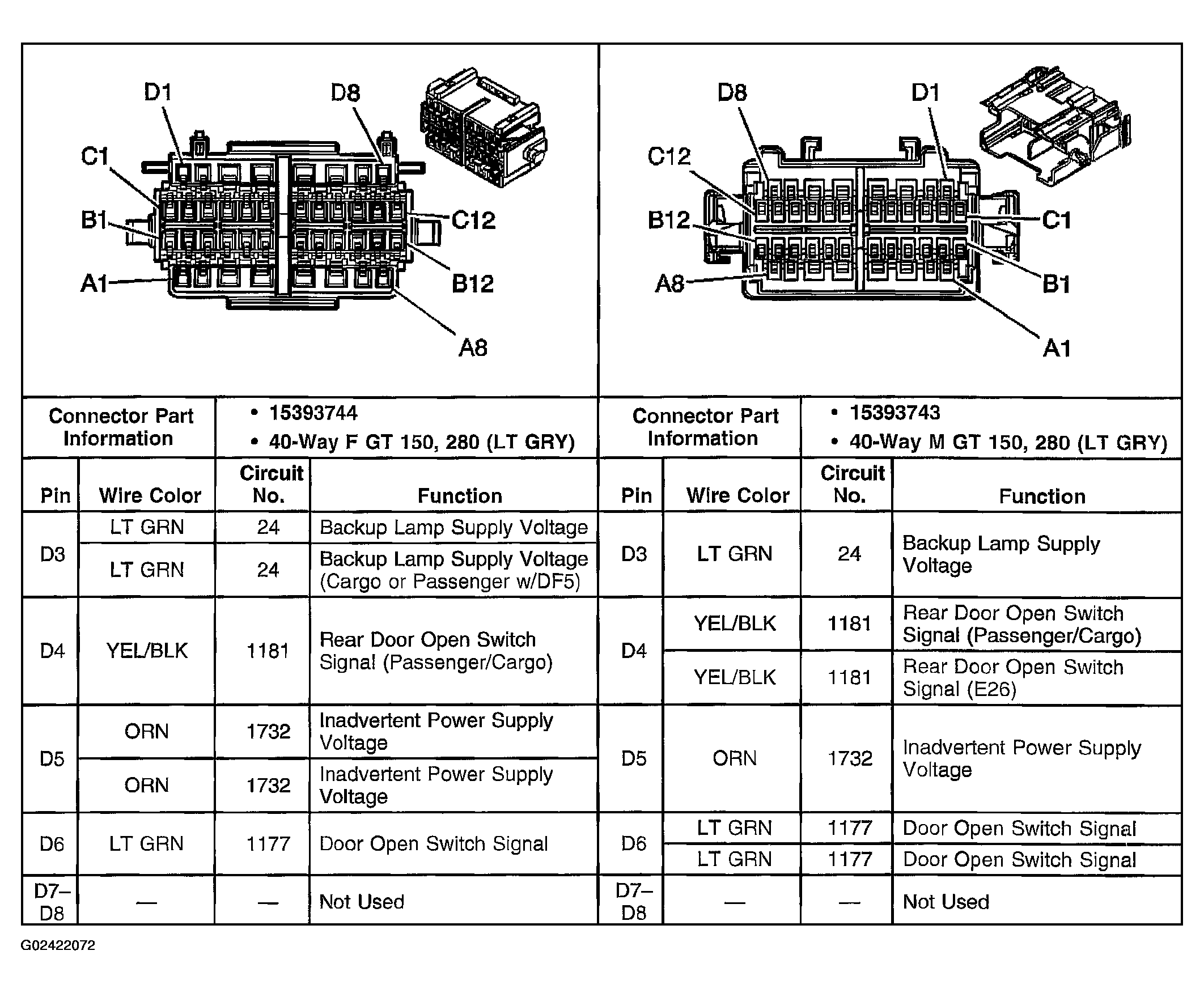

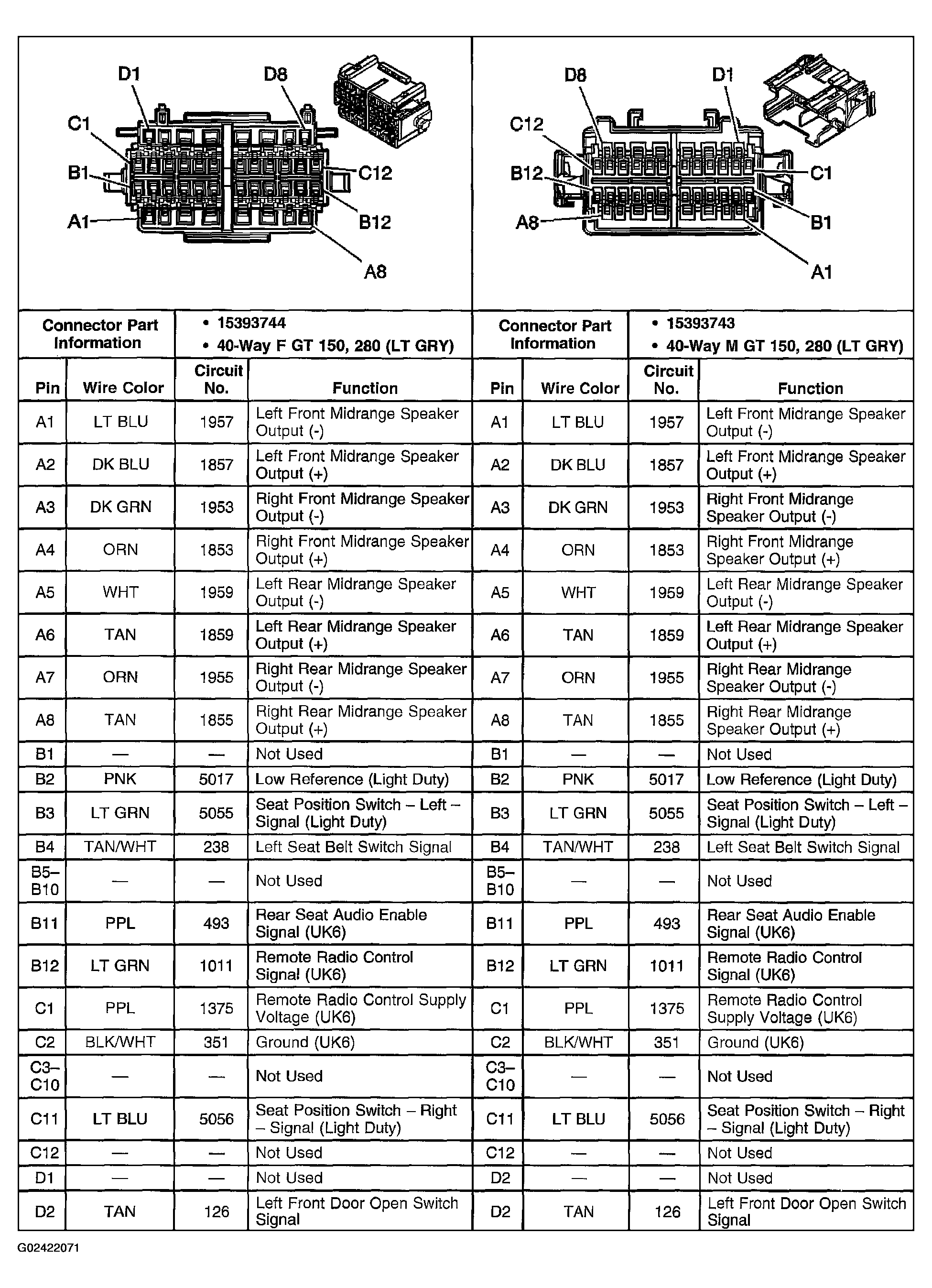

Fig 45: C318 I/P Harness To Body Harness (1 Of 2)

G02422071

Courtesy of GENERAL MOTORS CORP.

Fig 46: C318 I/P Harness To Body Harness (2 Of 2)

G02422072

Courtesy of GENERAL MOTORS CORP.

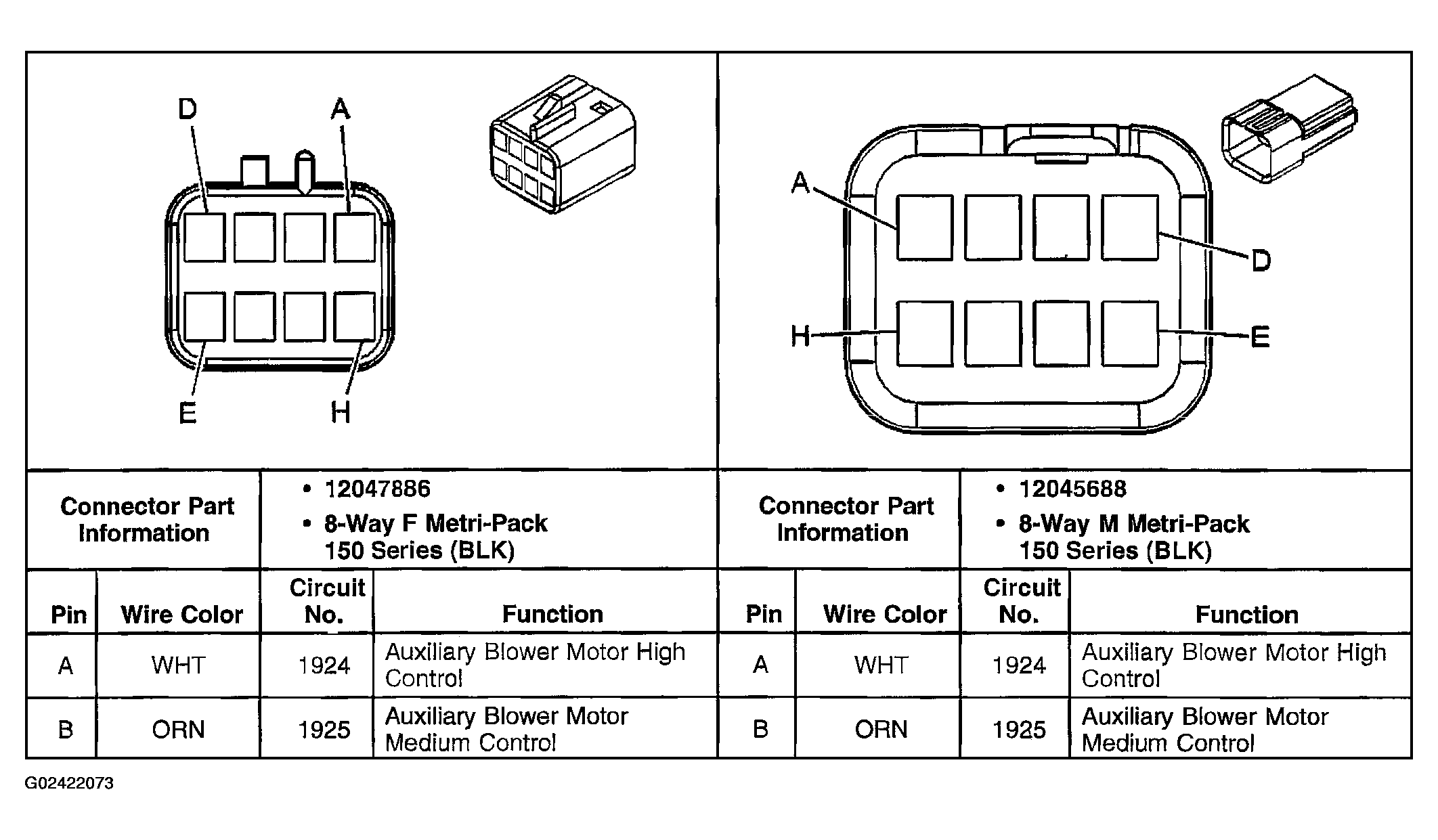

Fig 47: C319 Rear Heater Switch Harness To Body Harness (C36) 1 Of 2

G02422073

Courtesy of GENERAL MOTORS CORP.

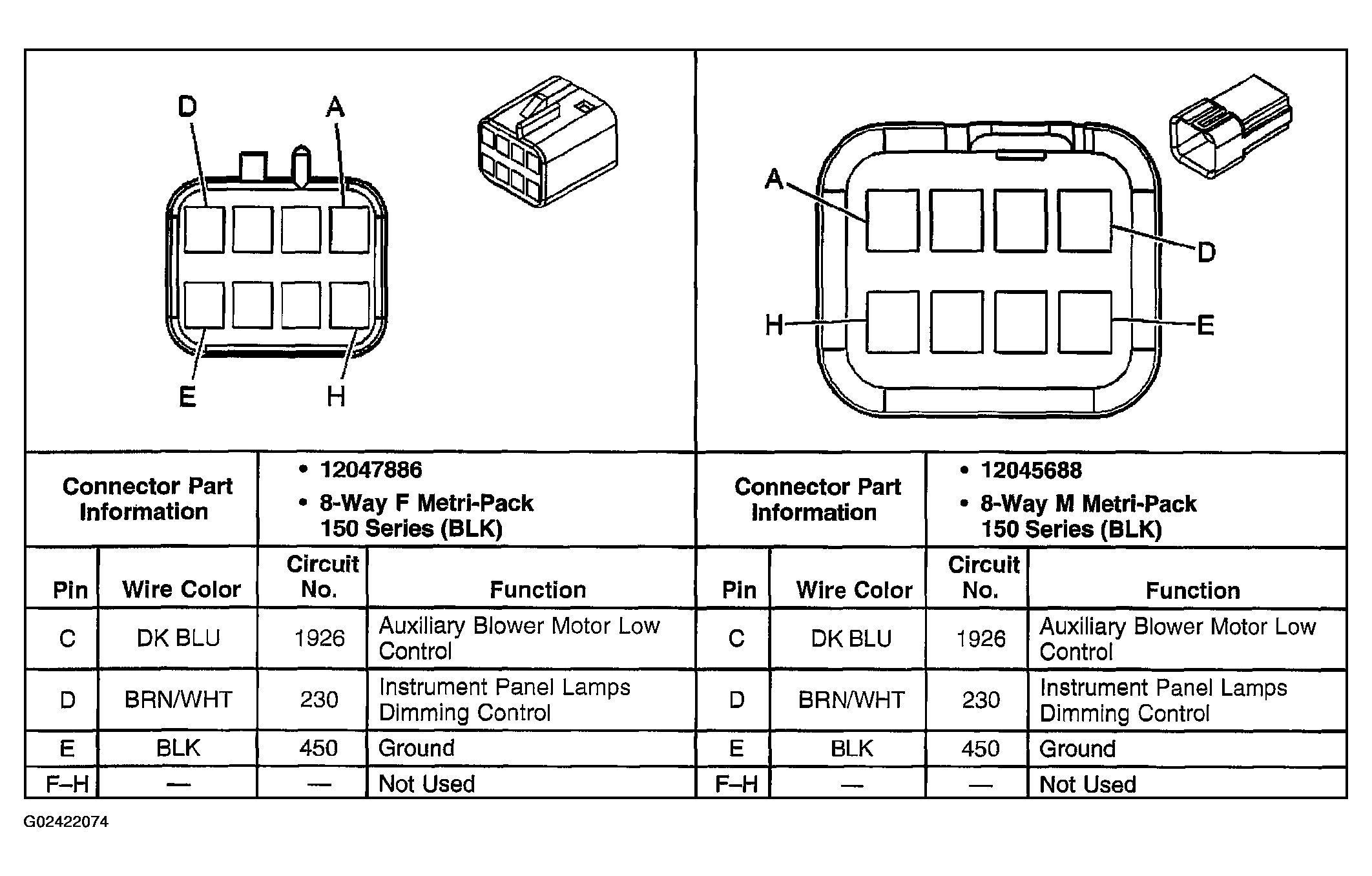

Fig 48: C319 Rear Heater Switch Harness To Body Harness (C36) 2 Of 2

G02422074

Courtesy of GENERAL MOTORS CORP.

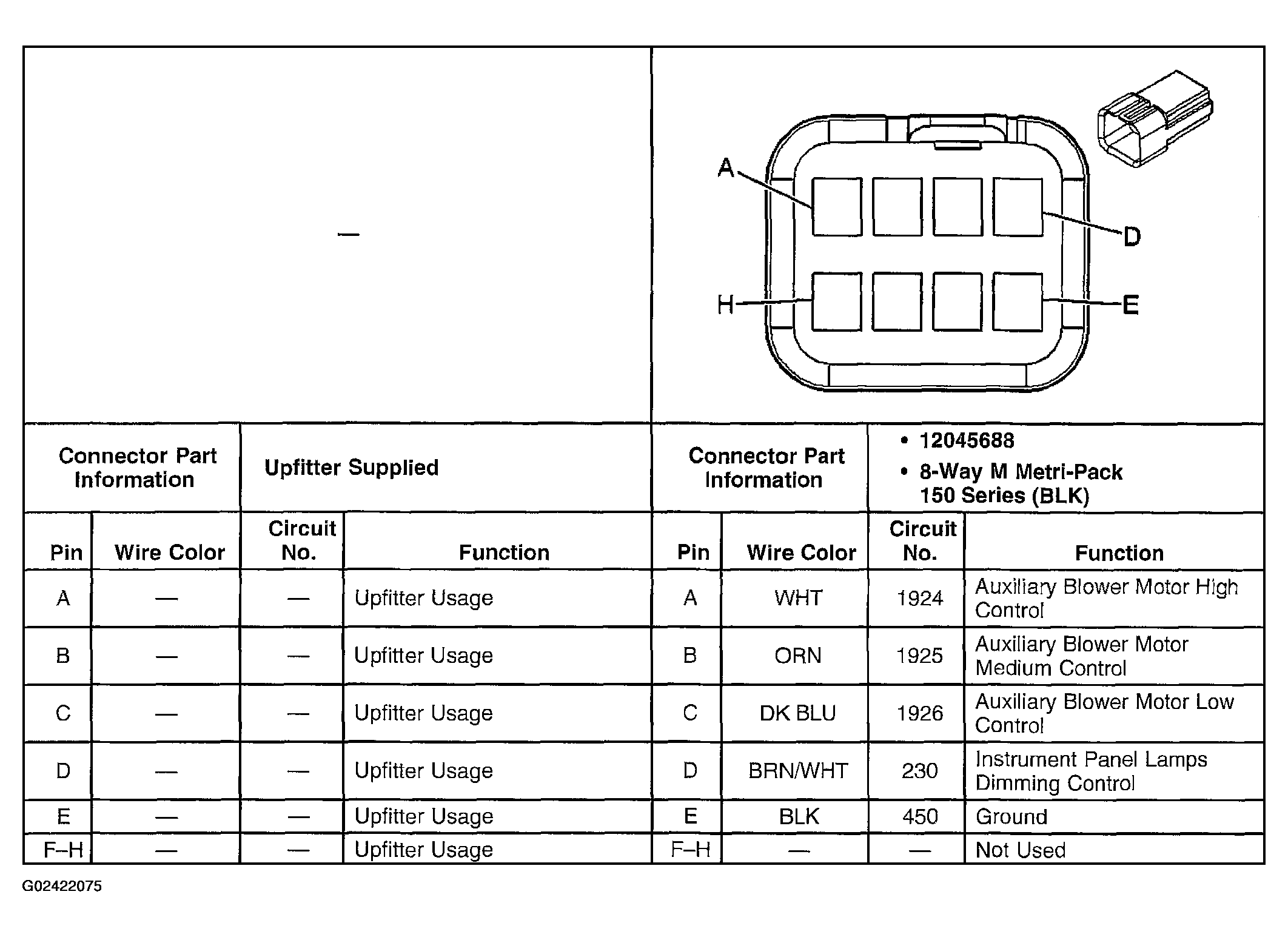

Fig 49: C319 Upfitter Harness To Body Harness (C69/ENC)

G02422075

Courtesy of GENERAL MOTORS CORP.

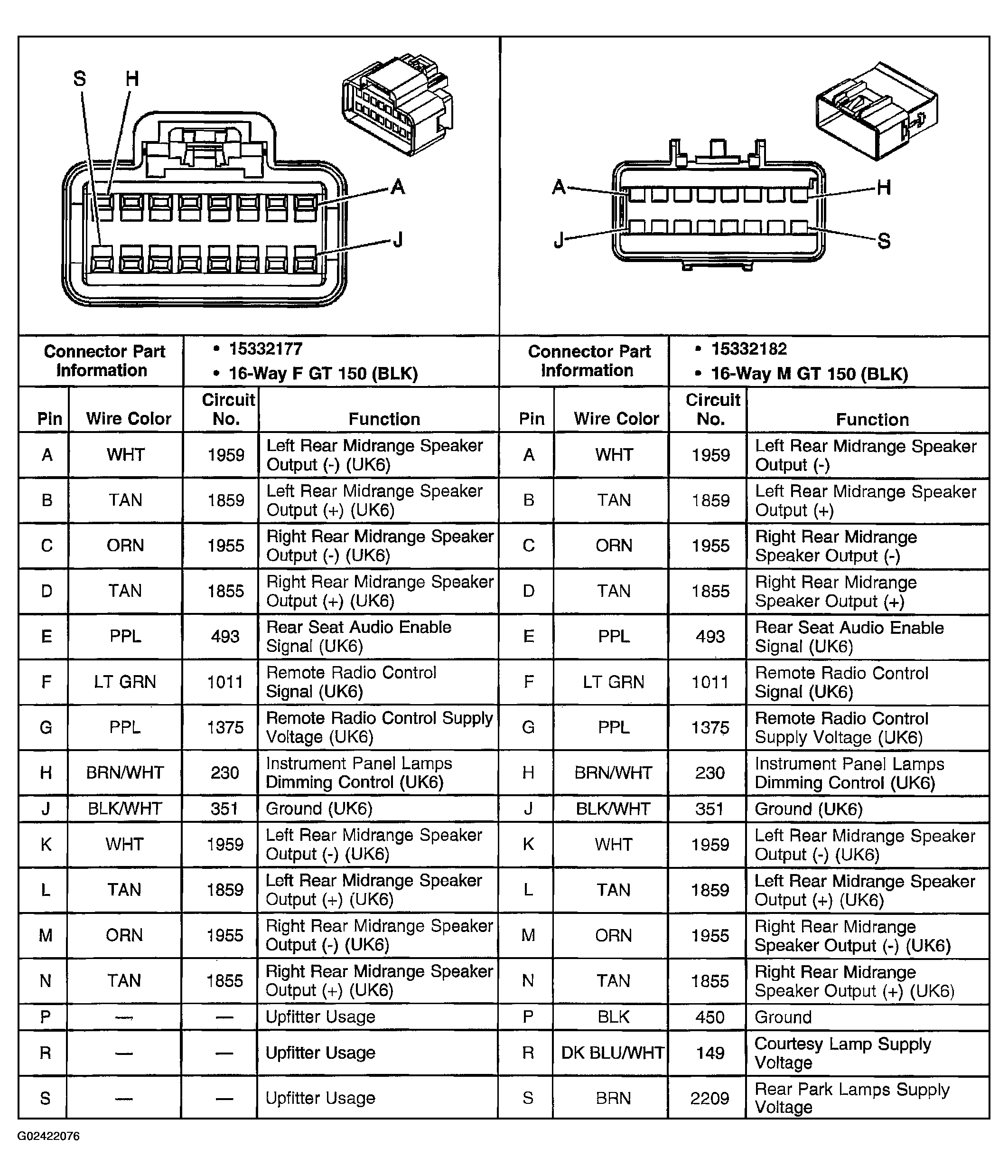

Fig 50: C320 Upfitter Harness To Body Harness (YF7)

G02422076

Courtesy of GENERAL MOTORS CORP.

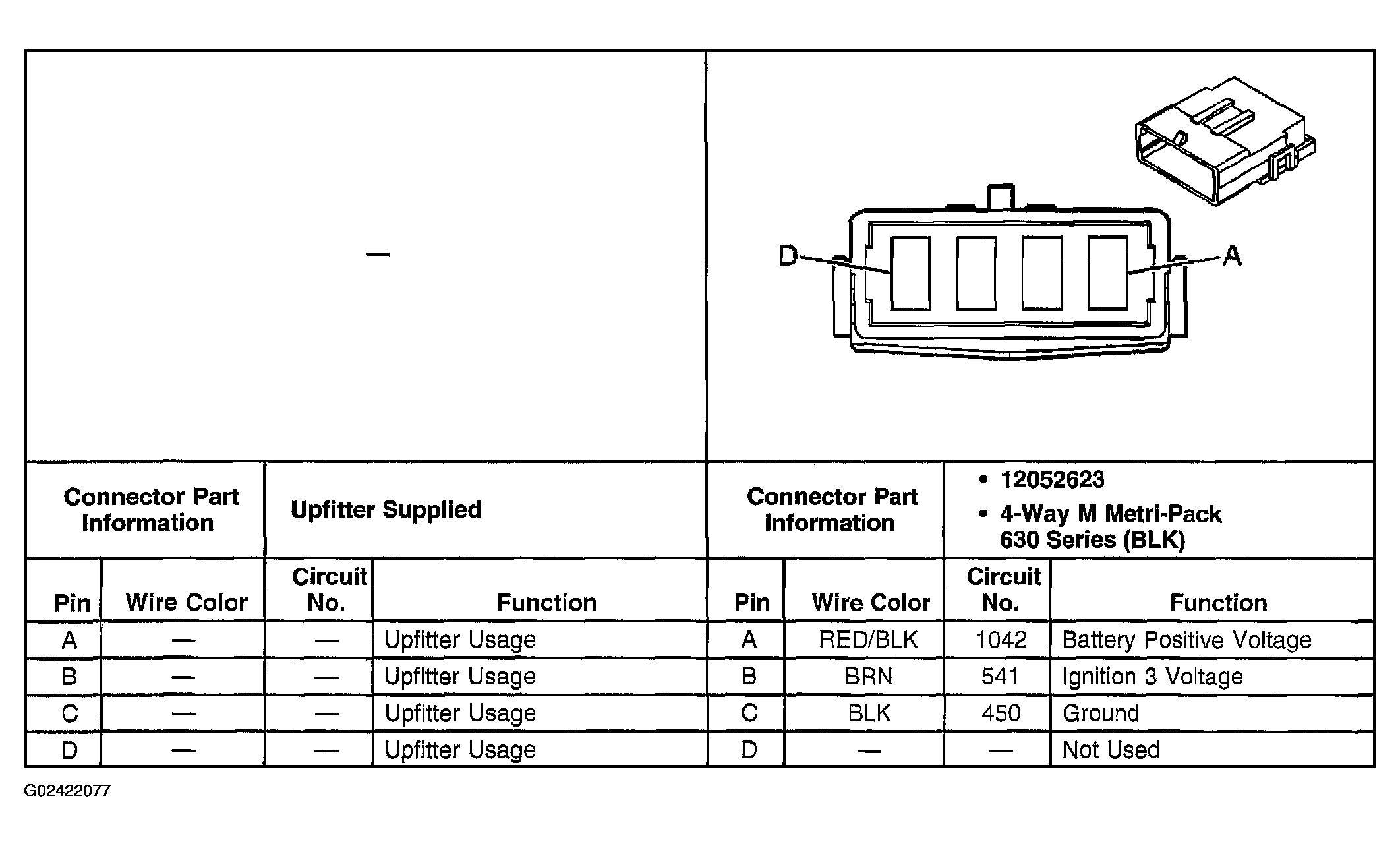

Fig 51: C321 Upfitter Harness To Body Harness (YF7)

G02422077

Courtesy of GENERAL MOTORS CORP.

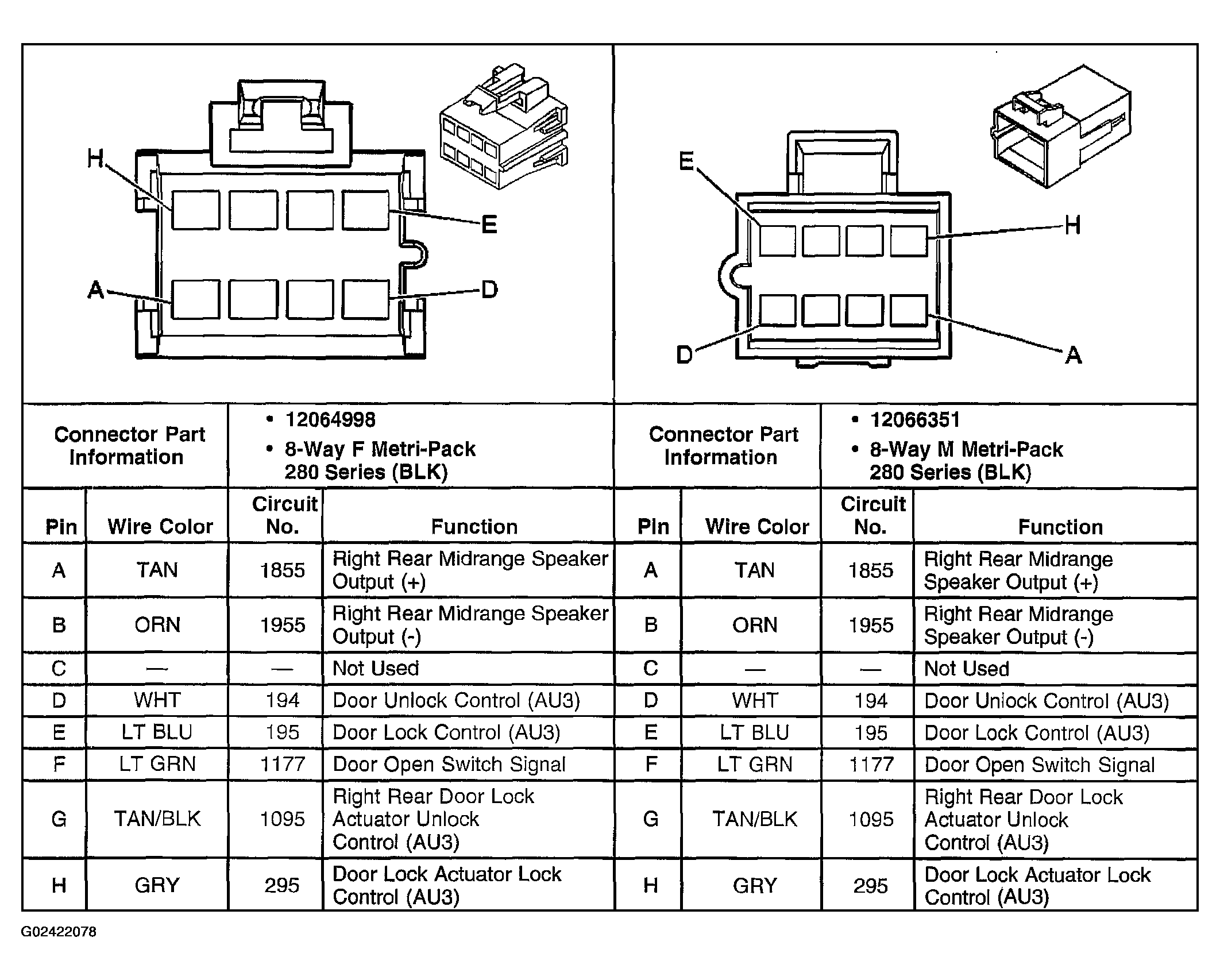

Fig 52: C400 Right Cargo Door Harness To Body Harness (Passenger/Cargo)

G02422078

Courtesy of GENERAL MOTORS CORP.

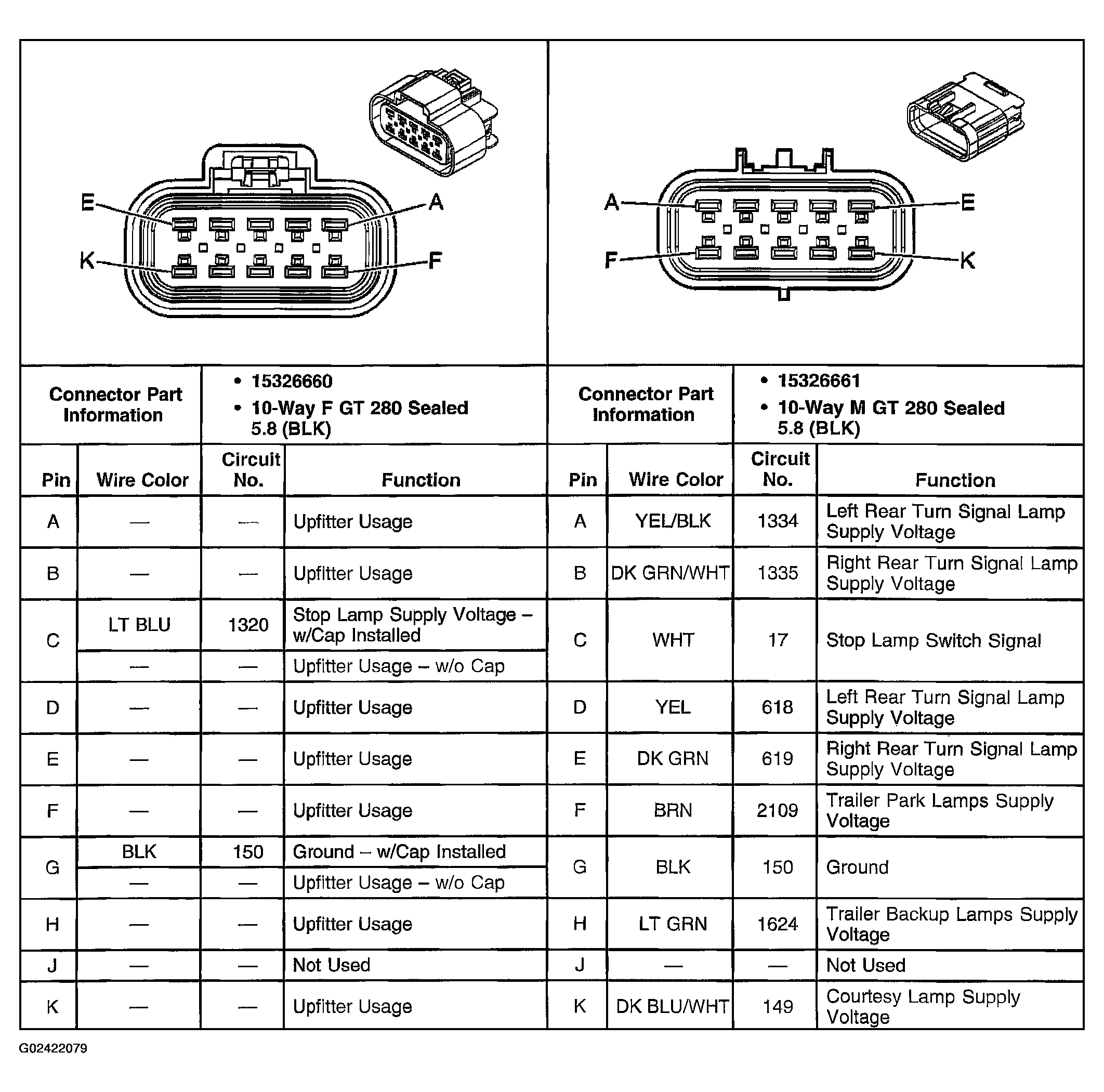

Fig 53: C405 Rear Lighting Cap To Chassis Harness (Cutaway)

G02422079

Courtesy of GENERAL MOTORS CORP.

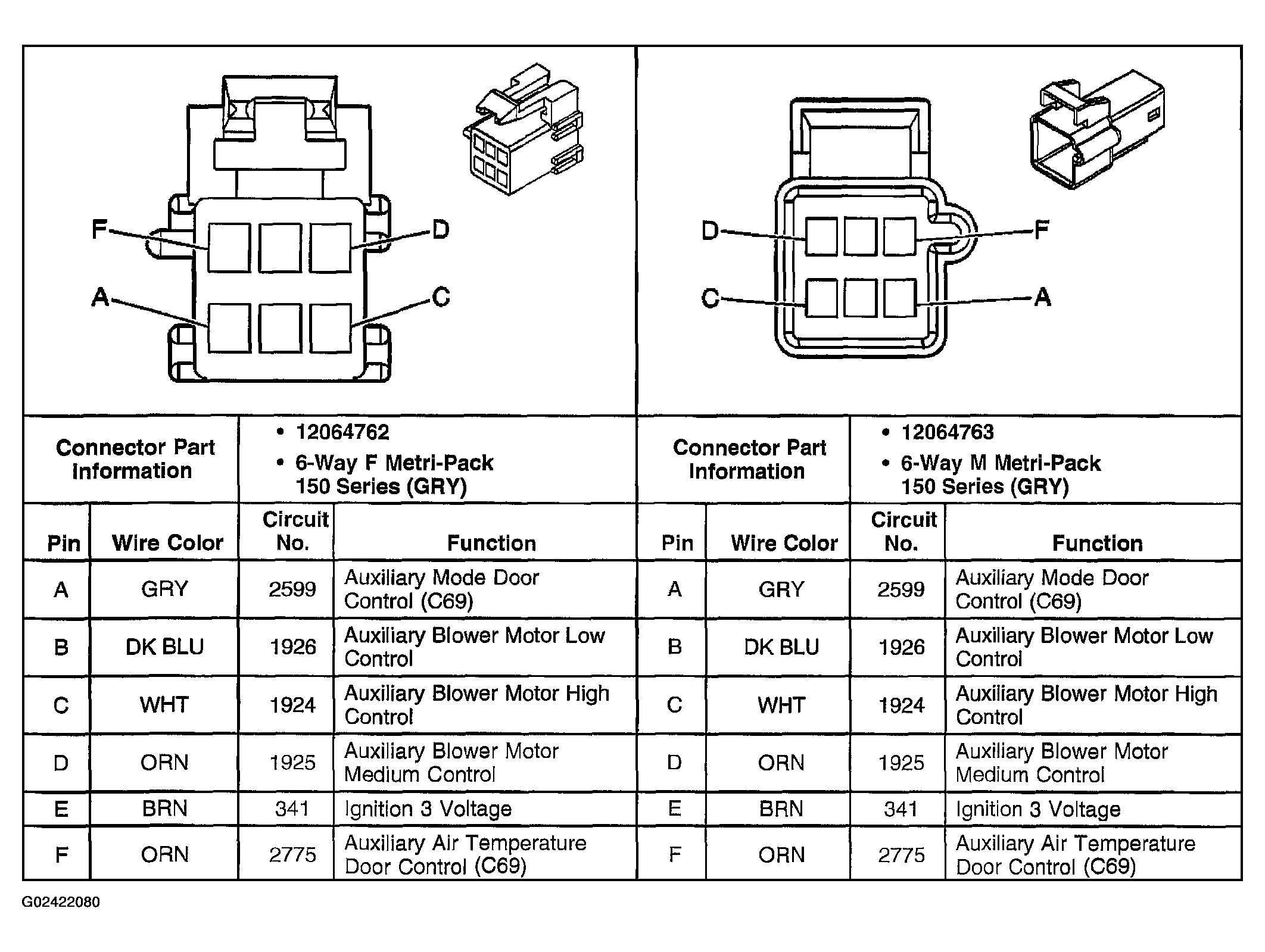

Fig 54: C407 Rear HVAC Harness To Body Harness (C36/C69)

G02422080

Courtesy of GENERAL MOTORS CORP.

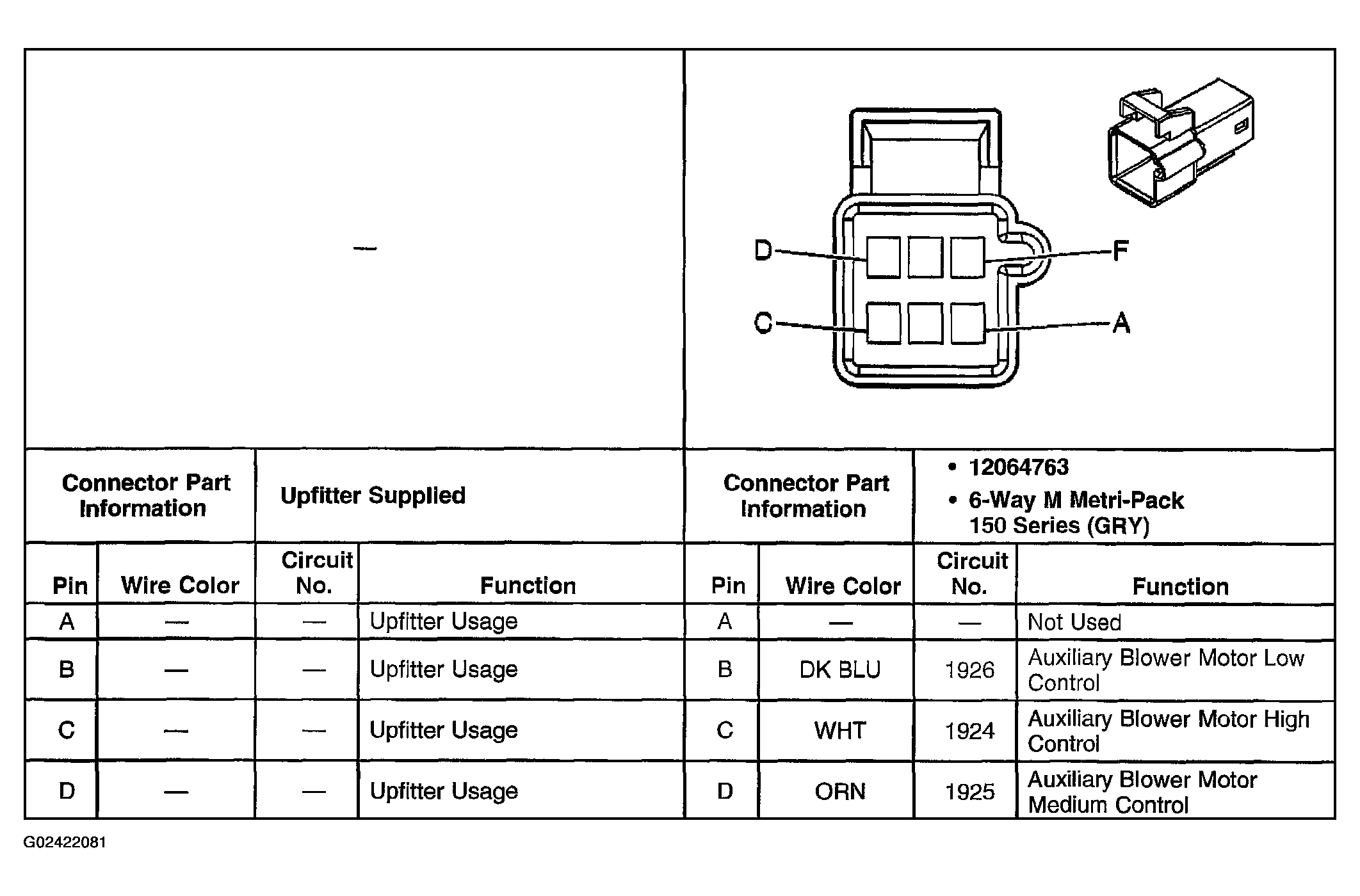

Fig 55: C407 Upfitter Harness To Body Harness (ENC) 1 Of 2

G02422081

Courtesy of GENERAL MOTORS CORP.

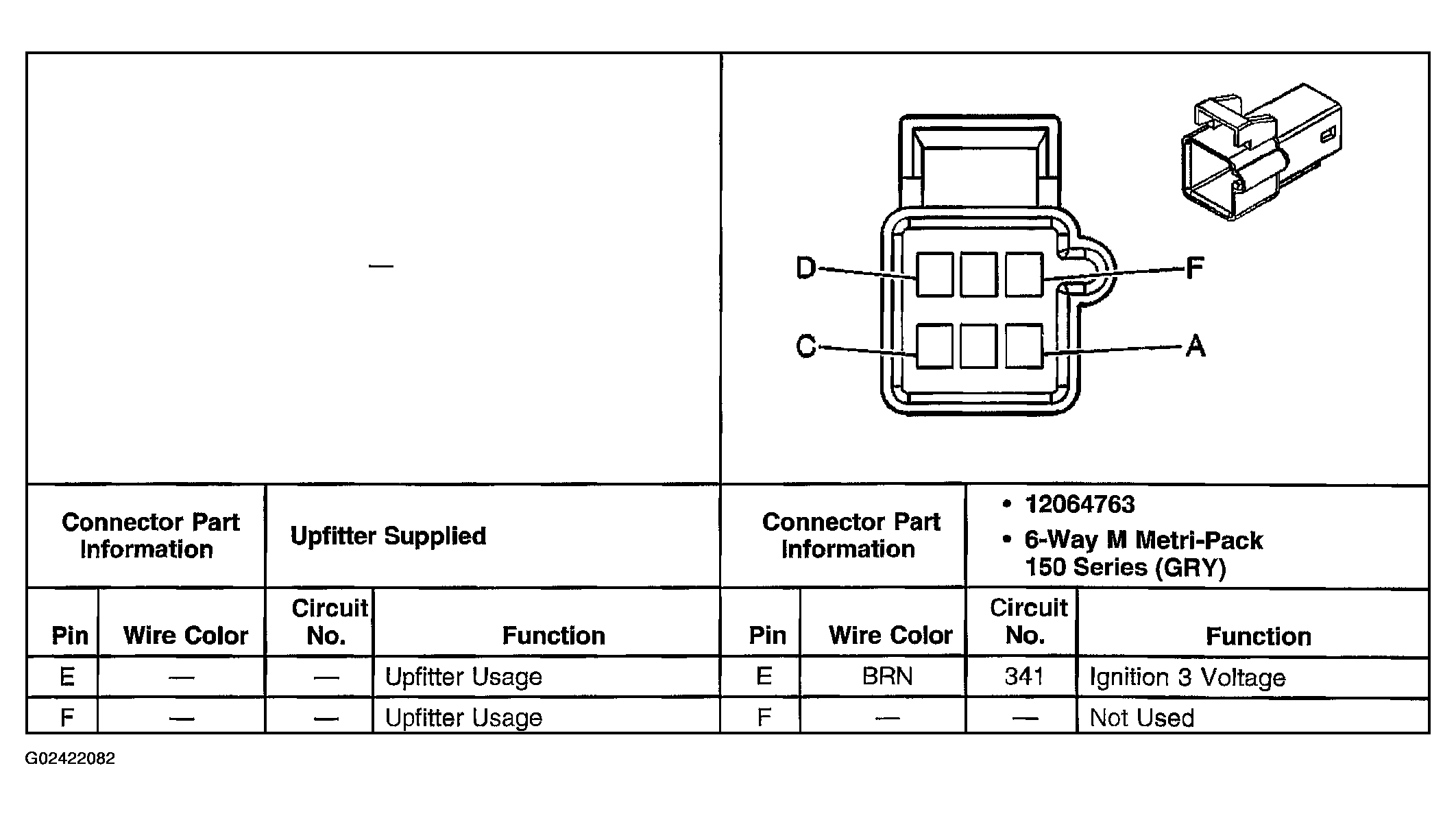

Fig 56: C407 Upfitter Harness To Body Harness (ENC) 2 Of 2

G02422082

Courtesy of GENERAL MOTORS CORP.

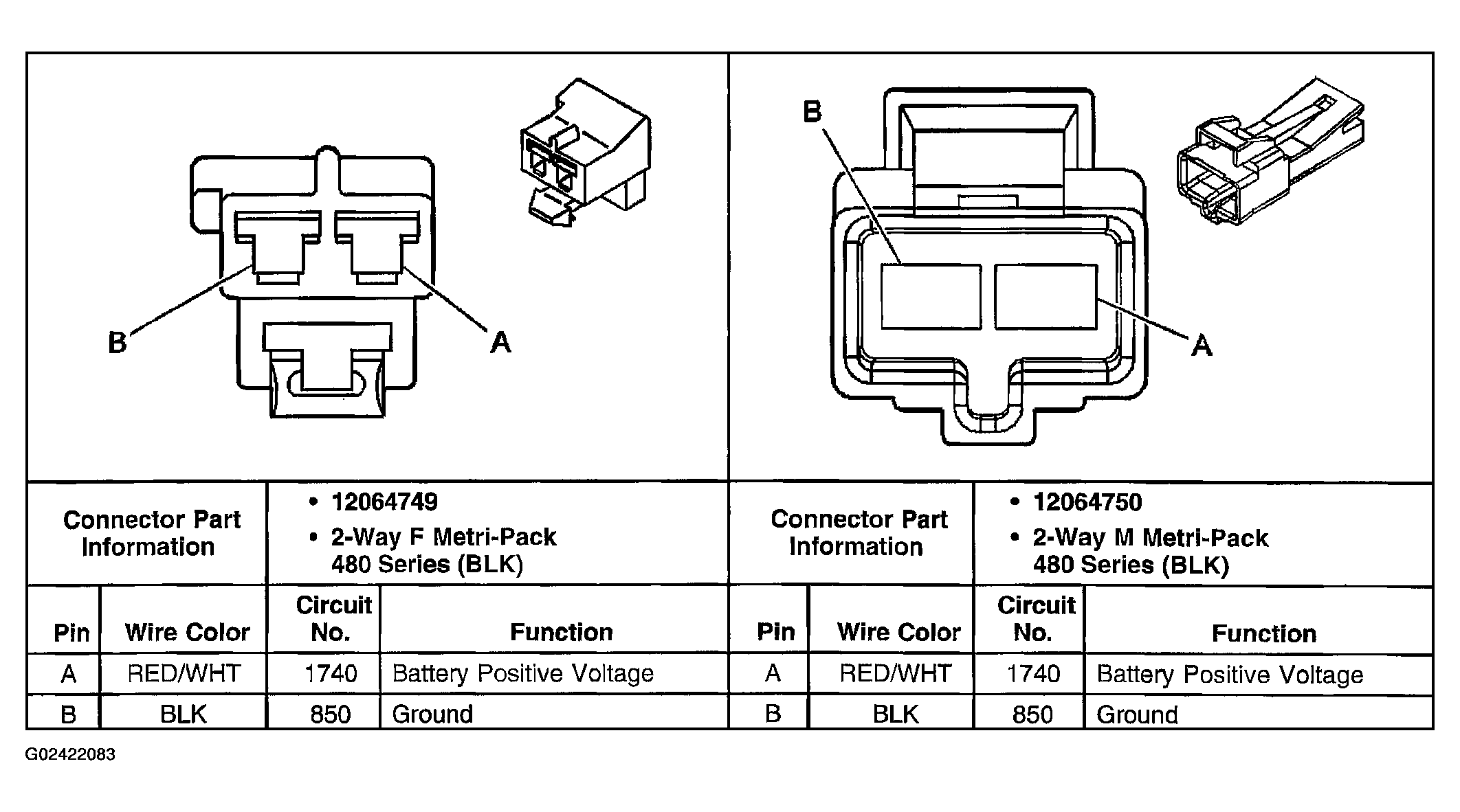

Fig 57: C409 Rear HVAC Harness To Body Harness (C36/C69)

G02422083

Courtesy of GENERAL MOTORS CORP.

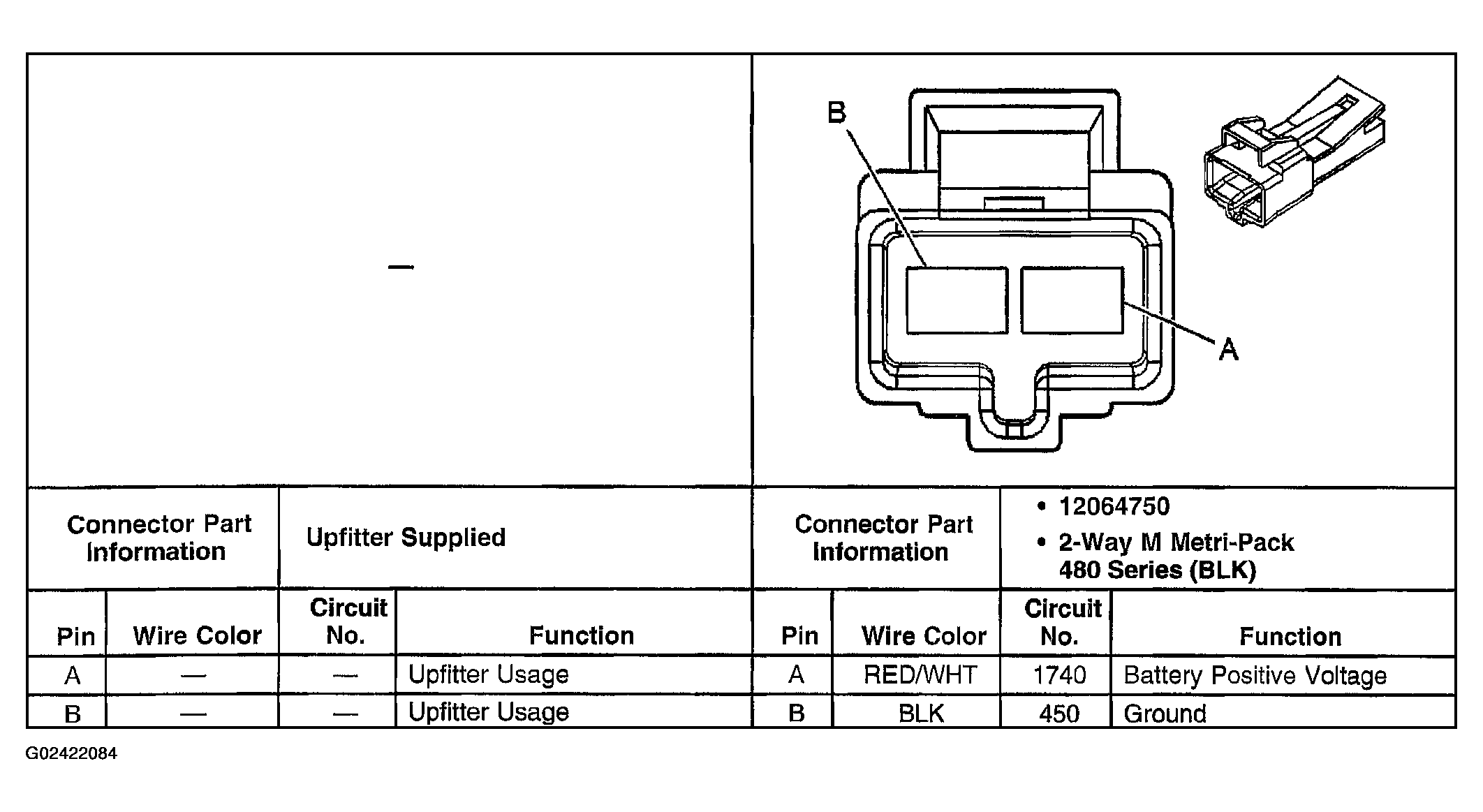

Fig 58: C409 Upfitter Harness To Body Harness (ENC)

G02422084

Courtesy of GENERAL MOTORS CORP.

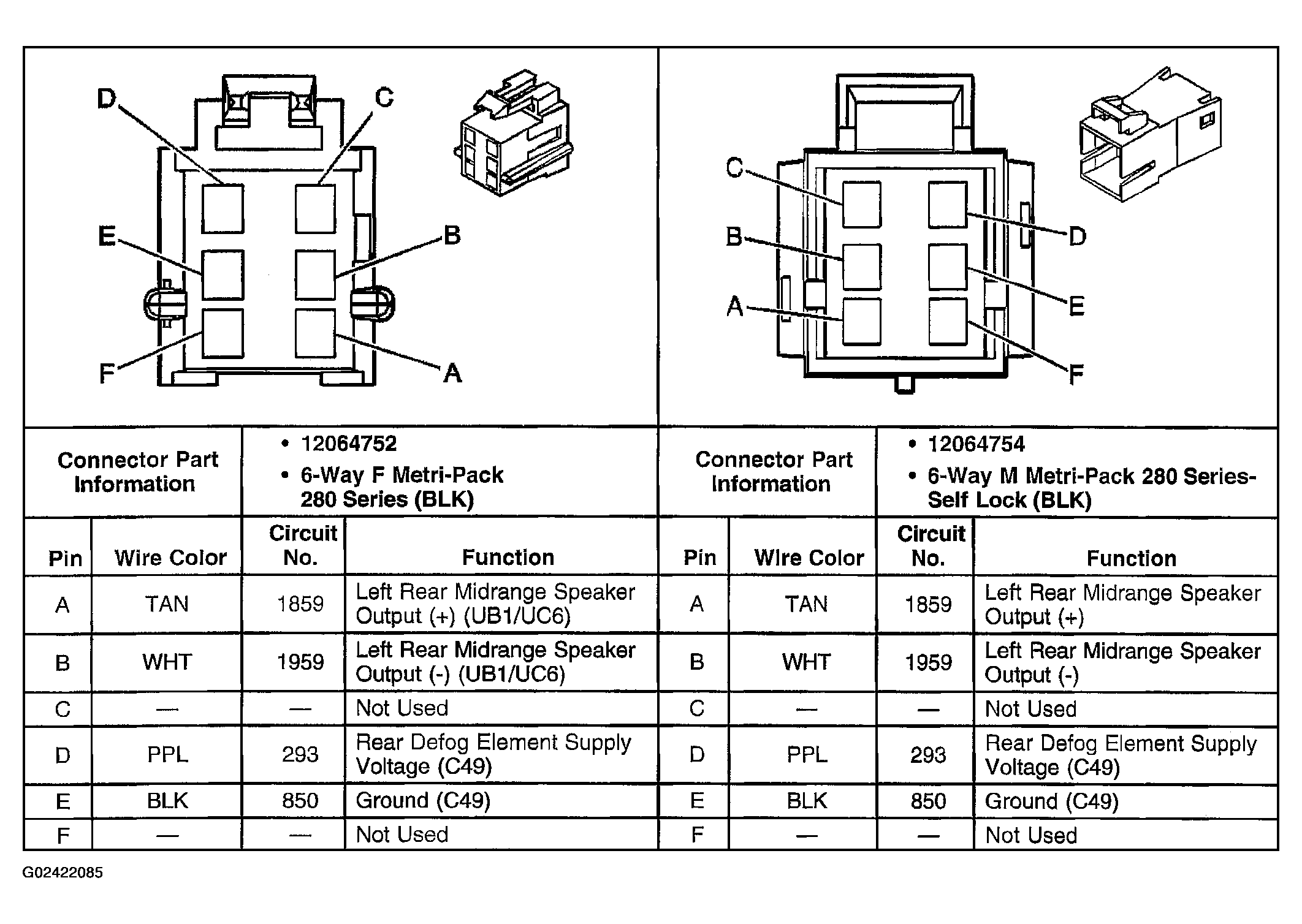

Fig 59: C411 Left Cargo Door Harness To Body Harness (Passenger/Cargo)

G02422085

Courtesy of GENERAL MOTORS CORP.

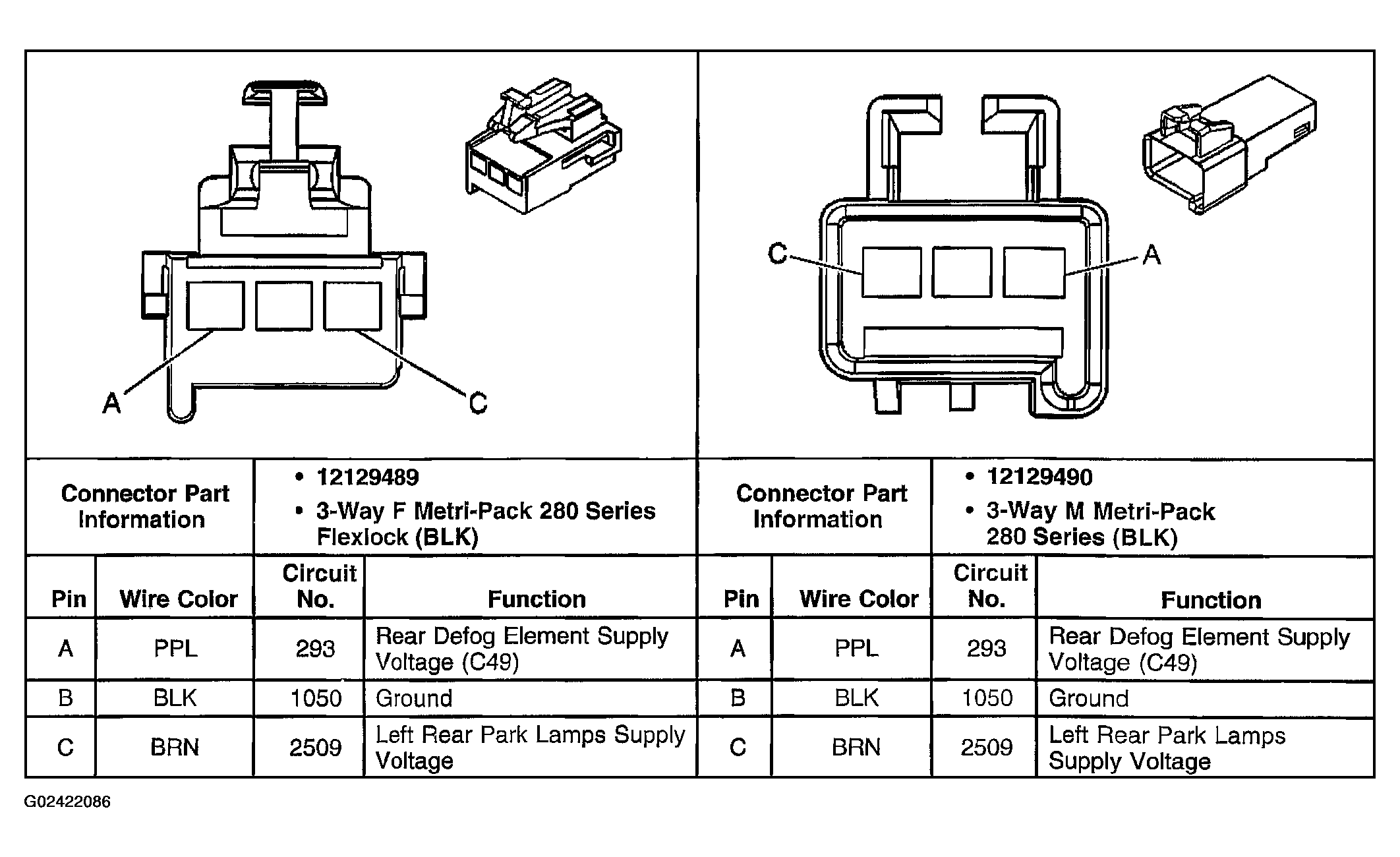

Fig 60: C412 Right Cargo Door Harness To Body Harness (Passenger/Cargo)

G02422086

Courtesy of GENERAL MOTORS CORP.

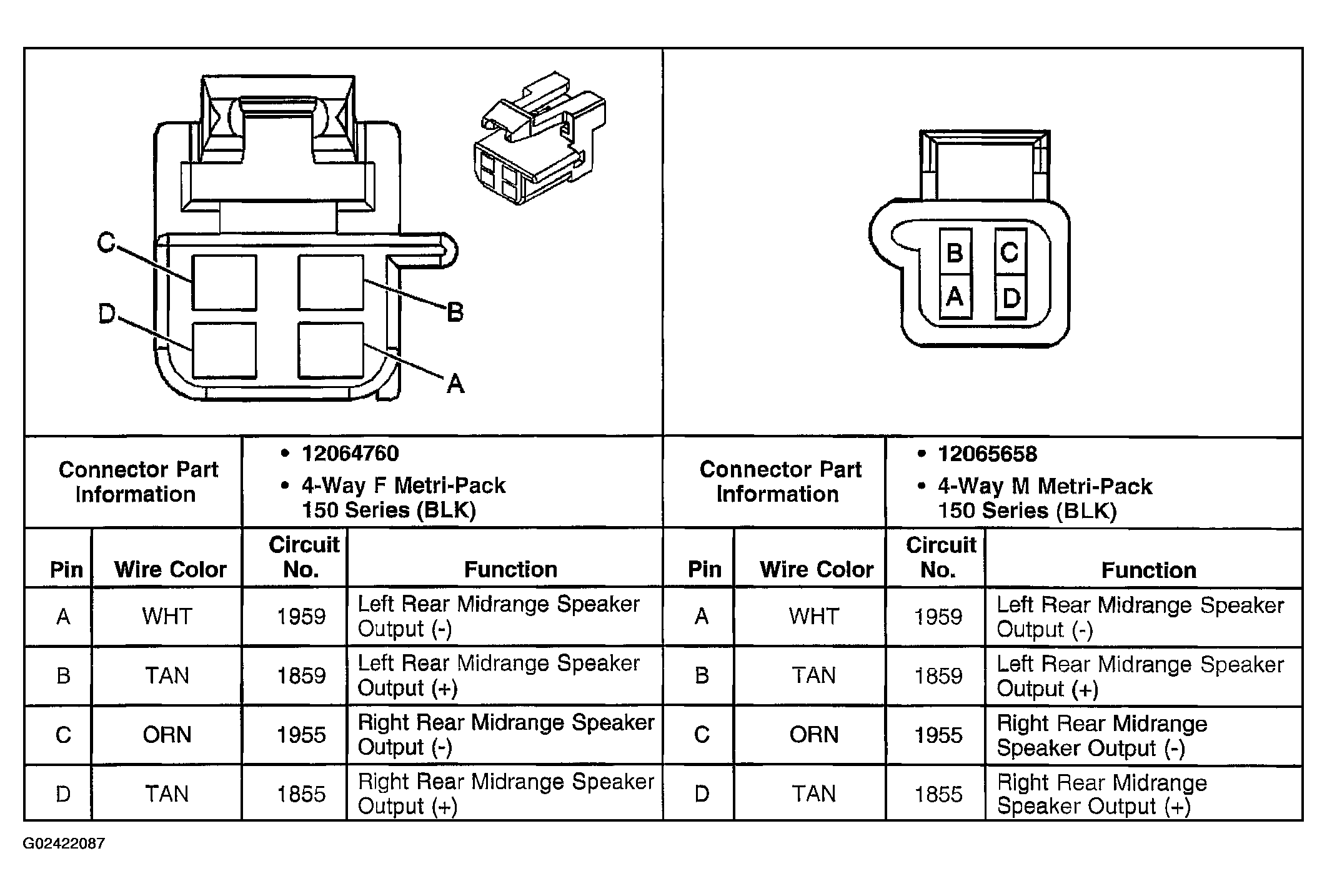

Fig 61: C415 Rear Overhead Speaker Harness To Body Harness (Passenger/Cargo)

G02422087

Courtesy of GENERAL MOTORS CORP.

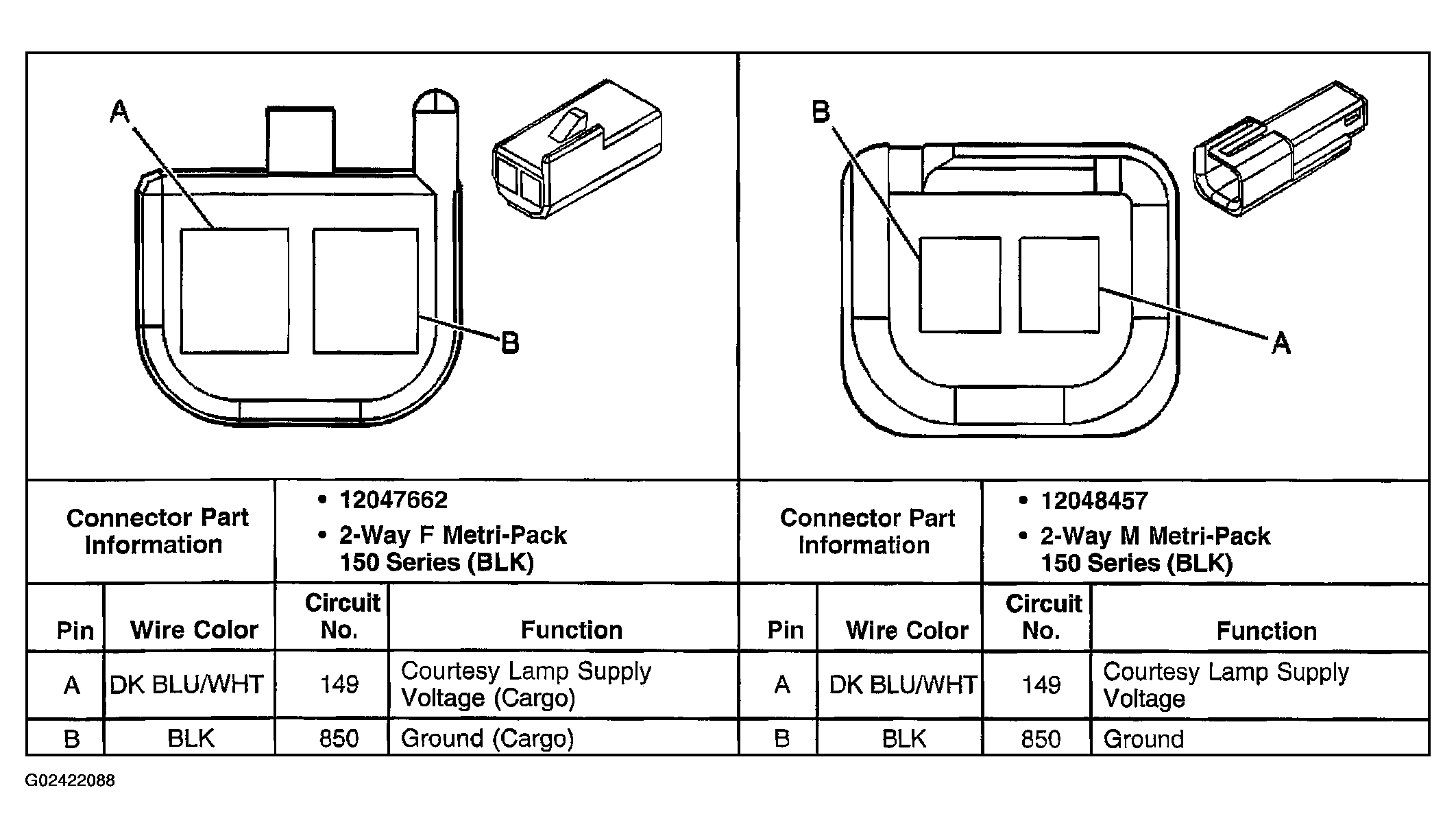

Fig 62: C417 Dome Lamp Harness To Body Harness (Passenger/Cargo w/o YF7)

G02422088

Courtesy of GENERAL MOTORS CORP.

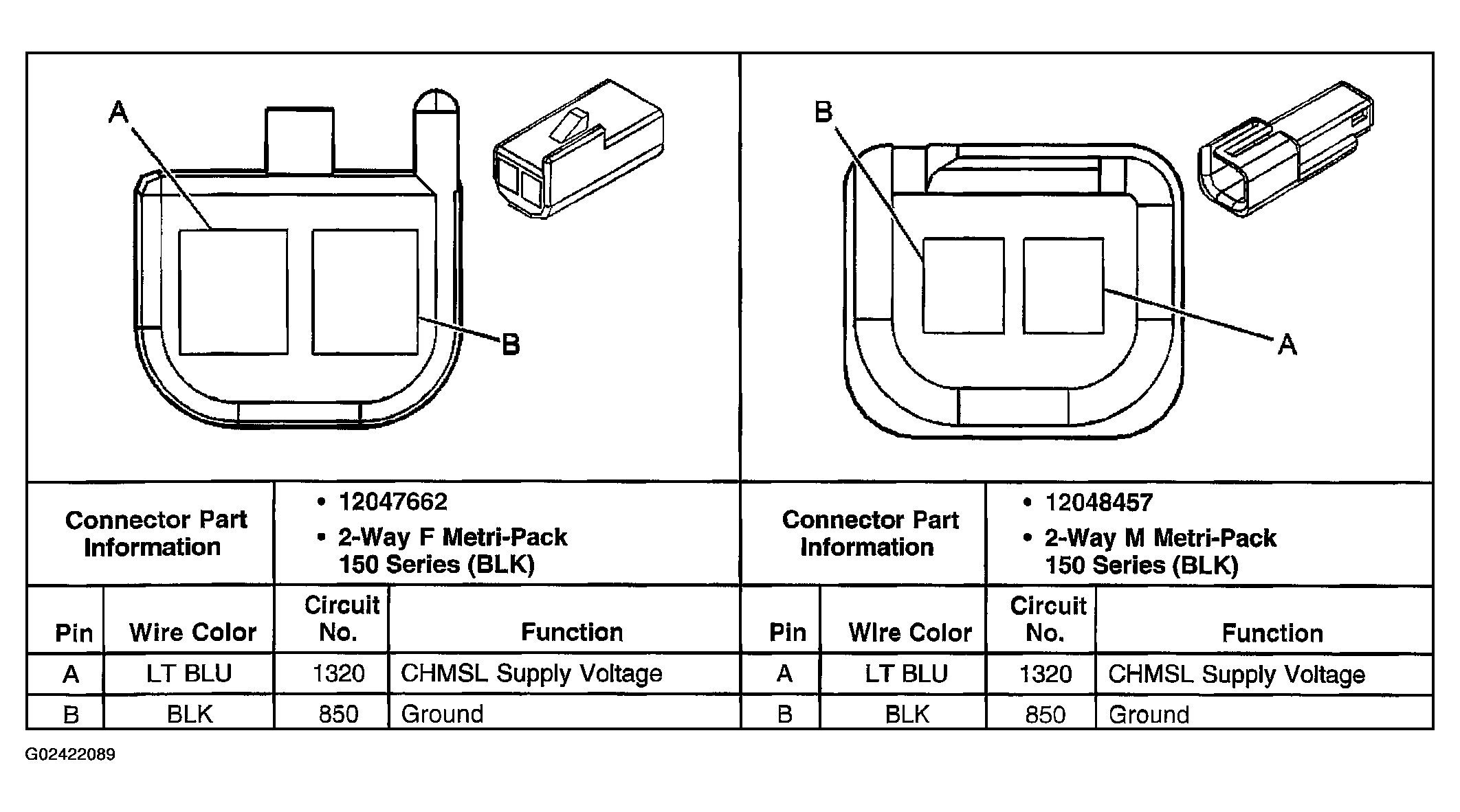

Fig 63: C419 CHMSL Harness To Body Harness (Passenger/Cargo)

G02422089

Courtesy of GENERAL MOTORS CORP.

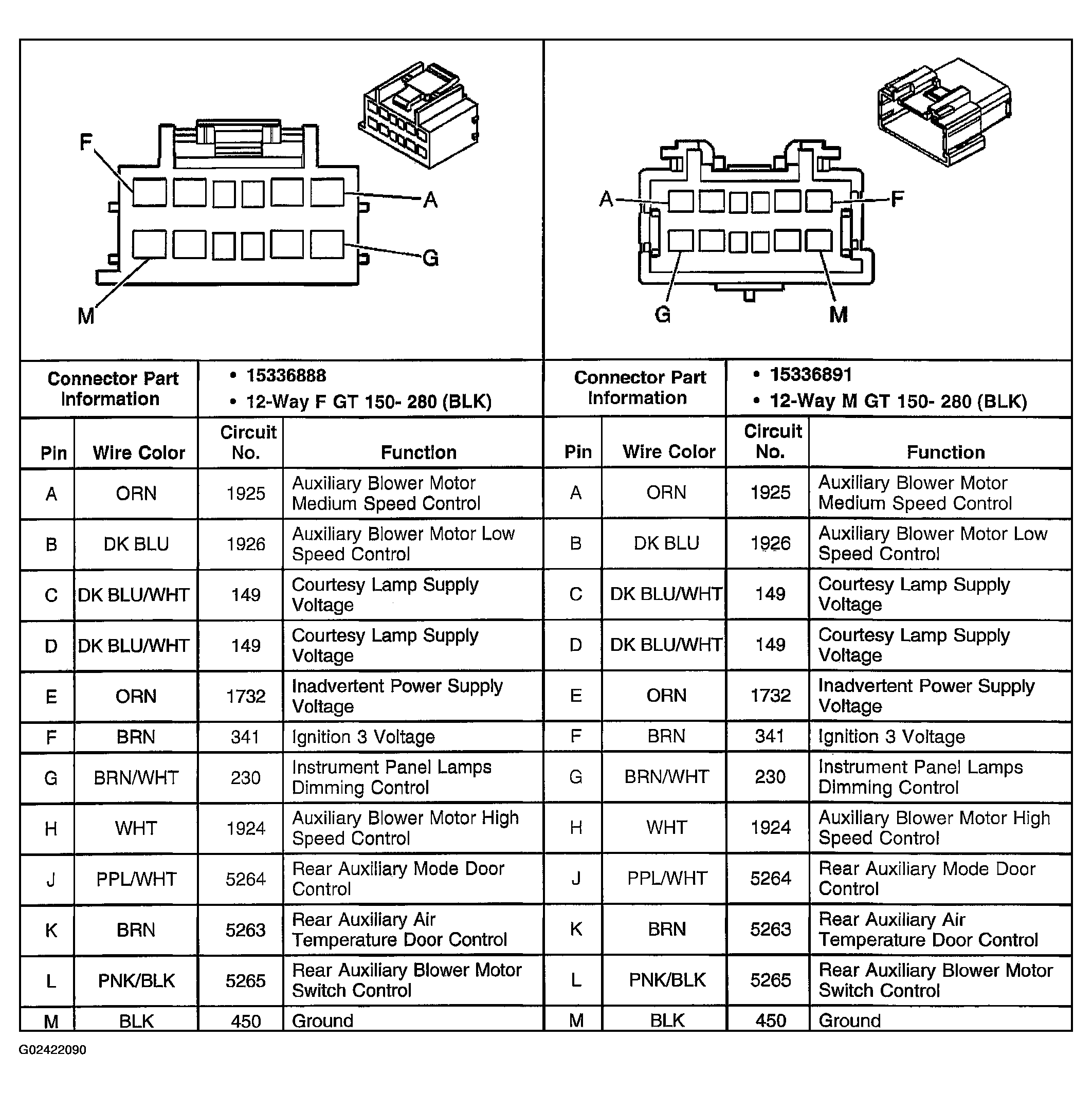

Fig 64: C420 Front Headliner Harness To Rear Headliner Harness (Rear Auxiliary Controls w/o YF7)

G02422090

Courtesy of GENERAL MOTORS CORP.

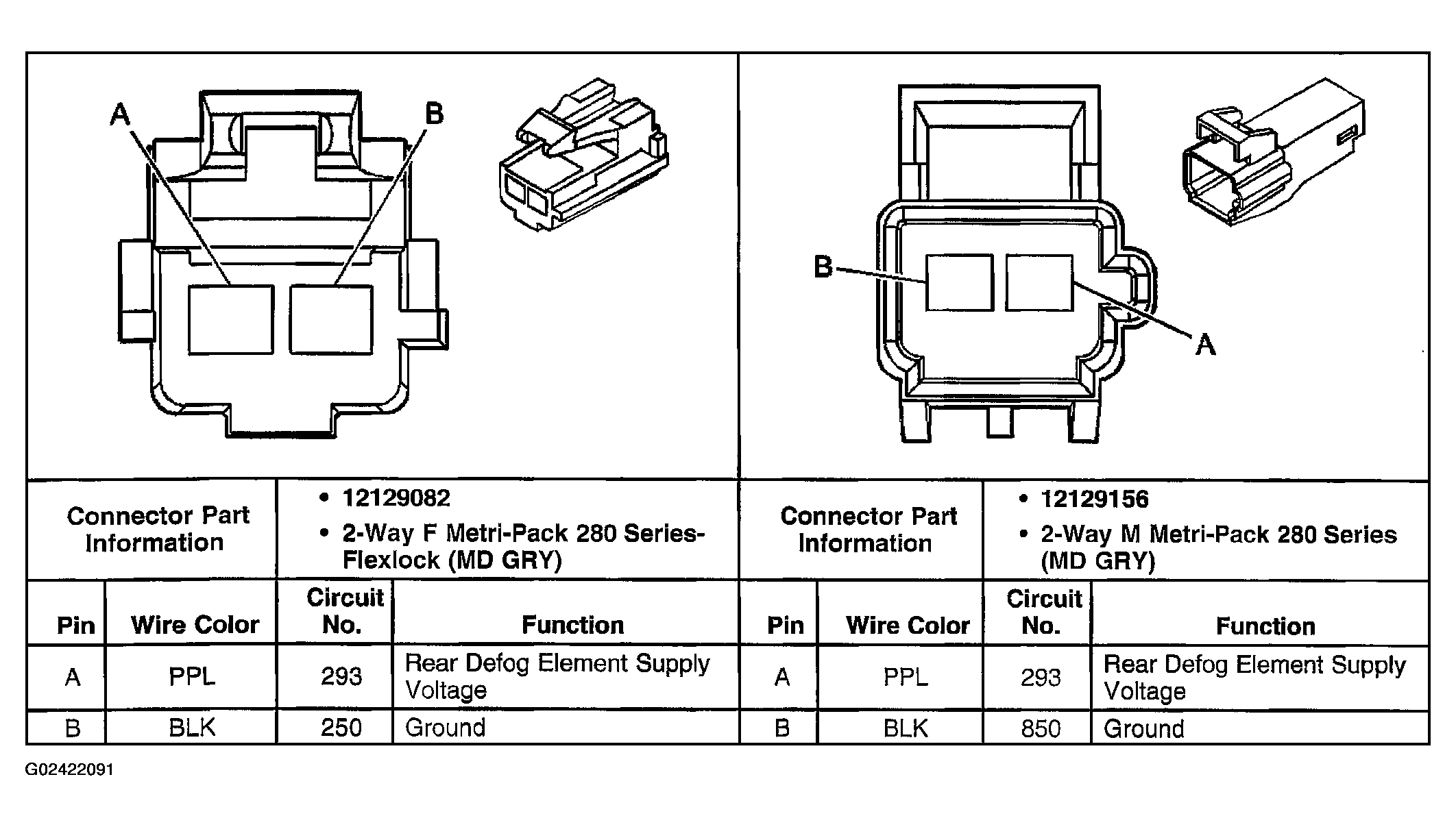

Fig 65: C901 Rear Window Defog Harness To Left Cargo Door Harness (C49)

G02422091

Courtesy of GENERAL MOTORS CORP.

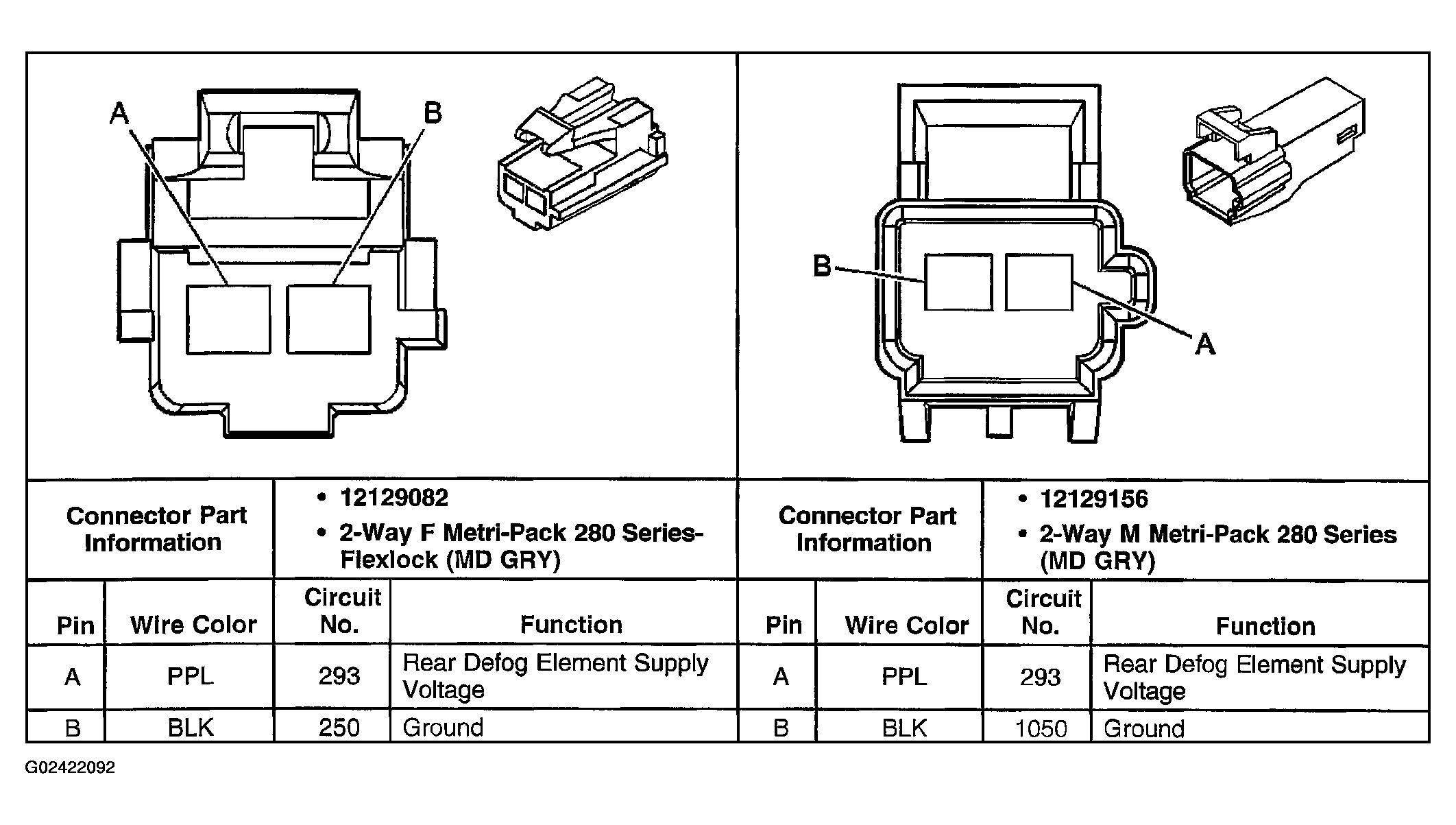

Fig 66: C902 Rear Window Defog Harness To Right Cargo Door Harness (C49)

G02422092

Courtesy of GENERAL MOTORS CORP.
