Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the air cleaner assembly.
  3. Remove the fan blade. Refer to Fan Replacement .
  4. Reposition the inlet hose clamp at the water pump.
  5. Remove the inlet hose from the water pump.

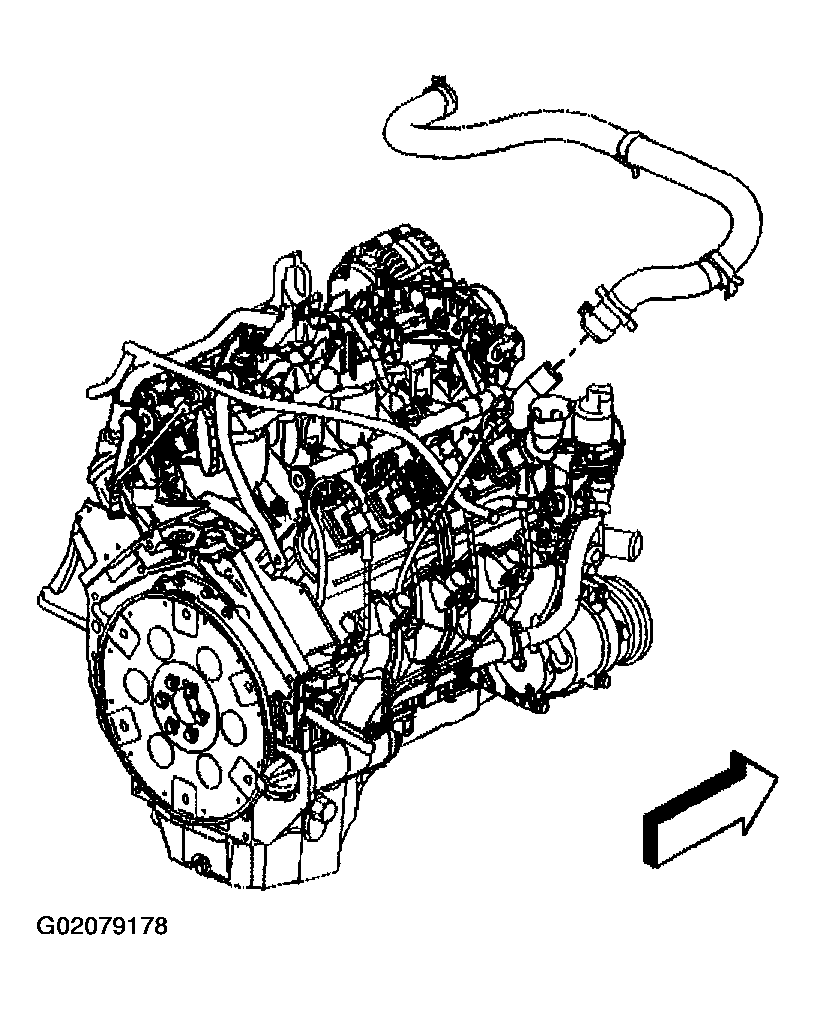

    Fig 1: Removing Inlet Hose
    G02079178Courtesy of GENERAL MOTORS CORP.
  6. Reposition the outlet hose clamp at the water pump.
  7. Remove the outlet hose from the water pump.

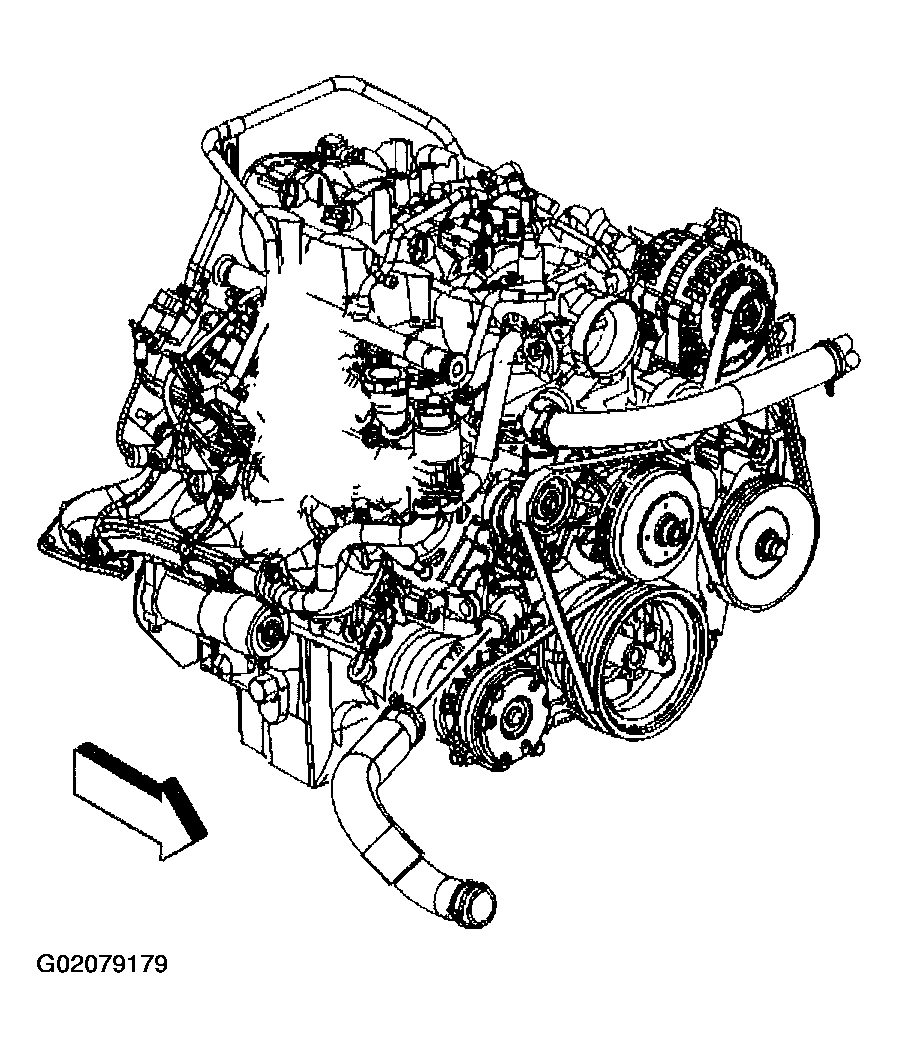

    Fig 2: Removing Outlet Hose
    G02079179Courtesy of GENERAL MOTORS CORP.
  8. Reposition the heater inlet hose clamp at the water pump.
  9. Remove the heater inlet hose from the water pump.
  10. Remove the accessory drive belt tensioner bolts and tensioner from the engine.

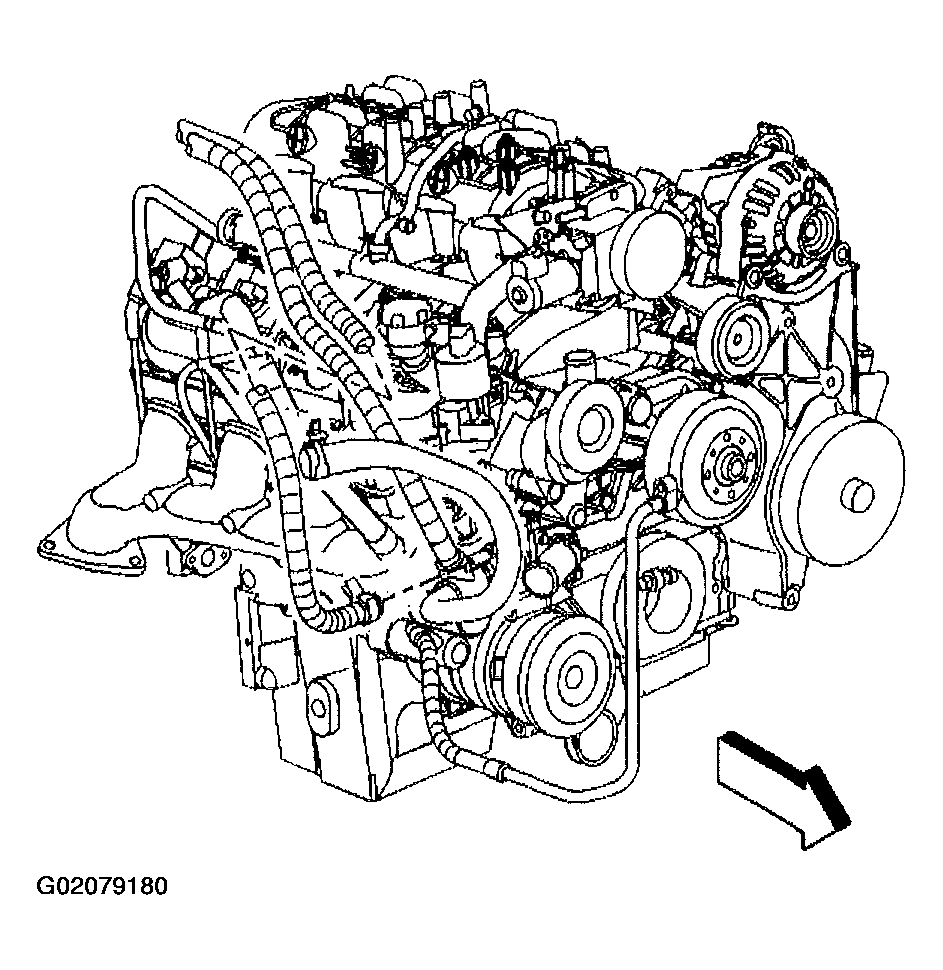

    Fig 3: Removing Heater Inlet Hose
    G02079180Courtesy of GENERAL MOTORS CORP.
  11. Remove the water pump bolts.
  12. Remove the water pump and gaskets.
  13. Discard the water pump gaskets.

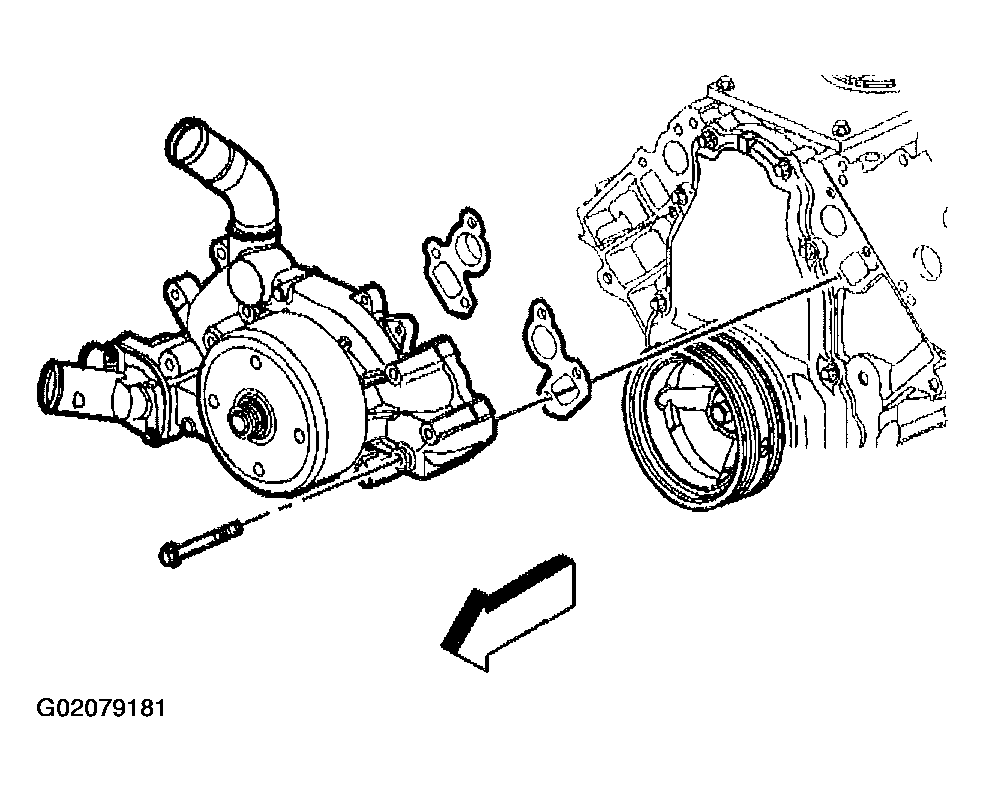

    Fig 4: Removing Water Pump Bolts, Water Pump & Gaskets
    G02079181Courtesy of GENERAL MOTORS CORP.
