Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner and the duct assembly.
Partially drain the coolant. Refer to Draining and Filling Cooling System .
Remove the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement .
Disconnect the radiator hose from the thermostat housing.

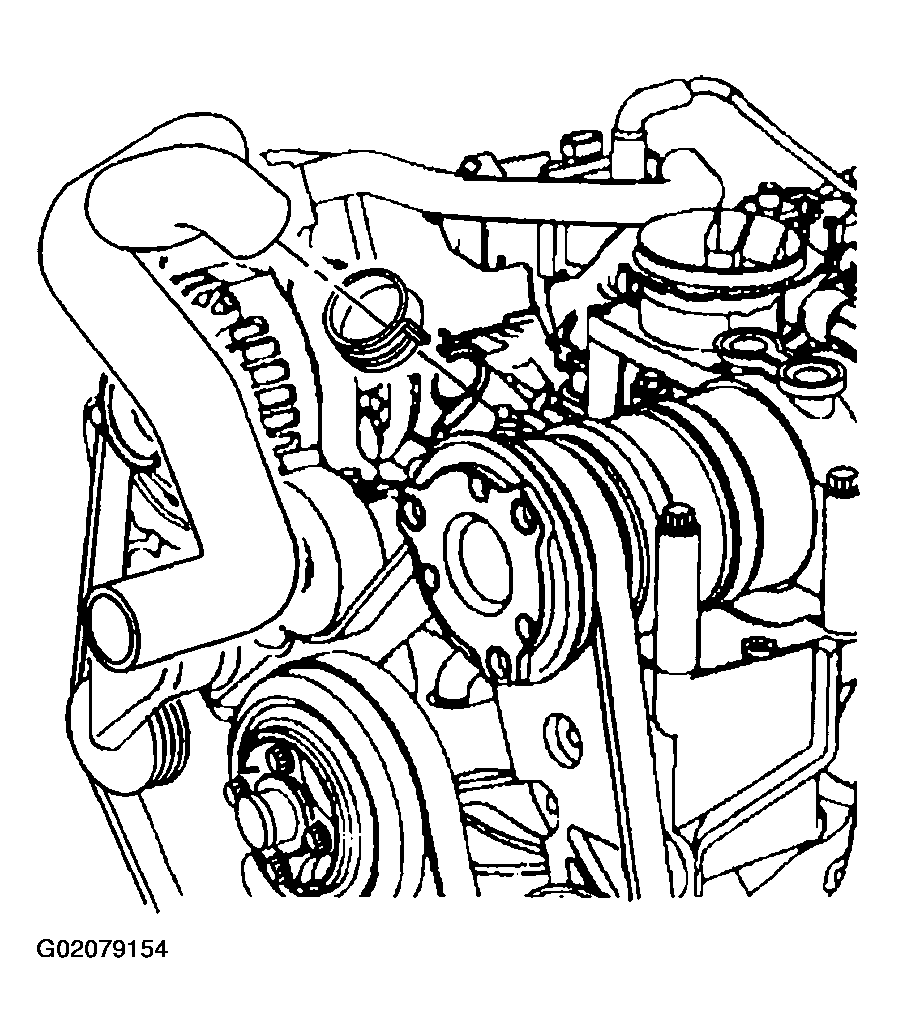

Fig 1: Disconnecting Radiator Hose
Courtesy of GENERAL MOTORS CORP.
Remove the bolts attaching the thermostat housing to the thermostat.
Remove the thermostat housing.
Remove the thermostat.
Clean the gasket mating surfaces.

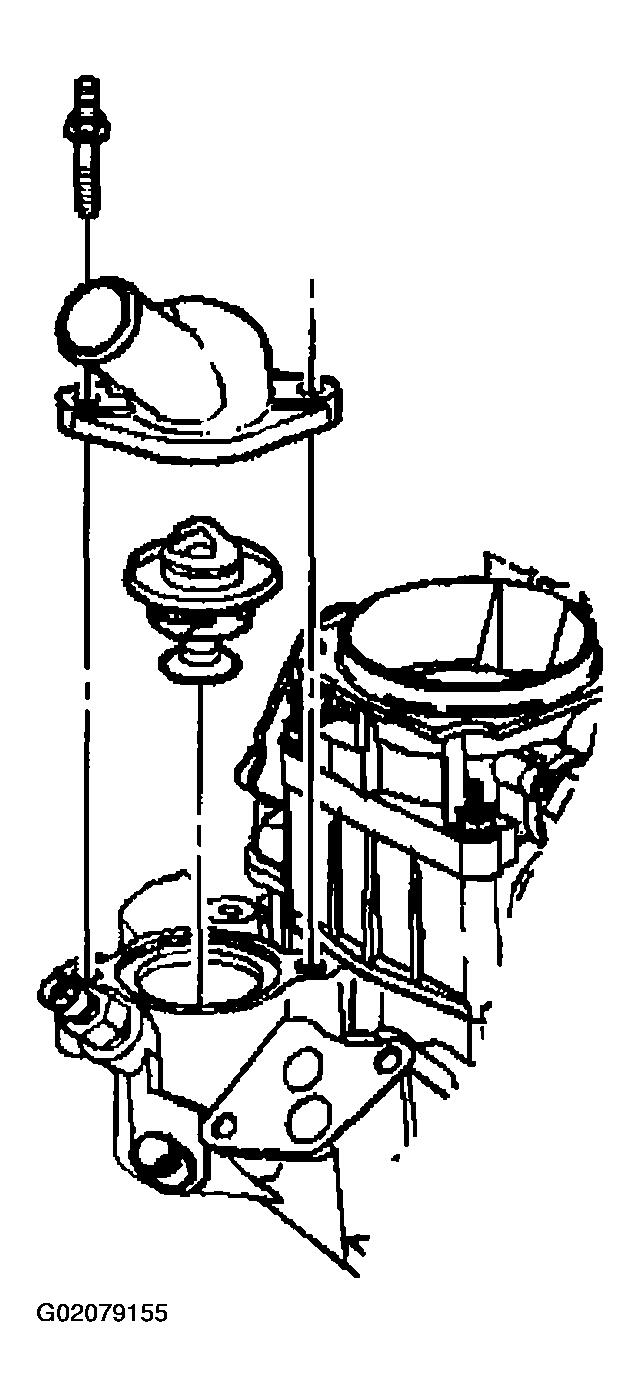

Fig 2: Removing Bolts, Thermostat Housing & Thermostat
Courtesy of GENERAL MOTORS CORP.
