Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important: The thermostat is not serviceable separately. The water pump inlet and thermostat must be replaced as an assembly.
- Remove the bolt from the coolant recovery reservoir and reposition.
- Remove air cleaner assembly.
- Remove the radiator outlet hose. Refer to Radiator Hose Replacement - Outlet .

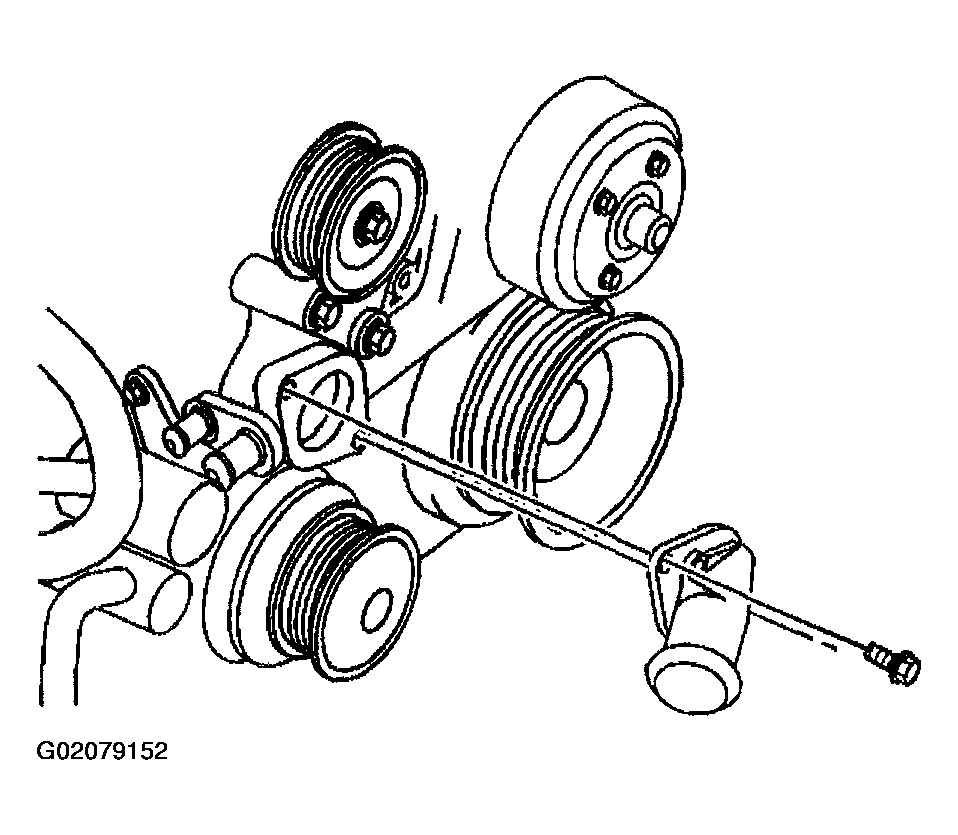

- Remove the water pump inlet bolts.
- Remove the water pump inlet and thermostat from the water pump.
