Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the clamp at the radiator outlet using the J 38185  .
  3. Remove the radiator outlet hose clamp at the engine using the J 38185  .
  4. Remove the radiator outlet hose clamp at the coolant recovery reservoir using the J 38185  .
  5. Remove the radiator outlet hose from the coolant recovery reservoir.
  6. Remove the radiator outlet hose from the radiator.
  7. Remove the radiator outlet hose from the engine.
  8. Remove the radiator outlet hose (4).

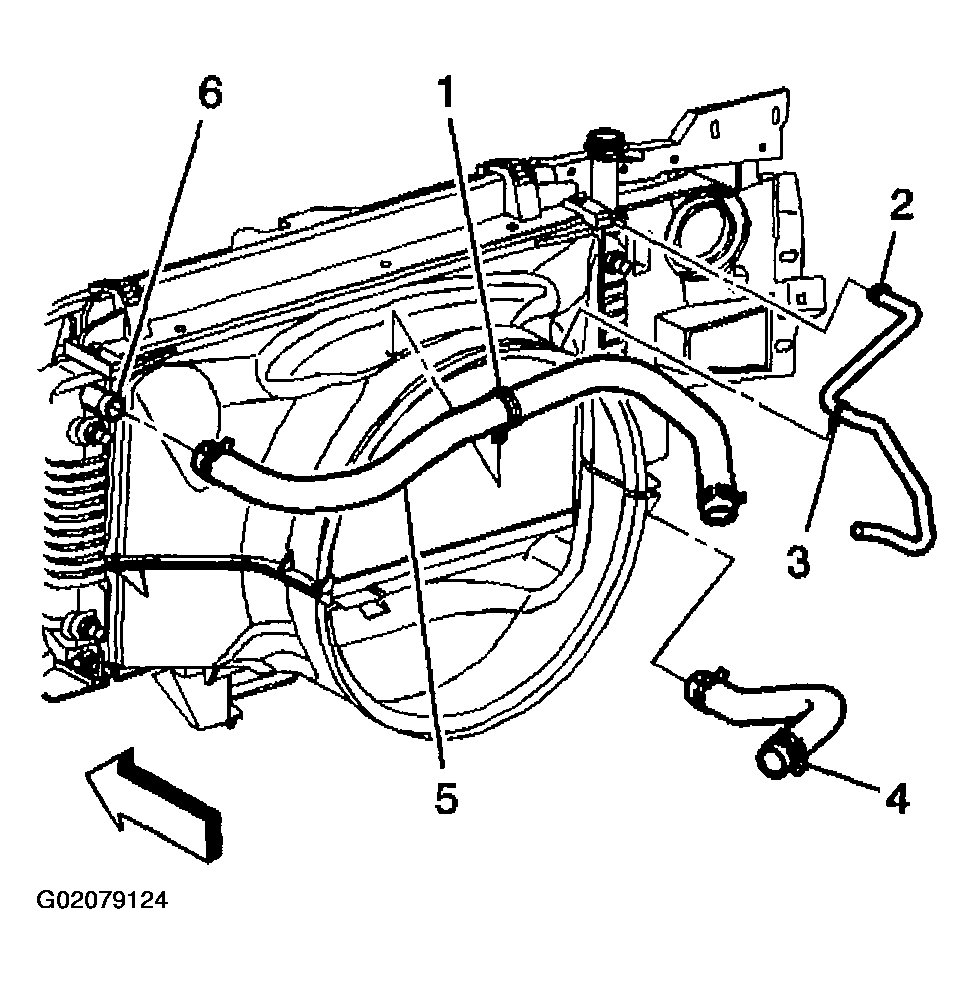

    Fig 1: Removing Radiator Outlet Hose
    G02079124Courtesy of GENERAL MOTORS CORP.
