Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement .
  2. Remove the fan shroud bolts (1,3,4).
  3. Remove the fan shroud (2,5).

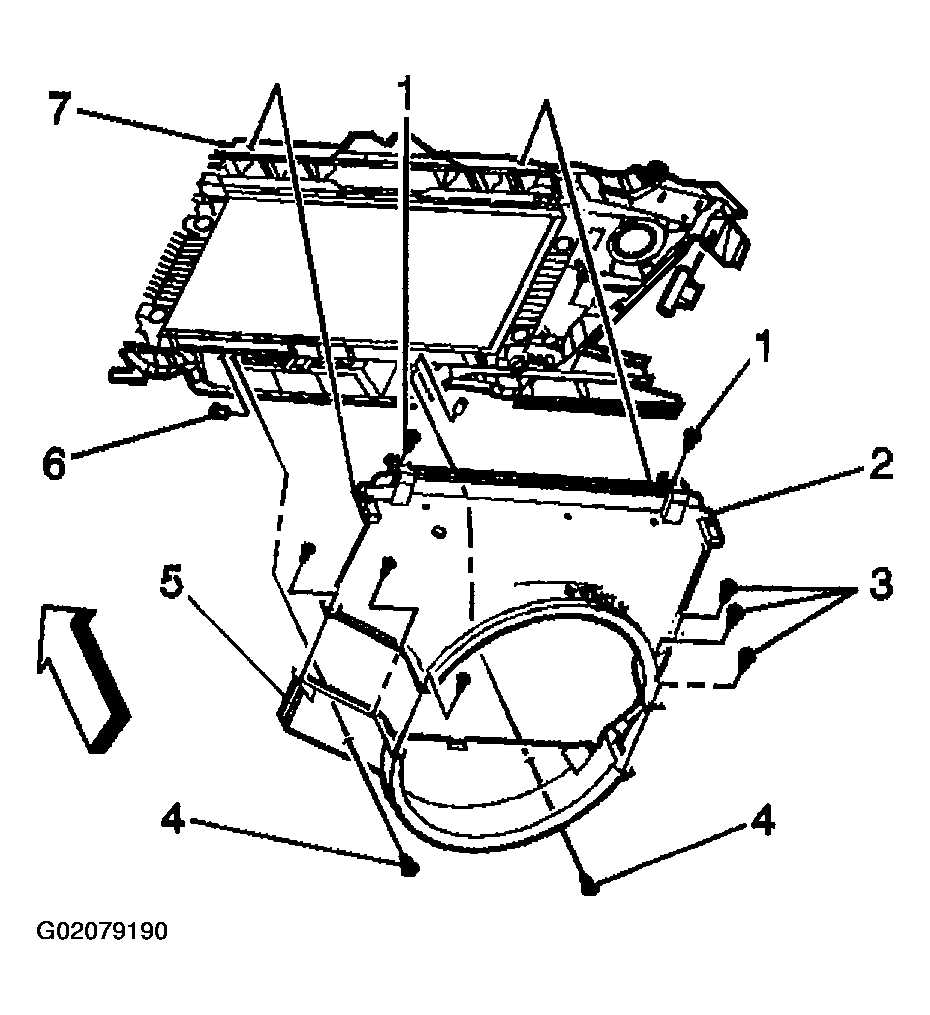

    Fig 1: Removing Fan Shroud Bolts & Fan Shroud
    G02079190Courtesy of GENERAL MOTORS CORP.
