Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the oil cooler lines from the auxiliary oil cooler. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .

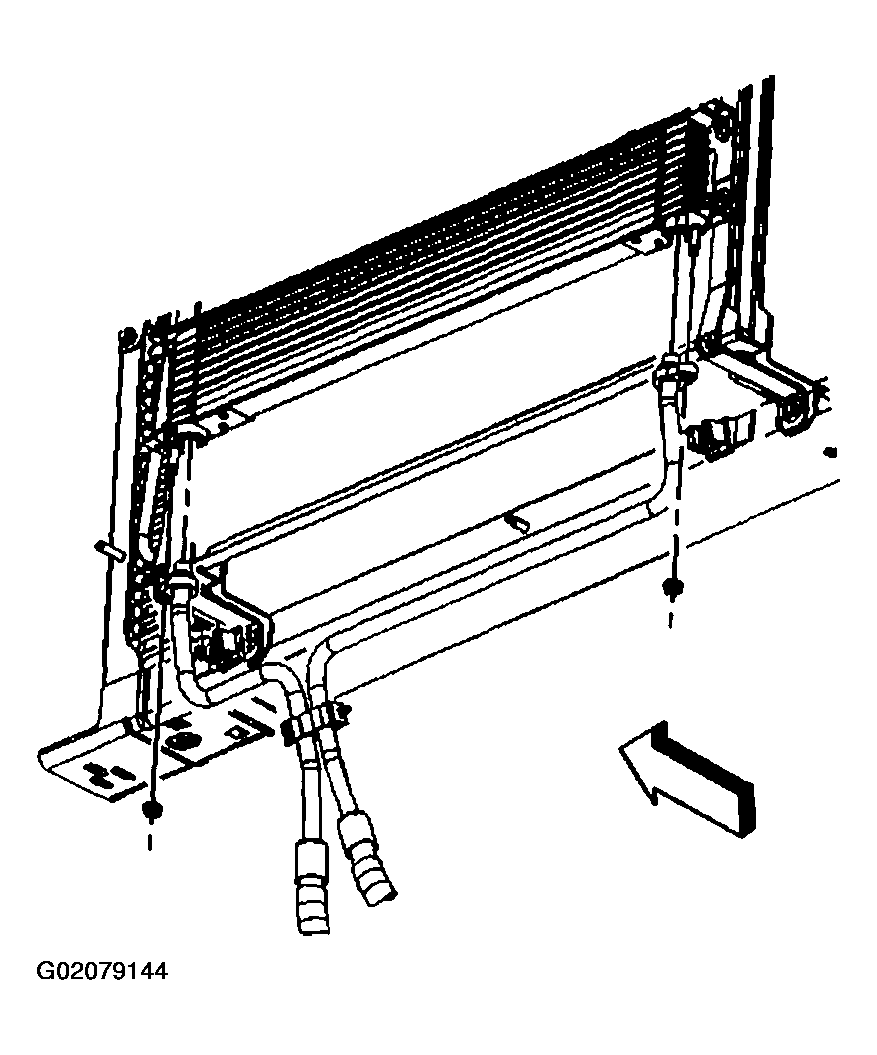

    Fig 1: Disconnecting Oil Cooler Lines
    G02079144Courtesy of GENERAL MOTORS CORP.
  3. Remove the auxiliary oil cooler from the vehicle.

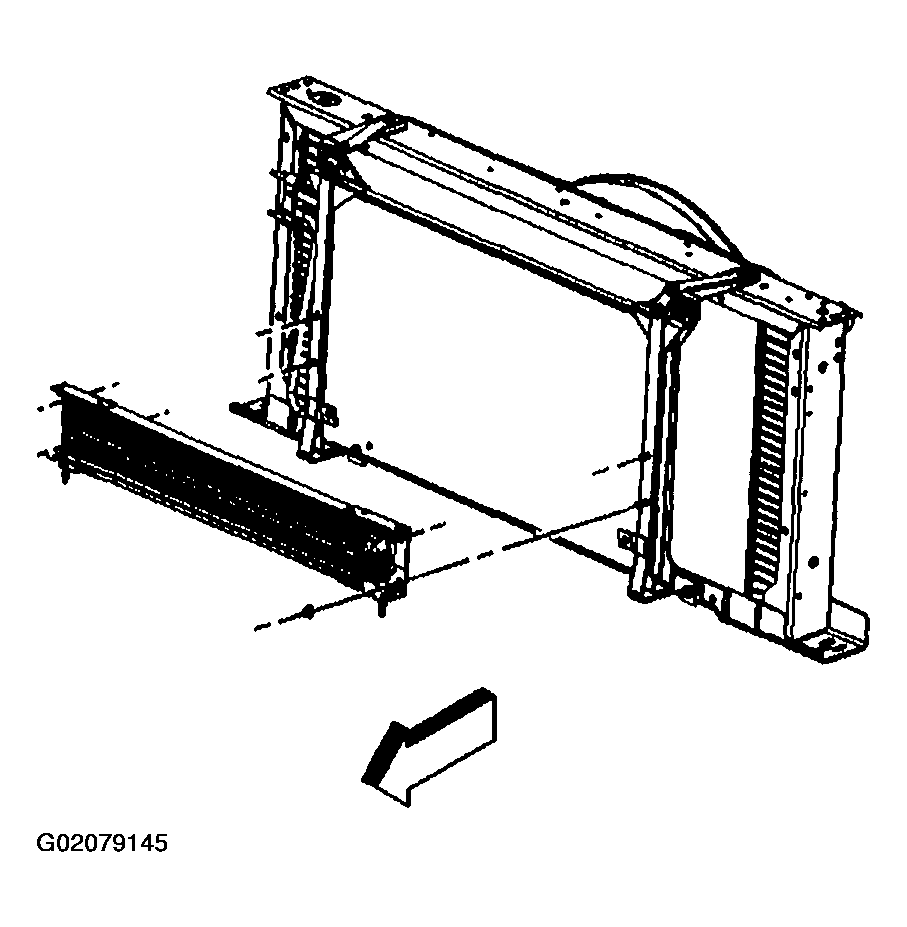

    Fig 2: Removing Auxiliary Oil Cooler
    G02079145Courtesy of GENERAL MOTORS CORP.
