Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary oil cooler.

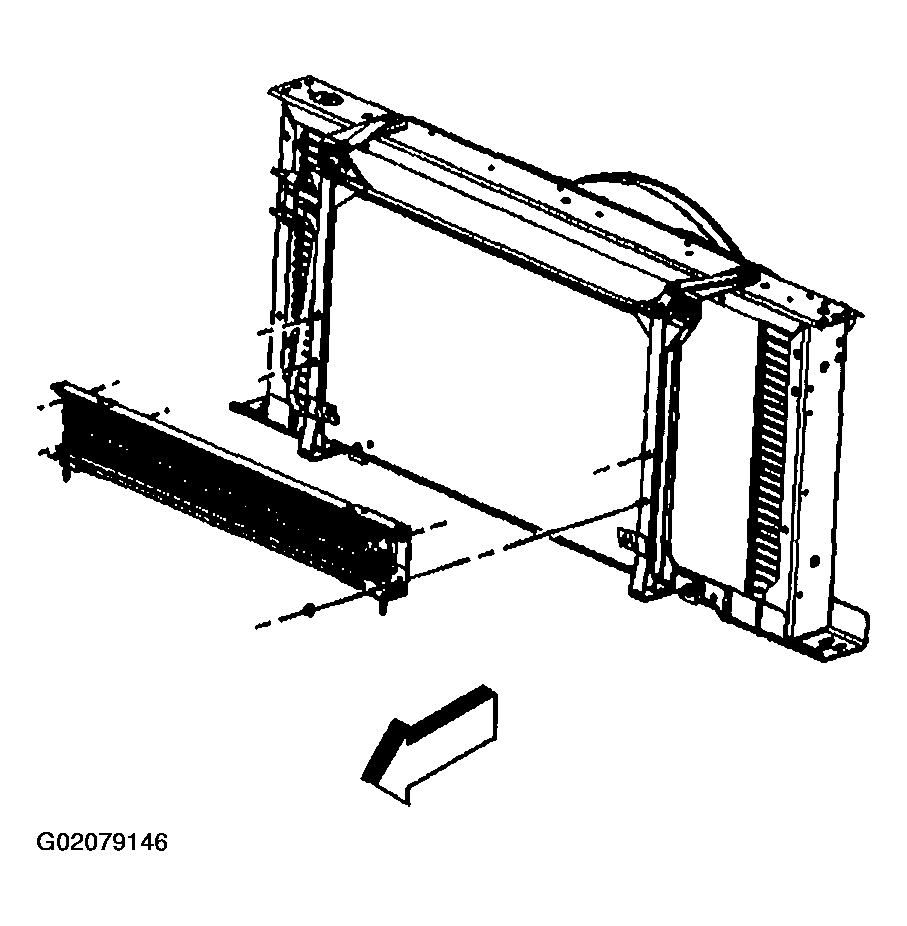

    Fig 1: Installing Auxiliary Oil Cooler
    G02079146Courtesy of GENERAL MOTORS CORP.
  2. Connect the oil cooler lines to the vehicle. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
  3. Lower the vehicle.

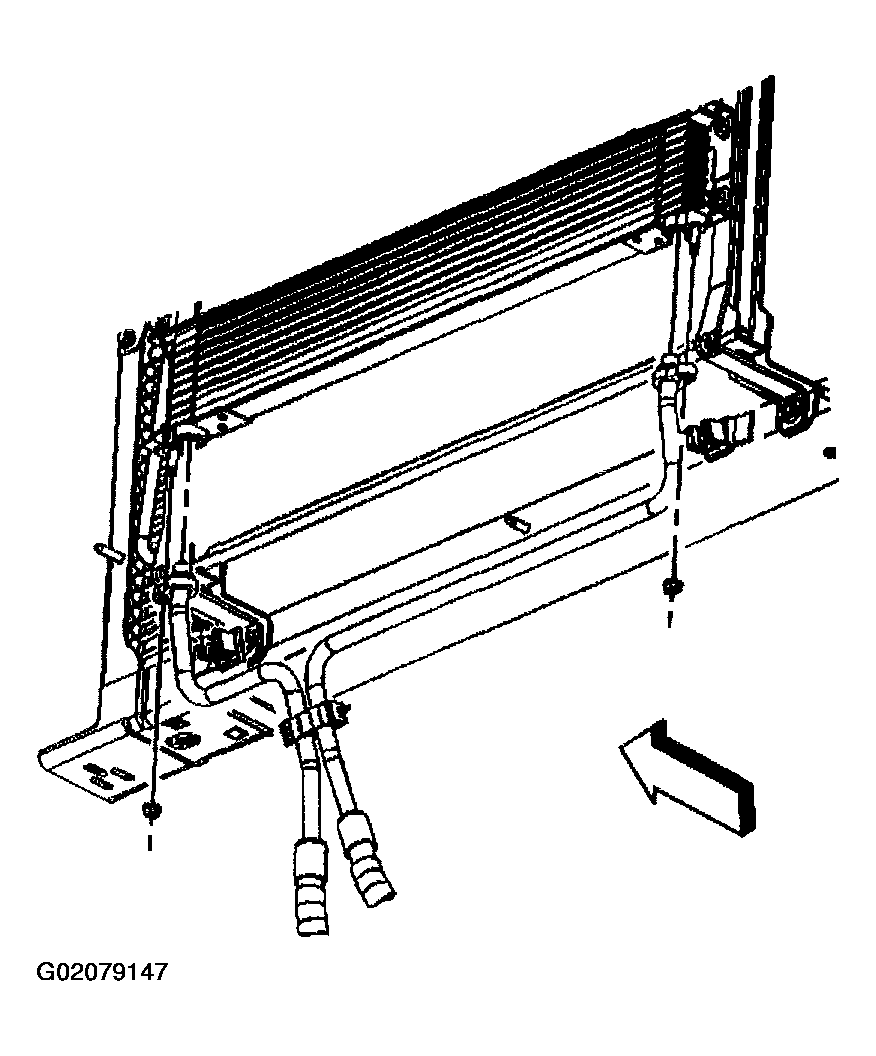

    Fig 2: Connecting Oil Cooler Lines
    G02079147Courtesy of GENERAL MOTORS CORP.
