Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner assembly.
Remove the generator. Refer to GENERATOR .
Partially drain the cooling system. Refer to Draining and Filling Cooling System .
Reposition the coolant air bleed hose clamp at the throttle body.
Remove the coolant air bleed hose from the throttle body.

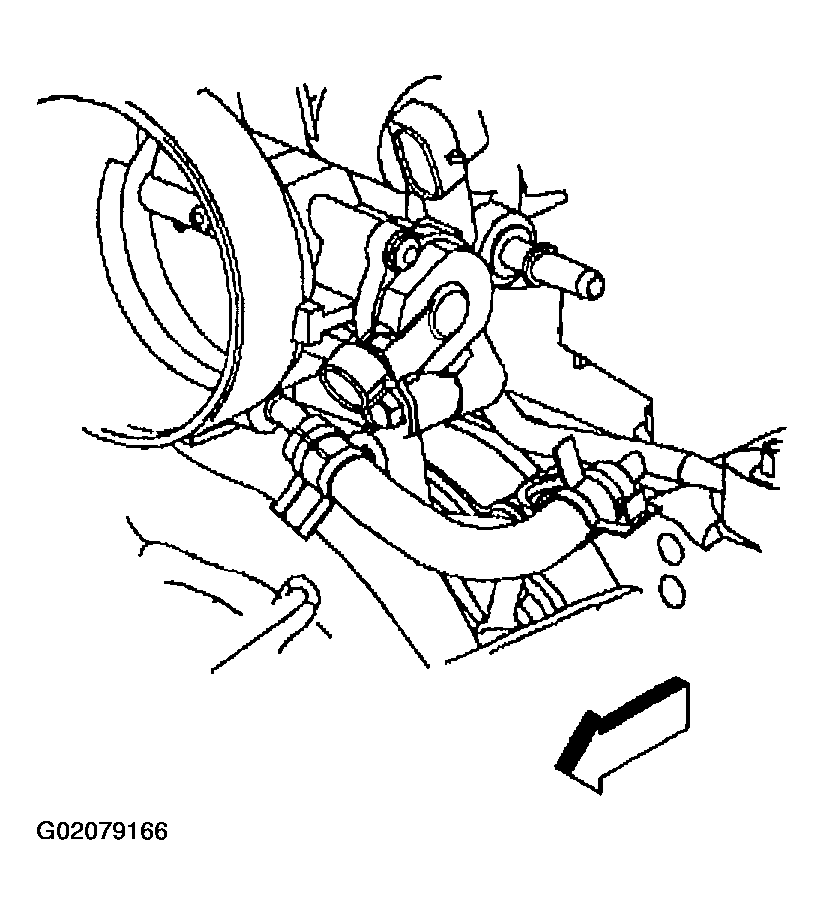

Fig 1: Removing Coolant Air Bleed Hose From Throttle Body
Courtesy of GENERAL MOTORS CORP.
Reposition the coolant air bleed hose clamp at the pipe.
Remove the coolant air bleed hose (1) from the pipe (2).

Fig 2: Removing Coolant Air Bleed Hose From Pipe
Courtesy of GENERAL MOTORS CORP.
