Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the coolant air bleed hose (1) to the pipe (2).
Position the coolant air bleed hose clamp at the pipe.

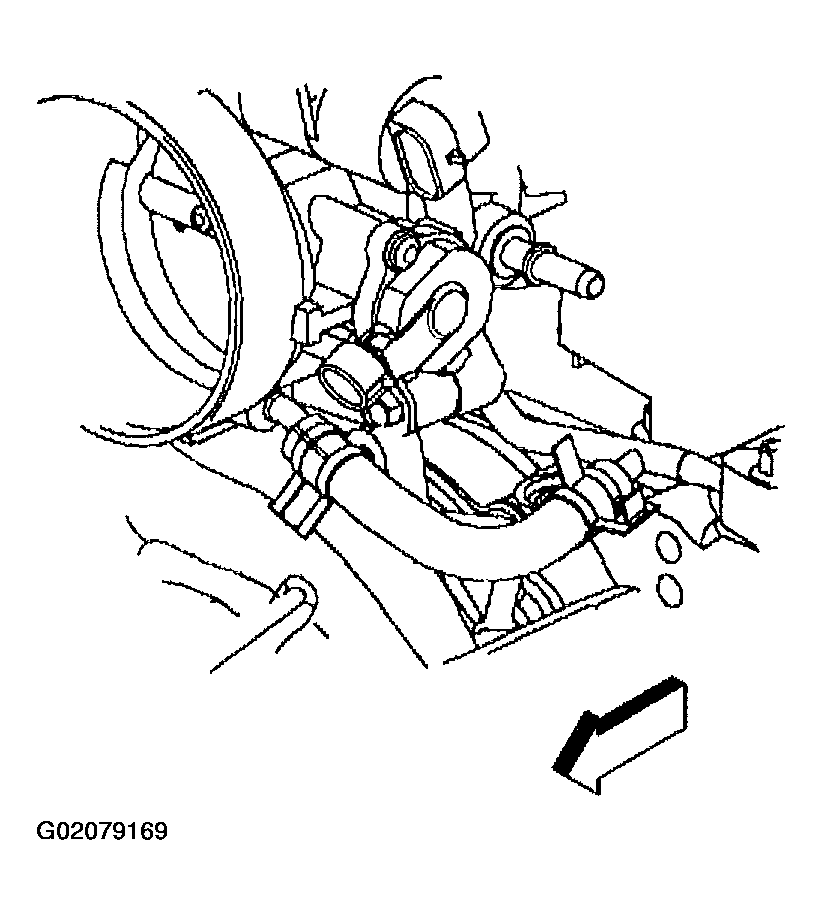

Fig 1: Installing Coolant Air Bleed Hose To Pipe
Courtesy of GENERAL MOTORS CORP.
Install the coolant air bleed hose to the throttle body.
Position the coolant air bleed hose clamp at the throttle body.

Fig 2: Installing Coolant Air Bleed Hose To Throttle Body
Courtesy of GENERAL MOTORS CORP.
Install the generator. Refer to GENERATOR .
Install the air cleaner assembly.
Fill the cooling system. Refer to Draining and Filling Cooling System .
