Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands.
  2. Remove the exhaust system, as necessary.
  3. Remove the bolts retaining the heat shield.
  4. Remove the heat shield.

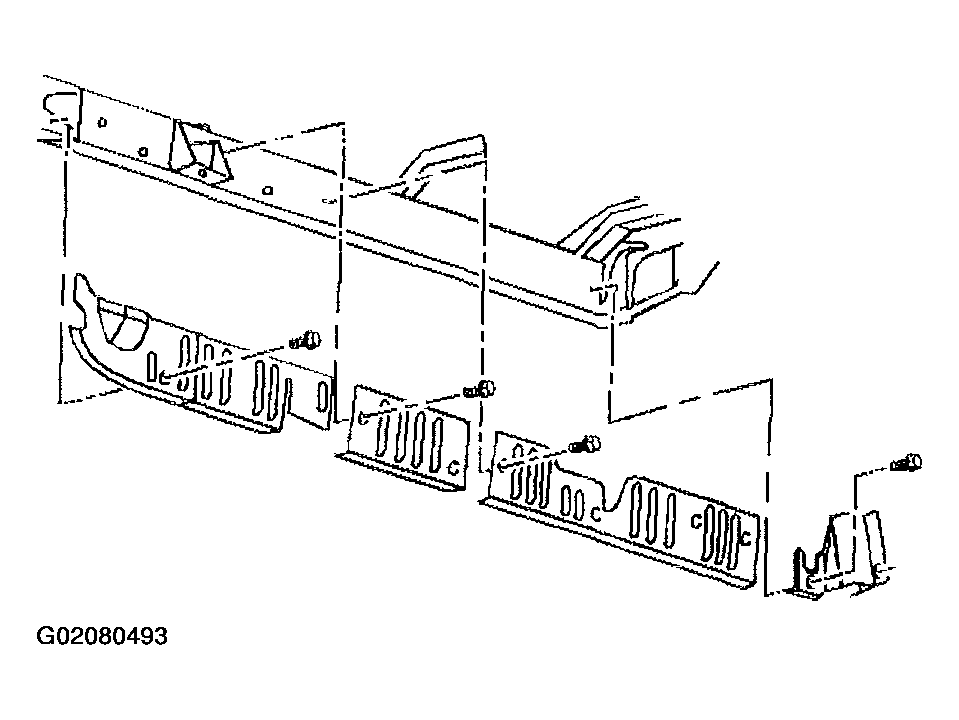

    Fig 1: Removing Bolts & Exhaust Heat Shield
    G02080493Courtesy of GENERAL MOTORS CORP.
