Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle.
Using a 1/4 inch (6 mm) drill bit, remove the rivets from the heat shields, as necessary.
Remove the exhaust tailpipe heat shield from the vehicle.

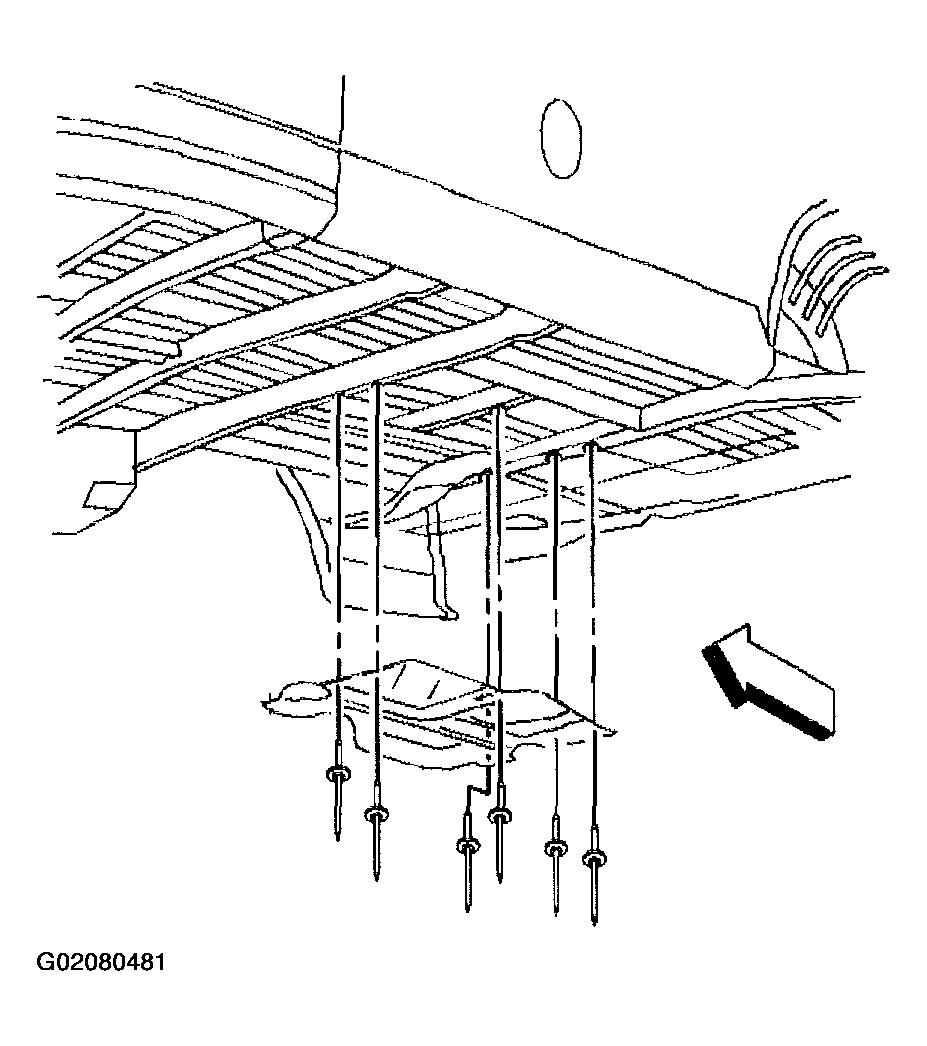

Fig 1: Removing Rivets & Exhaust Tailpipe Heat Shield
Courtesy of GENERAL MOTORS CORP.
Remove the exhaust tailpipe heat shield from the vehicle.

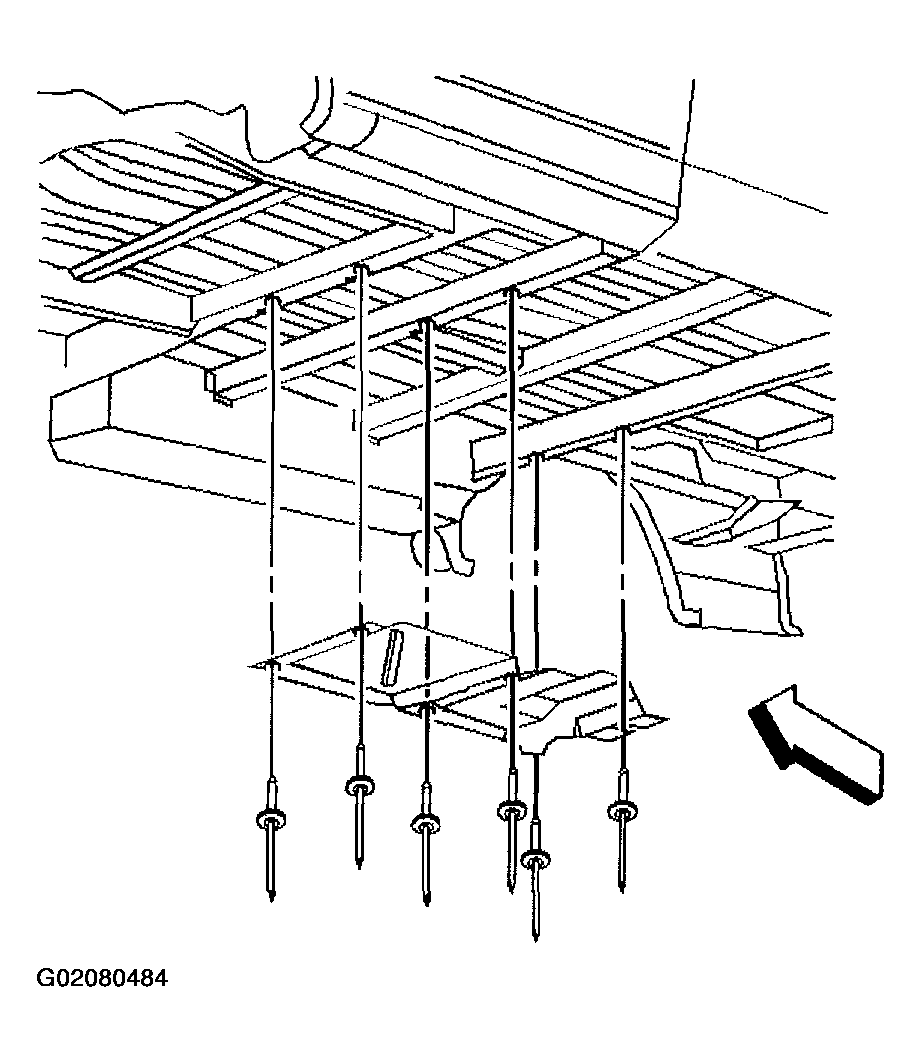

Fig 2: Removing Exhaust Tailpipe Heat Shield
Courtesy of GENERAL MOTORS CORP.
Remove the muffler heat shield.

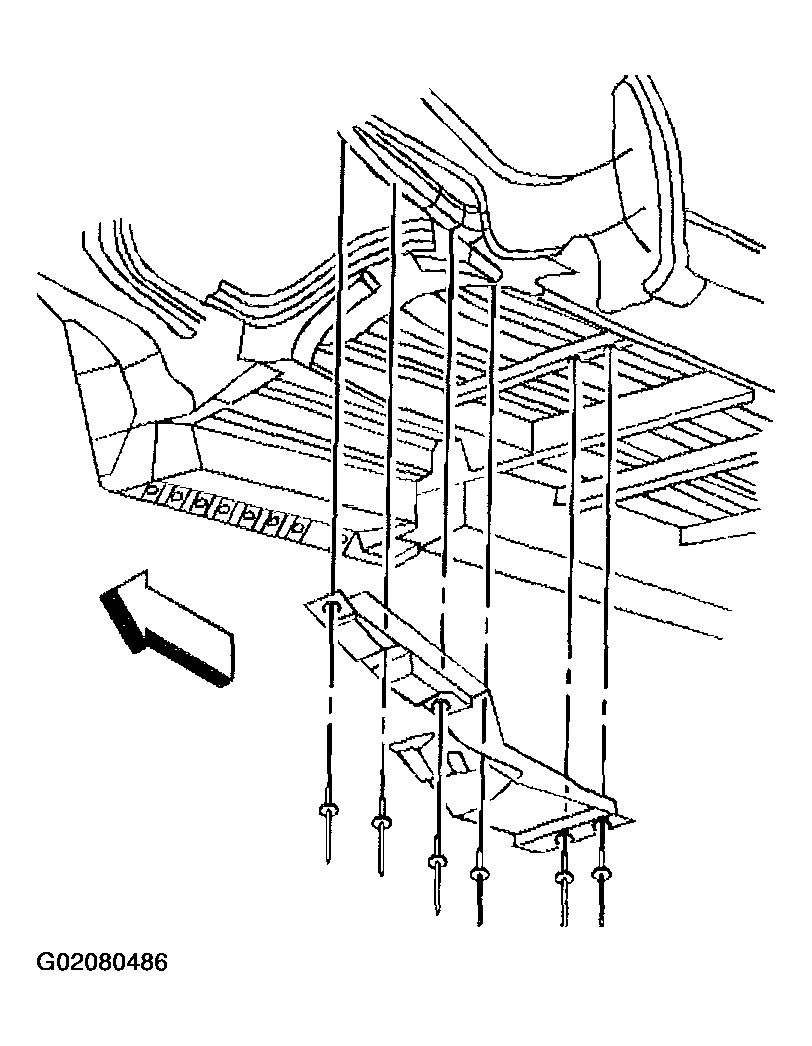

Fig 3: Removing Muffler Heat Shield
Courtesy of GENERAL MOTORS CORP.
Remove the muffler heat shield.

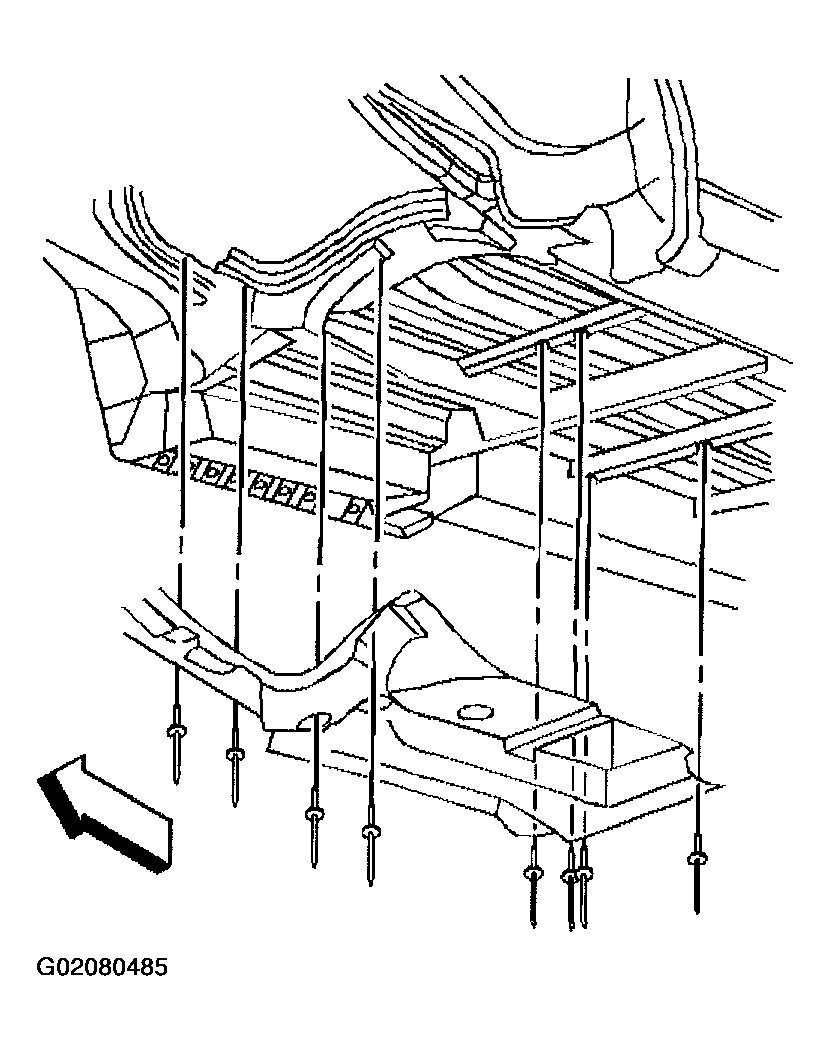

Fig 4: Removing Muffler Heat Shield
Courtesy of GENERAL MOTORS CORP.
Remove the front exhaust pipe heat shield.

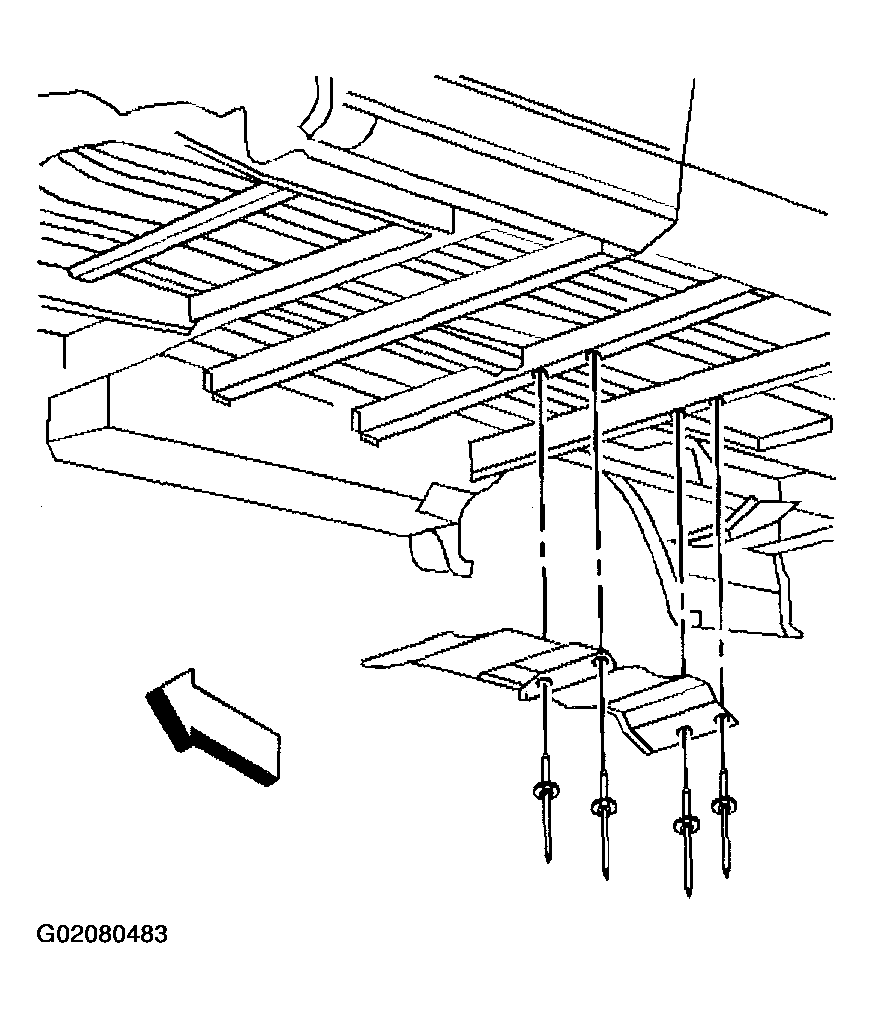

Fig 5: Removing Front Exhaust Pipe Heat Shield
Courtesy of GENERAL MOTORS CORP.
Remove the front exhaust pipe heat shield.

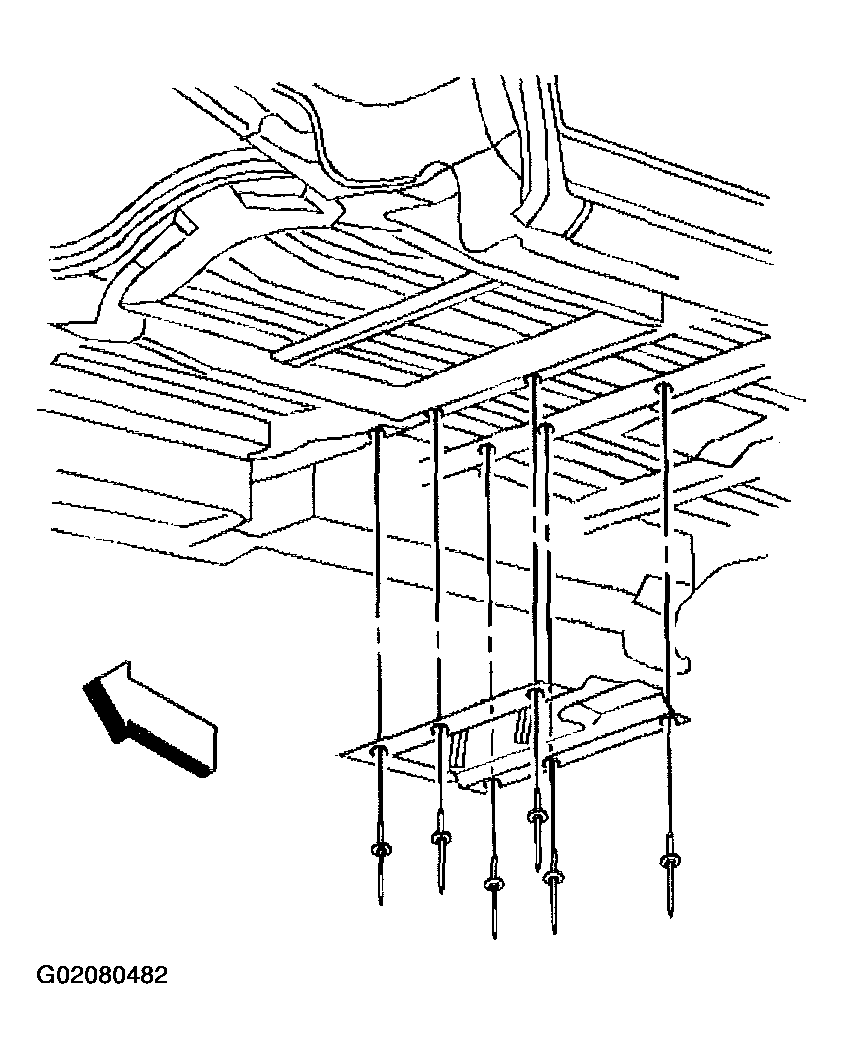

Fig 6: Removing Front Exhaust Pipe Heat Shield
Courtesy of GENERAL MOTORS CORP.
