Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the front exhaust pipe heat shield on the vehicle.
Install the rivets on the heat shield using the J 34940 .

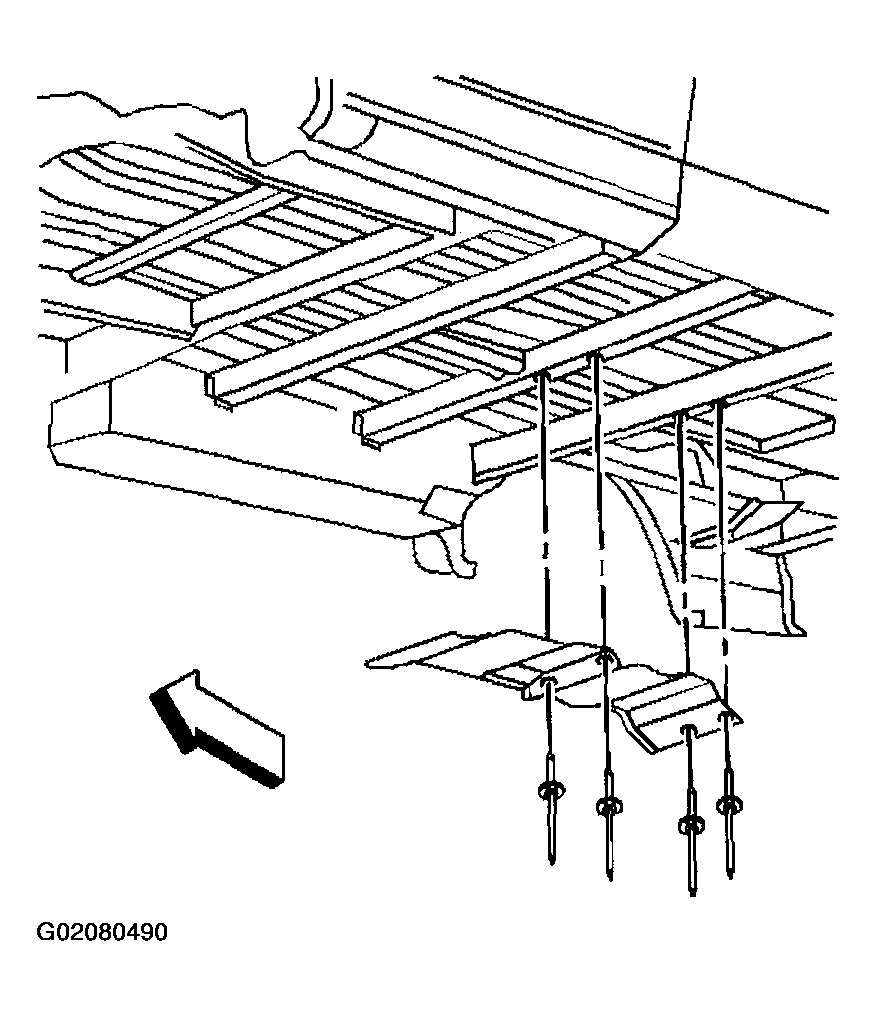

Fig 1: Installing Front Exhaust Pipe Heat Shield & Rivets
Courtesy of GENERAL MOTORS CORP.
Install the front exhaust pipe heat shield on the vehicle.
Install the rivets on the heat shield using the J 34940 .

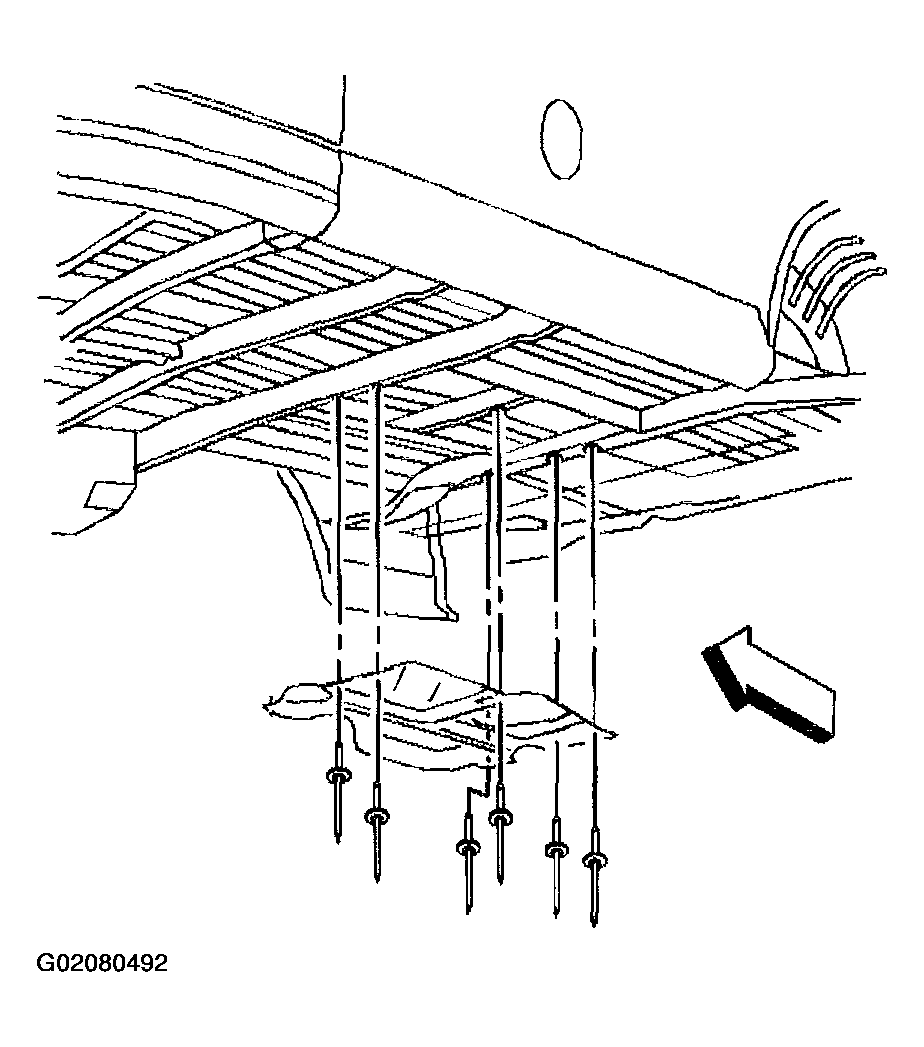

Fig 2: Installing Front Exhaust Pipe Heat Shield & Rivets
Courtesy of GENERAL MOTORS CORP.
Install the muffler heat shield on the vehicle.
Install the rivets on the heat shield using the J 34940 .

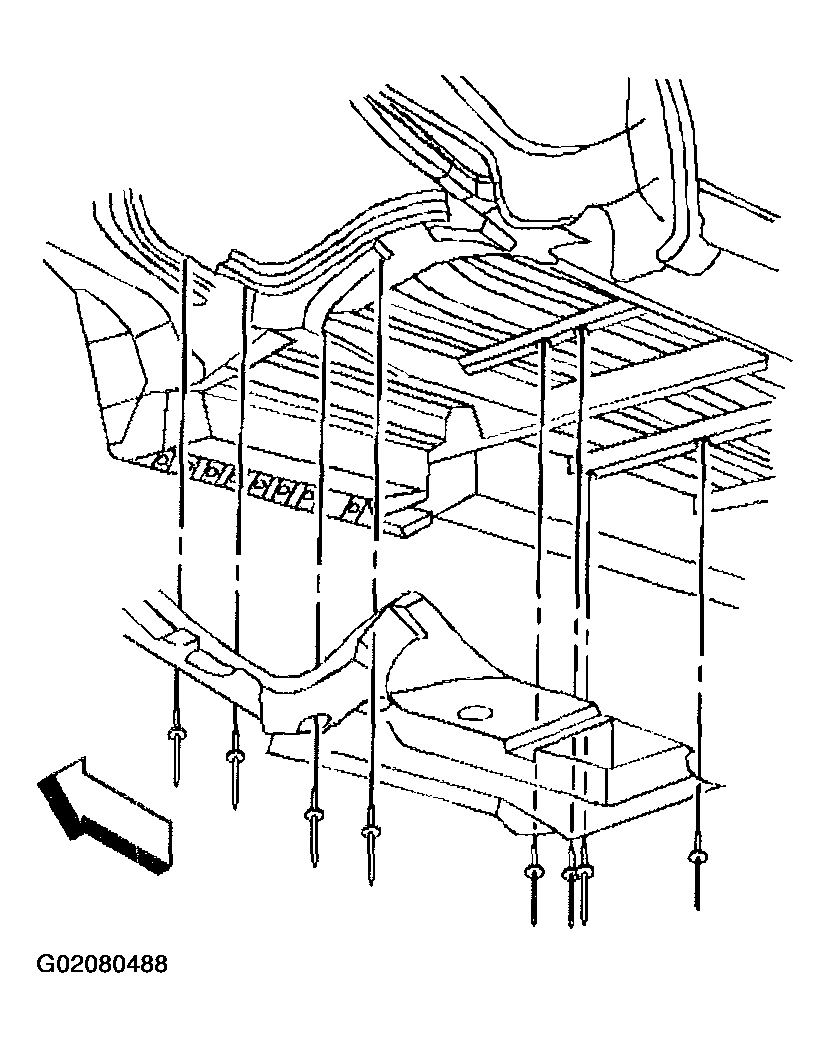

Fig 3: Installing Muffler Heat Shield & Rivets
Courtesy of GENERAL MOTORS CORP.
Install the muffler heat shield on the vehicle.
Install the rivets on the heat shield using the J 34940 .

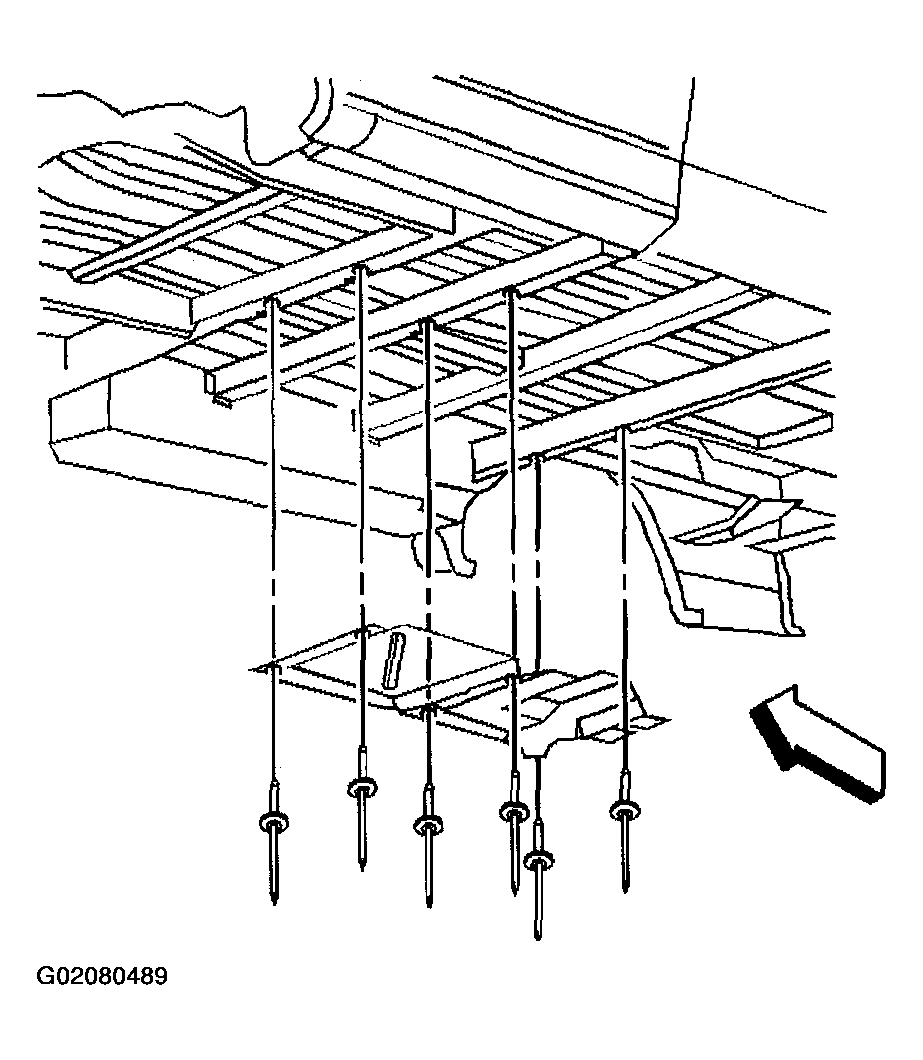

Fig 4: Installing Muffler Heat Shield & Rivets
Courtesy of GENERAL MOTORS CORP.
Install the exhaust tailpipe heat shield on the vehicle.
Install the rivets on the heat shield using the J 34940 .

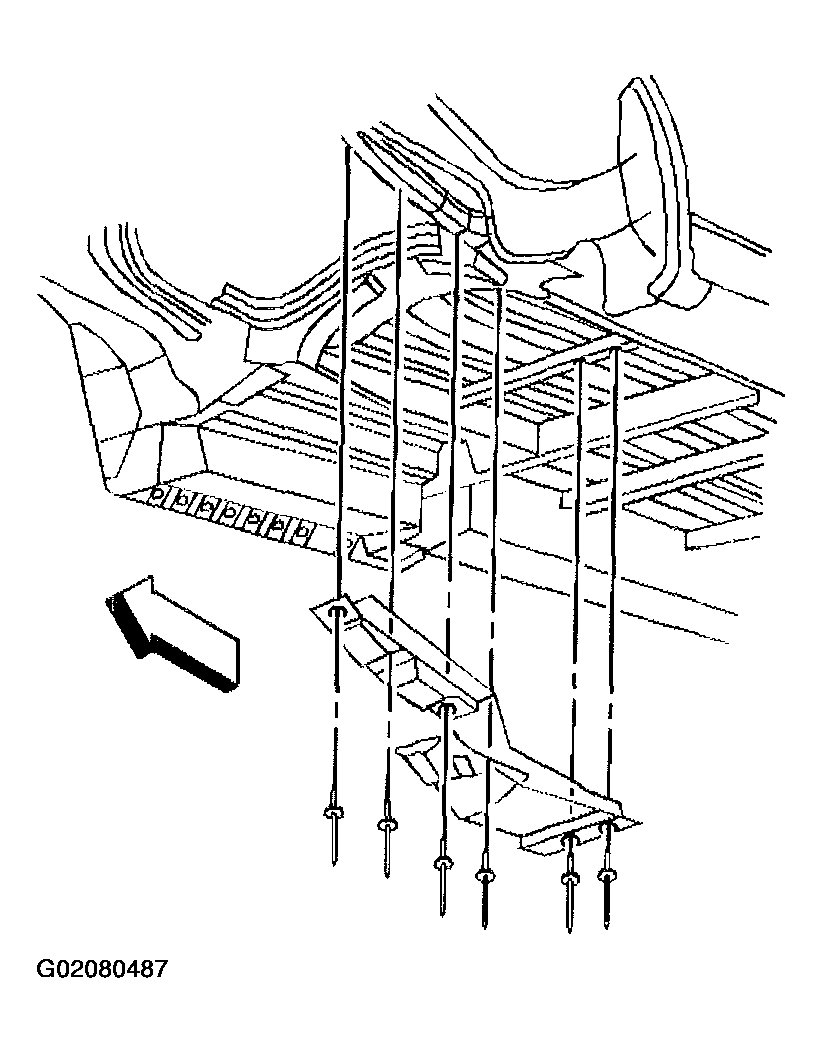

Fig 5: Installing Exhaust Tailpipe Heat Shield & Rivets
Courtesy of GENERAL MOTORS CORP.
Install the exhaust tailpipe heat shield on the vehicle.
Install the rivets on the heat shield using the J 34940 .
Lower the vehicle.

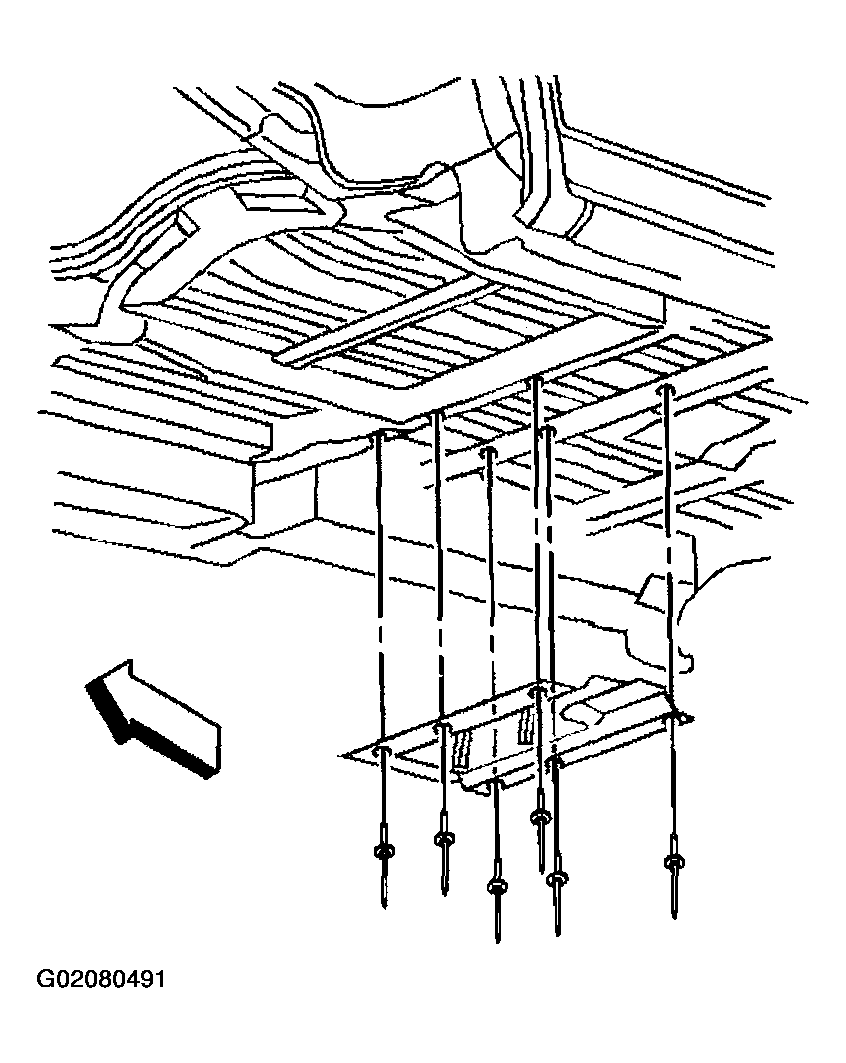

Fig 6: Installing Exhaust Tailpipe Heat Shield & Rivets
Courtesy of GENERAL MOTORS CORP.
