Transfer Case No Front Drive

WARNING: This page is about a different car, the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

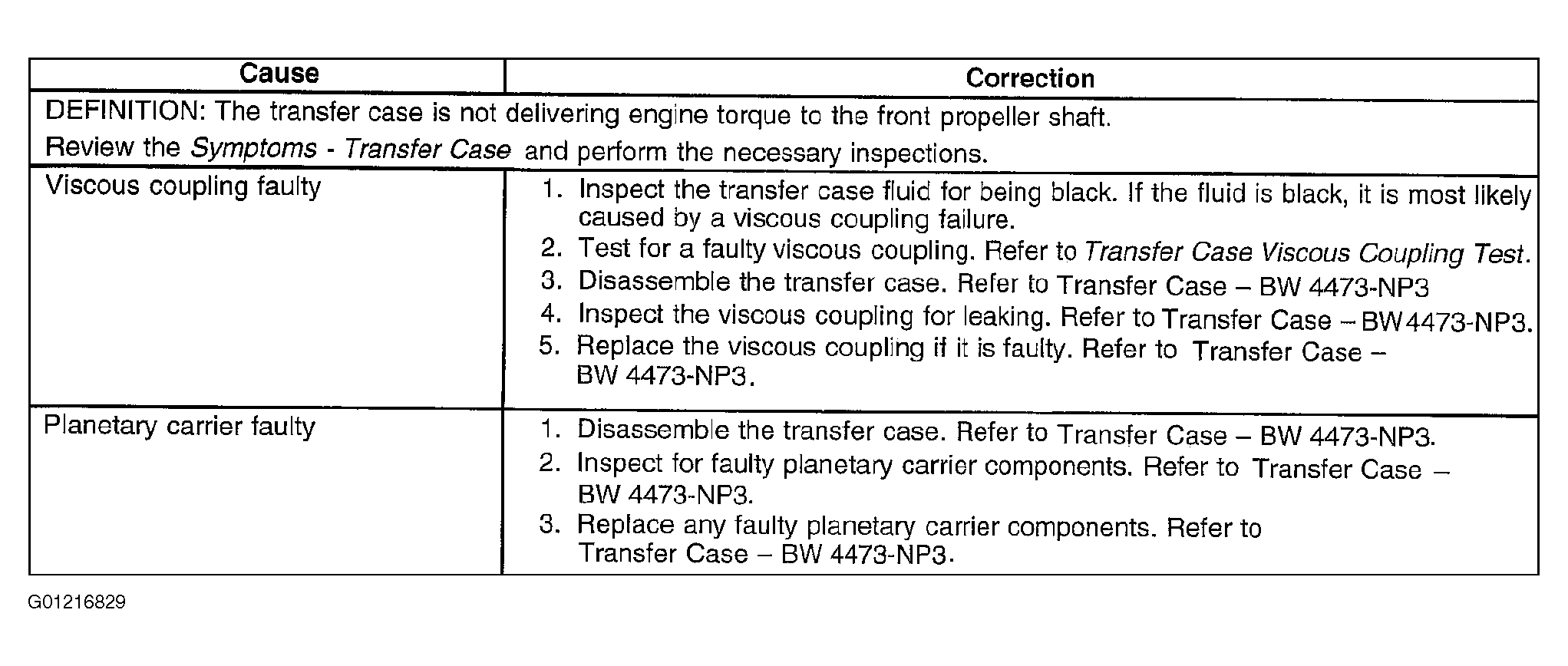

Fig 1: Transfer Case No Front Drive
G01216829Courtesy of GENERAL MOTORS CORP.
