Transfer Case Leak Diagnosis

WARNING: This page is about a different car, the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

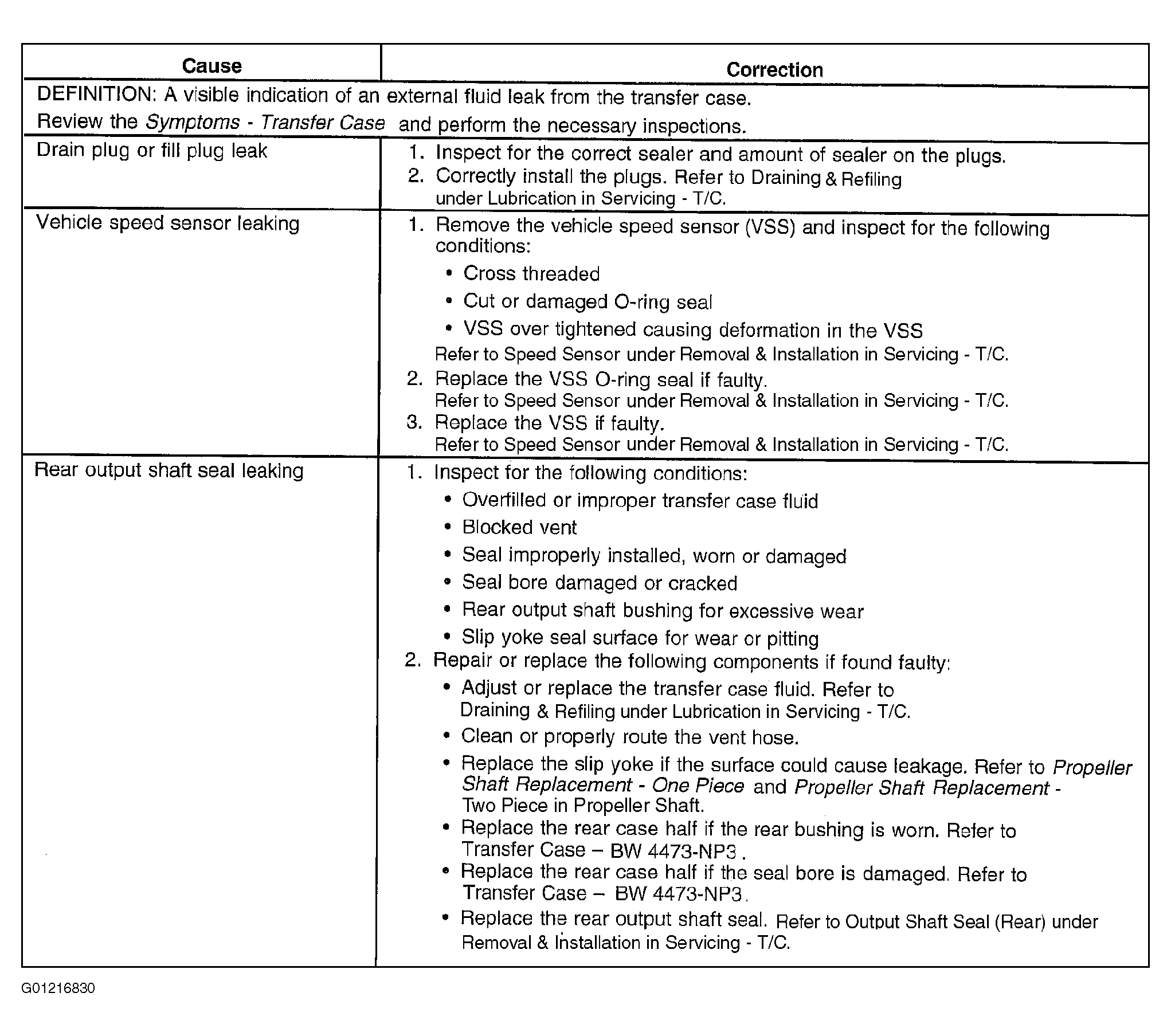

Fig 1: Transfer Case Leak Diagnosis (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

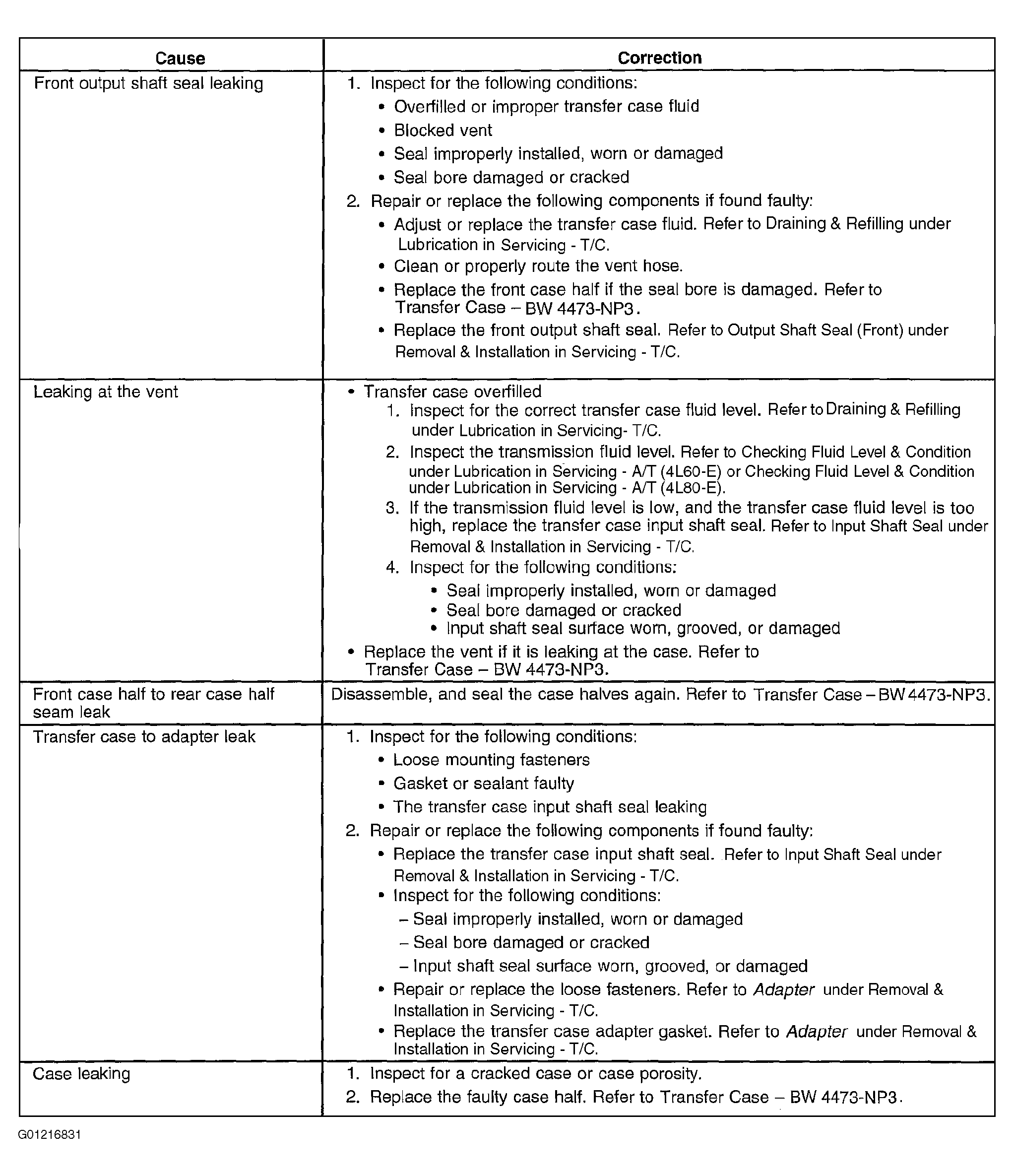

Fig 2: Transfer Case Leak Diagnosis (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
