Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle.
Important: The following service procedure is to ensure that the U-Joint will be properly PHASED when installed.
Mark the relationship between the propeller shaft and the yoke.

Fig 1: Marking Relationship Between Propeller Shaft & Yoke
Courtesy of GENERAL MOTORS CORP.
Remove the retainer bolts.
Remove the retainers.

Fig 2: Removing Retainers
Courtesy of GENERAL MOTORS CORP.

Important: The following service procedure is to ensure that the U-Joint bearing caps DO NOT become separated from the U-Joint cross and prevent the lose of the needle bearings inside the bearing cap.
Tape the U-Joint bearing caps together.

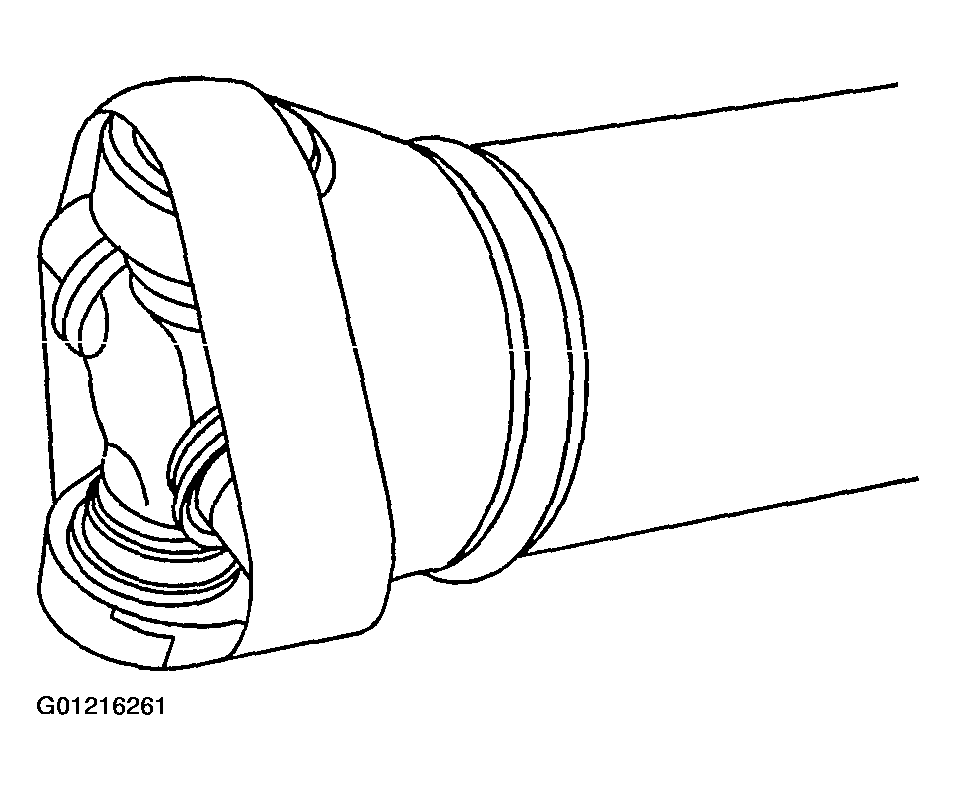

Fig 3: Taping U-Joint Bearing Caps
Courtesy of GENERAL MOTORS CORP.
Remove the propeller shaft from the transfer case if 4WD, or transmission if 2WD.

Fig 4: Removing Propeller Shaft From Transfer Case Or Transmission
Courtesy of GENERAL MOTORS CORP.
