Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle.
Place an alignment mark between the rear inner tube (6) and the rear axle pinion yoke.
Important: The splines of the propshaft are not keyed.
Place an alignment mark between the outer tube and inner tube.
Remove the clamps (2, 5) from the propeller shaft boot. Use a side cutter or other suitable tool. Discard the clamps.
Support the outer shaft (6) with a suitable stand as necessary.

Fig 1: Removing Propeller Shaft Boot Clamps
Courtesy of GENERAL MOTORS CORP.
Remove the bolts and the yoke retainers from the rear axle pinion yoke.
Disconnect the propeller shaft from the rear axle pinion yoke.

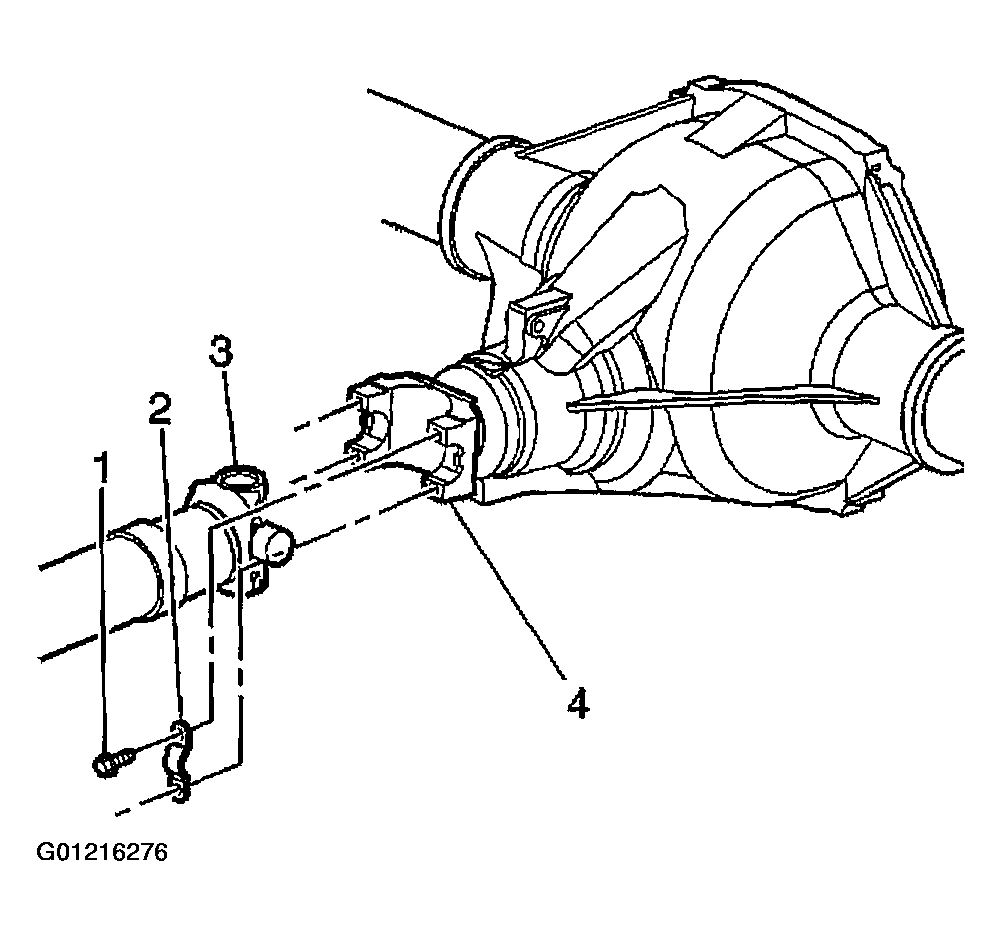

Fig 2: Removing Yoke Retainers From Rear Axle Pinion Yoke
Courtesy of GENERAL MOTORS CORP.
Wrap the bearing caps with tape in order to prevent the loss of the needle bearings.

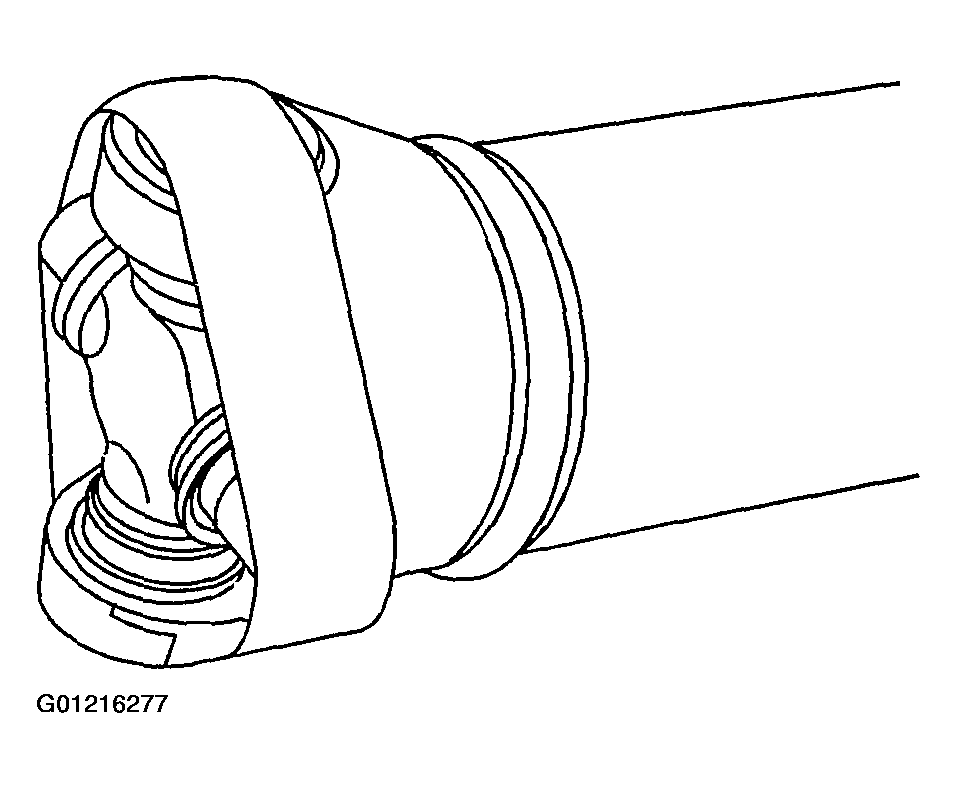

Fig 3: Wrapping Bearing Caps With Tape
Courtesy of GENERAL MOTORS CORP.
Slide the rear inner tube (5) out of the outer tube (6) and remove the propeller shaft.

Fig 4: Sliding Rear Inner Tube Out Of Outer Tube
Courtesy of GENERAL MOTORS CORP.
