Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Support the propeller shaft with safety stands.
  3. Remove the center bearing bolts (3).

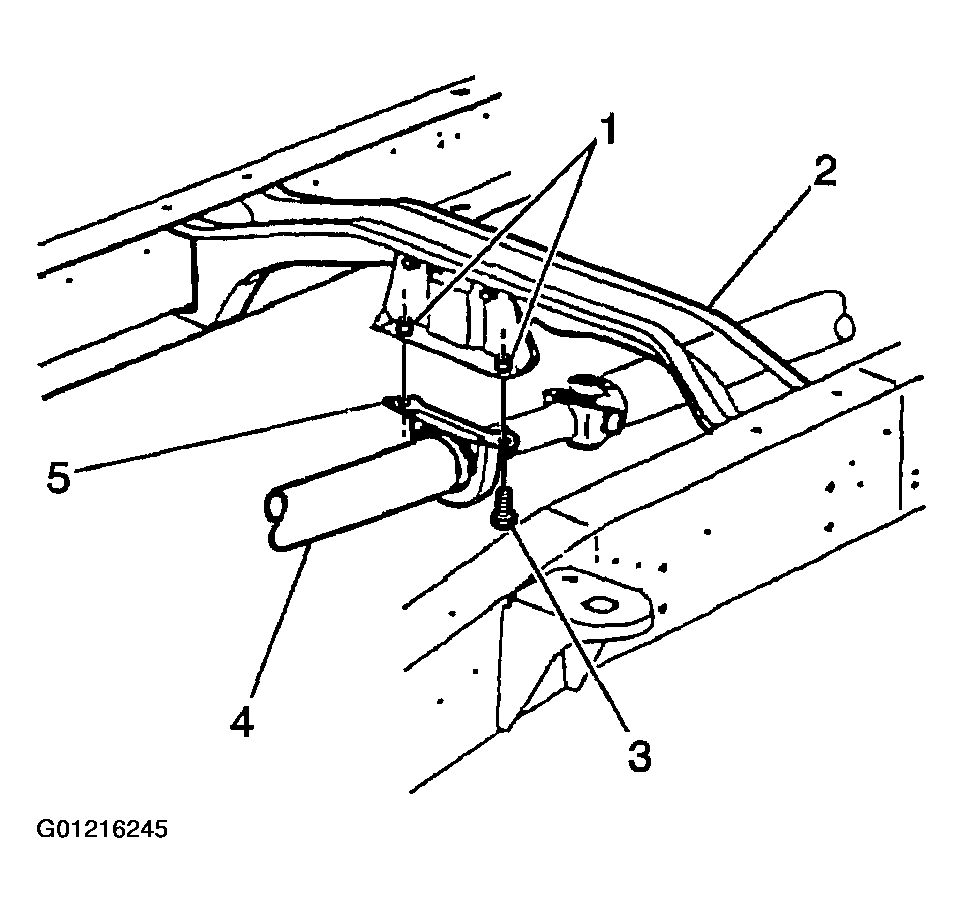

    Fig 1: Removing Center Bearing Bolts
    G01216245Courtesy of GENERAL MOTORS CORP.
  4. Remove the propeller shaft hanger bolts.
  5. Remove the propeller shaft hanger.
    Fig 2: Removing Propeller Shaft Hanger
    G01216246Courtesy of GENERAL MOTORS CORP.
