Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Clean the area around the front axle fill plug and the drain plug.
  3. Remove the fill plug.

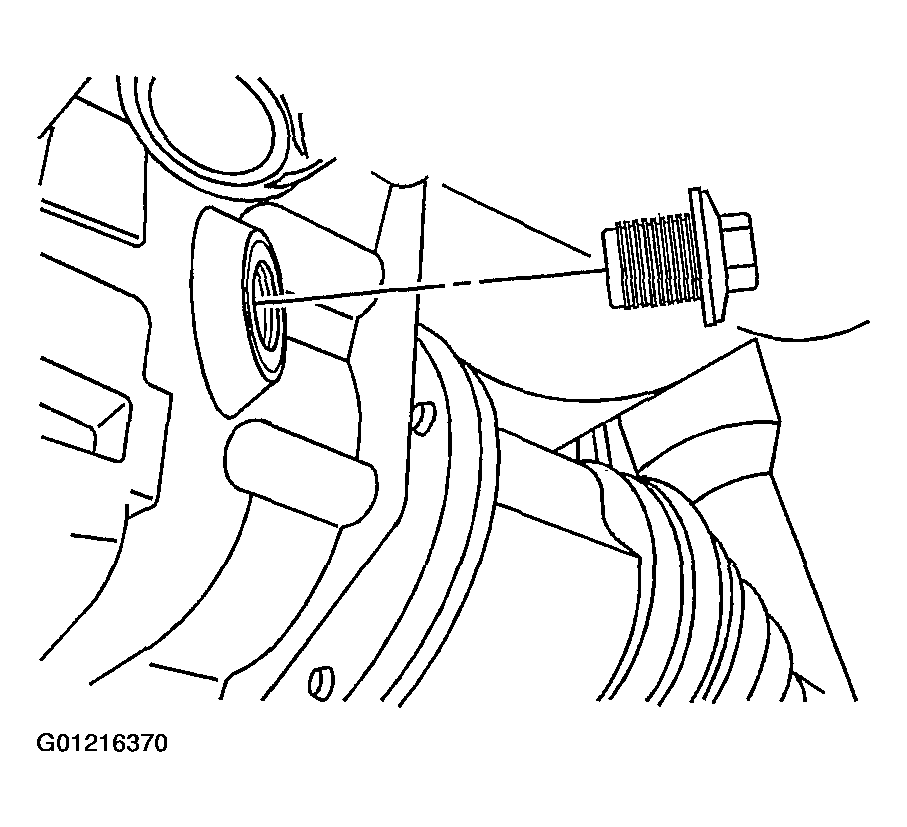

    Fig 1: Removing Fill Plug
    G01216370Courtesy of GENERAL MOTORS CORP.
  4. Remove the drain plug.
  5. Drain the fluid from the front differential carrier assembly.

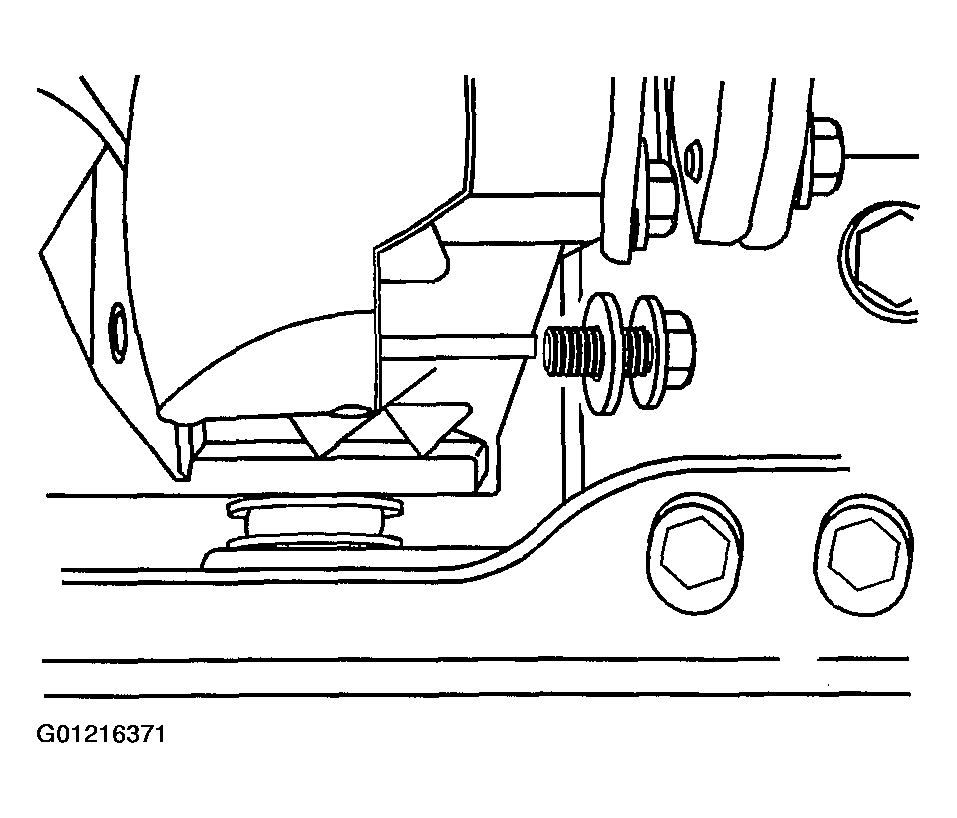

    Fig 2: Removing Drain Plug
    G01216371Courtesy of GENERAL MOTORS CORP.
