Differential Case Assembly Assemble

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J-8092 Universal Driver Handle - 3/4 in - 10
J-22888-D Side Bearing Remover Kit
J-33790 Differential Side Bearing Installer

Lubricate the pinion and side gears using axle lubricant. Use the proper fluid.
Install the differential side gear thrust washers to the differential side gears.
Install the differential side gears and thrust washers into the differential case.
If the same differential side gears and the thrust washers are being used, install the side gears and the thrust washers to their original locations.
Install the differential pinion gears and thrust washers by performing the following steps:
1. Position one pinion gear between the differential side gears.
2. Position the second pinion gear between the differential side gear directly opposite of the first gear.
3. Rotate the differential side gears until the pinion gears are directly opposite the opening in the differential case.
4. Install the thrust washers.
  Rotate the pinion gears toward the differential case opening in order to permit the sliding in of the thrust washers.
Install the pinion gear shaft.
Install the new pinion gear shaft lock pin using a hammer and a brass drift.

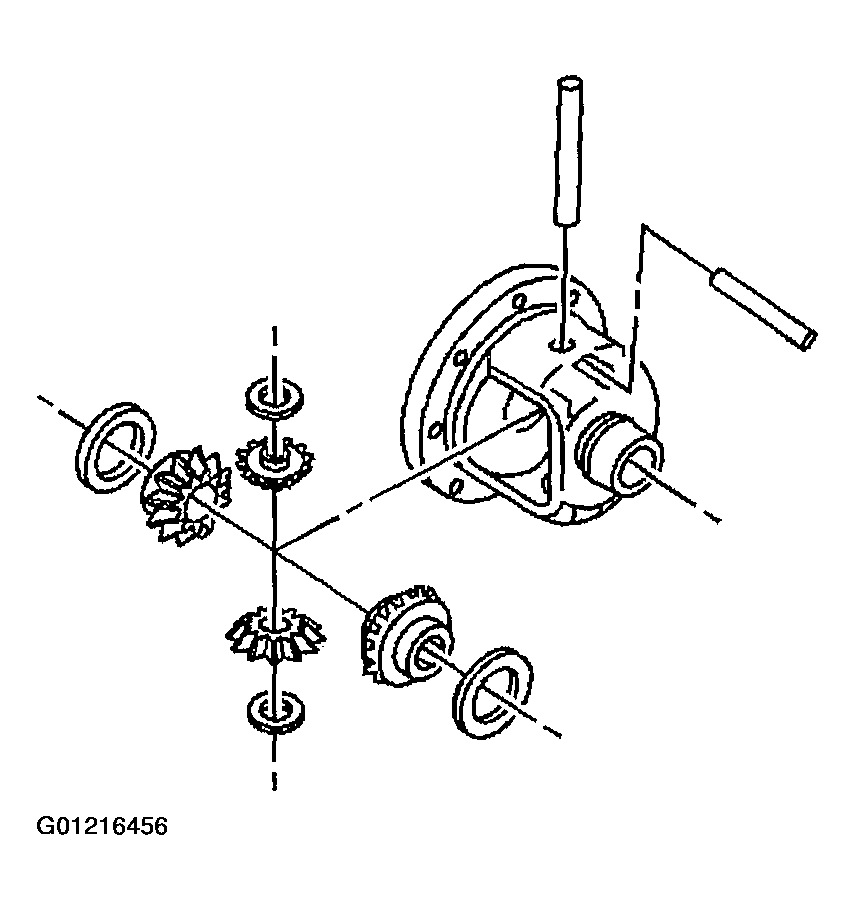

Fig 1: Installing Differential Pinion Gears & Thrust Washers
Courtesy of GENERAL MOTORS CORP.

Important: The mating surface of the ring gear and the differential case must be clean and free of burrs before installing the ring gear.
Install the ring gear onto the differential case.
Important: The ring gear bolts have left-hand threads.
Install the new ring gear bolts.
Hand start each bolt to ensure that the ring gear is properly installed to the differential case.

CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Tighten the ring gear bolts. Tighten the ring gear bolts alternately and in stages, gradually pulling the ring gear onto the differential case.
Tighten

Tighten the ring gear bolts in sequence to 84 N.m (67 lb ft).

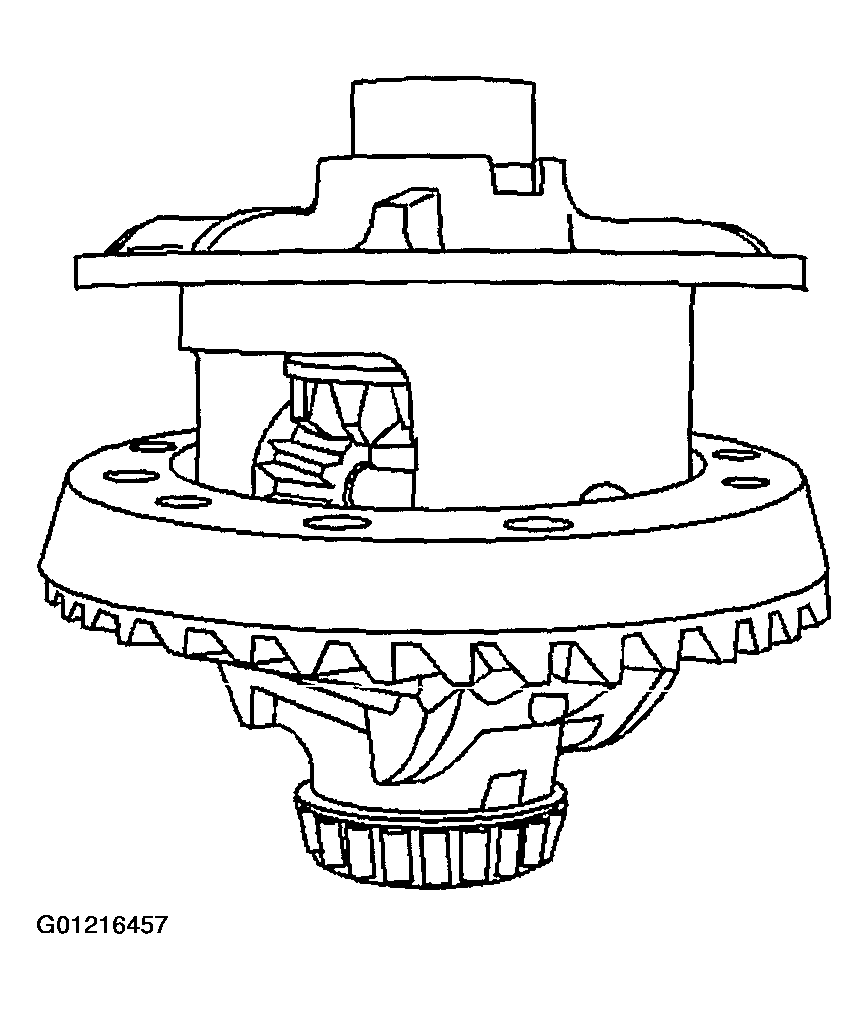

Fig 2: Installing Ring Gear Onto Differential Case
Courtesy of GENERAL MOTORS CORP.
Install the differential side bearings by performing the following steps:
1. In order to protect the differential case, install the J-8107-2 in the case on the side opposite the bearing installation.
2. Install the J-33790 (2) and the J-8092 (1) onto the differential case bearing as shown.
3. Install the differential case bearings using the J-33790 and the J-8092 .

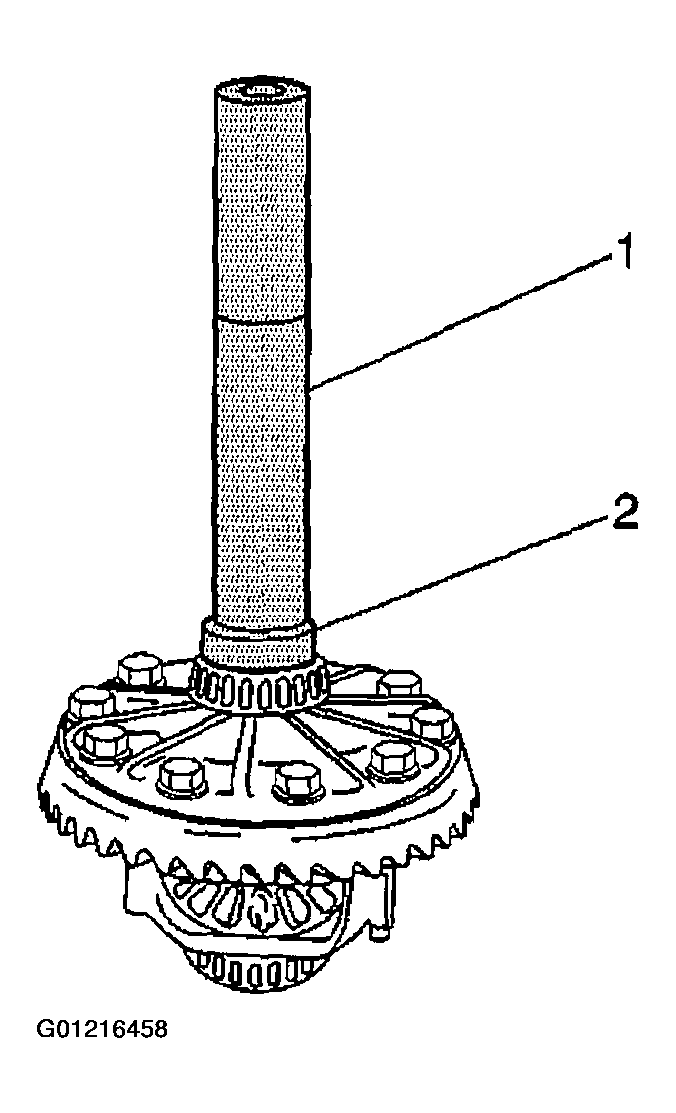

  Fig 3: Installing J-33790 & J-8092 Onto Differential Case Bearing
  Courtesy of GENERAL MOTORS CORP.
