Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vacuum hose from the vacuum tank.
  2. Remove the screws (1) from the vacuum tank retainers.
  3. Remove the vacuum tank (3).

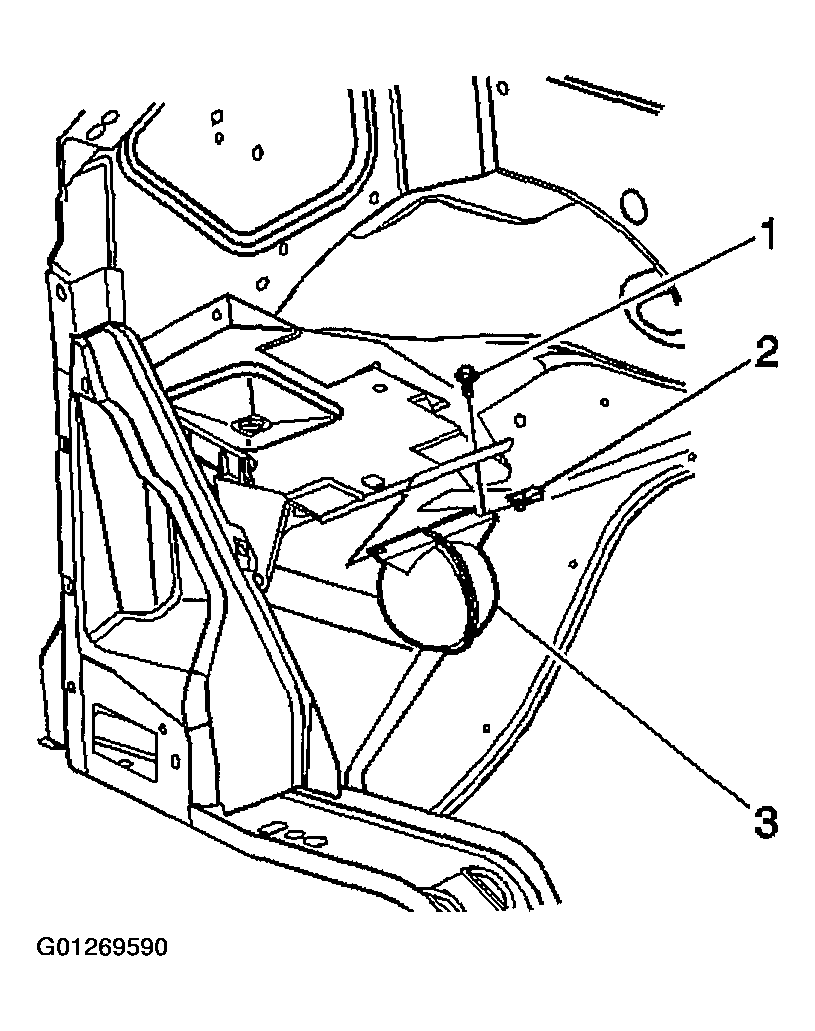

    Fig 1: Removing Vacuum Tank
    G01269590Courtesy of GENERAL MOTORS CORP.
