Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower mode actuator.
  2. Press lower mode actuator on until you hear tabs engage.
  3. Install the IP carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel Gages and Console .

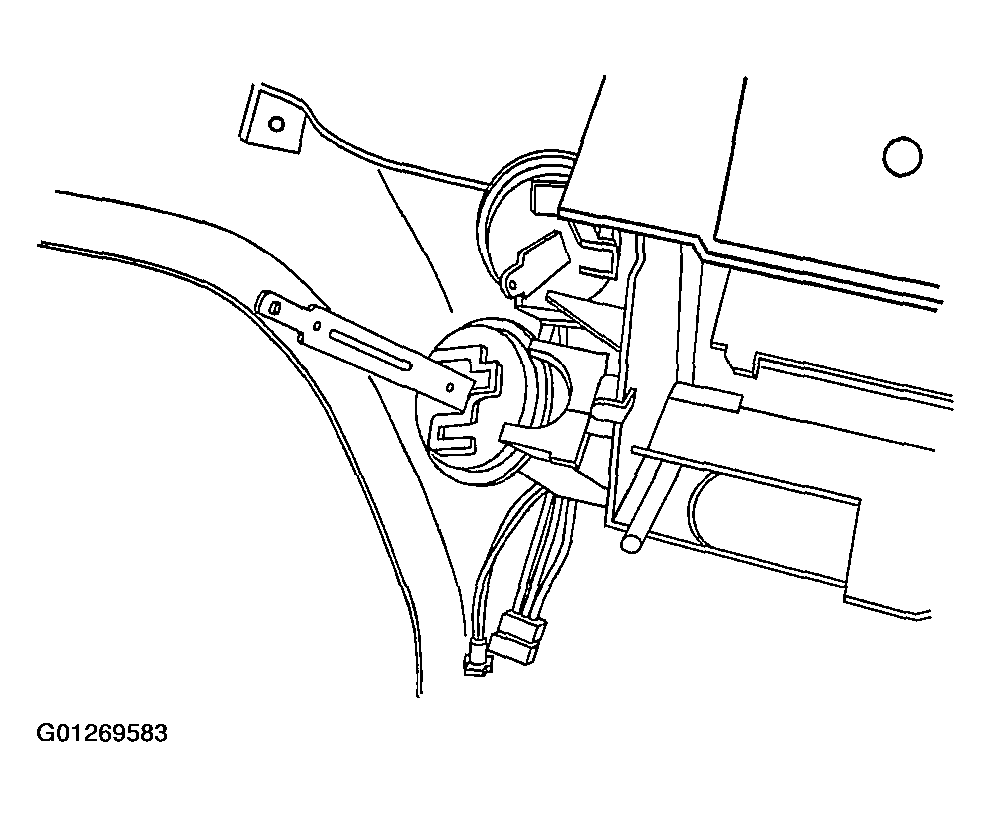

    Fig 1: Installing Lower Mode Actuator
    G01269583Courtesy of GENERAL MOTORS CORP.
