Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater assembly. Refer to HEATER ASSEMBLY REPLACEMENT .
  2. Remove the retaining screws from the auxiliary mode actuator.
  3. Remove the auxiliary mode actuator.

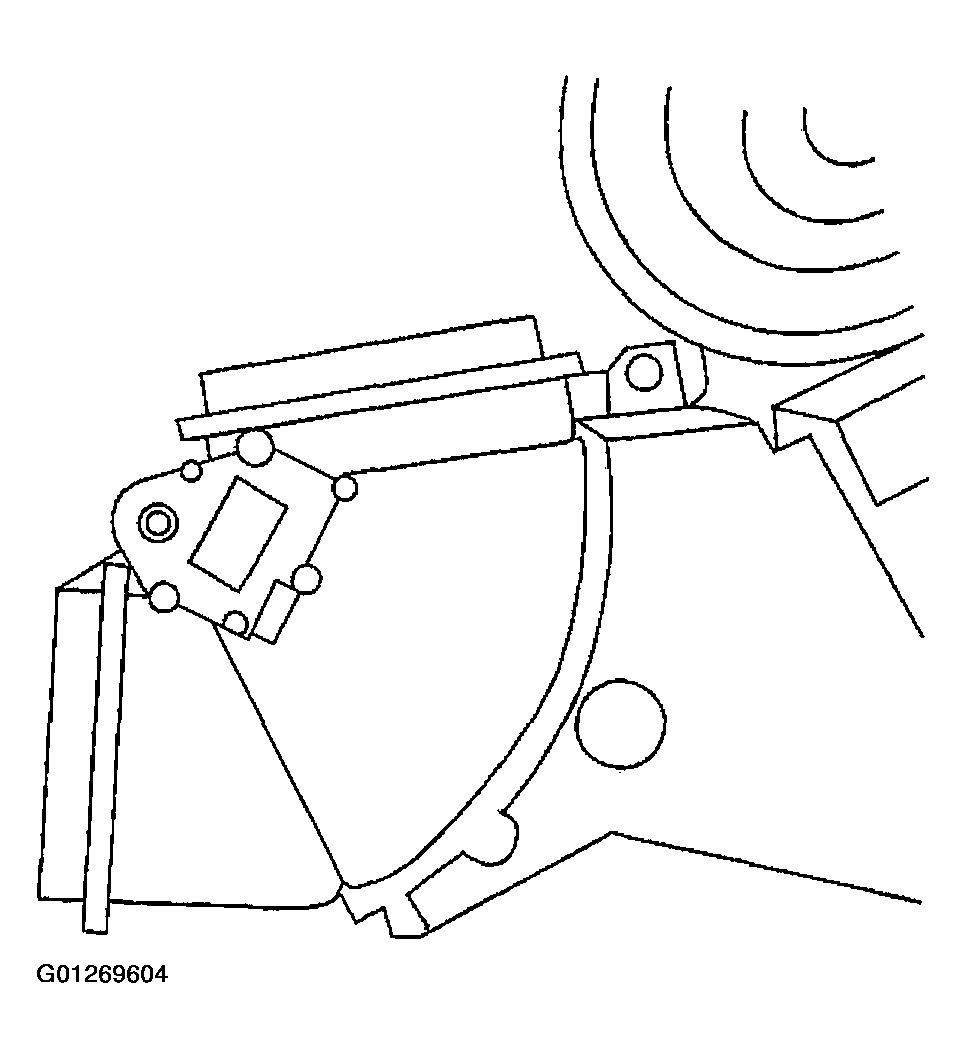

    Fig 1: Removing Auxiliary Mode Actuator
    G01269604Courtesy of GENERAL MOTORS CORP.
