Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front headliner to access the HVAC control processor.
  2. Remove the HVAC control processor from the roof panel.
  3. Remove the HVAC control processor access cover (3).

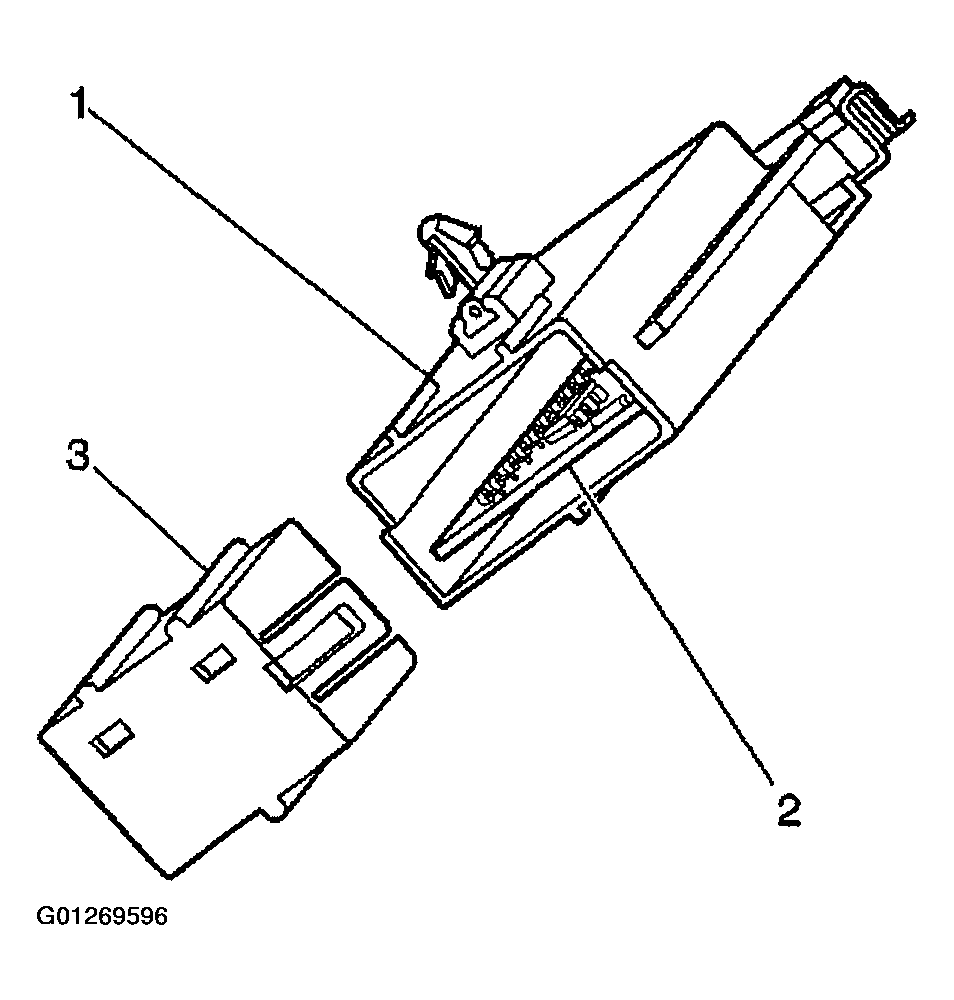

    Fig 1: Removing HVAC Control Processor Access Cover
    G01269596Courtesy of GENERAL MOTORS CORP.
  4. Remove the HVAC control processor (2) from the HVAC processor case (1).

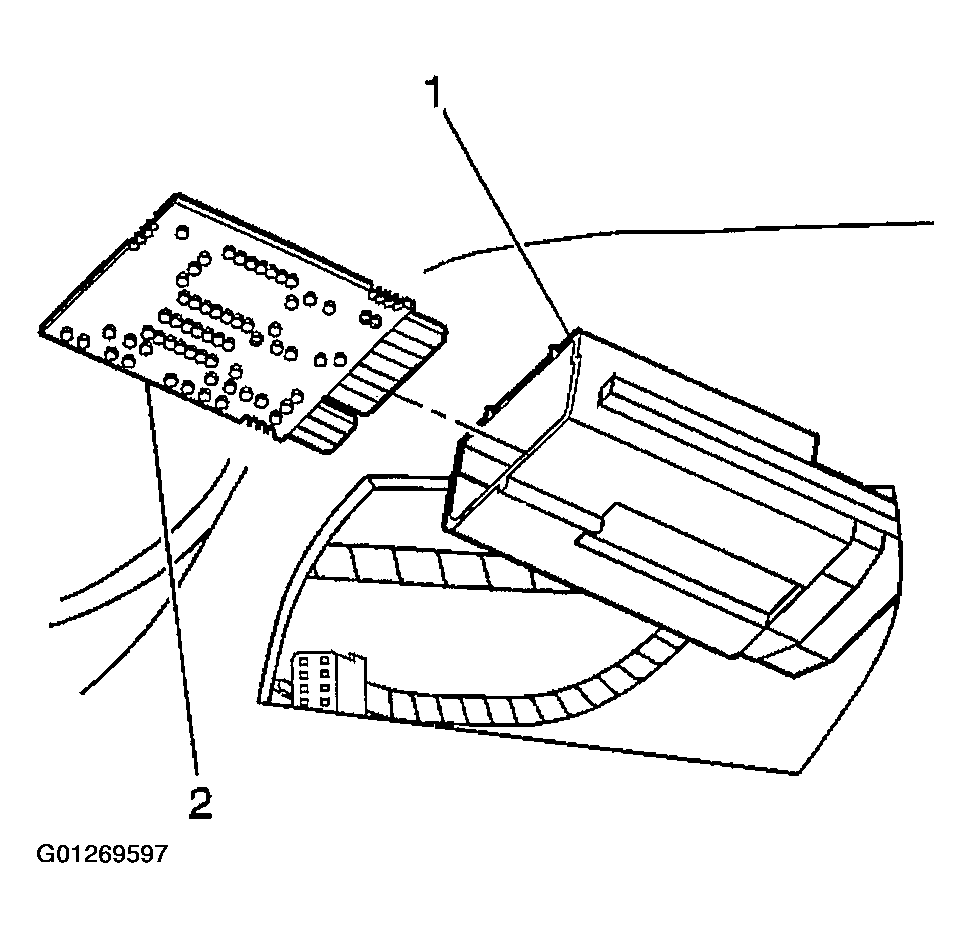

    Fig 2: Removing HVAC Control Processor
    G01269597Courtesy of GENERAL MOTORS CORP.
