Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front control switch bezel (4) from the headliner.
  2. Remove the front control switch (3) by unsnapping the retainers from the headliner.
  3. Disconnect the electrical connector.

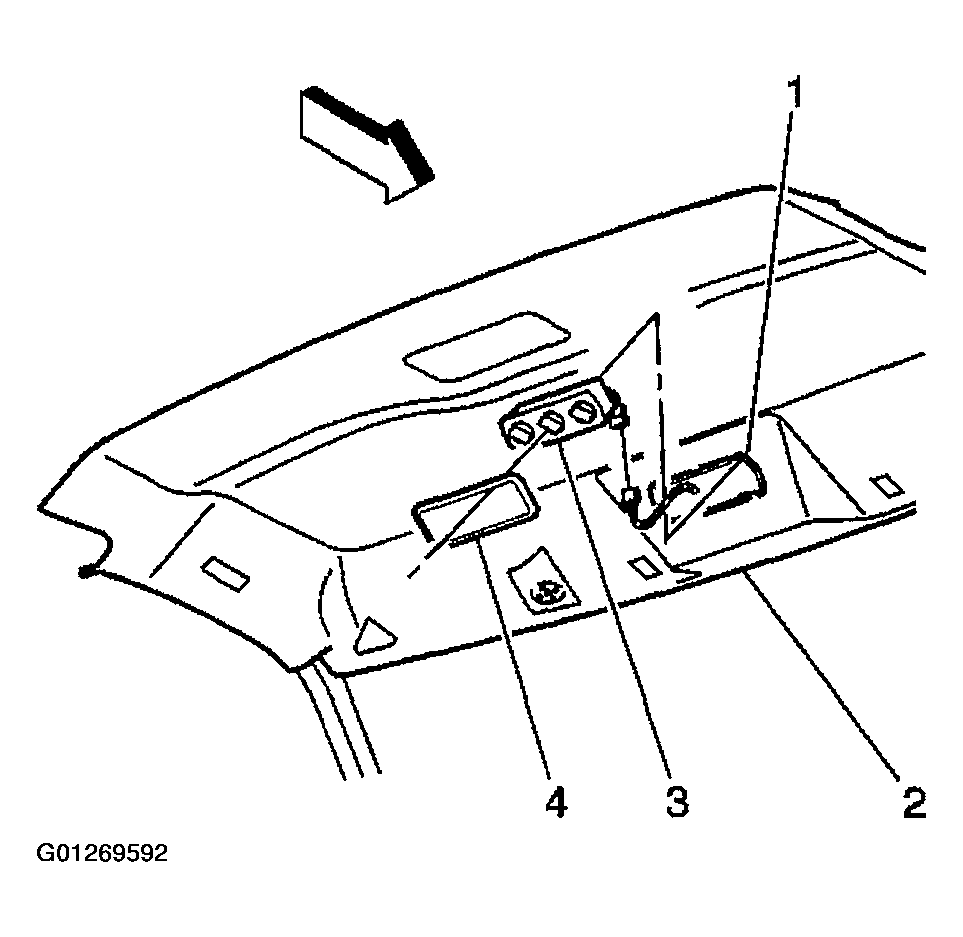

    Fig 1: Removing Front Control Switch
    G01269592Courtesy of GENERAL MOTORS CORP.
