Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear quarter trim panel. Refer to Trim Panel Replacement - Left Body Side in Interior Trim .
  2. Disconnect the electrical connector from the air temperature actuator.
  3. Remove the retaining screws from the air temperature actuator.
  4. Remove the air temperature actuator.

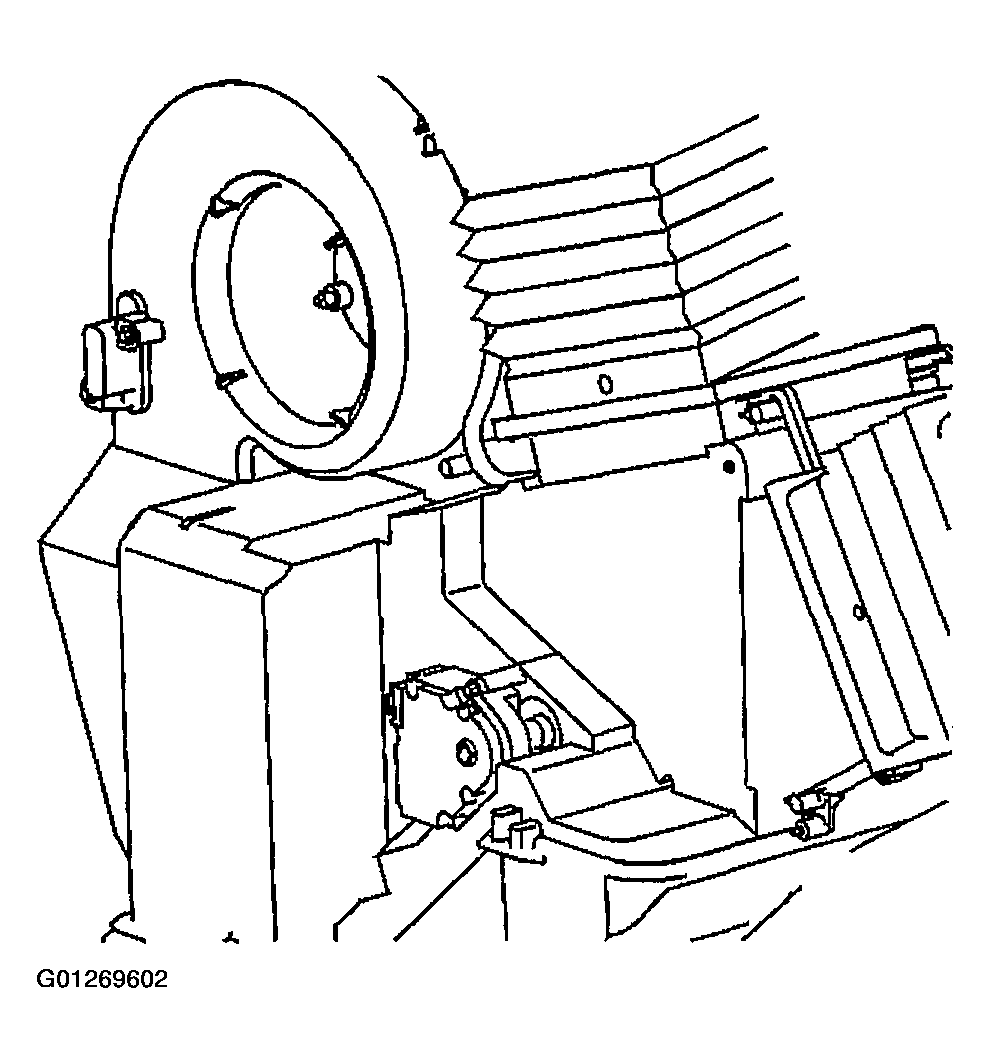

    Fig 1: Removing Air Temperature Actuator
    G01269602Courtesy of GENERAL MOTORS CORP.
