Blower Motor Always On - Auxiliary (Passenger Van w/Aux)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Test Description

The numbers below refer to the step numbers on the diagnostic table.

15. The auxiliary blower motor switch control circuit is the circuit that enables the rear auxiliary HVAC control assembly when the front auxiliary blower motor switch is placed in the rear control position.

16. The auxiliary blower motor switch control circuit is the circuit that enables the rear auxiliary HVAC control assembly when the front auxiliary blower motor switch is placed in the rear control position.

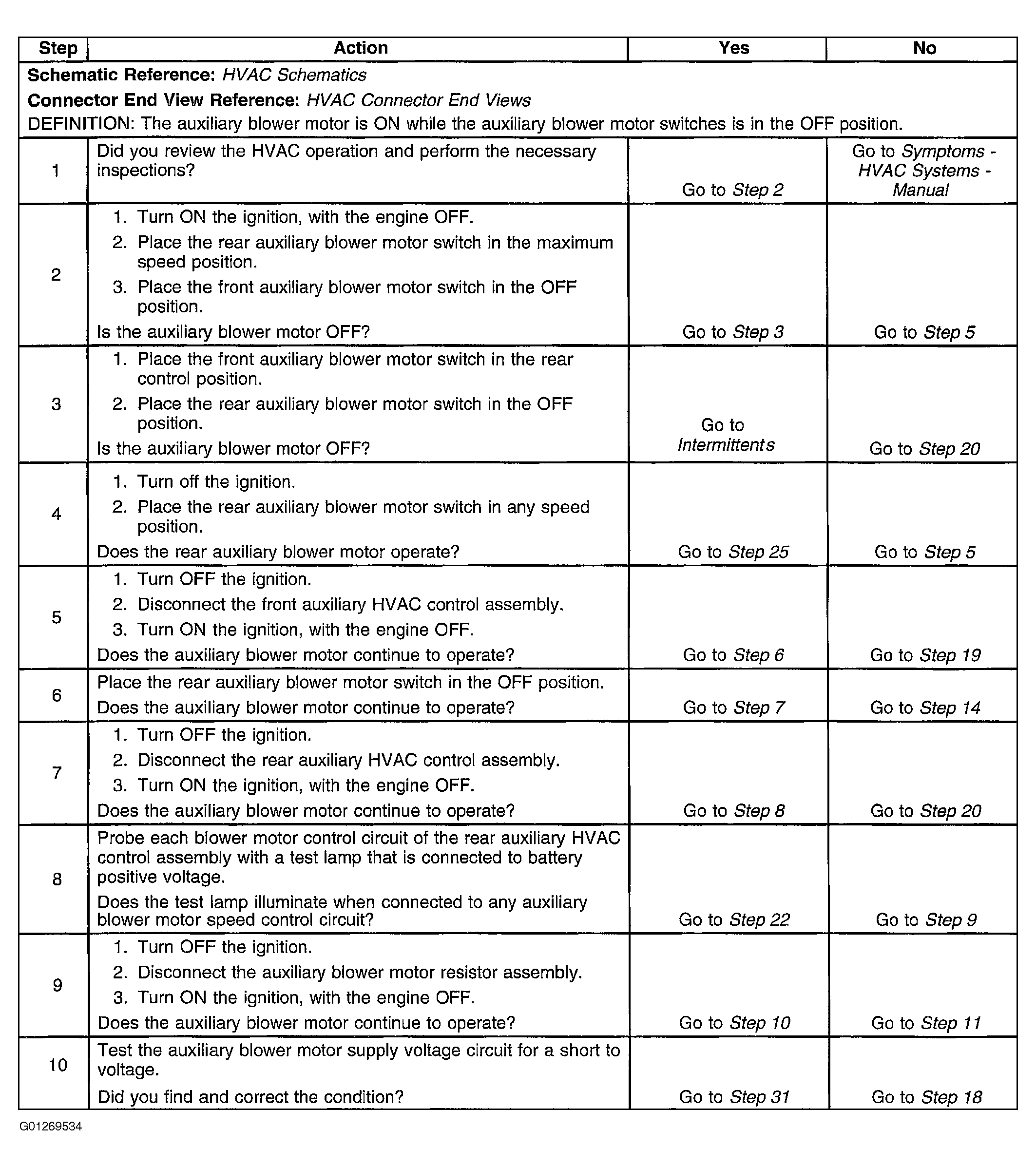

Fig 1: Blower Motor Always On - Auxiliary (Passenger Van w/Aux) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

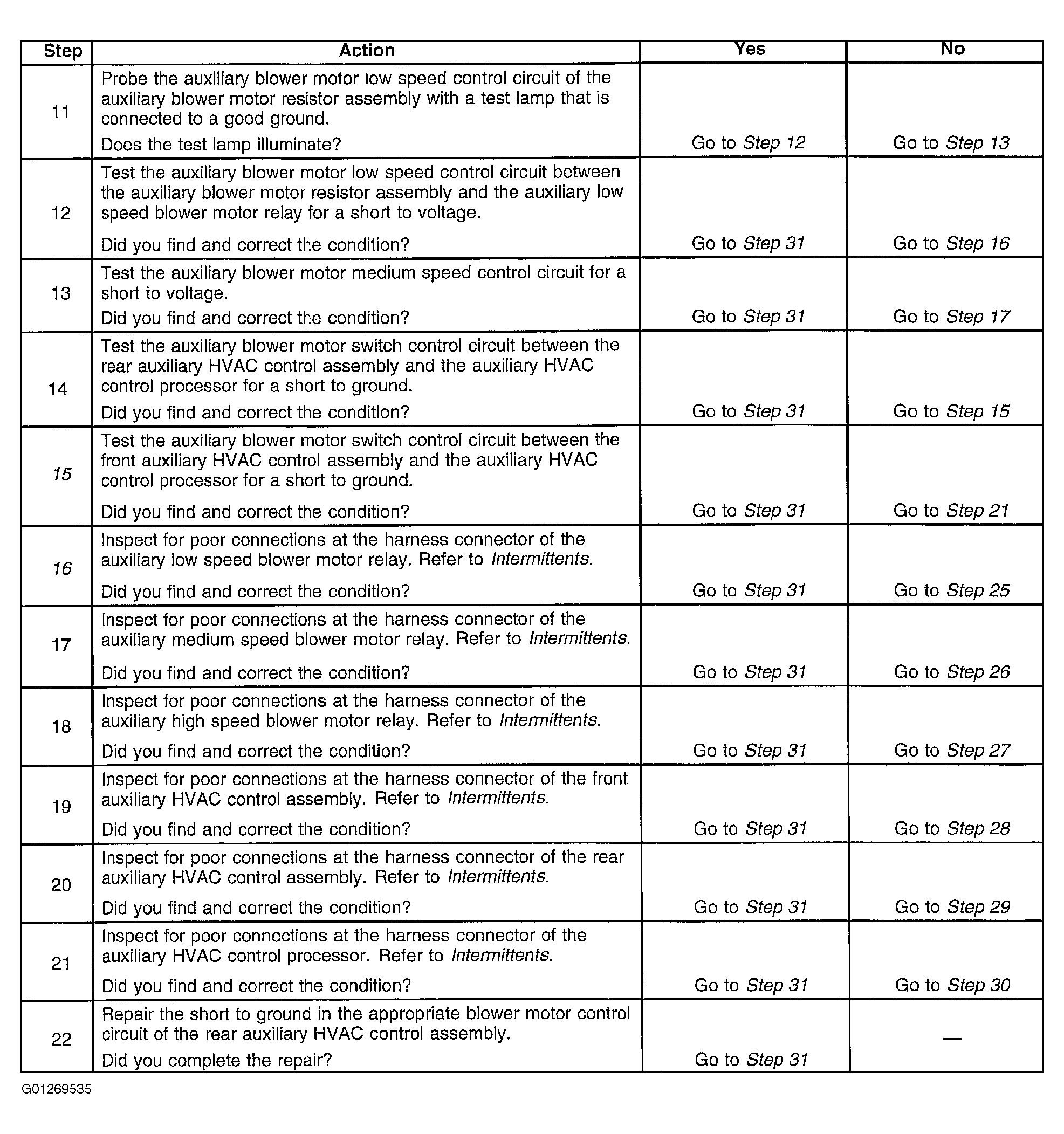

Fig 2: Blower Motor Always On - Auxiliary (Passenger Van w/Aux) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

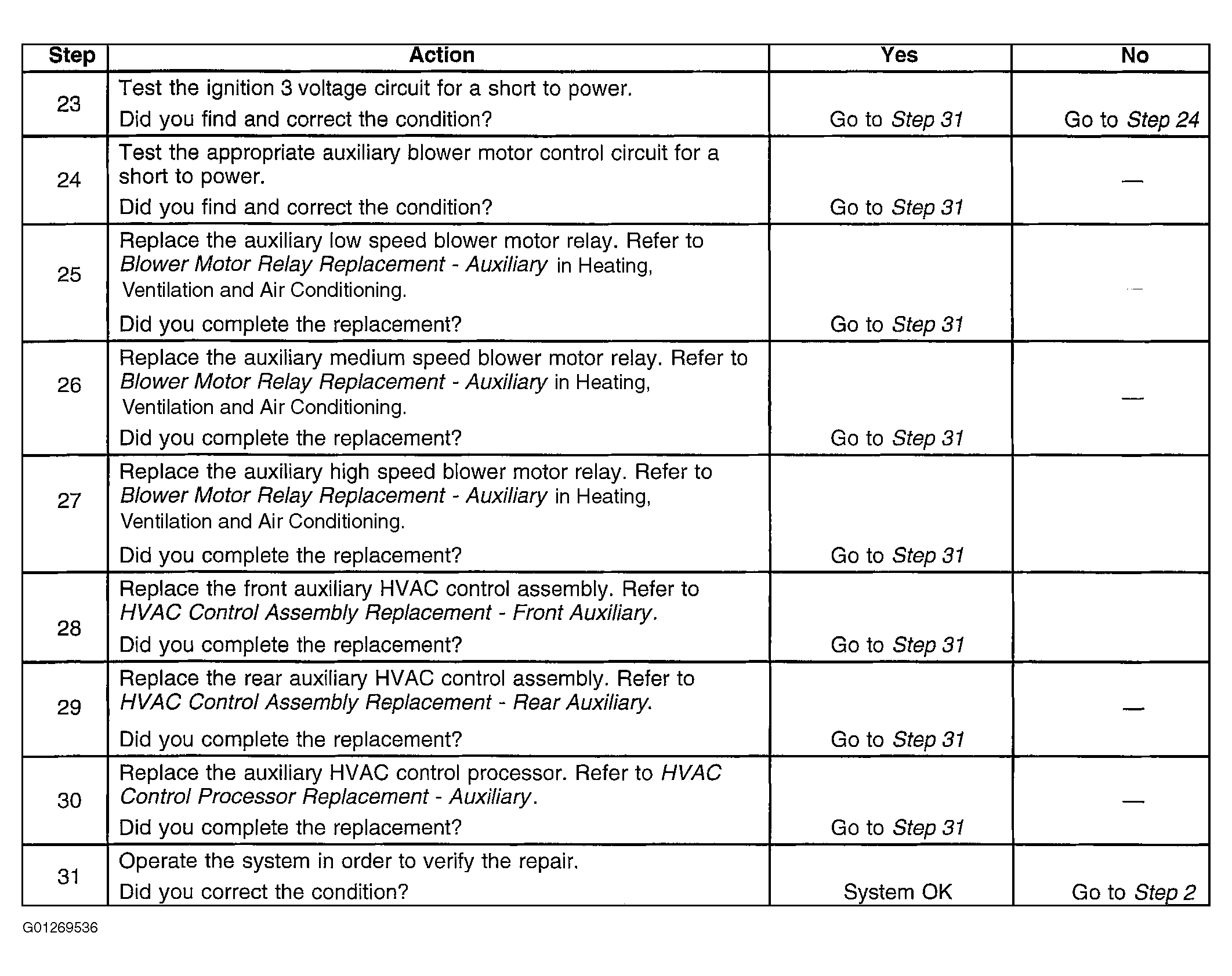

Fig 3: Blower Motor Always On - Auxiliary (Passenger Van w/Aux) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
