Blower Motor Always On - Auxiliary (Aux Heat Only or Cargo Van w/Aux)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

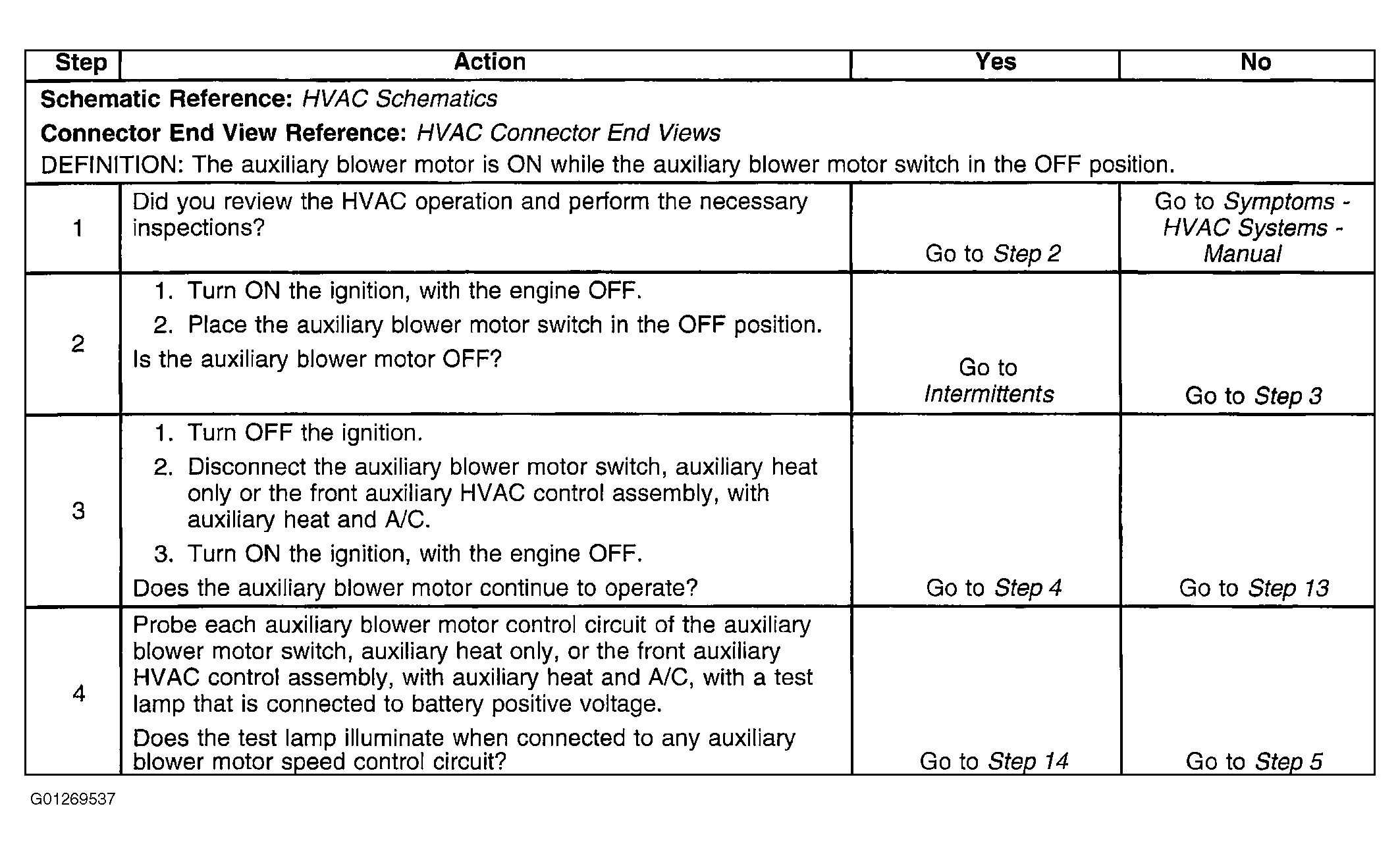

Fig 1: Blower Motor Always On - Auxiliary (Aux Heat Only Or Cargo Van w/Aux) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

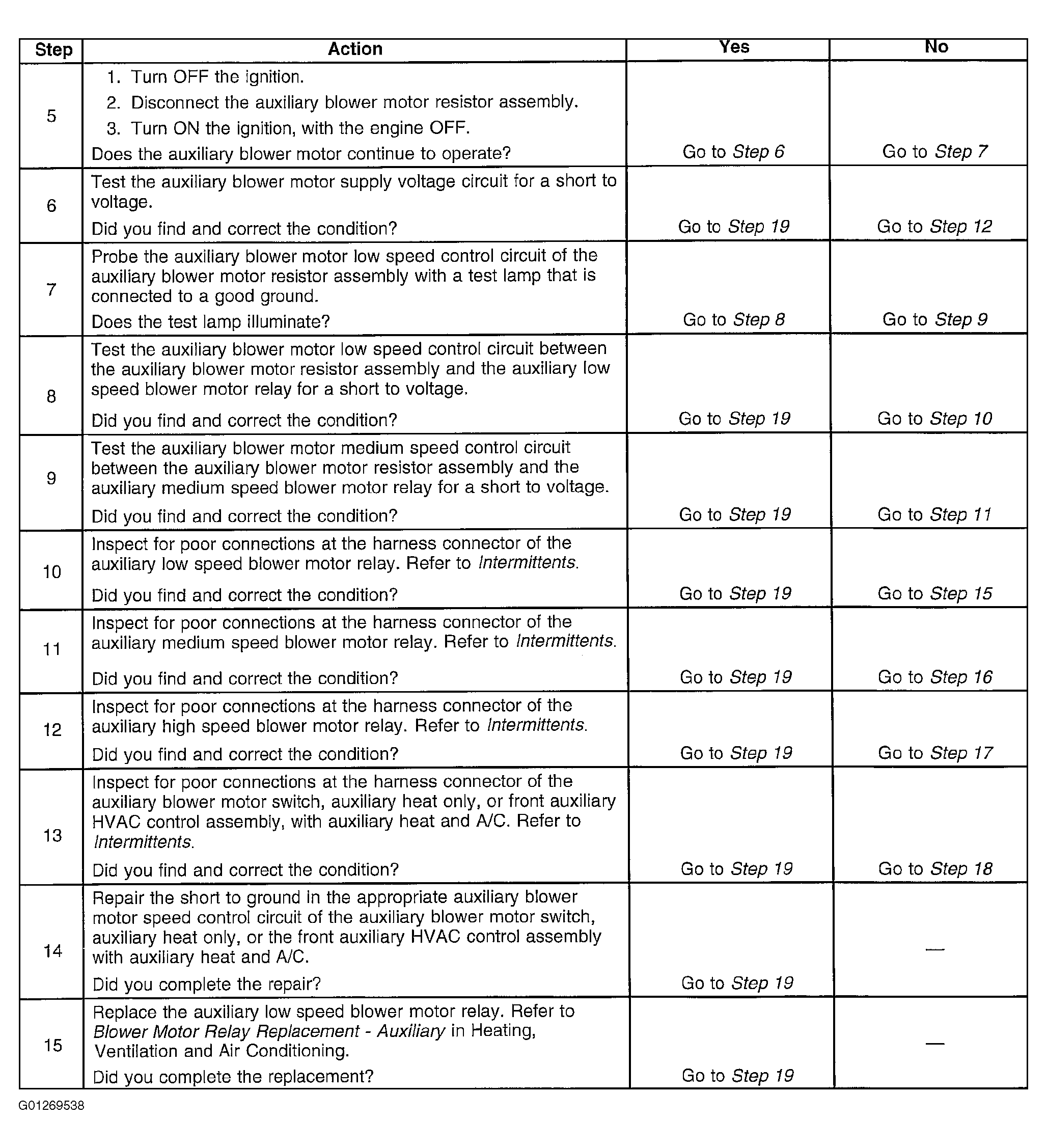

Fig 2: Blower Motor Always On - Auxiliary (Aux Heat Only Or Cargo Van w/Aux) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

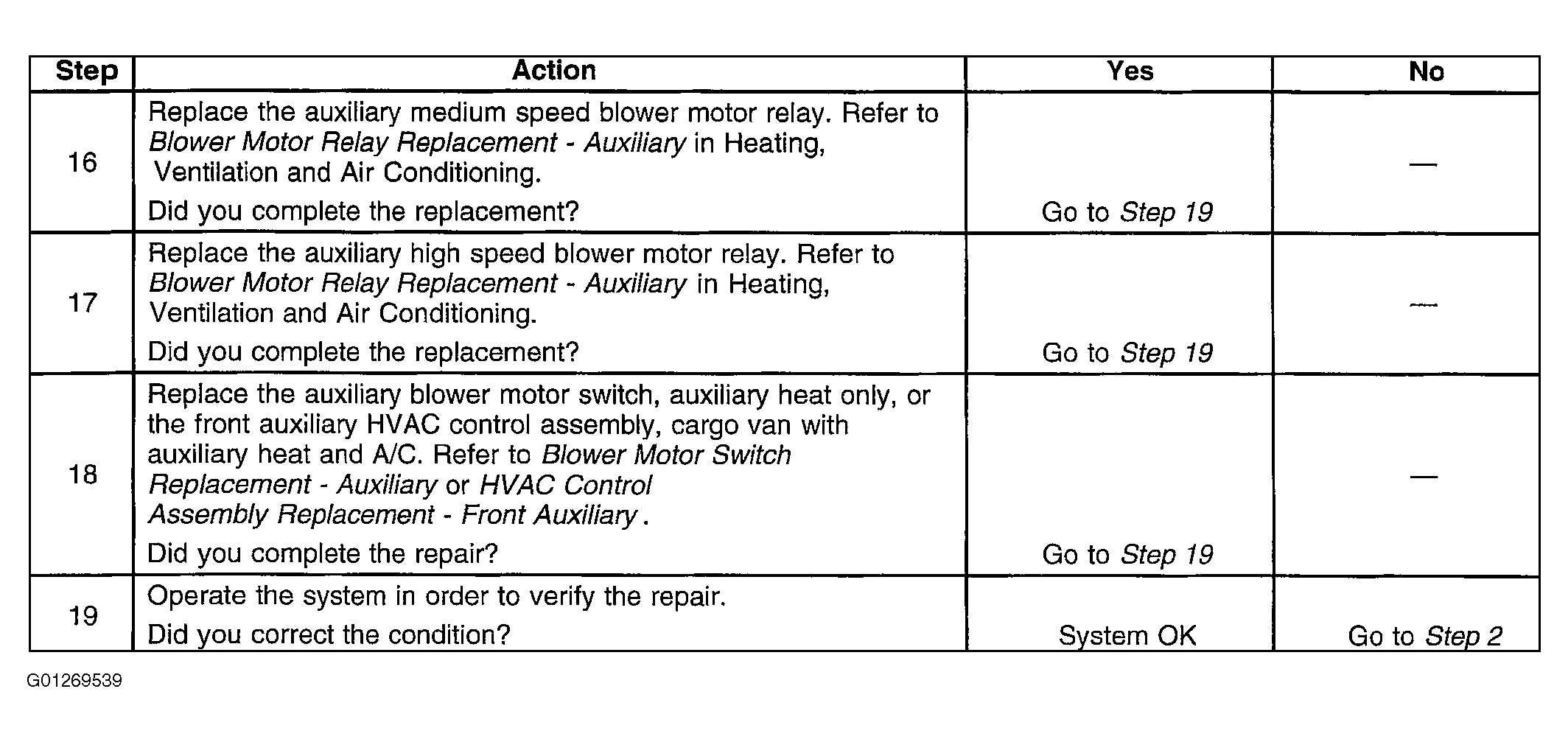

Fig 3: Blower Motor Always On - Auxiliary (Aux Heat Only Or Cargo Van w/Aux) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
