Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling .
  3. Remove the suction line nut (1) from the accumulator.
  4. Remove the rear suction line nut (2) if equipped with rear air.
  5. Raise the vehicle.
  6. Remove the suction line bolt from the compressor.
  7. Remove the suction line from the vehicle.

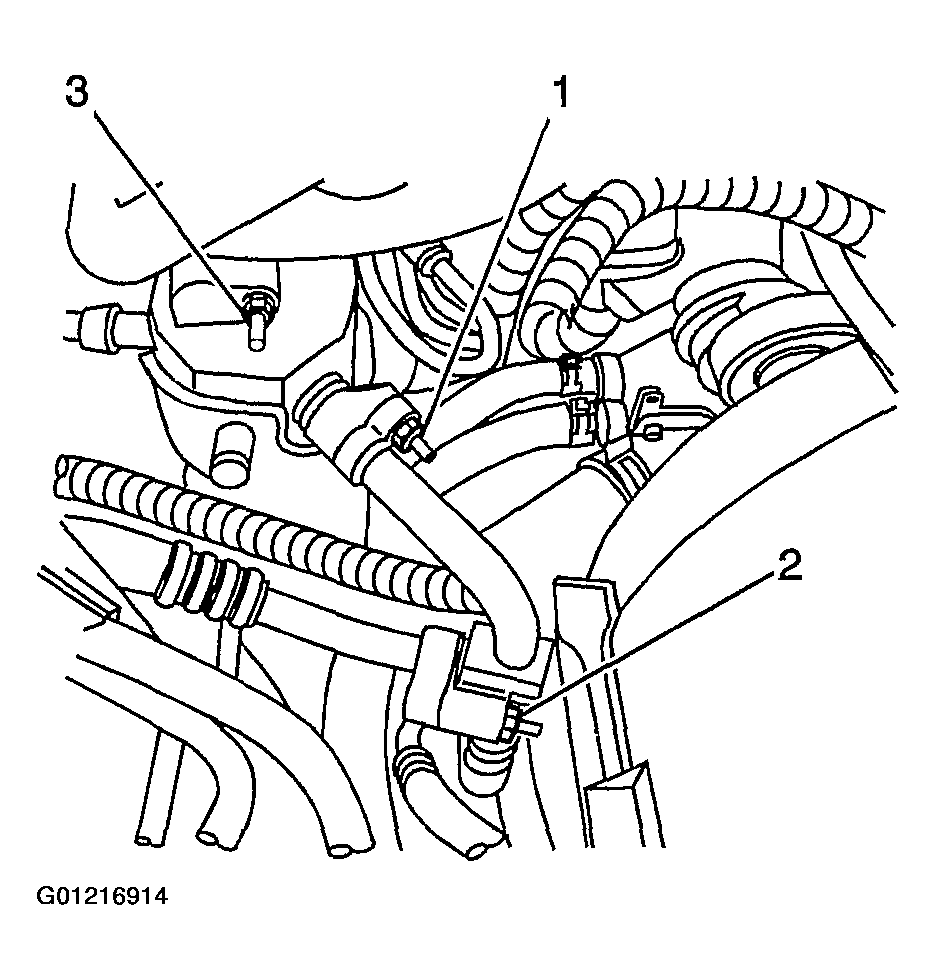

    Fig 1: Removing Suction Line & Rear Suction Line Nuts
    G01216914Courtesy of GENERAL MOTORS CORP.
