Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater assembly. Refer to Heater Assembly Replacement .
  2. Disconnect the vacuum hose from the lower mode actuator (2).
  3. Remove the lower mode actuator (2) from the heater assembly (4).
  4. Remove the linkage from the lower mode actuator (2).
  5. Remove the heater assembly cover screws.
  6. Remove the heater assembly cover.

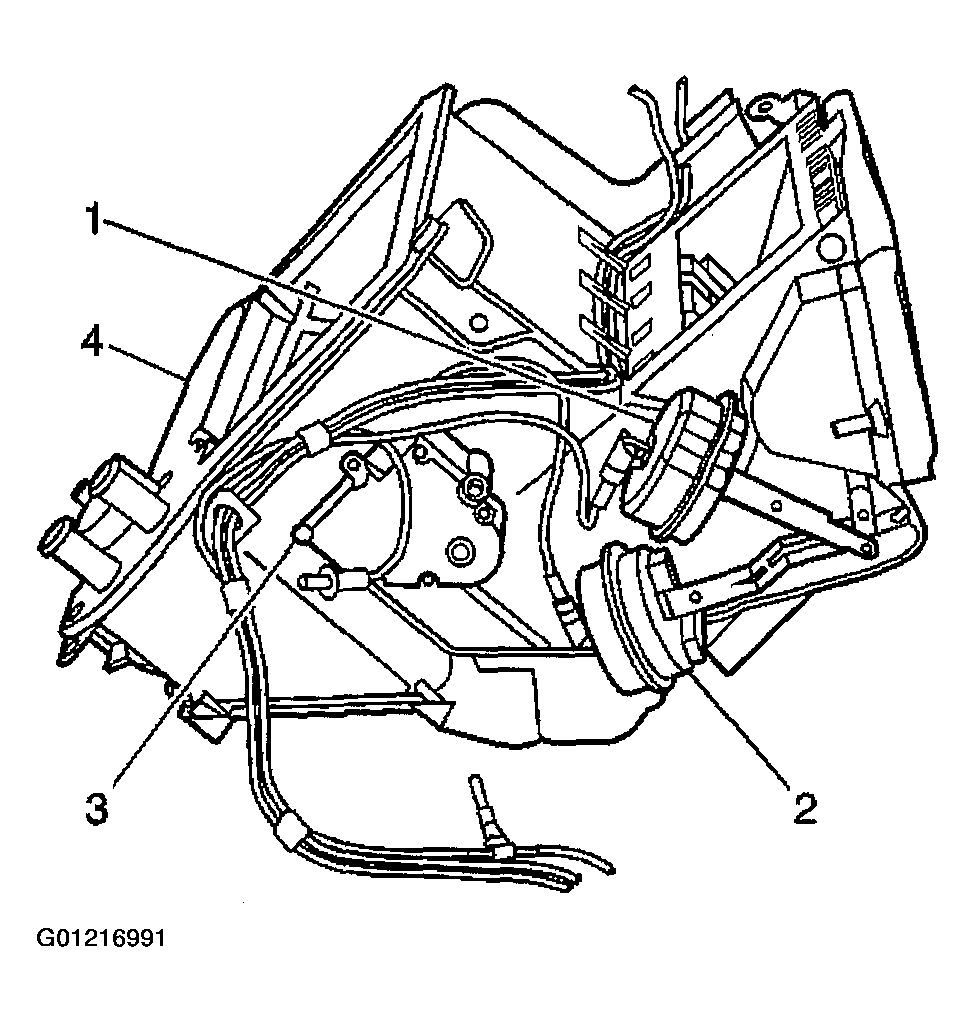

    Fig 1: Disconnecting Vacuum Hose & Removing Lower Mode Actuator
    G01216991Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower mode door (1) to the heater assembly (2).

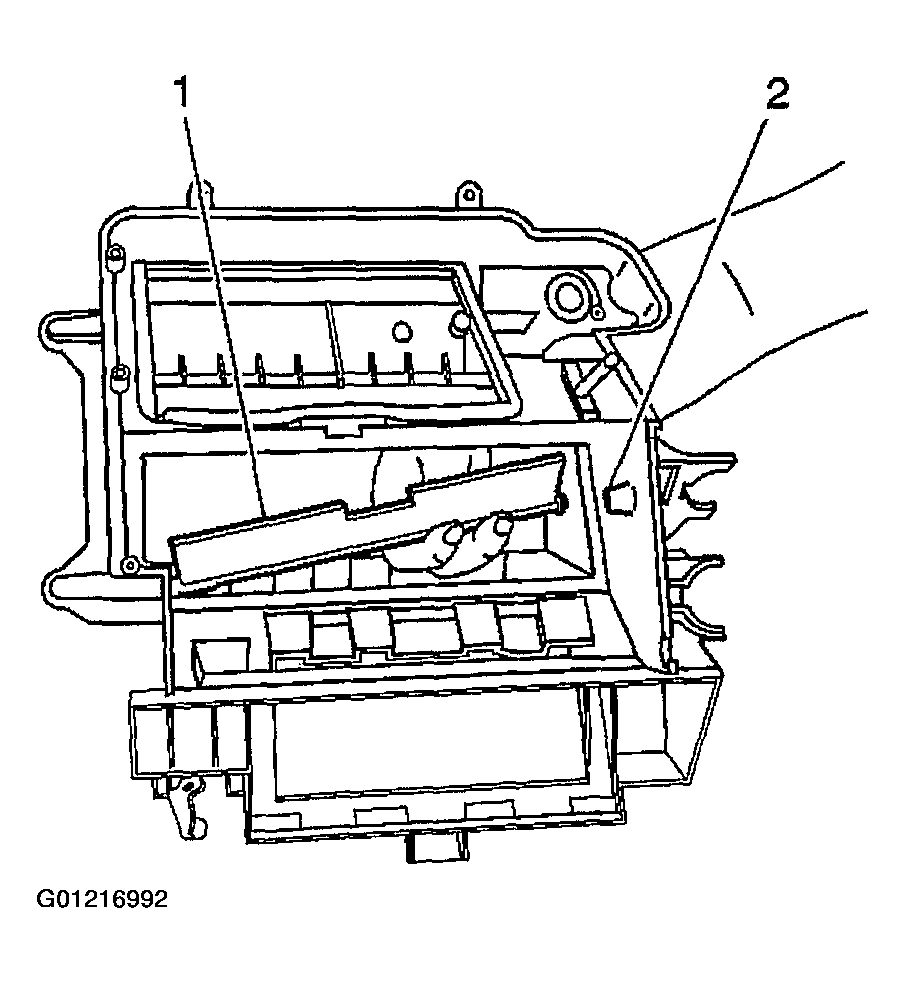

    Fig 2: Removing Lower Mode Door
    G01216992Courtesy of GENERAL MOTORS CORP.
