Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet heater hose to the heater core outlet.
  2. Install the outlet heater hose to the outlet radiator hose connection.
  3. Install the heater hose clamps using the J-39529  .
  4. Fill the engine coolant. Refer to Draining and Filling Cooling System in Engine Cooling .
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.3L or to Air Cleaner Assembly Replacement in Engine Controls - 4.8, 5.3, and 6.0L .

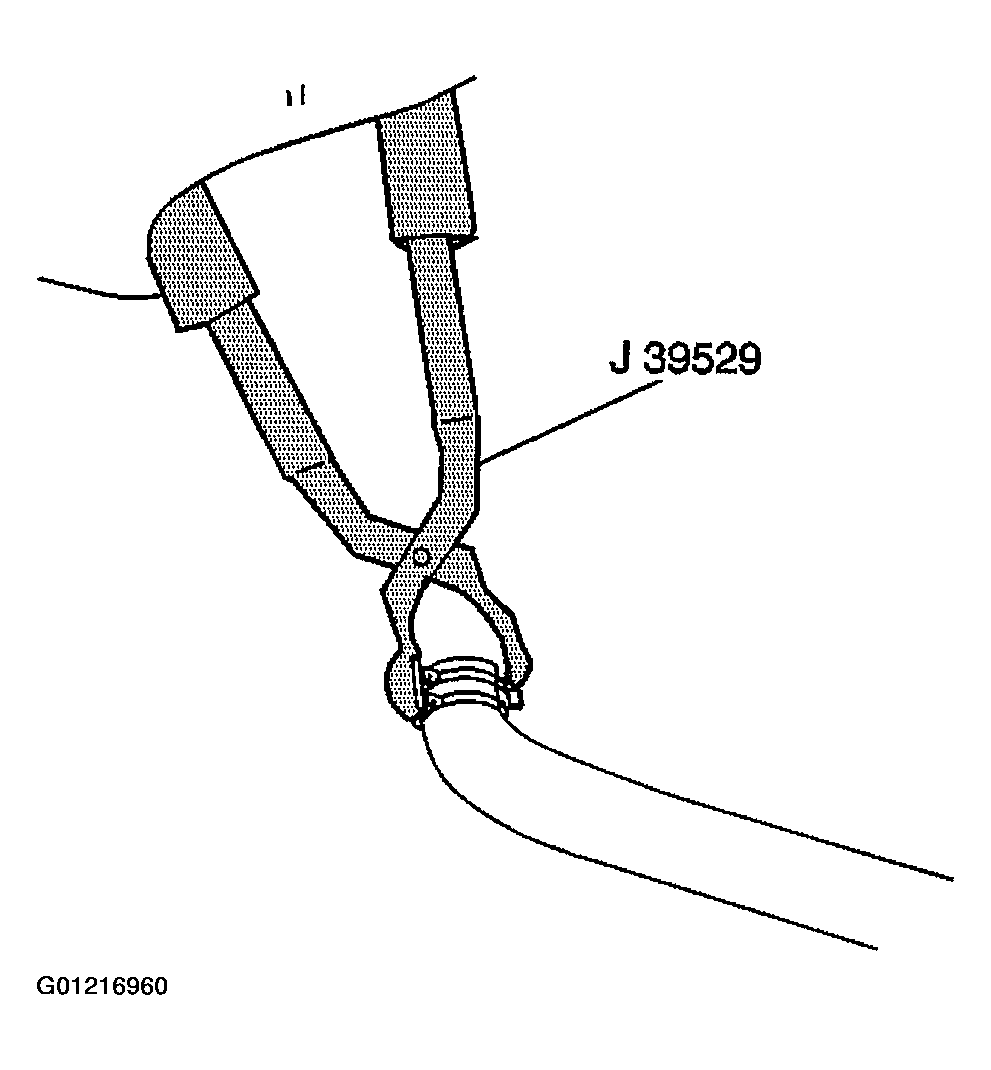

    Fig 1: Installing Heater Hose Clamps Using J-39529
    G01216960Courtesy of GENERAL MOTORS CORP.
