Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auxiliary HVAC module. Refer to HVAC Module Replacement - Auxiliary .
  2. Remove the screws from the bottom of the auxiliary HVAC module.
  3. Remove the heater core from the module.

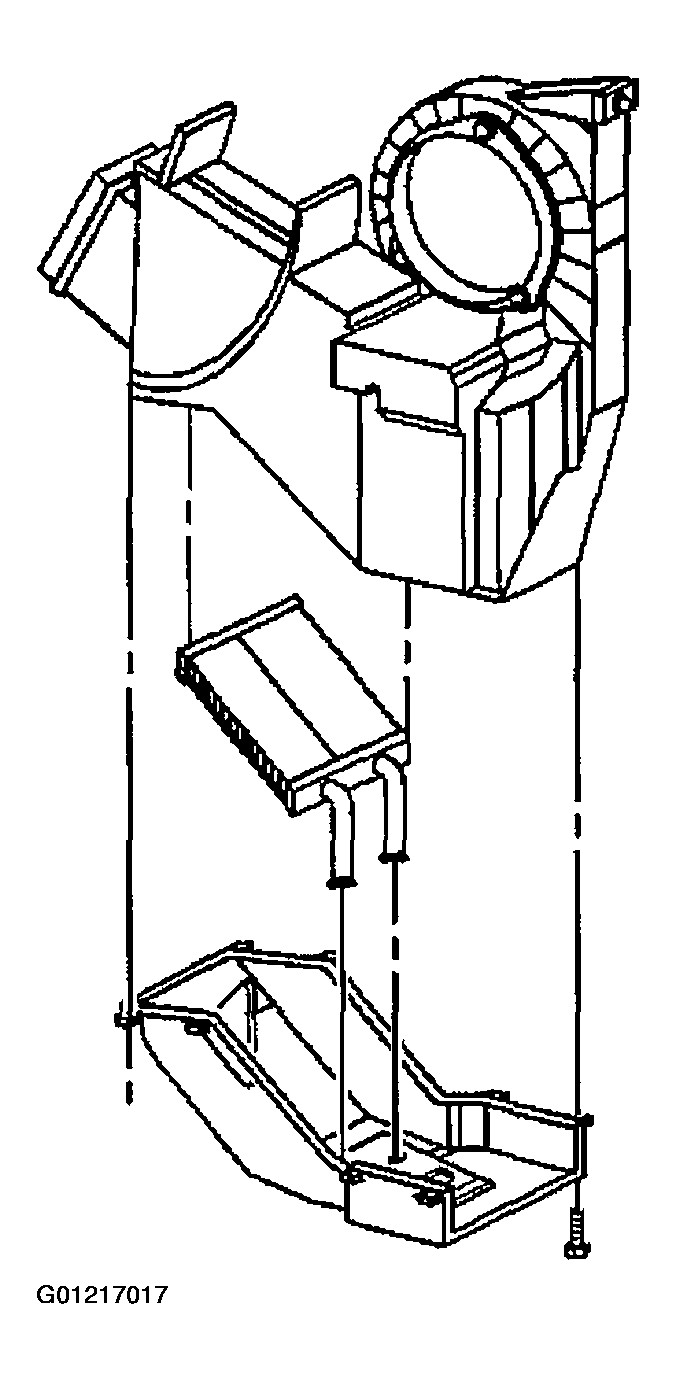

    Fig 1: Removing Auxiliary Heater Core
    G01217017Courtesy of GENERAL MOTORS CORP.
