Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary HVAC module.
  2. Raise and suitably support the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the retaining nuts to the underside of the auxiliary HVAC module.

    Tighten

    Tighten the auxiliary heater retaining nuts to 10 N.m (89 lb in).

  4. Connect the heater lines to the underside of the auxiliary heater.
  5. Install the one retaining nut to the auxiliary evaporator underbody rear tube assembly to the core.

    Tighten

    Tighten the nut to 28 N.m (21 lb ft).

  6. Install the cover to the underside of the auxiliary HVAC module.
  7. Lower the vehicle.

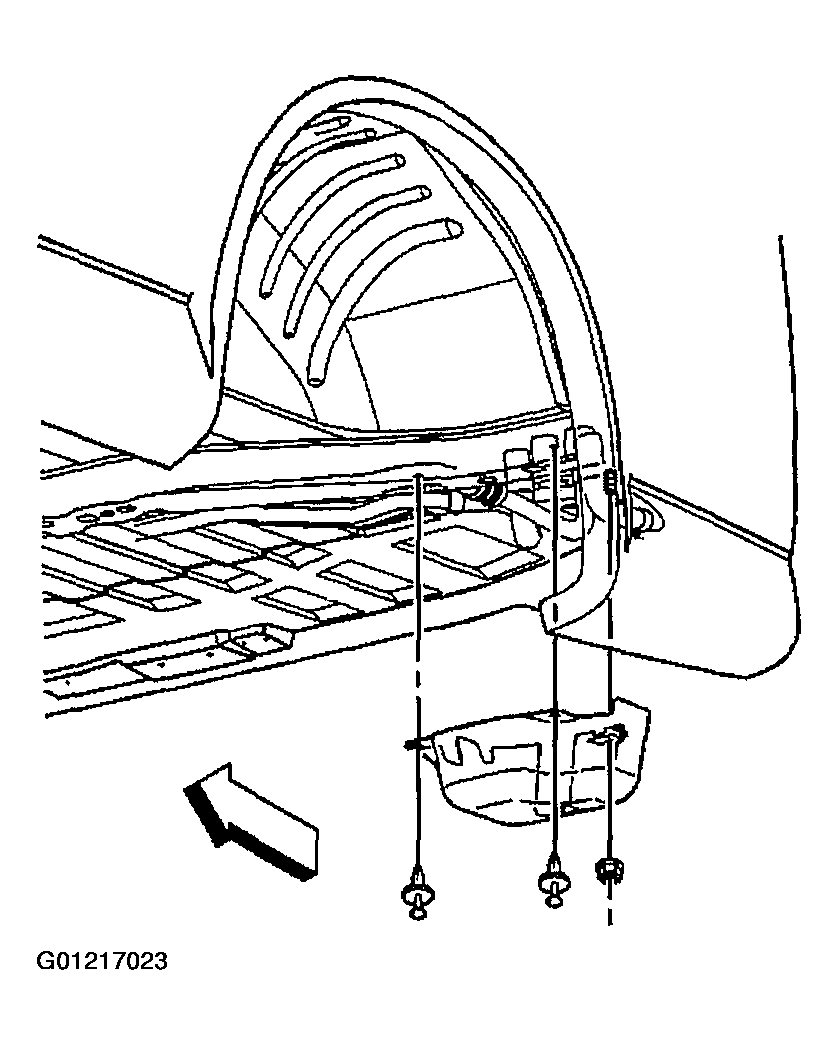

    Fig 1: Installing Auxiliary HVAC Module
    G01217023Courtesy of GENERAL MOTORS CORP.
  8. Connect the electrical connectors to the auxiliary HVAC module (1).
  9. Install the air distribution duct upper. Refer to Air Distribution Duct Replacement - Upper Auxiliary .
  10. Install the air distribution duct lower. Refer to Air Distribution Duct Replacement - Lower Auxiliary .
  11. Install the left rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner in Interior Trim .
  12. Install the left rear quarter trim panel. Refer to Trim Panel Replacement - Left Body Side in Interior Trim .
  13. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  14. Fill the engine coolant. Refer to Draining and Filling Cooling System in Engine Cooling .

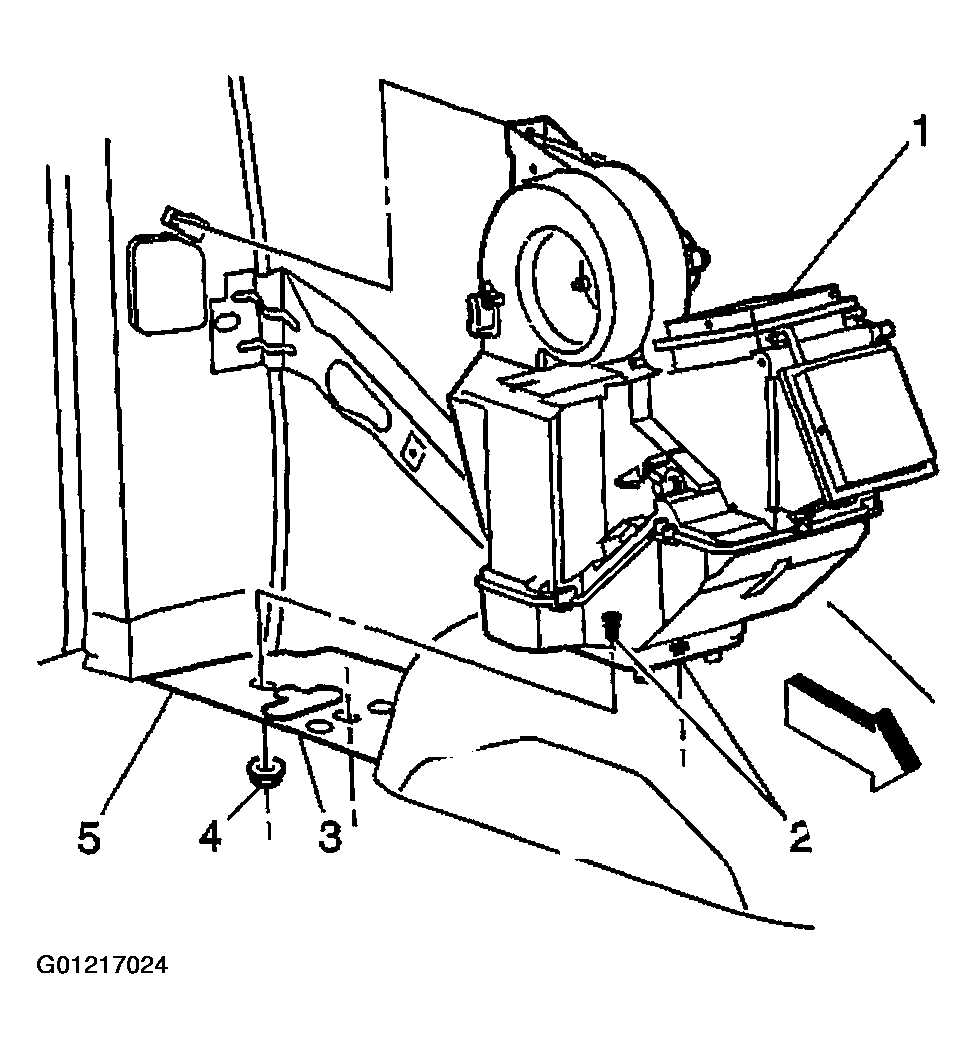

    Fig 2: Connecting Auxiliary HVAC Module Electrical Connectors
    G01217024Courtesy of GENERAL MOTORS CORP.
