Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging .
Remove the evaporator hose retaining nut from the evaporator.
Use the J-26549-E in order to remove the expansion tube (1).
If the expansion tube is stuck perform the following:
- Remove as much of the impacted residue as possible.
- Carefully apply heat with a heat gun, or hair dryer 7 mm (0.25 in) from the dimples on the inlet pipe.
  DO NOT overheat the pipe.
- While applying heat, use the J-26549-E in order to grip the expansion tube. Use a turning motion along with a push-pull motion to loosen the impacted expansion tube and remove.

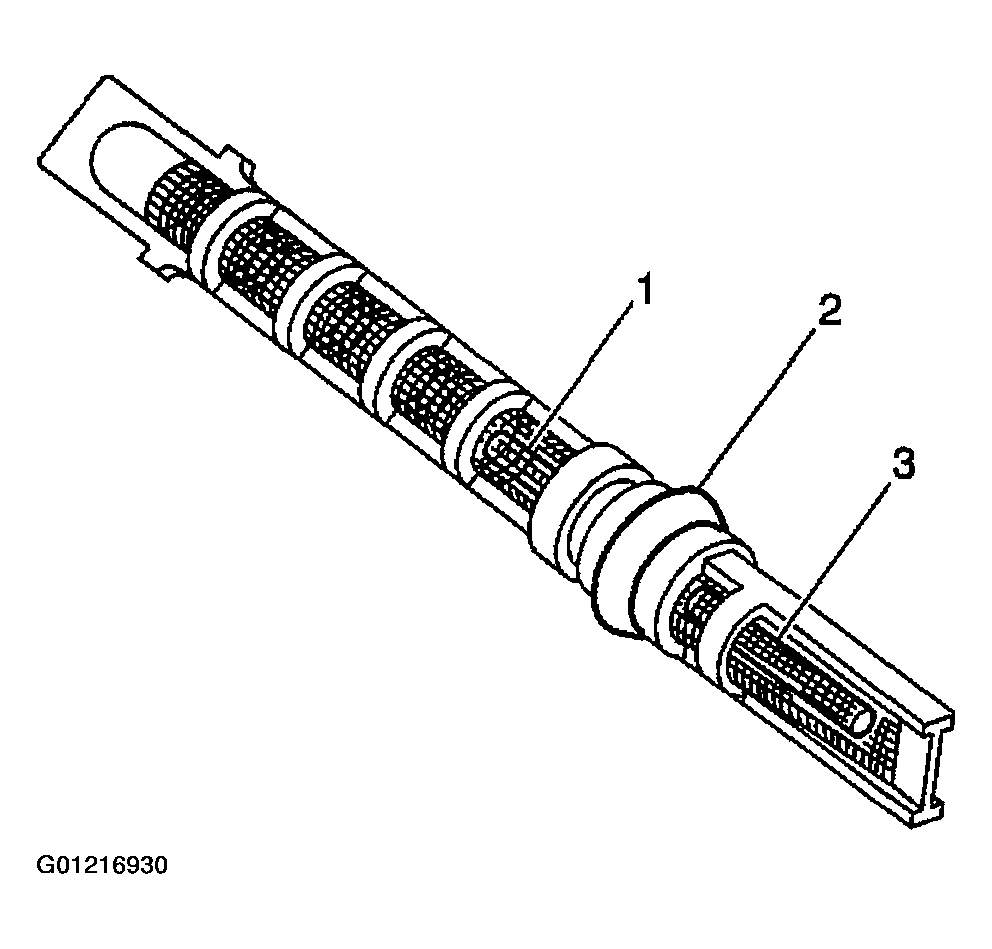

  Fig 1: Removing Expansion Tube
  Courtesy of GENERAL MOTORS CORP.
